基于多模态特征融合网络的空时分组码识别算法

doi:10.12236/DZXB.20210326

摘要/Abstract

摘要：

针对现有算法在空时分组码（Space-Time Block Code， STBC）识别过程中，存在的低信噪比下误判概率高、识别效率低等问题，本文提出了一种基于多模态特征融合网络（Multi-Modality Features Fusion Network，MMFFN）的空时分组码自动识别方法.首先在合并卷积层将STBC时域样本映射为一维特征向量的基础上，采用多扩张率下的扩张卷积提取非连续时间窗的STBC码内特征，实现多时延特征自提取，然后构建多时序特征自提取模块以提取码间时序特征，进一步扩展映射特征类型，最后提取多时延拼接层的最大时延特征作为深层融合特征，并增加了带跨越连接的残差层以提升融合特征利用率，实现空时分组码识别.仿真实验结果表明，本文算法在-9dB下对6类STBC信号的识别准确率达到了90%以上，较现有识别算法的性能获得了显著提升，对低信噪比有较强的适应性.本文提出的STBC多时延特征提取和融合方法，为结合传统算法设计深度学习网络结构提供了新思路，其思想同样可应用于其他通信信号识别领域.

关键词: 空时分组码, 深度学习, 扩张卷积, 多时延特征, 多时序特征, 最大时延融合

Abstract:

* Aiming at the problems of the existing algorithms in the process of space-time block code (STBC) recognition, such as high misdiagnosis probability and low recognition efficiency under low signal to noise ratio (SNR), this paper proposes an automatic space-time block code recognition method based on multi-modality feature fusion network (MMFFN). Firstly, on the basis of mapping STBC time-domain samples into one-dimensional feature vectors by merging convolution layers, the dilated convolution at multiple dilation rates is used to extract STBC code features from discontinuous time windows, and the self-extraction of multi-delay features is realized. Then, the multi-sequence feature self-extraction module is constructed to extract the inter-code sequence feature, and the mapping feature types are further extended. Finally, the maximum delay feature of the multi-delay Mosaic layer is extracted as the deep fusion feature, and the residual layer with span connection is added to improve the utilization of fusion feature and realize space-time block code recognition. Simulation results show that the recognition accuracy of the proposed algorithm for 6 types of STBC signals reaches more than 90% under -9dB, which is significantly improved compared with the performance of existing recognition algorithms, and has a strong adaptability to low SNR. The STBC multi-delay feature extraction and fusion method proposed in this paper provides a new idea for the design of deep learning network structure by combining traditional algorithms, and the idea can also be applied to other communication signal recognition fields.

Key words: space-time block code, deep learning, dilated convolution, muti-delay features, muti-sequential features, maximum delay fusion

中图分类号:

TN911.7

张聿远, 闫文君, 张立民. 基于多模态特征融合网络的空时分组码识别算法[J]. 电子学报, DOI: 10.12236/DZXB.20210326.

ZHANG Yu-yuan, YAN Wen-jun, ZHANG Li-min. Space-Time Block Code Recognition Algorithm Based on Multi-Modality Features Fusion Network[J]. Acta Electronica Sinica, DOI: 10.12236/DZXB.20210326.

图/表 11

图1 多模态特征融合网络框架

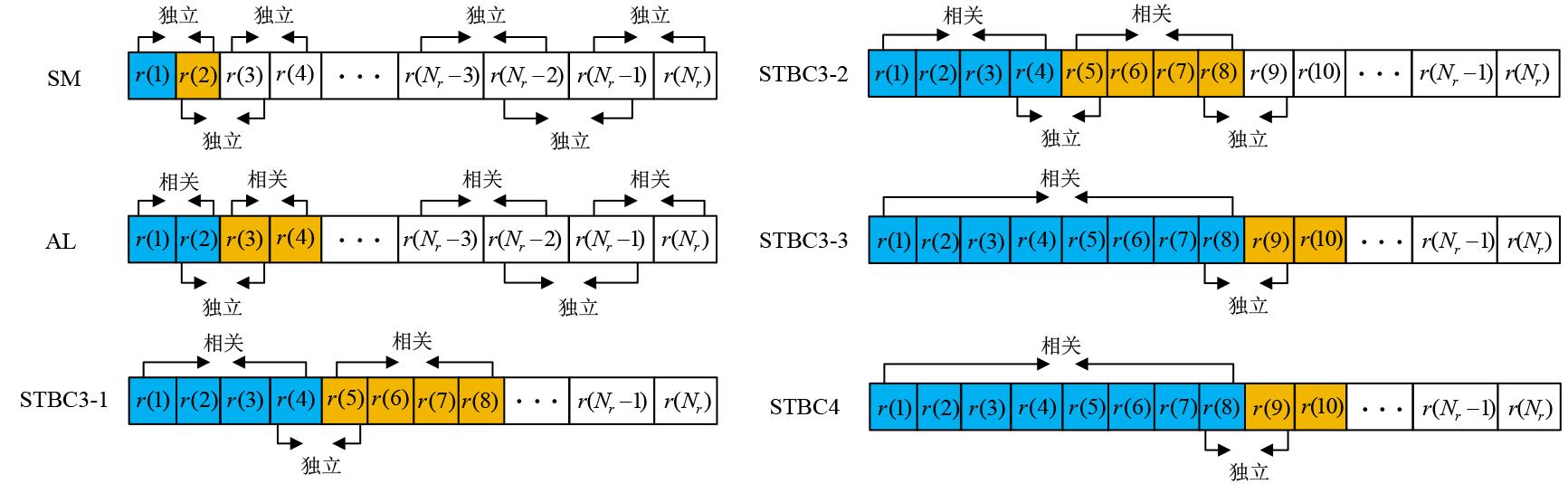

图2 空时分组码相关性分布

表1 STBC多时延相关性分布

STBC类型	时延 $τ = 1$	时延 $τ = 2$	时延 $τ = 4$
SM	×	×	×
AL	√	×	×
STBC3-1	√	√	×
STBC3-2	√	√	×
STBC3-3	√	√	√
STBC4	√	√	√

表1 STBC多时延相关性分布

STBC类型	时延 $τ = 1$	时延 $τ = 2$	时延 $τ = 4$
SM	×	×	×
AL	√	×	×
STBC3-1	√	√	×
STBC3-2	√	√	×
STBC3-3	√	√	√
STBC4	√	√	√

表2 MMFFN网络参数设置

模块名称	参数设置
多时延特征自提取	输入层:input = $2 × 128$
	合并卷积层:filters = 128, kernel size = (2,1), padding = 'valid'
	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,1), padding = 'same'	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,2), padding = 'same'	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,4), padding = 'same'
多时序特征自提取	卷积层:filters = 128, kernel size = (1,4), padding = 'same'	卷积层:filters = 128, kernel size = (1,4), padding = 'same'	卷积层:filters = 128, kernel size = (1,4), padding = 'same'
	尺度变换:(128, 1, 128)→(128, 128)	尺度变换:(128, 1, 128)→(128, 128)	尺度变换:(128, 1, 128)→(128, 128)
	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True
	尺度变换:(128, 32)→(32, 1,128) (X_0)	尺度变换:(128, 32)→(32, 1,128) (X_1)	尺度变换:(128, 32)→(32, 1,128) (X_2)
最大时延特征融合模块	拼接层:concatenate ([X_0, X_1, X_2], axis=2) (X_shortcut)
	最大时延融合层:MaxPooling2D (pool_size = (3, 1), padding = 'valid')
	卷积层:filters = 32, kernel size = (1,2), padding = 'same'
	卷积层:filters = 32, kernel size = (1,2), padding = 'same' (X_3)
	跨越连接层:layers.add ([X_3, X_ shortcut])
	全连接层:units = 64, ReLU激活函数
	全连接层:units = 6, Softmax激活函数

表2 MMFFN网络参数设置

模块名称	参数设置
多时延特征自提取	输入层:input = $2 × 128$
	合并卷积层:filters = 128, kernel size = (2,1), padding = 'valid'
	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,1), padding = 'same'	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,2), padding = 'same'	扩张卷积层:filters = 64, kernel size = (1,2), dilation_rate = (1,4), padding = 'same'
多时序特征自提取	卷积层:filters = 128, kernel size = (1,4), padding = 'same'	卷积层:filters = 128, kernel size = (1,4), padding = 'same'	卷积层:filters = 128, kernel size = (1,4), padding = 'same'
	尺度变换:(128, 1, 128)→(128, 128)	尺度变换:(128, 1, 128)→(128, 128)	尺度变换:(128, 1, 128)→(128, 128)
	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True	LSTM层:units = 32, recurrent_dropout=0.5, return_sequences=True
	尺度变换:(128, 32)→(32, 1,128) (X_0)	尺度变换:(128, 32)→(32, 1,128) (X_1)	尺度变换:(128, 32)→(32, 1,128) (X_2)
最大时延特征融合模块	拼接层:concatenate ([X_0, X_1, X_2], axis=2) (X_shortcut)
	最大时延融合层:MaxPooling2D (pool_size = (3, 1), padding = 'valid')
	卷积层:filters = 32, kernel size = (1,2), padding = 'same'
	卷积层:filters = 32, kernel size = (1,2), padding = 'same' (X_3)
	跨越连接层:layers.add ([X_3, X_ shortcut])
	全连接层:units = 64, ReLU激活函数
	全连接层:units = 6, Softmax激活函数

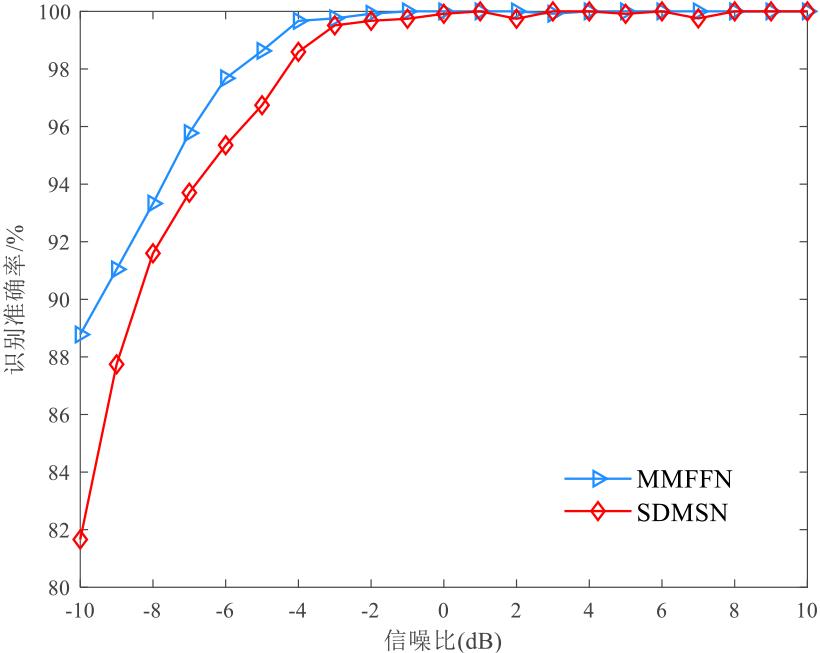

图3 不同时延特征网络的识别性能

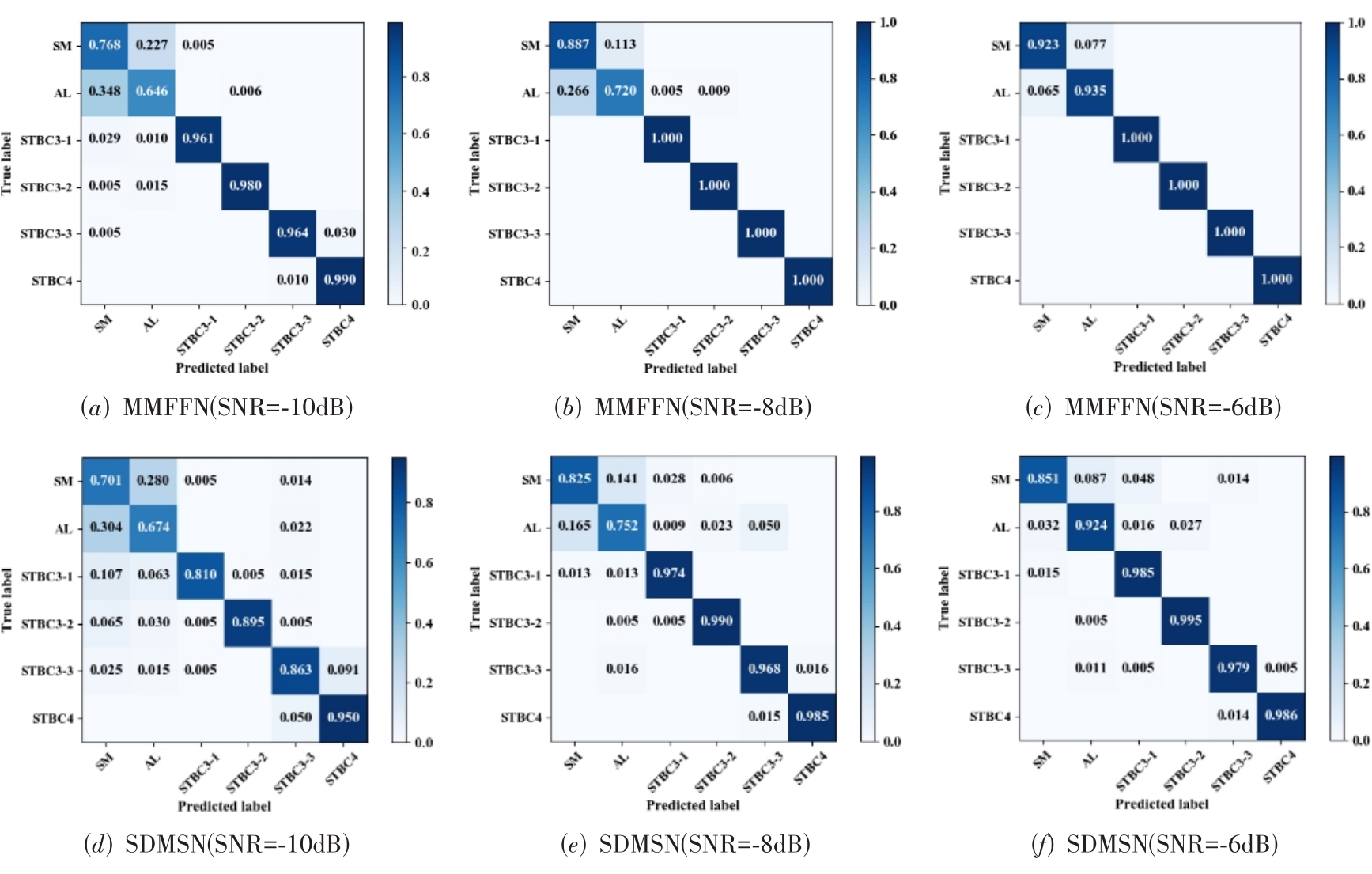

图4 不同时延特征网络的混淆矩阵

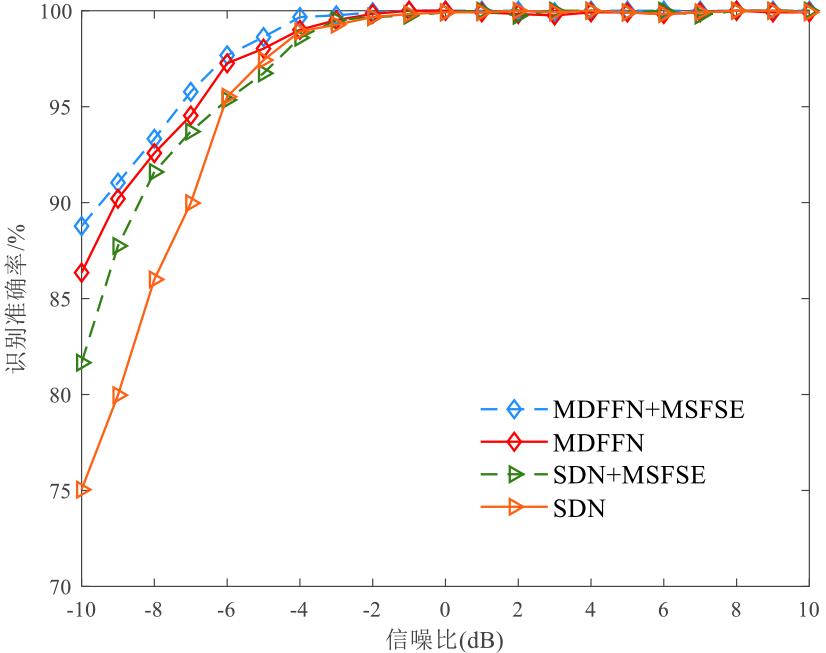

图5 不同时序与时延特征网络的识别性能

图6 LSTM层结构参数对识别性能的影响

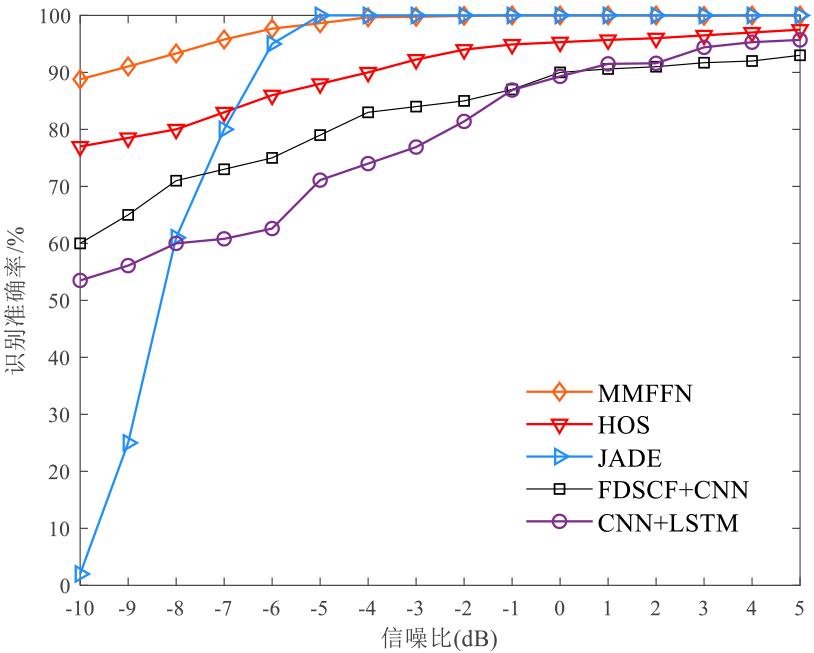

图7 不同识别算法的性能对比

表3 网络复杂度分析

网络	空间复杂度	时间复杂度(ms)
MMFFN	476,998	0.106 ms
FDSCF+CNN	2,645,078	0.015 ms
CNN+LSTM	1,059,522	0.319 ms

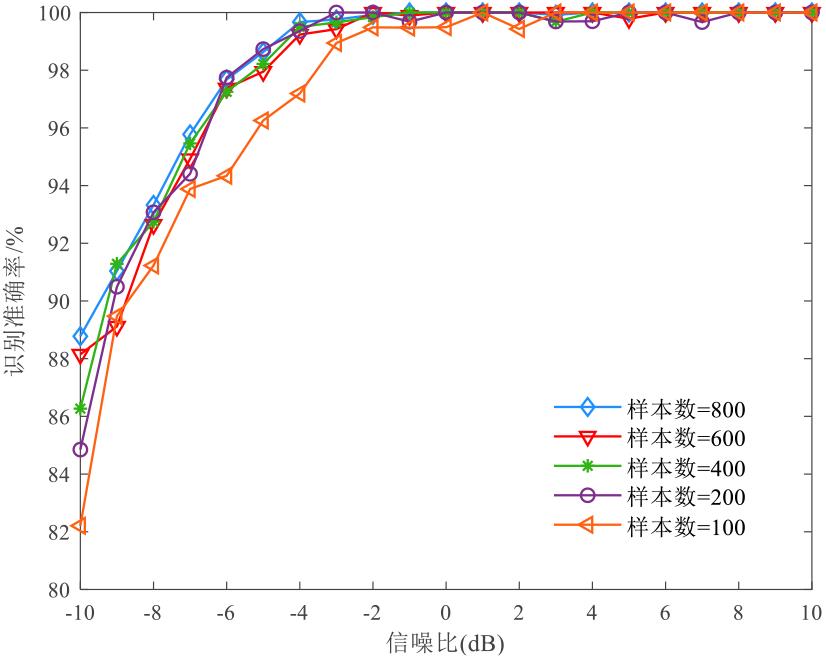

图8 不同样本数下的识别性能对比
