双信道WDM光纤无线集成太赫兹传输系统

doi:10.12263/DZXB.20200973

电子学报 ›› 2022, Vol. 50 ›› Issue (10): 2311-2317.DOI: 10.12263/DZXB.20200973

双信道WDM光纤无线集成太赫兹传输系统

李韦萍¹^,², 王凯辉¹^,², 桑博涵¹^,², 余建军¹^,²

^1.复旦大学通信科学与工程系和电磁波信息科学教育部重点实验室，上海 200433
^2.复旦大学上海先进通信与数据科学研究院，上海 200433

收稿日期:2020-09-03 修回日期:2021-12-06 出版日期:2022-10-25
- 作者简介:
- 李韦萍男，1994年出生，河南泌阳人.本科毕业于国防科技大学，现为复旦大学直博生.主要从事太赫兹通信和光载无线方面的研究工作.E-mail: lwping@fudan.edu.cn
  王凯辉男，1994年出生，浙江嘉兴人.本科毕业于复旦大学，现为复旦大学博士后.主要从事高速光传输和光载无线方面的研究工作.E-mail: 16110720021@fudan.edu.cn
  桑博涵男，1998年出生，河北石家庄人.本科毕业于湖南大学，现为复旦大学直博生.主要从事光子辅助毫米波通信技术方面的研究工作.E-mail: 20110720064@fudan.edu.cn
  余建军男，1968年出生，湖南益阳人.复旦大学教授，博士生导师，OSA Fellow，IEEE Fellow.主要从事高速光纤通信技术、光子辅助毫米波通信技术、太赫兹通信等方面的研究工作.E-mail: jianjun@fudan.edu.cn
- 基金资助:
- 国家自然科学基金 (61935005); 国家重点研发计划 (2018YFB1800900)

Two Channel WDM Wireless and Optical Integration THz Transmission System

LI Wei-ping¹^,², WANG Kai-hui¹^,², SANG Bo-han¹^,², YU Jian-jun¹^,²

^1.Key Laboratory for Information Science of Electromagnetic Waves（MoE），Department of Communication Science and Engineering，Fudan University，Shanghai 200433，China
^2.Shanghai Institute for Advanced Communication and Data Science，Fudan University，Shanghai 200433，China

Received:2020-09-03 Revised:2021-12-06 Online:2022-10-25 Published:2022-10-11

摘要/Abstract

摘要：

为了进一步提升当前主流太赫兹系统的通信容量，本文基于光子辅助太赫兹生成技术、波分复用（Wavelength Division Multiplexing，WDM）、多输入多输出技术（Multiple-Input Multiple-Output，MIMO）以及先进的数字信号处理，提出一种 $N × N$ MIMO光纤-无线-光纤融合太赫兹传输系统模型，搭建双信道WDM的 $2 × 2$ MIMO实验系统，并成功实现两路3 Gbaud四频相移键控（Quad-frequency Phase Shift Keying，QPSK）信号先后在10 km单模光纤（SMF-28）、3.8 m无线链路、2.2 km SMF-28上的传输，且误码率低于硬判决前向纠错（Hard-Decision Forward Error Correction，HD-FEC）的阈值 $3.8 × 10 - 3$ .

关键词: 太赫兹, 波分复用, 多输入多输出技术, 光子辅助

Abstract:

In order to further improve the communication capacity of the current mainstream terahertz system, based on photon-assisted terahertz generation technology, wavelength division multiplexing(WDM), multiple input multiple output technology(MIMO) and advanced digital signal processing, a model of $N × N$ MIMO fiber-wireless-fiber fusion terahertz transmission system is proposed. We built a dual-channel WDM $2 × 2$ MIMO experimental system, and successfully implemented two 3 Gbaud quad-frequency phase shift keying(QPSK) signal transmission over 10 km single-mode fiber(SMF-28), 3.8 m wireless link, 2.2 km SMF-28. The measured system error rate is lower than the hard-decision forward error correction(HD-FEC) threshold of $3.8 × 10 - 3$ .

Key words: terahertz, wavelength division multiplexing, multiple-input multiple-output technique, photonics-aid

中图分类号:

TN929.11

李韦萍, 王凯辉, 桑博涵, 余建军. 双信道WDM光纤无线集成太赫兹传输系统[J]. 电子学报, 2022, 50(10): 2311-2317.

LI Wei-ping, WANG Kai-hui, SANG Bo-han, YU Jian-jun. Two Channel WDM Wireless and Optical Integration THz Transmission System[J]. Acta Electronica Sinica, 2022, 50(10): 2311-2317.

图/表 10

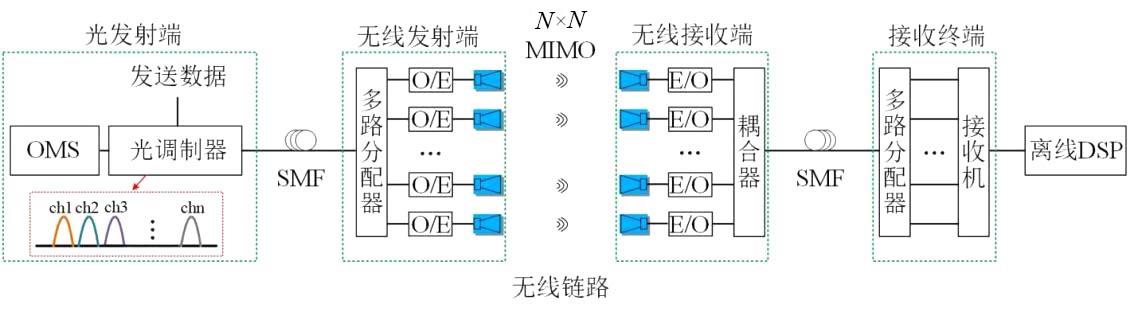

图1 基于WDM的光子辅助N×N MIMO光纤-无线-光纤融合THz传输系统原理

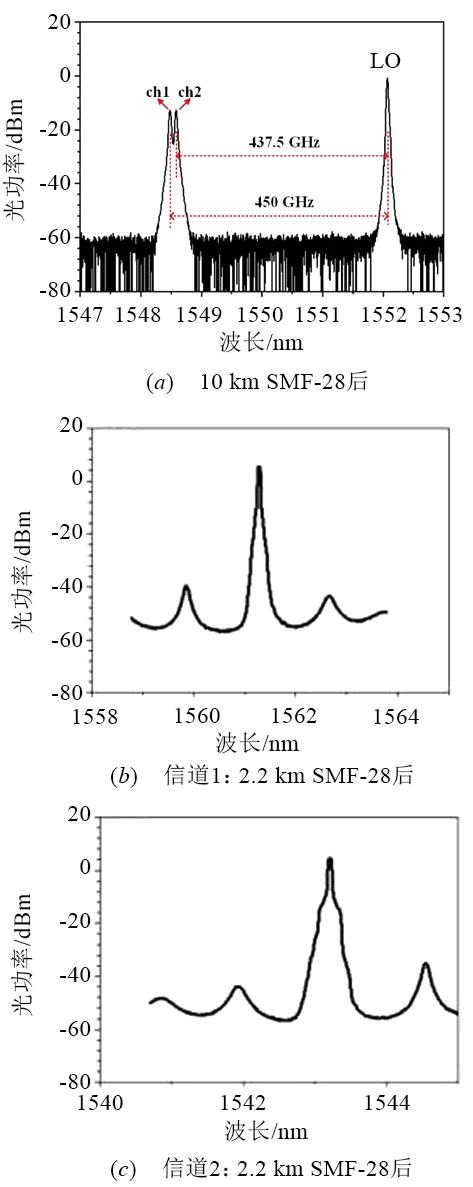

图2 光谱图

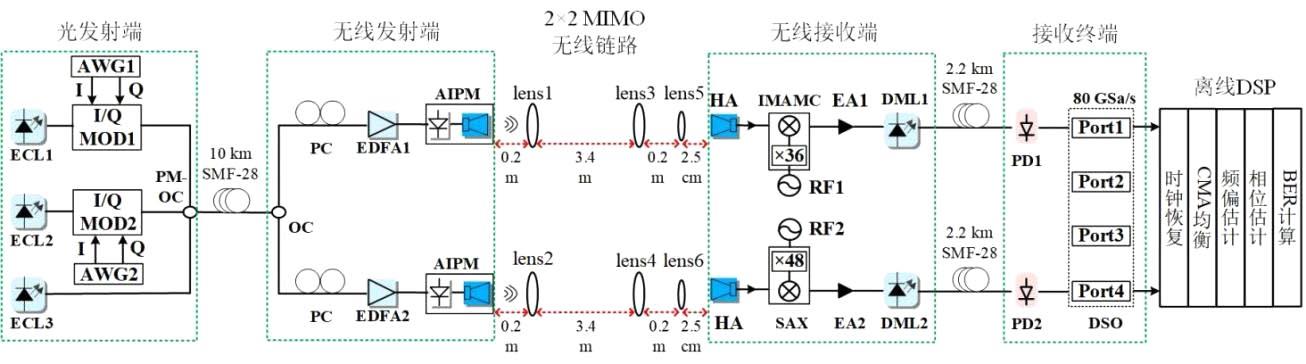

图3 基于2-WDM的光子辅助2×2 MIMO光纤-无线-光纤融合THz传输实验装置

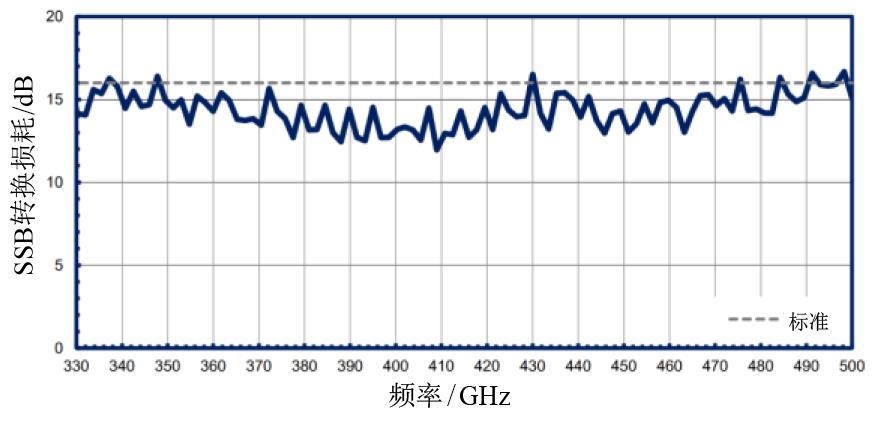

图4 SAX混频器的单边带转换损耗曲线

表1 SAX混频器性能参数

特性	参数
工作射频频段/GHz	325~500
射频输出法兰(UG-387/U-M)	WR-2.2
倍频倍数(最高/最低)	48/12
本振源输入功率/GHz	6.77~10.42(低)
本振源输入功率/GHz	27.08~41.67(高)
射频功率限制: Compr. /Damage	－20/－10
混频器转换损耗/dB	16
最大可用中频信号带宽/GHz	40
显示平均噪声水平(noise level)	－150

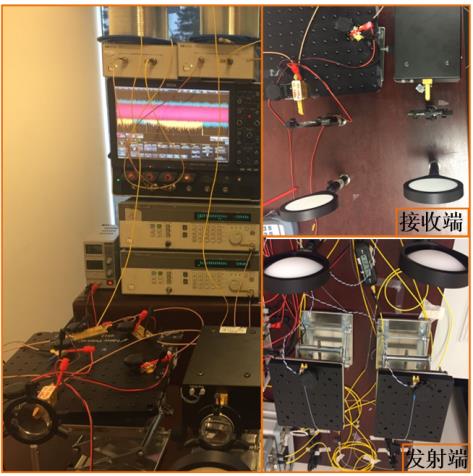

图5 实验装置

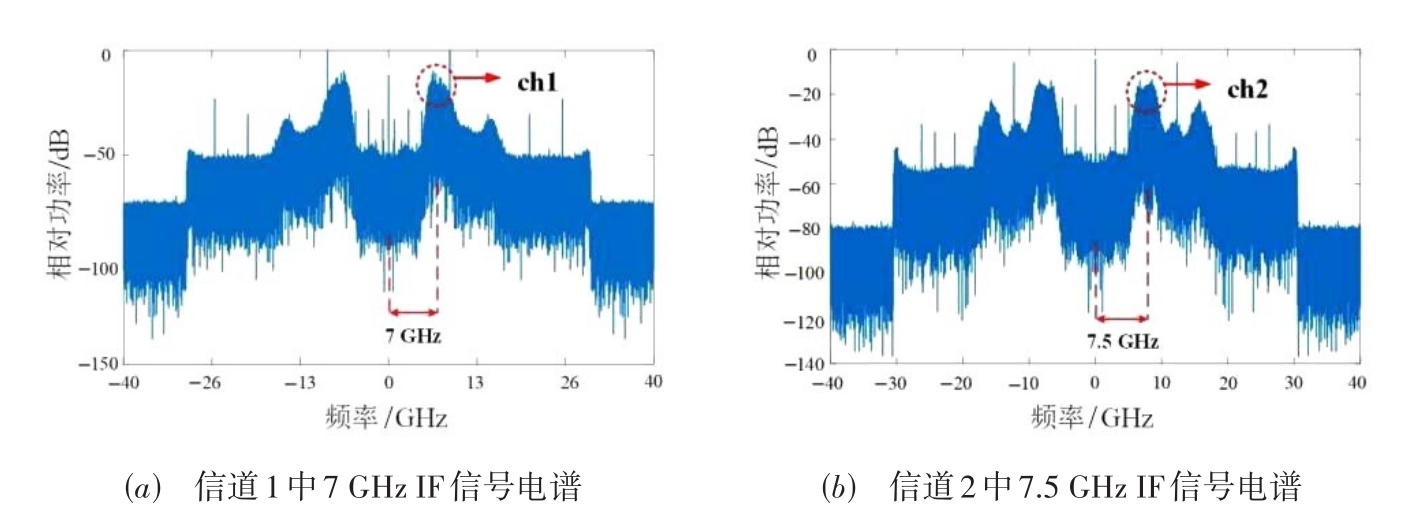

图6 信号电谱

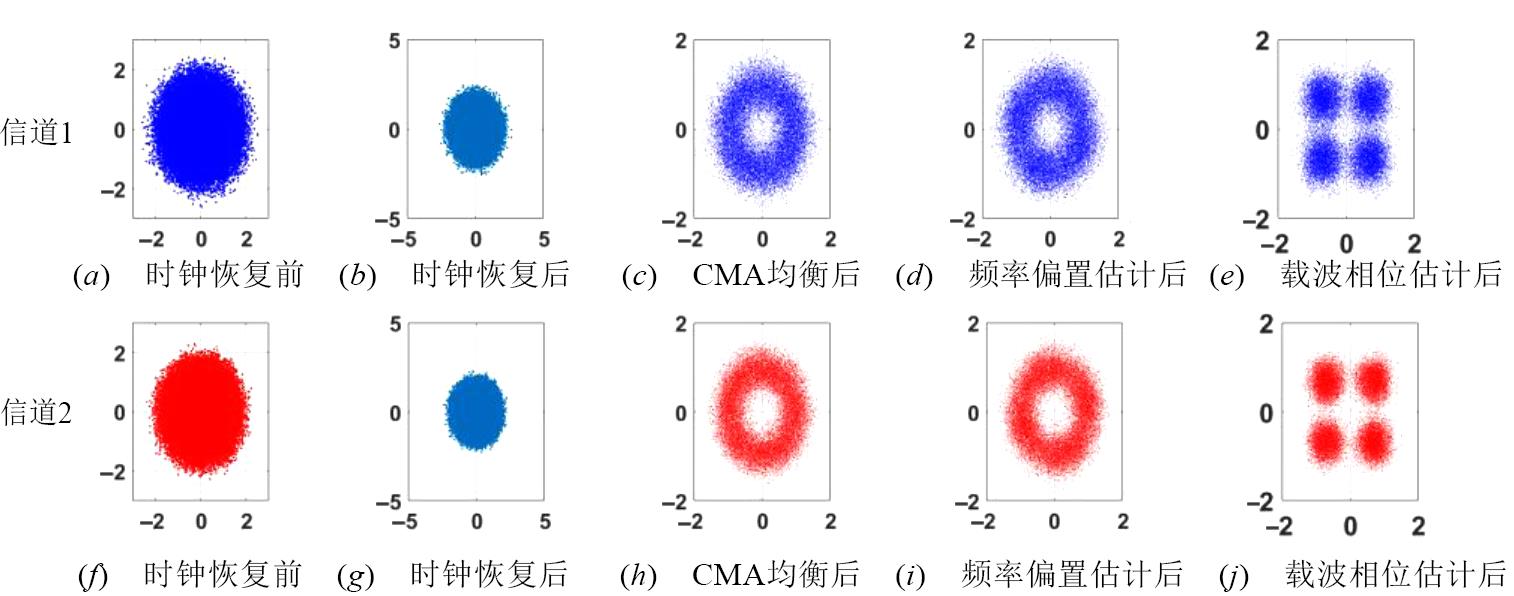

图7 10 km SMF-28、3.8 m 2×2 MIMO无线链路、DML+10 km SMF-28传输后接收到的对应于3 Gbaud QPSK星座图

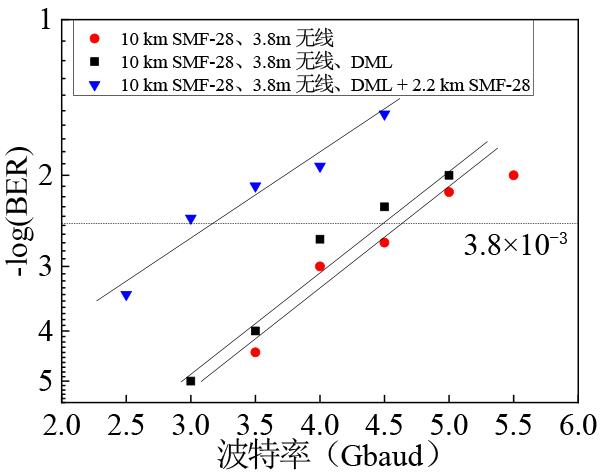

图8 BER与波特率的关系曲线

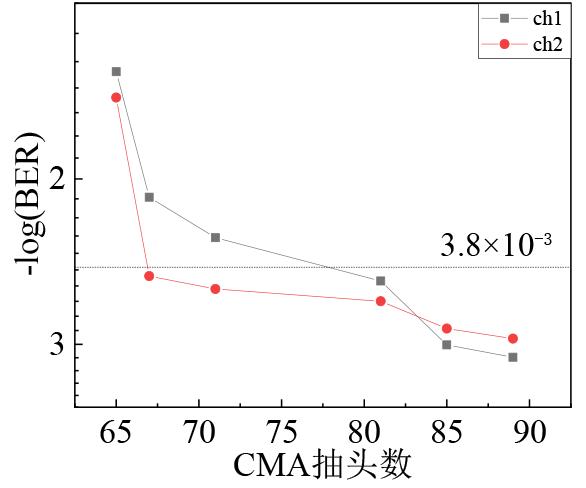

图9 信道1、信道2 BER和CMA算法抽头数的关系

参考文献 26

1	LI W P, LIU J X, ZOU P, et al. Geometrically shaped 16-APSK modulations in Internet of vehicles system based on automotive headlight[C]//International Photonics and OptoElectronics Meeting 2019. Washington: OSA, 2019: OFTu2A.4.
2	李韦萍, 孔淼, 石俊婷, 等. 基于单个光调制器产生多路无线和有线信号[J]. 光学学报, 2020, 40(19): 1906001.
	LI W P, KONG M, SHI J T, et al. Generation of multiple path wireless and wireline signals based on a single optical modulator[J]. Acta Optica Sinica, 2020, 40(19): 1906001. (in Chinese)
3	李韦萍, 孔淼, 石俊婷, 等. ROF系统中基于单个调制器的多射频操作[J]. 中国激光, 2020, 47(11): 1106002.
	LI W P, KONG M, SHI J T, et al. Multiple radio frequency operation based on a modulator in a radio-over-fiber system[J]. Chinese Journal of Lasers, 2020, 47(11): 1106002. (in Chinese)
4	胡林林, 曾造金, 陈洪斌, 等. 毫米波/太赫兹扩展互作用速调管放大器的应用及研究进展[J]. 电子学报, 2019, 47(1): 211-219.
	HU L L, ZENG Z J, CHEN H B, et al. Application and development of extended interaction klystrons in millimeter-wave and terahertz band[J]. Acta Electronica Sinica, 2019, 47(1): 211-219. (in Chinese)
5	MOELLER L, FEDERICI J, SU K. THz wireless communications: 2.5 Gb/s error-free transmission at 625 GHz using a narrow-bandwidth 1 mW THz source[C]//2011 URSI General Assembly and Scientific Symposium. Istanbul: IEEE, 2011: 1-4.
6	DUCOURNAU G, SZRIFTGISER P, BACQUET D, et al. Optically power supplied Gbit/s wireless hotspot using 1.55 μm THz photomixer and heterodyne detection at 200 GHz[J]. Electronics Letters, 2010, 46(19): 1349-1351.
7	WANG C, YU J J, LI X Y, et al. Fiber-THz-fiber link for THz signal transmission[J]. IEEE Photonics Journal, 2018, 10(2): 1-6.
8	HERMELO M F, SHIH P B, STEEG M, et al. Spectral efficient 64-QAM-OFDM terahertz communication link[J]. Optics Express, 2017, 25(16): 19360-19370.
9	PANG X D, JIA S, OZOLINS O, et al. Single channel 106 gbit/s 16QAM wireless transmission in the 0.4 THz band[C]//Optical Fiber Communication Conference. Washington: OSA, 2017: Tu3B.5.
10	JIA S, YU X B, HU H, et al. 120 gb/s multi-channel THz wireless transmission and THz receiver performance analysis[J]. IEEE Photonics Technology Letters, 2017, 29(3): 310-313.
11	LIU K X, JIA S, WANG S W, et al. 100 gbit/s THz photonic wireless transmission in the 350-GHz band with extended reach[J]. IEEE Photonics Technology Letters, 2018, 30(11): 1064-1067.
12	BARBIERI S, MAINEULT W, DHILLON S S, et al. 13GHz direct modulation of terahertz quantum cascade lasers[J]. Applied Physics Letters, 2007, 91(14): 143510.
13	LEE E S, MOON K, LEE I M, et al. Semiconductor-based terahertz photonics for industrial applications[J]. Journal of Lightwave Technology, 2018, 36(2): 274-283.
14	TAN Z Y, CHEN Z, CAO J C, et al. Wireless terahertz light transmission based on digitally-modulated terahertz quantum-cascade laser[J]. Chinese Optics Letters, 2013, 11(3): 31403-31405.
15	KALLFASS I, ANTES J, SCHNEIDER T, et al. All active MMIC-based wireless communication at 220 GHz[J]. IEEE Transactions on Terahertz Science and Technology, 2011, 1(2): 477-487.
16	KALLFASS I, ANTES J, LOPEZ-DIAZ D, et al. Broadband Active integrated circuits for Terahertz communication[C]//European Wireless 2012; 18th European Wireless Conference. Poznan: IEEE, 2012: 1-5.
17	WANG C, LU B, LIN C X, et al. 0.34-THz wireless link based on high-order modulation for future wireless local area network applications[J]. IEEE Transactions on Terahertz Science and Technology, 2014, 4(1): 75-85.
18	LI X Y, DONG Z, YU J J, et al. Fiber-wireless transmission system of 108 Gb/sdata over 80 km fiber and 2×2 multiple-input multiple-output wireless links at 100 GHz W-band frequency[J]. Optics Letters, 2012, 37(24): 5106-5108.
19	YU J J, LI X Y, CHI N. Faster than fiber: Over 100-Gb/s signal delivery in fiber wireless integration system[J]. Optics Express, 2013, 21(19): 22885-22904.
20	PUERTA R, YU J J, LI X Y, et al. Demonstration of 352 gbit/s photonically-enabled D-band wireless delivery in one 2×2 MIMO system[C]//Optical Fiber Communication Conference. Washington: OSA, 2017: Tu3B.3.
21	YU J J. Photonics-assisted millimeter-wave wireless communication[J]. IEEE Journal of Quantum Electronics, 2017, 53(6): 1-17.
22	CAO Z Z, SHEN L F, JIAO Y Q, et al. 200 gbps OOK transmission over an indoor optical wireless link enabled by an integrated cascaded aperture optical receiver[C]//Optical Fiber Communication Conference Postdeadline Papers. Washington: OSA, 2017: 1-3.
23	LI X Y, YU J J, XIAO J N, et al. Fiber-wireless-fiber link for 128-gb/s PDM-16QAM signal transmission at $W$-band[J]. IEEE Photonics Technology Letters, 2014, 26(19): 1948-1951.
24	YU J J, ZHOU X. Ultra-High-Capacity DWDM transmission system for 100G and beyond[J]. IEEE Communications Magazine, 2010, 48(3): S56-S64.
25	MATSUI Y, MAHGEREFTEH D, ZHENG X Y, et al. Chirp-managed directly modulated laser(CML)[J]. IEEE Photonics Technology Letters, 2006, 18(2): 385-387.
26	JIA Z S, YU J J, CHOWDHURY A, et al. Simultaneous generation of independent wired and wireless services using a single modulator in millimeter-wave-band radio-over-fiber systems[J]. IEEE Photonics Technology Letters, 2007, 19(20): 1691-1693.
