电子学报 ›› 2022, Vol. 50 ›› Issue (10): 2433-2442.DOI: 10.12263/DZXB.20200984
张淑军, 彭中, 李辉
收稿日期:
2020-09-06
修回日期:
2021-12-04
出版日期:
2022-10-25
作者简介:
基金资助:
ZHANG Shu-jun, PENG Zhong, LI Hui
Received:
2020-09-06
Revised:
2021-12-04
Online:
2022-10-25
Published:
2022-10-11
摘要:

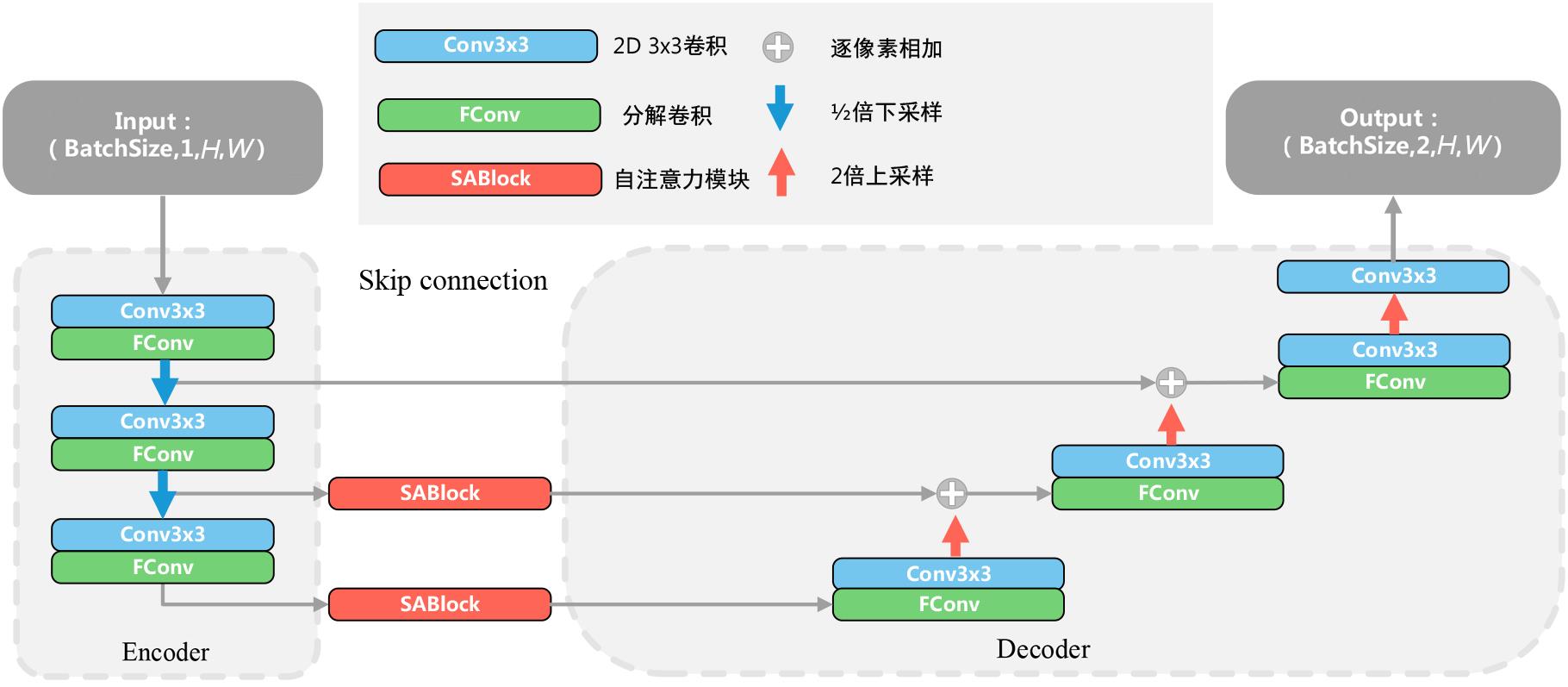

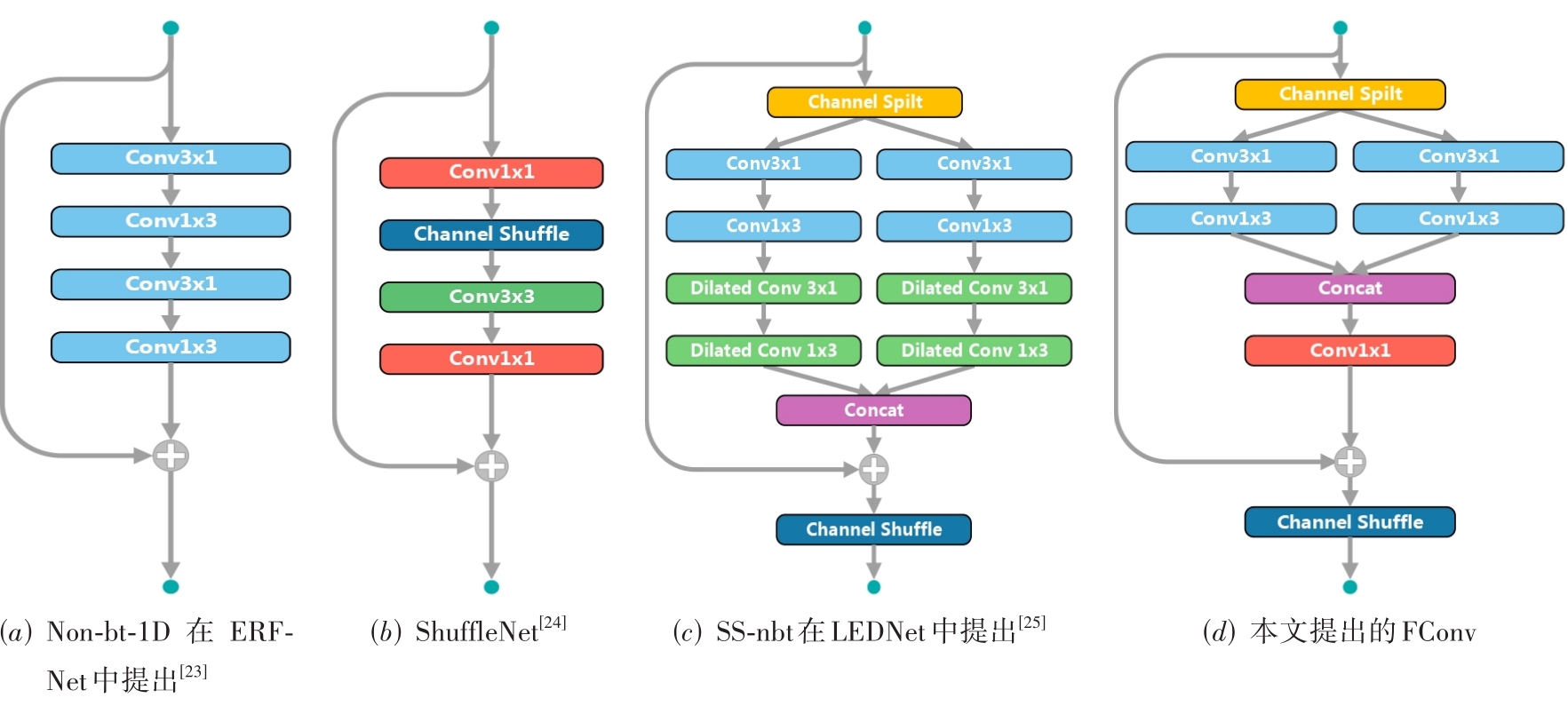

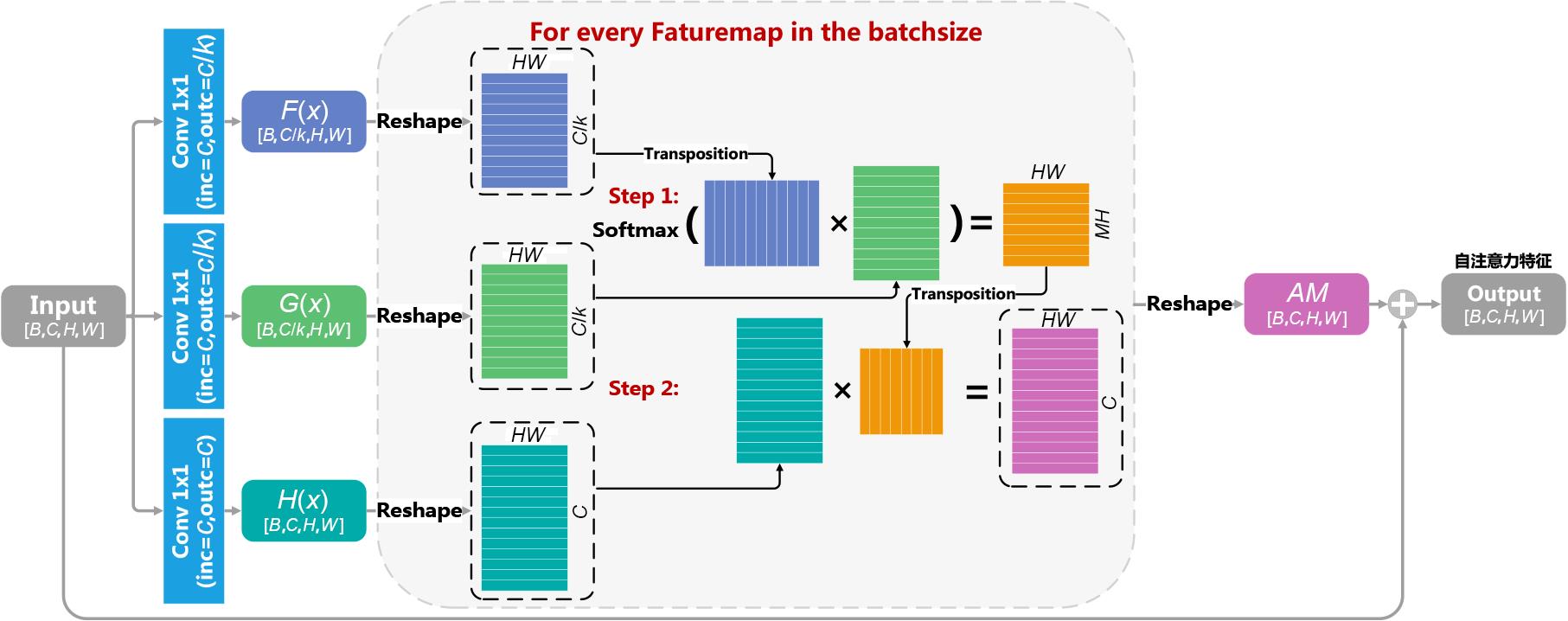

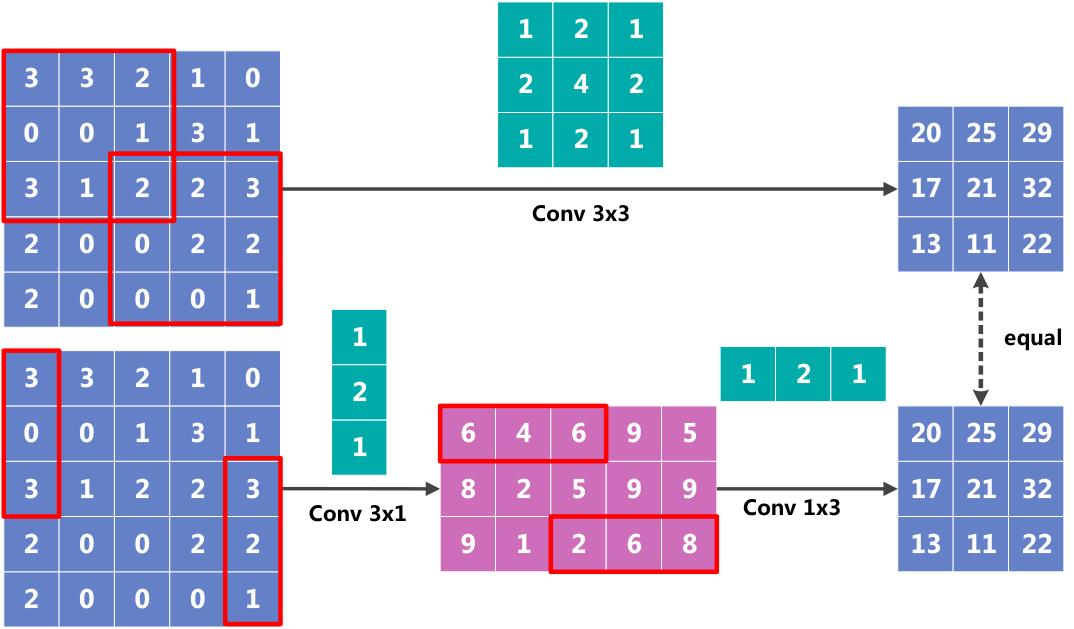

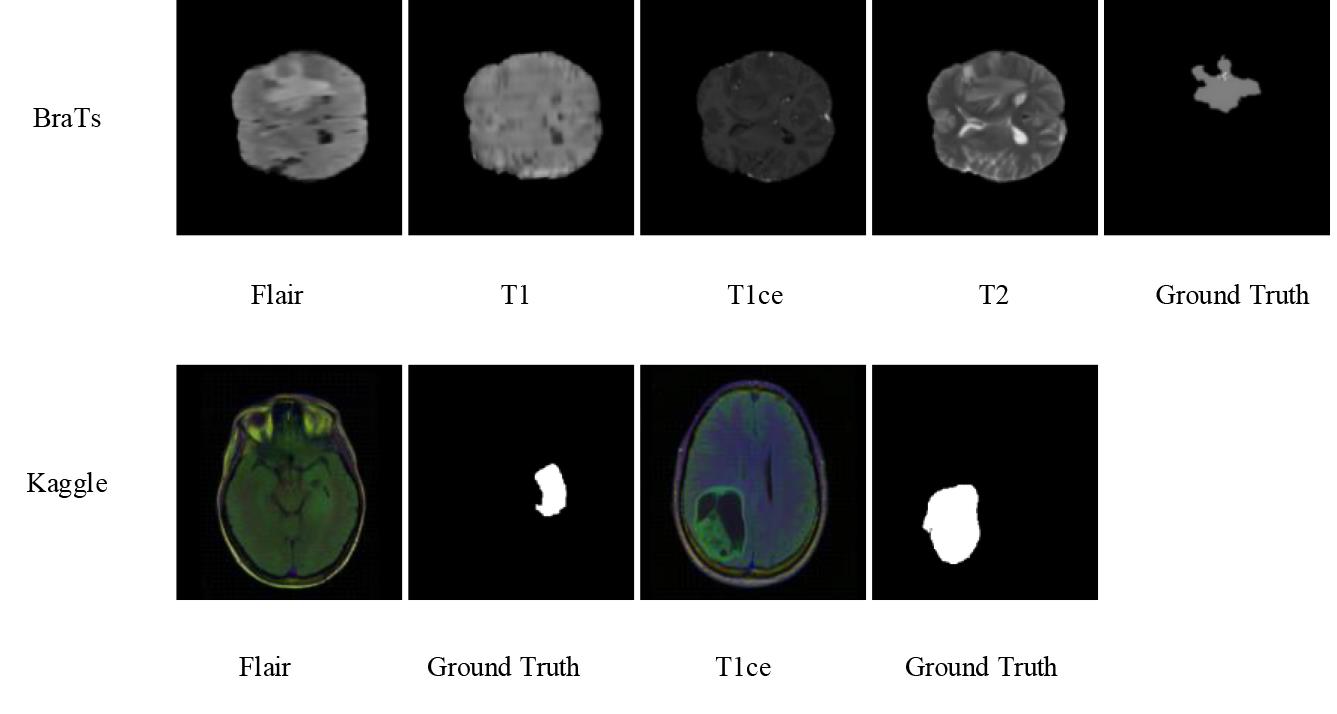

基于深度学习的生物医学图像分割由于其精度的提高,可以更好地辅助医生做精确的诊断.目前主流的基于U-Net的分割模型通过多层卷积进行局部特征的提取,缺失了全局信息,使分割过于局部化而产生误差.本文通过自注意力机制和分解卷积策略对U-Net模型进行改进,提出一种新的深度分割网络SAU-Net,使用自注意力模块增加全局信息,将原U-Net中的级联结构改为逐像素相加,减小维度,降低计算量;提出一种快速简洁的分解卷积方法,将传统卷积分解为两路一维卷积,并加入残差连接强化上下文信息.在BRATS和Kaggle两个脑肿瘤数据集上进行的实验结果表明,SAU-Net在参数量和Dice系数上都有更优的性能.
中图分类号:
张淑军, 彭中, 李辉. SAU-Net:基于U-Net和自注意力机制的医学图像分割方法[J]. 电子学报, 2022, 50(10): 2433-2442.
ZHANG Shu-jun, PENG Zhong, LI Hui. SAU-Net: Medical Image Segmentation Method Based on U-Net and Self-Attention[J]. Acta Electronica Sinica, 2022, 50(10): 2433-2442.
数据量 | 方法 | Train Dice loss | Train IoU | Test Dice loss | Test IoU |
---|---|---|---|---|---|
50例 | U-Net | 0.094 8 | 0.839 0 | 0.236 6 | 0.737 9 |
SAU-Net | 0.050 1 | 0.865 7 | 0.126 1 | 0.850 3 | |
210例 | U-Net | 0.058 9 | 0.857 4 | 0.185 5 | 0.790 1 |
SAU-Net | 0.052 0 | 0.866 8 | 0.171 5 | 0.802 3 |

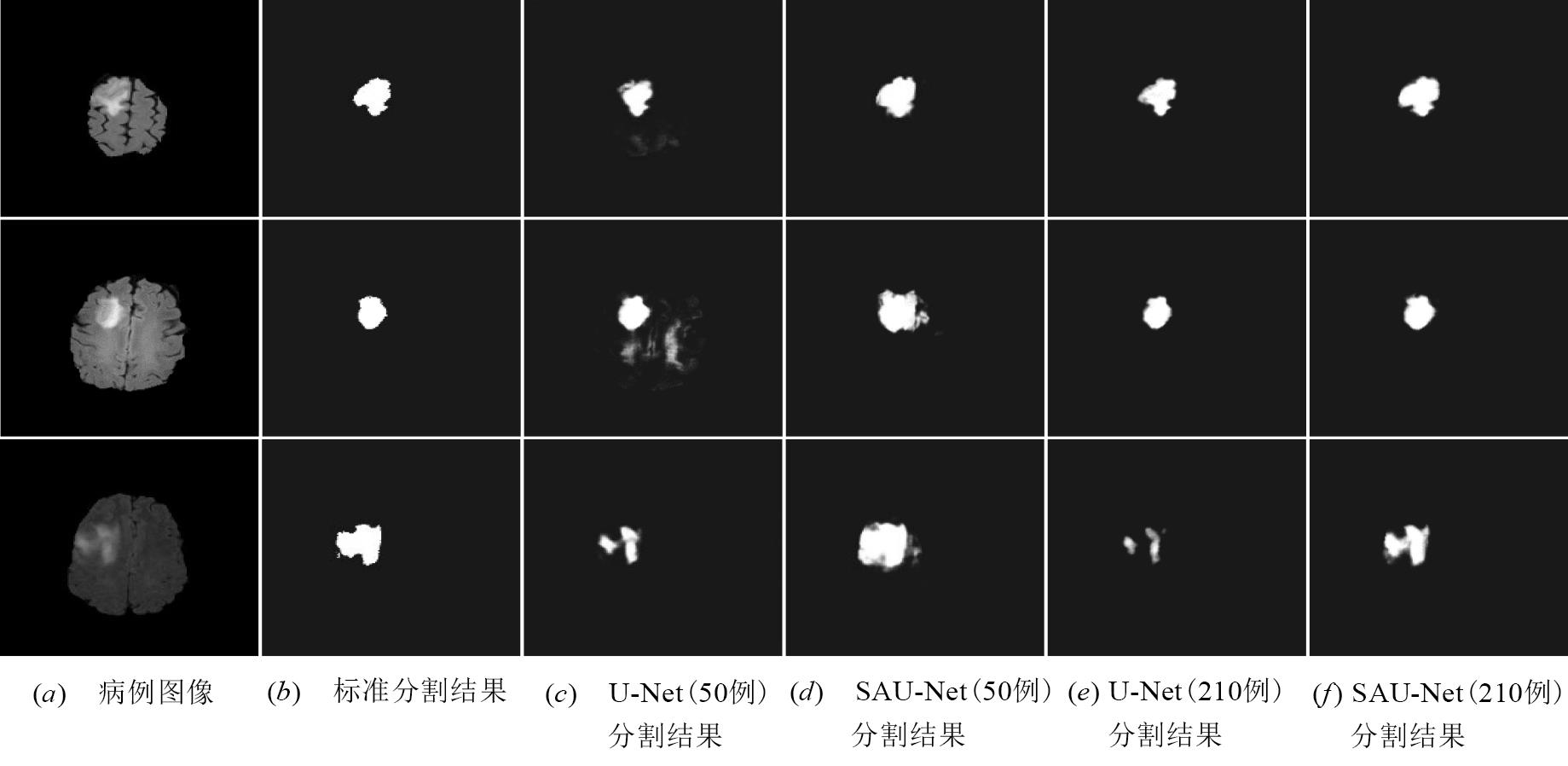

表1 不同数据量下分割结果对比
数据量 | 方法 | Train Dice loss | Train IoU | Test Dice loss | Test IoU |
---|---|---|---|---|---|
50例 | U-Net | 0.094 8 | 0.839 0 | 0.236 6 | 0.737 9 |
SAU-Net | 0.050 1 | 0.865 7 | 0.126 1 | 0.850 3 | |
210例 | U-Net | 0.058 9 | 0.857 4 | 0.185 5 | 0.790 1 |
SAU-Net | 0.052 0 | 0.866 8 | 0.171 5 | 0.802 3 |
分割方法 | Train Dice Loss (均值±标准差) | Test Dice Loss (均值±标准差) |
---|---|---|
U-Net | 0.396 11±0.000 23 | 0.441 89±0.000 25 |
SAU-Net-1 | 0.362 89±0.000 29 | 0.458 29±0.000 43 |
SAU-Net-FCB-1(Concat) | 0.402 72±0.000 17 | 0.450 73±0.000 27 |
SAU-Net-FCB-1(Add) | 0.406 21±0.000 20 | 0.427 71±0.000 30 |
SAU-Net-FCB-2(Concat) | 0.362 81±0.000 32 | 0.469 14±0.000 40 |
SAU-Net-FCB-2(Add) | 0.370 14±0.000 20 | 0.467 17±0.000 39 |

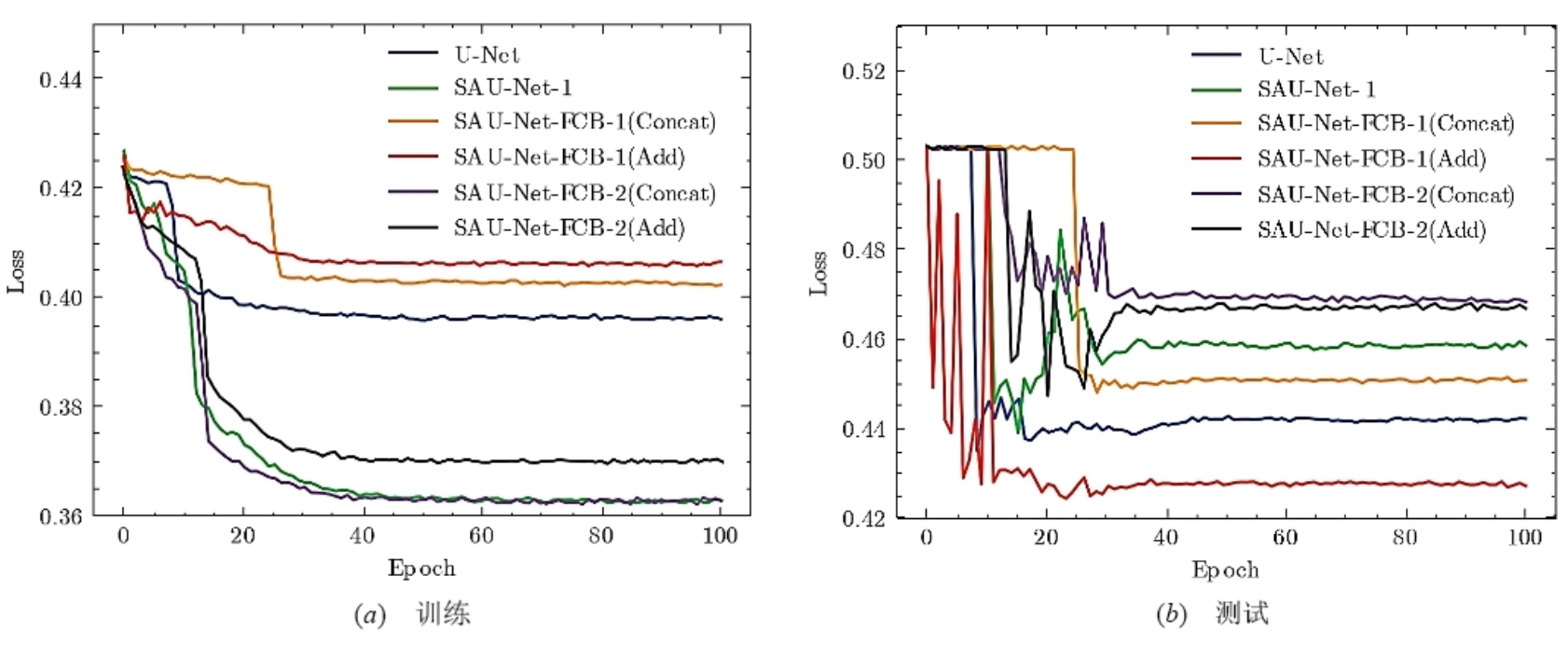

表2 BRATS 2017 Flair单像分割消融实验
分割方法 | Train Dice Loss (均值±标准差) | Test Dice Loss (均值±标准差) |
---|---|---|
U-Net | 0.396 11±0.000 23 | 0.441 89±0.000 25 |
SAU-Net-1 | 0.362 89±0.000 29 | 0.458 29±0.000 43 |
SAU-Net-FCB-1(Concat) | 0.402 72±0.000 17 | 0.450 73±0.000 27 |
SAU-Net-FCB-1(Add) | 0.406 21±0.000 20 | 0.427 71±0.000 30 |
SAU-Net-FCB-2(Concat) | 0.362 81±0.000 32 | 0.469 14±0.000 40 |
SAU-Net-FCB-2(Add) | 0.370 14±0.000 20 | 0.467 17±0.000 39 |
模型 | 参数量 |
---|---|
U-Net | 39, 401, 026 |
SAU-Net | 40, 699, 523 |
SAU-Net-FCB-1(Concat) | 11, 087, 555 |
SAU-Net-FCB-1(Add) | 8, 273, 091 |
SAU-Net-FCB-2(Concat) | 11, 169, 796 |
SAU-Net-FCB-2(Add) | 8, 355, 332 |
表3 各模型参数量大小
模型 | 参数量 |
---|---|
U-Net | 39, 401, 026 |
SAU-Net | 40, 699, 523 |
SAU-Net-FCB-1(Concat) | 11, 087, 555 |
SAU-Net-FCB-1(Add) | 8, 273, 091 |
SAU-Net-FCB-2(Concat) | 11, 169, 796 |
SAU-Net-FCB-2(Add) | 8, 355, 332 |
模型 | Dice Loss | ||
---|---|---|---|
WT(均值±标准差) | TC(均值±标准差) | ET(均值±标准差) | |
U-Net | 0.069 57±0.006 7 | 0.086 11±0.010 6 | 0.081 59±0.009 2 |
SAU-Net-FCB-1(Add) | 0.068 53±0.006 2 | 0.054 78±0.008 0 | 0.056 27±0.010 5 |

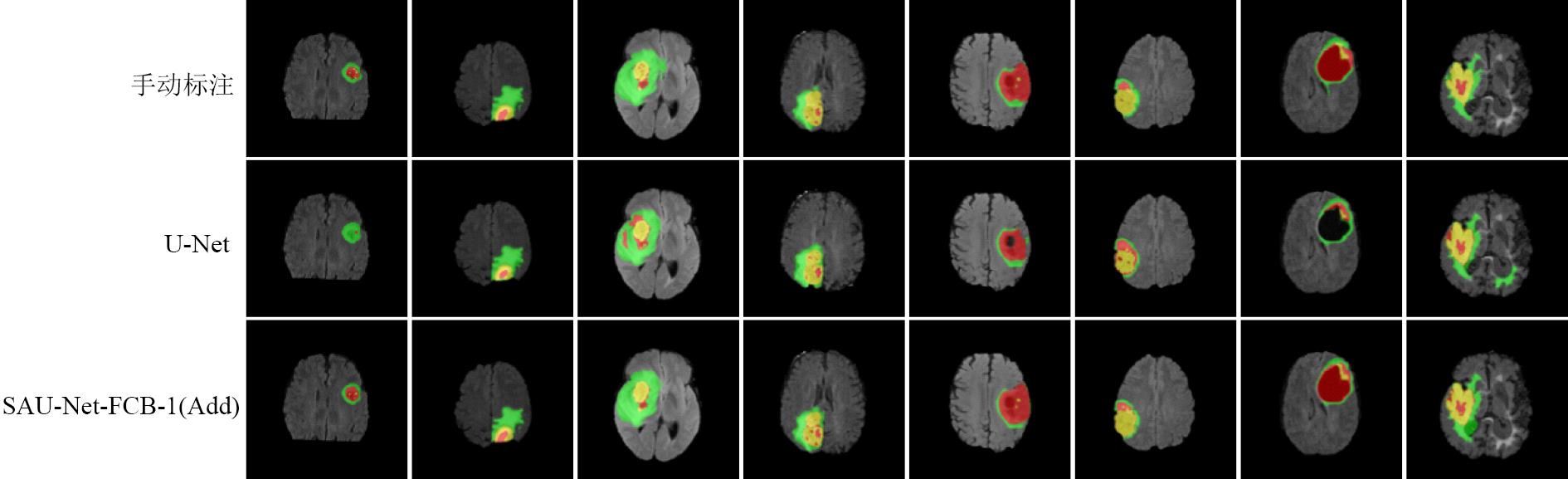

表4 BRATS 2017的3项分割任务的Dice Loss

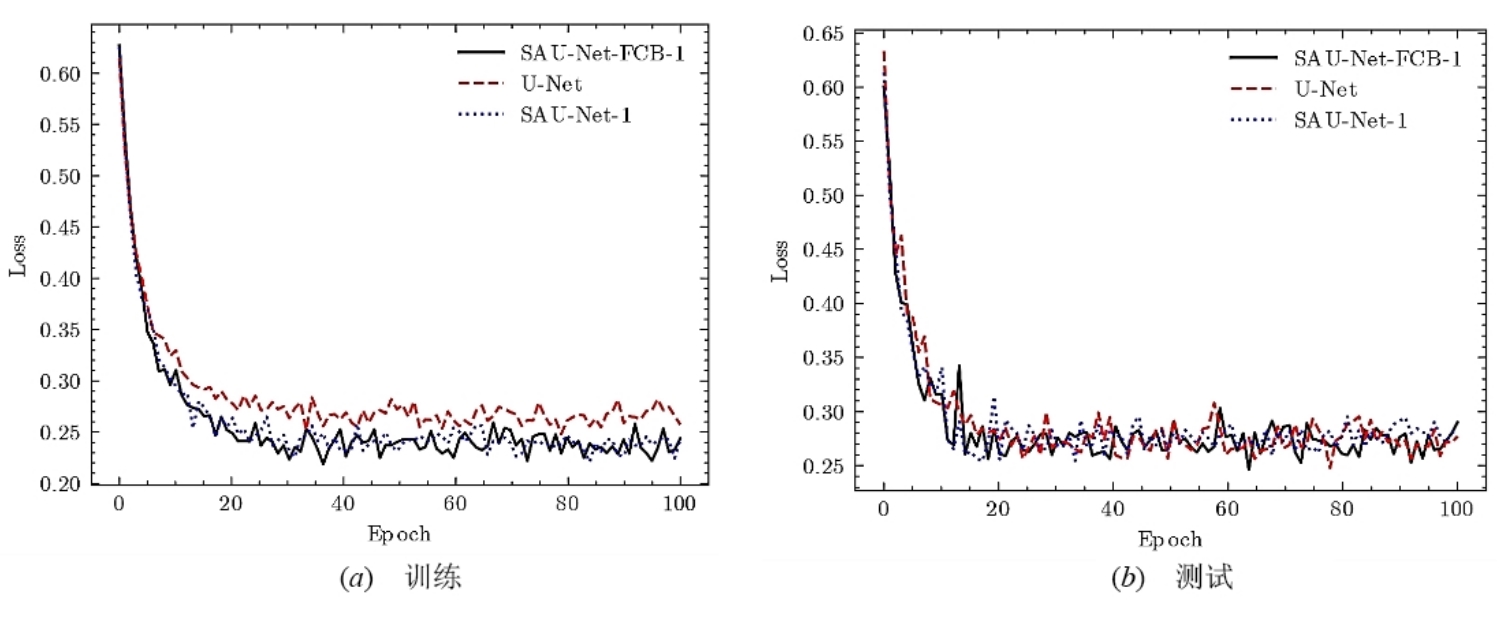

模型 | Dice Loss | ||
---|---|---|---|
WT(均值±标准差) | TC(均值±标准差) | ET(均值±标准差) | |
U-Net | 0.069 57±0.006 7 | 0.086 11±0.010 6 | 0.081 59±0.009 2 |
SAU-Net-FCB-1(Add) | 0.068 53±0.006 2 | 0.054 78±0.008 0 | 0.056 27±0.010 5 |
分割方法 | Train Dice Loss (均值±标准差) | Test Dice Loss (均值±标准差) |
---|---|---|
U-Net | 0.265 63±0.007 60 | 0.274 03±0.011 77 |
SAU-Net-1 | 0.239 88±0.007 58 | 0.276 76±0.008 41 |
SAU-Net-FCB-1(Add) | 0.238 56±0.008 87 | 0.272 58±0.011 19 |

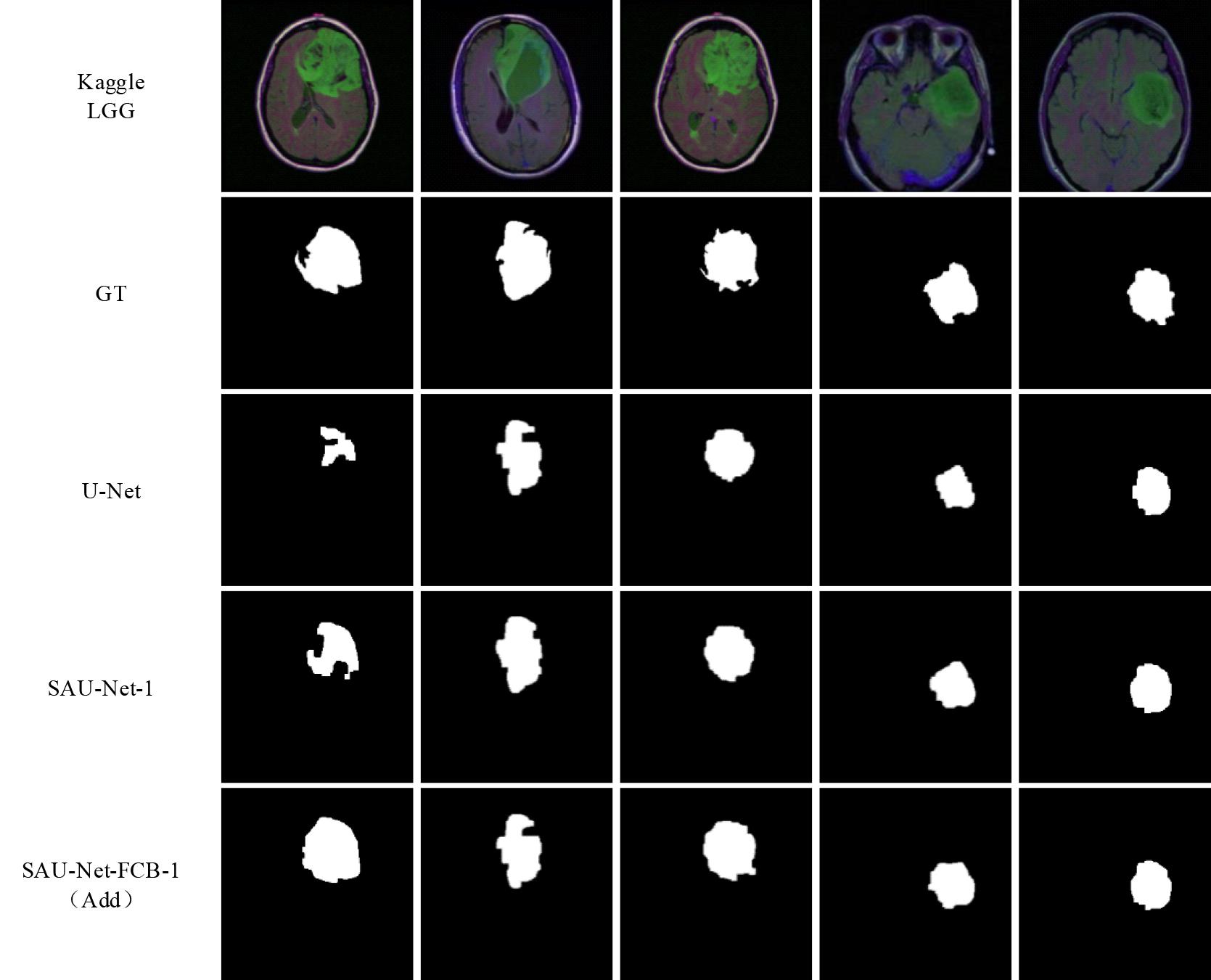

表5 Kaggle LGG数据分割Dice Loss
分割方法 | Train Dice Loss (均值±标准差) | Test Dice Loss (均值±标准差) |
---|---|---|
U-Net | 0.265 63±0.007 60 | 0.274 03±0.011 77 |
SAU-Net-1 | 0.239 88±0.007 58 | 0.276 76±0.008 41 |
SAU-Net-FCB-1(Add) | 0.238 56±0.008 87 | 0.272 58±0.011 19 |
1 | ALTAF F, ISLAM S M S, AKHTAR N, et al. Going deep in medical image analysis: Concepts, methods, challenges, and future directions[J]. IEEE Access, 2019, 7: 99540-99572. |
2 | RONNEBERGER O, FISCHER P, BROX T. U-Net: Convolutional Networks for Biomedical Image Segmentation[C]//Lecture Notes in Computer Science. Cham: Springer International Publishing, 2015: 234-241. |
3 | ZHOU Z W, SIDDIQUEE M M R, TAJBAKHSH N, et al. UNet++: A nested U-net architecture for medical image segmentation[J]. Deep Learning in Medical Image Analysis and Multimodal Learning for Clinical Decision Support, 2018, 11045: 3-11. |
4 | KAMNITSAS K, LEDIG C, NEWCOMBE V F J, et al. Efficient multi-scale 3D CNN with fully connected CRF for accurate brain lesion segmentation[J]. Medical Image Analysis, 2017, 36: 61-78. |
5 | GHAFOORIAN M, KARSSEMEIJER N, HESKES T, et al. Non-uniform patch sampling with deep convolutional neural networks for white matter hyperintensity segmentation[C]//2016 IEEE 13th International Symposium on Biomedical Imaging. Prague: IEEE, 2016: 1414-1417. |
6 | HU J, SHEN L, ALBANIE S, et al. Squeeze-and-excitation networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2020, 42(8): 2011-2023. |
7 | XIE Y P, ZHANG Z Z, SAPKOTA M, et al. Spatial clockwork recurrent neural network for muscle perimysium segmentation[C]//International Conference on Medical Image Computing and Computer-Assisted Intervention. Cham: Springer, 2016: 185-193. |
8 | CHEN J X, YANG L, ZHANG Y Z, et al. Combining fully convolutional and recurrent neural networks for 3D biomedical image segmentation[C]//NIPS'16: Proceedings of the 30th International Conference on Neural Information Processing Systems. 2016: 3044-3052. |
9 | TSENG K L, LIN Y L, HSU W, et al. Joint sequence learning and cross-modality convolution for 3D biomedical segmentation[C]//2017 IEEE Conference on Computer Vision and Pattern Recognition. Honolulu: IEEE, 2017: 3739-3746. |
10 | VASWANI A, SHAZEER N, PARMAR N, et al. Attention is all You need[C]//NIPS'17: Proceedings of the 31st International Conference on Neural Information Processing Systems. New York: ACM, 2017: 6000-6010. |
11 | WANG X L, GIRSHICK R, GUPTA A, et al. Non-local neural networks[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City: IEEE, 2018: 7794-7803. |
12 | ZHANG H, GOODFELLOW I, METAXAS D, et al. Self-attention generative adversarial networks[C]//Proceedings of the 36th International Conference on Machine Learning. Long Beach: PMLR, 2019: 12744-12753. |
13 | HUANG Z L, WANG X G, HUANG L C, et al. CCNet: criss-cross attention for semantic segmentation[C]//2019 IEEE/CVF International Conference on Computer Vision(ICCV). Seoul: IEEE, 2019: 603-612. |
14 | FU J, LIU J, TIAN H J, et al. Dual attention network for scene segmentation[C]//2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition(CVPR). Long Beach: IEEE, 2019: 3141-3149. |
15 | ZHANG F, CHEN Y Q, LI Z H, et al. ACFNet: Attentional class feature network for semantic segmentation[C]//2019 IEEE/CVF International Conference on Computer Vision(ICCV). Seoul: IEEE, 2019: 6797-6806. |
16 | SINHA A, DOLZ J. Multi-scale self-guided attention for medical image segmentation[J]. IEEE Journal of Biomedical and Health Informatics, 2021, 25(1): 121-130. |
17 | OKTAY O, SCHLEMPER J, FOLGOC L L, et al. Attention U-Net: Learning where to look for the pancreas[C]//1st Conference on Medical Imaging with Deep Learning(MIDL 2018). Amsterdam: MIDL, 2018: 4861068. |
18 | LI R R, LI M M, LI J C, et al. Connection Sensitive Attention U-NET for Accurate Retinal Vessel Segmentation[EB/OL]. (2019)[2020]. . |
19 | QI K H, YANG H, LI C, et al. X-Net: Brain stroke lesion segmentation based on depthwise separable convolution and long-range dependencies[C]//International Conference on Medical Image Computing and Computer-Assisted Intervention. Cham: Springer, 2019: 247-255. |
20 | ZHANG H, ZHANG J W, ZHANG Q H, et al. RSANet: Recurrent slice-wise attention network for multiple sclerosis lesion segmentation[C]//International Conference on Medical Image Computing and Computer-Assisted Intervention. Cham: Springer, 2019: 411-419. |
21 | GAO H Y, WANG Z Y, CAI L, et al. ChannelNets: Compact and efficient convolutional neural networks via channel-wise convolutions[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2021, 43(8): 2570-2581. |
22 | GAO H Y, YUAN H, WANG Z Y, et al. Pixel transposed convolutional networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2020, 42(5): 1218-1227. |
23 | ROMERA E, ÁLVAREZ J M, BERGASA L M, et al. ERFNet: Efficient residual factorized ConvNet for real-time semantic segmentation[J]. IEEE Transactions on Intelligent Transportation Systems, 2018, 19(1): 263-272. |
24 | ZHANG X Y, ZHOU X Y, LIN M X, et al. ShuffleNet: an extremely efficient convolutional neural network for mobile devices[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City: IEEE, 2018: 6848-6856. |
25 | WANG Y, ZHOU Q, LIU J, et al. Lednet: A lightweight encoder-decoder network for real-time semantic segmentation[C]//2019 IEEE International Conference on Image Processing. Taipei: IEEE, 2019: 1860-1864. |
26 | MENZE B H, JAKAB A, BAUER S, et al. The multimodal brain tumor image segmentation benchmark(BRATS)[J]. IEEE Transactions on Medical Imaging, 2015, 34(10): 1993-2024. |
