高光谱微波辐射计系统中2GHz带宽数字谱仪设计

doi:10.12263/DZXB.20201178

电子学报 ›› 2022, Vol. 50 ›› Issue (6): 1472-1479.DOI: 10.12263/DZXB.20201178

高光谱微波辐射计系统中2GHz带宽数字谱仪设计

许皓文¹^,², 陆浩¹, 王振占¹

^1.中国科学院国家空间科学中心微波遥感技术重点实验室，北京 100190
^2.中国科学院大学，北京 100049

收稿日期:2020-10-22 修回日期:2021-03-23 出版日期:2022-06-25
- 通讯作者:
- 陆浩
- 作者简介:
- 许皓文男，1995年生，河南许昌人.2016年于郑州大学获得工学学士学位.现为中国科学院国家空间科学中心博士研究生.主要研究方向为微波遥感定标、高速数字谱仪的理论与应用等.E-mail: xuhaowen1223@163.com
  陆浩（通讯作者）男，1988年生，安徽亳州人.2012年于中国科学院研究生院获得工学博士学位.现为中国科学院国家空间科学中心副研究员.主要研究方向为大规模数字电路、微波辐射计系统研制和定标等. E-mail: luhao0408@126.com
  王振占男，1969年生，河北秦皇岛人.2005年于中国科学院研究生院获得理学博士学位.现为中国科学院国家空间科学中心研究员.博士生导师.主要研究方向为微波遥感定标、定量反演与应用技术.E-mail: wangzhenzhan@mirslab.cn
- 基金资助:
- 中国科学院国家空间科学中心五个重点培育方向“极端天气与全球变化卫星遥感观测研究”项目 (Y92112A)

Design of 2 GHz Bandwidth Digital Spectrometer in Hyperspectral Microwave Radiometer System

XU Hao-wen¹^,², LU Hao¹, WANG Zhen-zhan¹

^1.Key Laboratory of Microwave Remote Sensing, National Space Science Center, Chinese Academy of Sciences, Beijing 100190, China
^2.University of Chinese Academy of Sciences, Beijing 100049, China

Received:2020-10-22 Revised:2021-03-23 Online:2022-06-25 Published:2022-06-25
- Corresponding author:
- LU Hao
- Supported by:
- Key Cultivation Directions” of National Space Science Center, CAS - Study on Satellite Remote Sensing Observation of Extreme Weather and Global Change (Y92112A)

摘要/Abstract

摘要：

高光谱微波辐射计是一种用于探测大气痕量气体的新型被动微波遥感器，数字谱仪是高光谱微波辐射计的核心部件.本文提出了一种新型宽带、实时数字谱仪的设计和实现方案，通过改进、结合快速傅里叶变换（Fast Fourier Transform，FFT）的并行处理和复数处理，形成了核心的基16实时复数FFT算法，最终得到信号的功率谱结果.数字谱仪采样率4.8 GHz，采用8 bit量化，输入3 dB带宽2 GHz，实现了1 024（1k）个频谱通道的结果.本文利用大气辐射传输模拟器（Atmospheric Radiative Transfer Simulator，ARTS）模拟了真实大气亮温谱并进行了仿真分析，随后通过输入的点频信号进行了测试，结果表明，核心算法子带亮温偏差最大值为0.02 K左右，核心算法子带灵敏度与理想子带灵敏度相比恶化程度低于20%，数字谱仪的有效位数（Effective Number Of Bits，ENOB）优于3 bit，信噪比（Signal to Noise Ratio，SNR）优于20 dB，谱分辨率恒定为2.3 MHz，可以有效满足辐射计中高层大气谱线探测的需求.

关键词: 微波临边探测, 高光谱微波辐射计, 宽带数字谱仪, FPGA并行处理, 基16实时复数FFT算法

Abstract:

Hyperspectral microwave radiometer is a new type of passive microwave remote sensor for detecting atmospheric trace gases, and the digital spectrometer is the core component of the hyperspectral microwave radiometer. In this paper, a new broadband, real-time digital spectrometer design and implementation scheme is proposed. The core radix 16 real-time complex fast Fourier transform(FFT) algorithm is formed by improving and combining the parallel processing and complex processing of FFT. Finally, the power spectrum of the signals can be obtained. The results for 1 024(1k) spectral channels are achieved by the digital spectrometer with the sampling rate of 4.8 GHz, the quantization bits of 8 bit, and the input 3 dB bandwidth of 2 GHz. The real atmospheric brightness temperature spectrum is simulated and analyzed by atmospheric radiative transfer simulator(ARTS), and then the input point frequency signal is tested. The results show that the maximum value of sub-band brightness temperature bias caused by the core algorithm is about 0.02 K, and the core algorithm sub-band sensitivity deteriorates within 20% compared with the ideal sub-band sensitivity. The effective number of bits(ENOB) of the digital spectrometer is better than 3 bit, the signal-to-noise ratio(SNR) is better than 20 dB, and the spectral resolution is constant at 2.3 MHz, which can effectively meet the requirements of radiometers for spectral line detection in middle and upper atmosphere.

Key words: microwave limb sounding, hyperspectral microwave radiometer, broadband digital spectrometer, FPGA parallel processing, radix 16 real-time complex FFT algorithm

中图分类号:

TP73

许皓文, 陆浩, 王振占. 高光谱微波辐射计系统中2GHz带宽数字谱仪设计[J]. 电子学报, 2022, 50(6): 1472-1479.

XU Hao-wen, LU Hao, WANG Zhen-zhan. Design of 2 GHz Bandwidth Digital Spectrometer in Hyperspectral Microwave Radiometer System[J]. Acta Electronica Sinica, 2022, 50(6): 1472-1479.

图/表 10

表1 谱仪参数指标对比

有效载荷	谱仪类型	分析带宽/GHZ	通道数/ 像素点	谱分辨率/MHz
UARS-MLS	FBS	0.51	15	2~128
Odin-SMR	DACS,AOS	1.2	768,1 728	0.15~1
EOS-MLS	FBS,DACS	1.3	129	0.1~500
JEM/SMILES	AOS	1.3	1 728	1~4
本文	FFTS	2	1 024	2.3

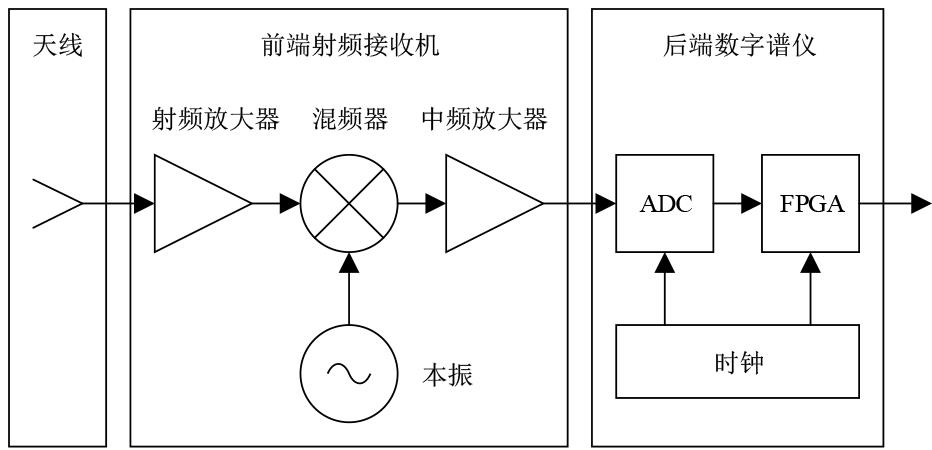

图1 高光谱微波辐射计系统结构

图2 数字谱仪整体数据流程

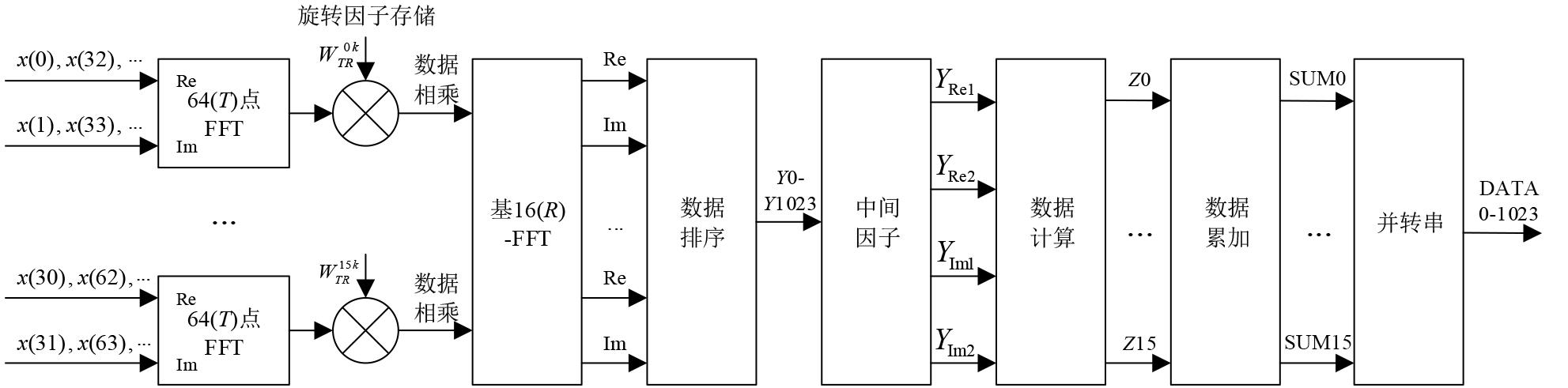

图3 数字谱仪核心算法架构

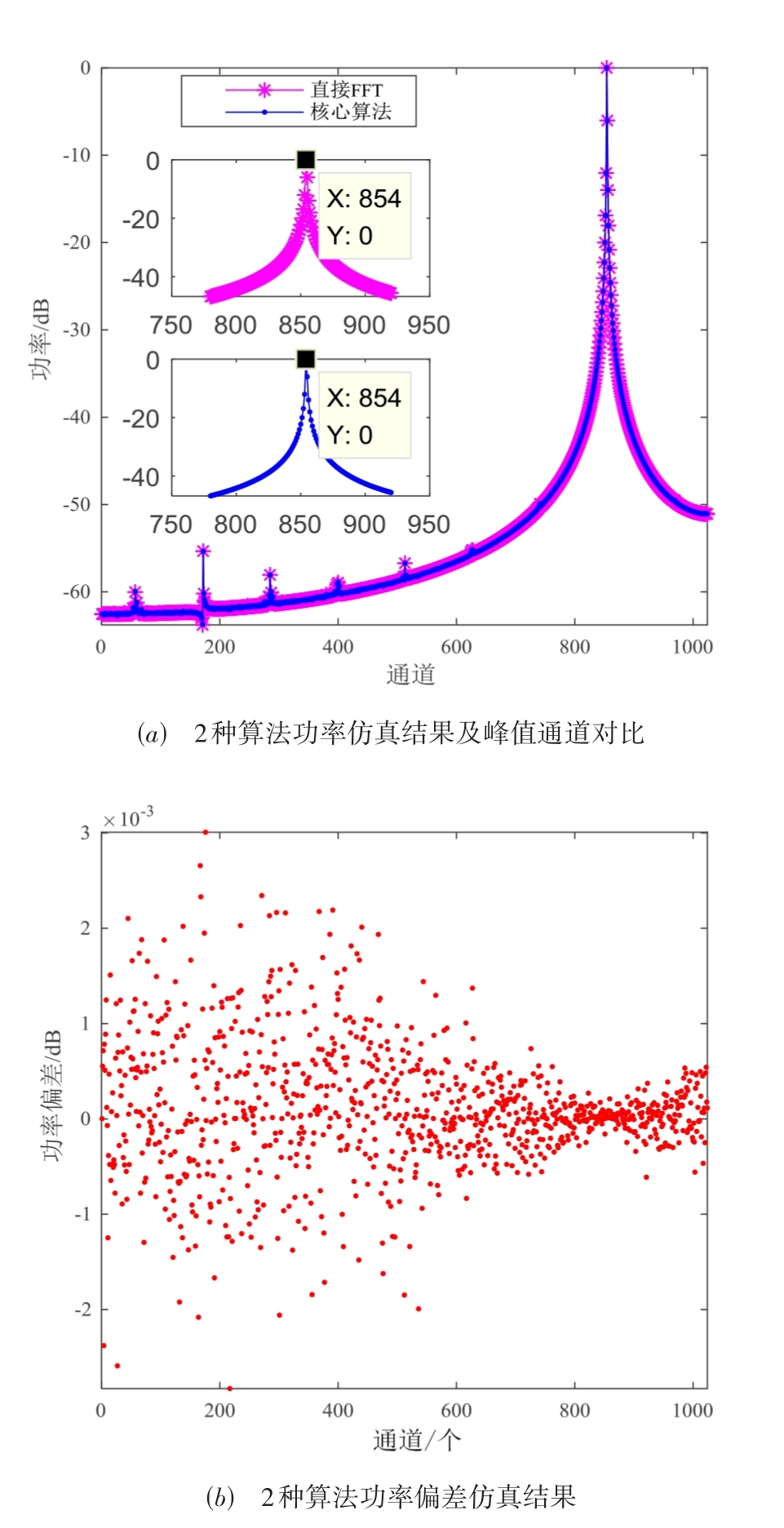

图4 2GHz正弦信号仿真结果

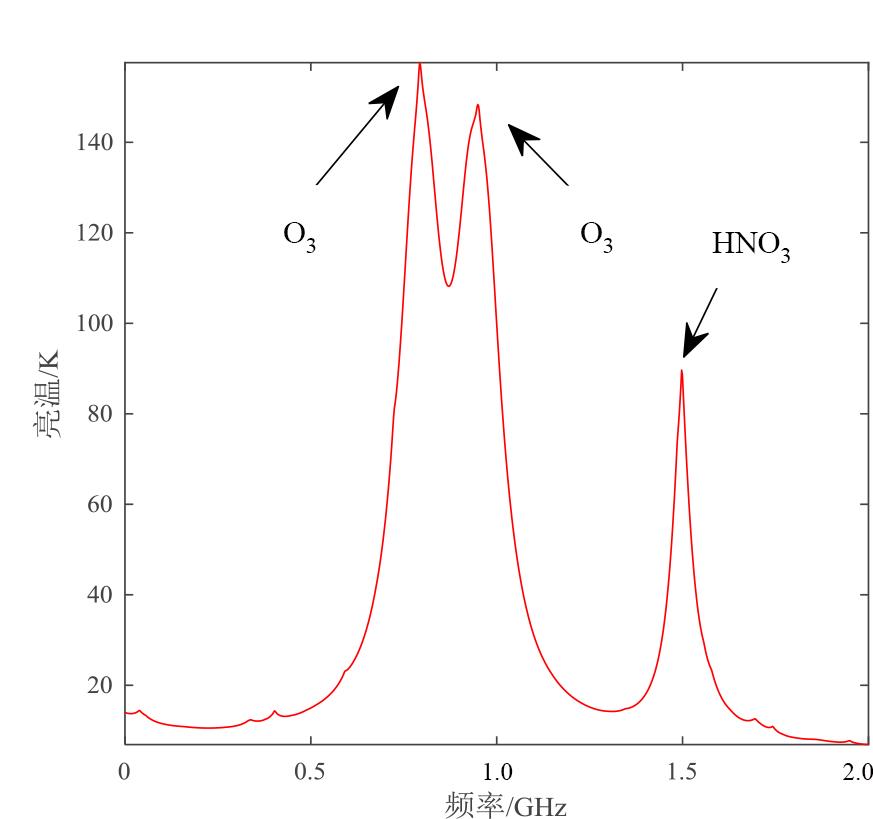

图5 240 GHz辐射计中模拟的天底角大气亮温

图6 临边探测中真实场景目标的功率偏差仿真结果

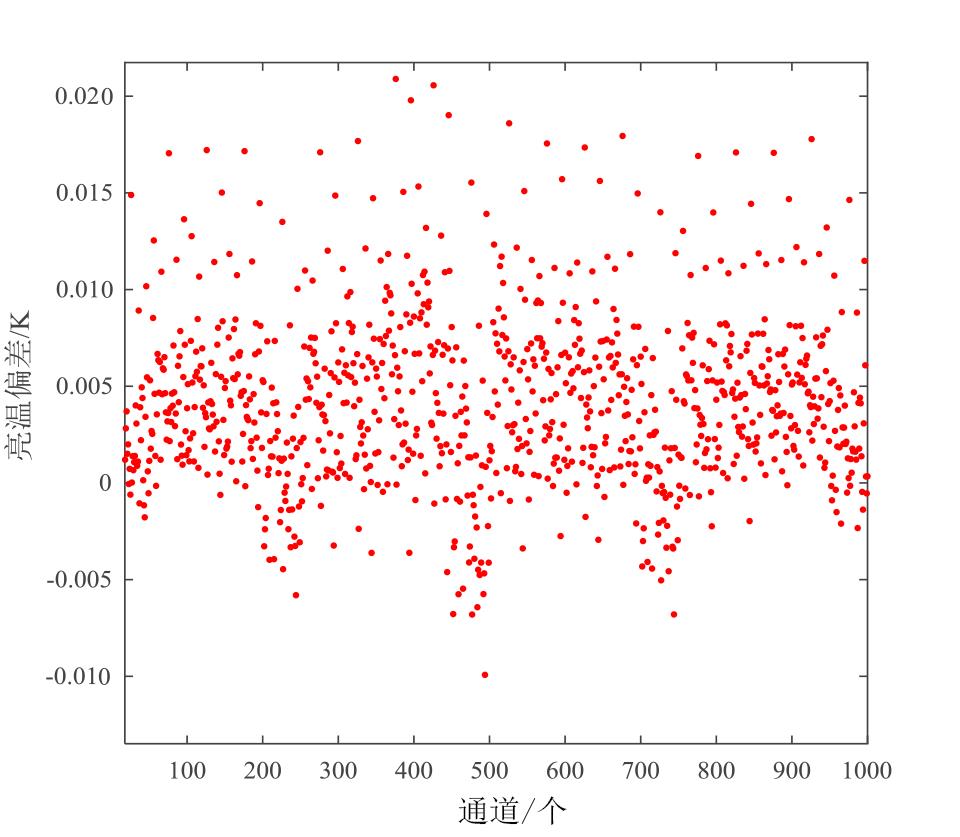

图7 临边探测中真实场景目标的亮温偏差仿真结果

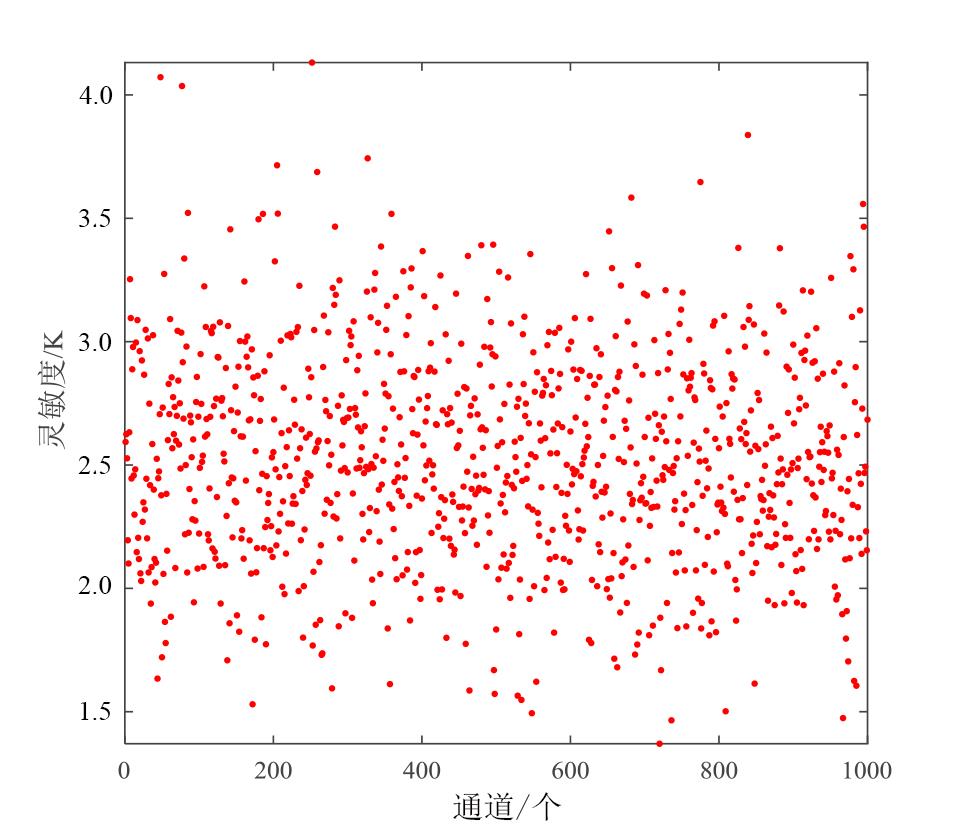

图8 核心算法子带灵敏度仿真结果

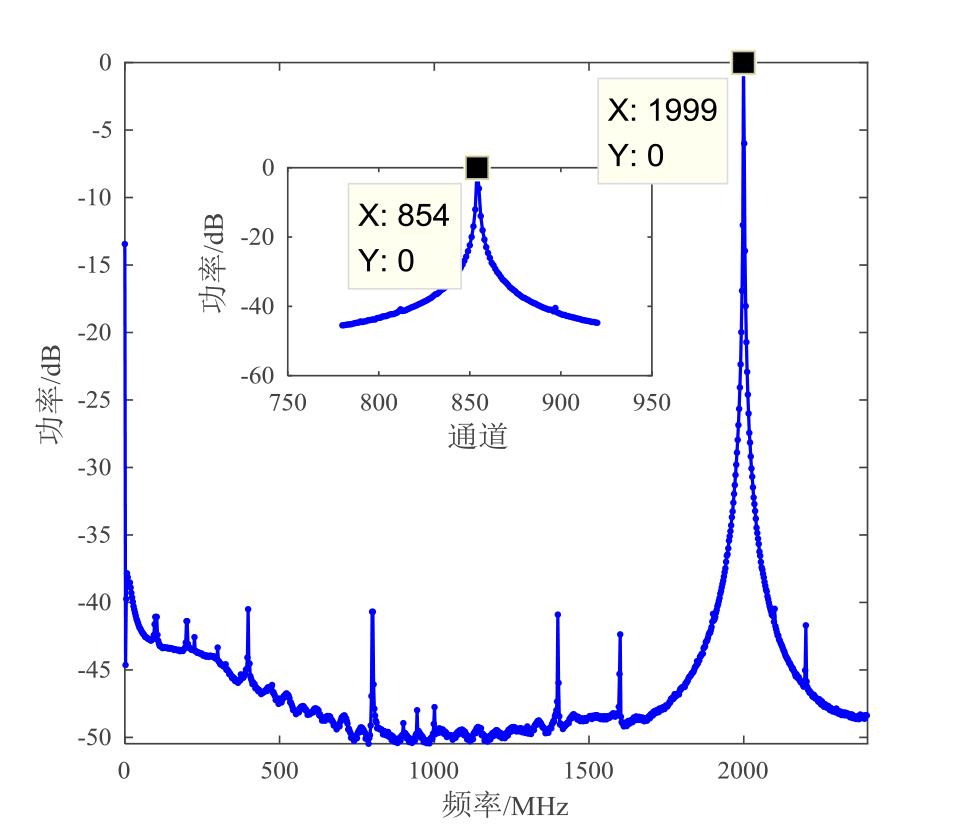

图9 2GHz正弦信号实测的功率谱结果

参考文献 21

1	SHIOTANIM, SAITOA, SAKAZAKIT, et al. A proposal for satellite observation of the whole atmosphere-superconducting submillimeter-wave limb-emission sounder (SMILES-2) [C]//2019 IEEE International Geoscience and Remote Sensing Symposium (IGARSS). Yokohama: IEEE, 2019: 8788-8791.
2	PETTT, LEEJ H, EHRLICHMANY, et al. Photonics-based microwave radiometer for hyperspectral earth remote sensing [C]//2018 International Topical Meeting on Microwave Photonics (MWP). Toulouse: IEEE, 2018: 1-4.
3	HAGENJ, LUDERA, MURKA, et al. Frequency-agile FFT spectrometer for microwave remote sensing applications [J]. Atmosphere, 2020, 11(5): 1-9.
4	IWAIK, KUBOY, ISHIBASHIH, et al. OCTAD-S: digital Fast Fourier Transform spectrometers by FPGA [J]. Earth Planets & Space, 2017, 69(1): 1-20.
5	BARATHF T, CHAVEZM C, COFIELDR E, et al. The upper atmosphere research satellite microwave limb sounder instrument [J]. Journal of Geophysical Research Atmospheres, 1993, 98(D6): 10751-10762.
6	WATERSSJ W, PECKHAMG E. The microwave limb sounder (MLS) experiments for UARS and EOS [C]//1991 IEEE International Geoscience and Remote Sensing Symposium (IGARSS). Espoo: IEEE, 2002: 543-546.
7	FRISKU, HAGSTRÖMM, ALA-LAURINAHOJ, et al. The Odin satellite. I. Radiometer design and test [J]. Astronomy and Astrophysics, 2003, 402(3): L27-L34.
8	ALA-LAURINAHOJ, HIRVONENT, PIIRONENP, et al. Measurement of the Odin telescope at 119 GHz with a hologram-type CATR [J]. IEEE Transactions on Antennas and Propagation, 2001, 49(9): 1264-1270.
9	COFIELDR E, STEKP C. Design and field-of-view calibration of 114-660-GHz optics of the earth observing system microwave limb sounder [J]. IEEE Transactions on Geoscience and Remote Sensing, 2006, 44(5): 1166-1181.
10	WATERSJ W, FROIDEVAUXL, HARWOODR S, et al. The earth observing system microwave limb sounder (EOS MLS) on the aura satellite [J]. IEEE Transactions on Geoscience and Remote Sensing, 2006, 44(5): 1075-1092.
11	OCHIAIS, KIKUCHIK, NISHIBORIT, et al. Performance of JEM/SMILES in orbit [C]//21st International Symposium on Space Terahertz Technology (ISSTT). Oxford and Didcot: ISSTT, 2010: 179-184.
12	TAKAHASHIC, OCHIAIS, SUZUKIM. Operational retrieval algorithms for JEM/SMILES level 2 data processing system [J]. Journal of Quantitative Spectroscopy & Radiative Transfer, 2010, 111(1): 160-173.
13	罗阳锦,张升伟. 基于FPGA的多通道高速数字谱仪的关键算法的设计与实现[J]. 电子学报, 2020, 48(5): 922-929.
	LUOY J, ZHANGS W. Key implementation of high-speed digital spectrometer based on polyphase filterbanks and advanced FFT on FPGA [J]. Acta Electronica Sinica, 2020, 48(5): 922-929. (in Chinese)
14	WANGW Y, WANGZ Z, DUANY Q. Performance evaluation of THz atmospheric limb sounder (TALIS) of China [J]. Atmospheric Measurement Techniques, 2020, 13(1): 13-38.
15	王振占. 海面风场全极化微波辐射测量——原理、系统设计与模拟研究[D]. 北京: 中国科学院空间科学与应用研究中心, 2005.
	WANGZ Z. Sea Surface Wind Vector Measured By Polarimetric Microwave Radiometer-Principle, System Design, and Simulation Study [D]. Beijing: Center for Space Science and Applied Research, Chinese Academy of Sciences, 2005. (in Chinese)
16	PROAKISJ G, MANOLAKISD G. Digital Signal Processing: Principles, Algorithms, and Applications (Fourth Edition) [M]. Beijing: Publishing House of Electronic Industry, 2014.
17	王显海. 宽带实时脉冲星数字接收机关键技术研究[D]. 南京: 东南大学, 2016.
	WANGX H. Research on The Key Techniques for The Wideband Real-Time Pulsar Digital Receiver [D]. Nanjing: Southeast University, 2016. (in Chinese)
18	陆浩,王振占. 全极化微波辐射计数字化引入误差分析[J]. 电子学报, 2013, 41(6): 1084-1087.
	LUH, WANGZ Z. The error analysis of digital technology in polarimetric microwave radiometer [J]. Acta Electronica Sinica, 2013, 41(6): 1084-1087. (in Chinese)
19	DUANY Q, WANGZ Z, XUH W, et al. Simulation of the spectrum Response for the THz Atmosphere limb sounder (TALIS) [J]. Sensors, 2020, 20(2): 1-21.
20	陆浩, 王振占, 刘璟怡, 等. 全极化微波辐射计系统中高速数字相关器设计[J]. 电子学报, 2011, 39(12): 2831-2835.
	LUH, WANGZ Z, LIUJ Y, et al. Design of high-speed digital correlator in fully polarimetric microwave radiometer [J]. Acta Electronica Sinica, 2011, 39(12): 2831-2835. (in Chinese)
21	罗阳锦,张升伟,陆浩. 高光谱微波辐射计宽带高速数字系统设计[J]. 电子学报, 2021, 49(2): 380-386.
	LUOY J, ZHANGS W, LUH. The system design of wide frequency band and high speed digital system of hyperspectral microwave radiometer [J]. Acta Electronica Sinica, 2021, 49(2): 380-386. (in Chinese)
