中间梁方式下压电式能量采集器发电性能研究

doi:10.12263/DZXB.20201186

电子学报 ›› 2022, Vol. 50 ›› Issue (2): 404-414.DOI: 10.12263/DZXB.20201186

所属专题：压电能量采集技术

中间梁方式下压电式能量采集器发电性能研究

闫晓东¹^,², 周公博¹^,²

^1.江苏省矿山机电装备重点实验室, 江苏徐州 221116
^2.中国矿业大学机电工程学院, 江苏徐州 221116

收稿日期:2020-10-23 修回日期:2021-02-04 出版日期:2022-02-25
- 通讯作者:
- 周公博
- 作者简介:
- 闫晓东男，1995年出生，山西吕梁人.现为中国矿业大学机电工程学院博士研究生.主要研究方向为压电振动能量收集技术和传感器网络. E-mail: yanxiaodong@cumt.edu.cn
  周公博（通讯作者）男，1985年出生，安徽桐城人.现为中国矿业大学教授、博士生导师.主要研究方向为矿山机械、传感器网络、故障监测与诊断、压电振动能量收集技术等. E-mail: gbzhou@cumt.edu.cn
- 基金资助:
- 国家自然科学基金 (61971423); 江苏省杰出青年基金 (BK20180033); 江苏高校优势学科建设工程资助项目

Study on Power Generation Performance of Piezoelectric Energy Harvester Under Intermediate Beam Fixed Mode

YAN Xiao-dong¹^,², ZHOU Gong-bo¹^,²

^1.Jiangsu Key Laboratory of Mining Electromechanical Equipment, Xuzhou, Jiangsu 221116, China
^2.School of Mechanical and Electrical Engineering, China University of Mining and Technology, Xuzhou, Jiangsu 221116, China

Received:2020-10-23 Revised:2021-02-04 Online:2022-02-25 Published:2022-02-25
- Corresponding author:
- ZHOU Gong-bo
- Supported by:
- National Natural Science Foundation of China (61971423); Outstanding Youth Fund of Jiangsu Province (BK20180033); Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions

摘要/Abstract

摘要：

压电式能量采集器（Piezoelectric Energy Harvester，PEH）固定方式的改变会直接影响其发电性能，而传统悬臂梁固定方式（Cantilever Beam Fixed Mode，CBFM）调频范围窄且发电性能较差.为了使PEH的发电性能最大化，提出了一种适用于任意尺寸压电片的中间梁固定方式（Intermediate Beam Fixed Mode，IBFM）.同时，通过仿真和实验的方法研究了添加不同质量块后CBFM和IBFM两种固定方式的发电性能.结果表明，在相交频带处，与CBFM相比，采用IBFM后，PEH在单位加速度条件下最大开路电压和发电功率分别平均提升了95.19%和205.88%.此外，机电耦合系数（Electromechanical coupling coefficient，EMCC）平均提升了11.60%.因此，所提出的方法可以为PEH在不同频段处固定方式的选择提供指导.

关键词: 压电式能量采集器, 发电性能, 悬臂梁固定方式, 中间梁固定方式, 相交频带

Abstract:

The change of fixed mode of piezoelectric energy harvester(PEH) will directly affect its power generation performance, while the traditional cantilever beam fixed mode(CBFM) has a narrow frequency range and poor power generation performance. In order to maximize the power generation performance of the PEH, an intermediate beam fixed mode(IBFM) suitable for piezoelectric plates of any size is proposed. Meanwhile, the power generation performance of the two fixed modes of the CBFM and IBFM after adding different mass blocks has been studied through simulation and experiment methods. The results show that compared with the CBFM, the maximum open circuit voltage and maximum generated power of the PEH under unit acceleration are increased by 95.19% and 205.88%, respectively at the intersection frequency band. In addition, the electromechanical coupling coefficient(EMCC) is increased by 11.60% on average. Therefore, the proposed method can provide guidance for the selection of fixed mode of the PEH at different frequency bands.

Key words: piezoelectric energy harvester, power generation performance, cantilever beam fixed mode, intermediate beam fixed mode, intersection frequency band

中图分类号:

TN384

闫晓东, 周公博. 中间梁方式下压电式能量采集器发电性能研究[J]. 电子学报, 2022, 50(2): 404-414.

Xiao-dong YAN, Gong-bo ZHOU . Study on Power Generation Performance of Piezoelectric Energy Harvester Under Intermediate Beam Fixed Mode[J]. Acta Electronica Sinica, 2022, 50(2): 404-414.

图/表 26

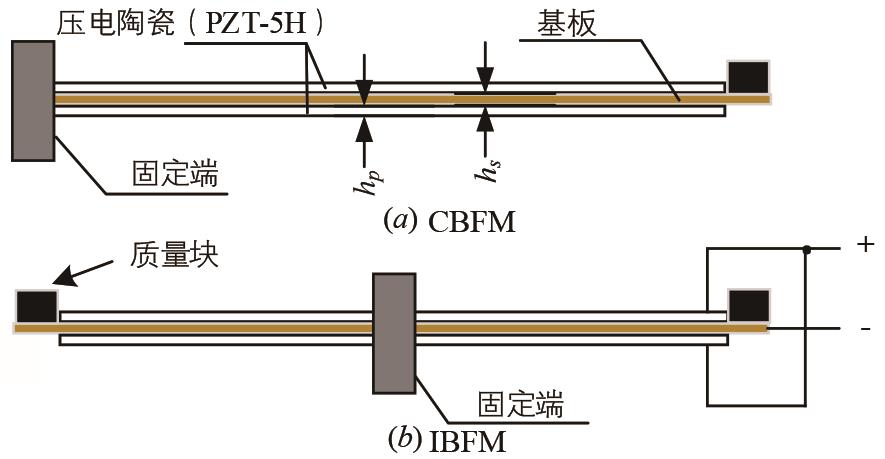

图1 2种固定方式模型示意图

表1 模型参数

参数	基板	PZT-5H	质量块
杨氏模量/GPa	110	60.6	—
泊松比	0.324	—	—
密度/（kg/m³）	8 300	7 500	8 900
长度/mm	80	60	10
宽度/mm	33	33	33
厚度/mm	0.2	0.2	—

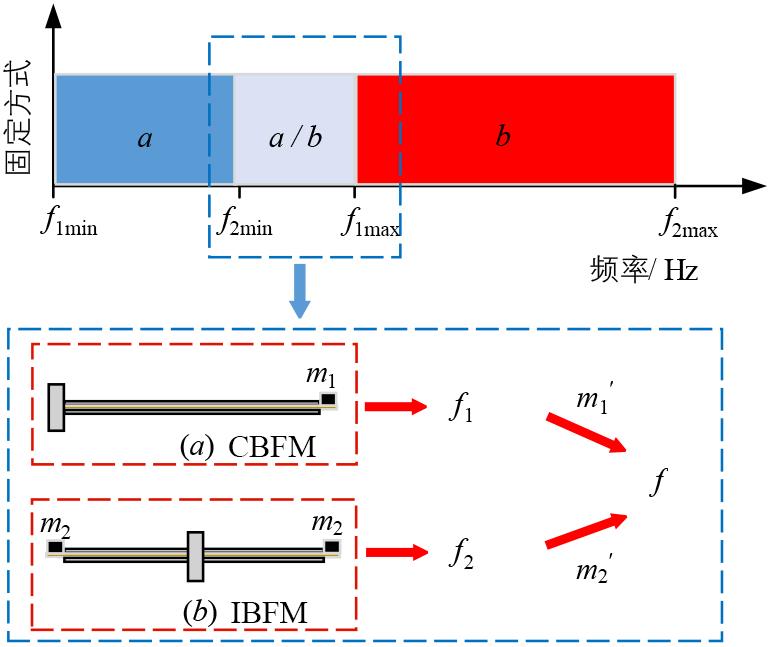

图2 假设模型

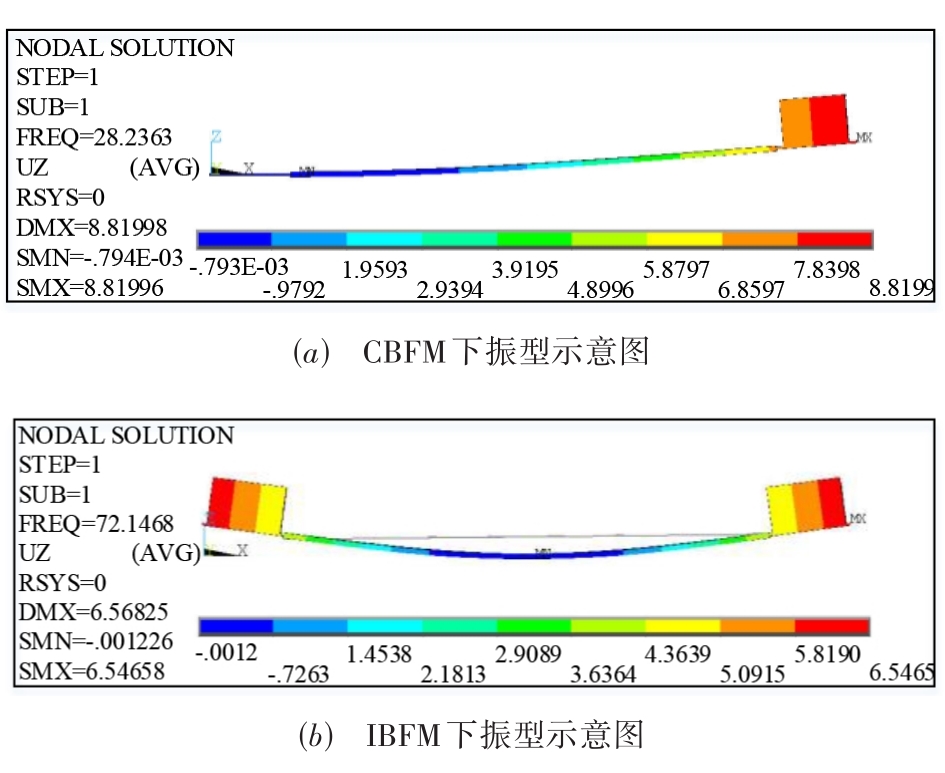

图3 2种固定方式重物质量均为17 g时振型示意图

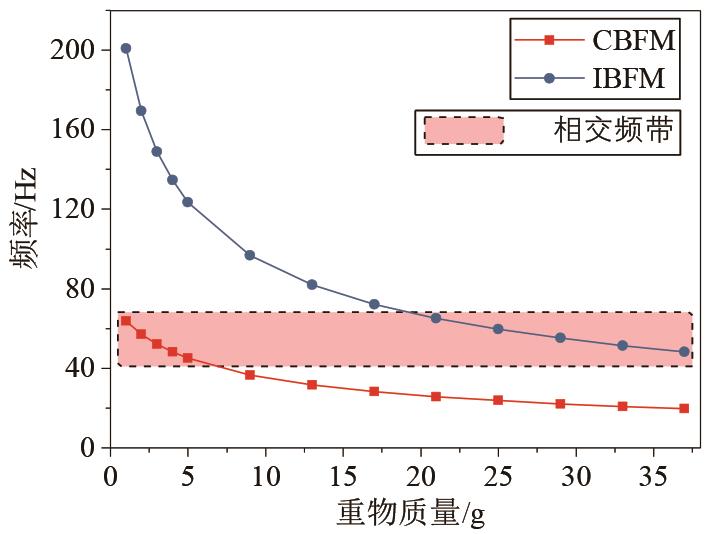

图4 2种固定方式固有频率与重物质量的关系

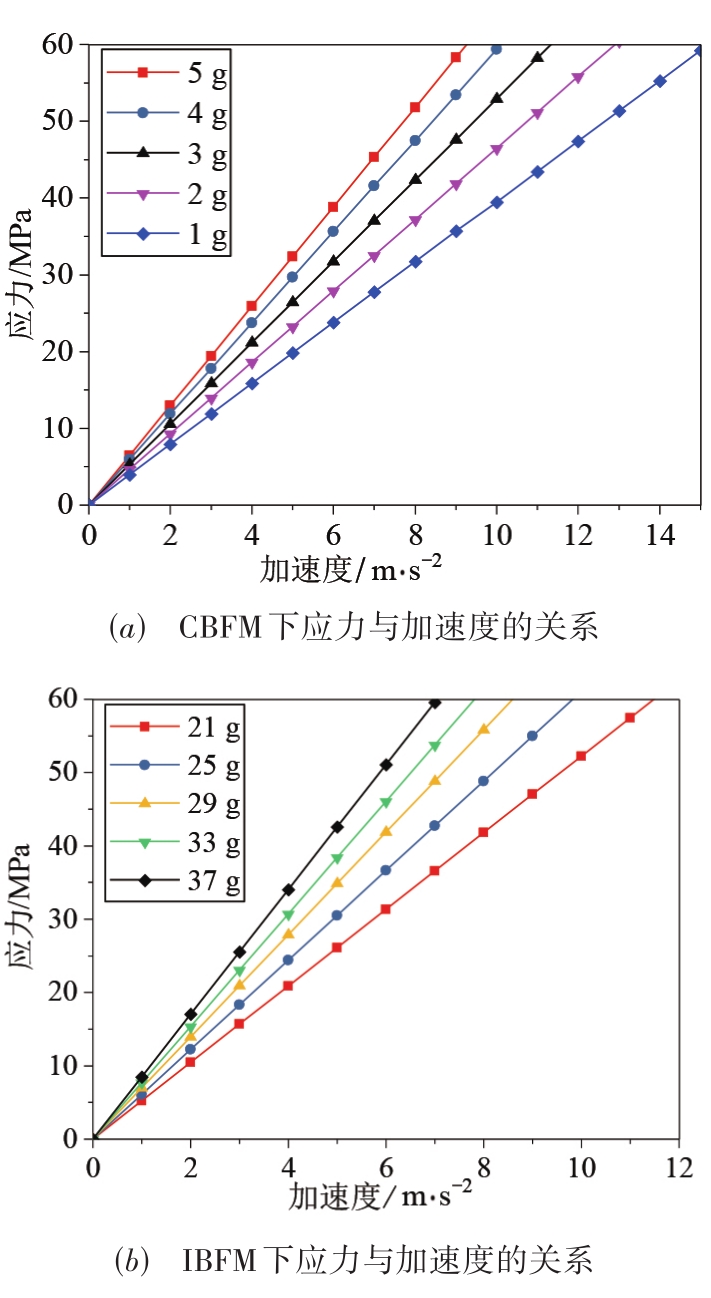

图5 2种固定方式下应力与加速度的关系

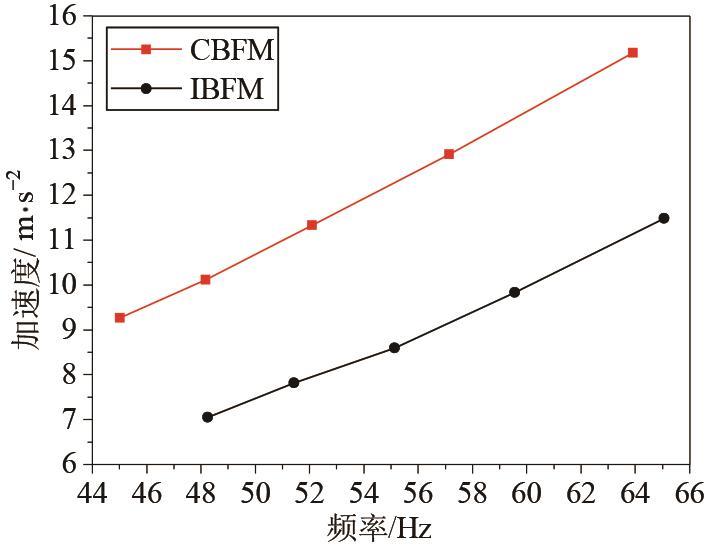

图6 2种固定方式极限加速度的比较

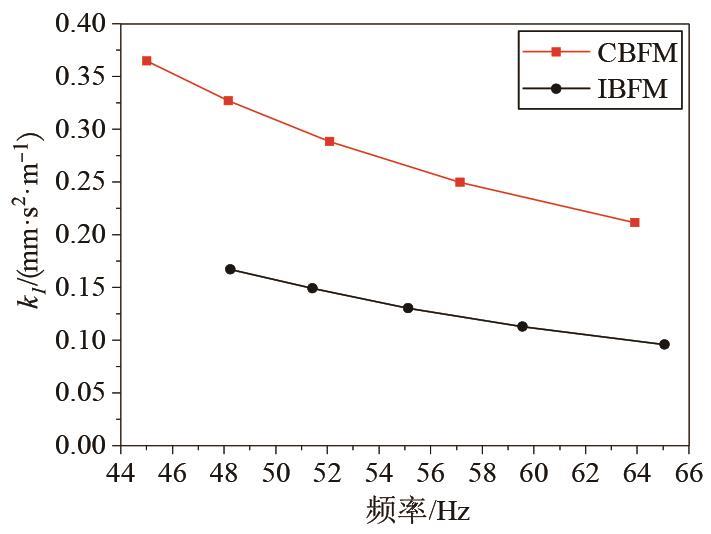

图7 2种固定方式在单位加速度条件时的极限位移

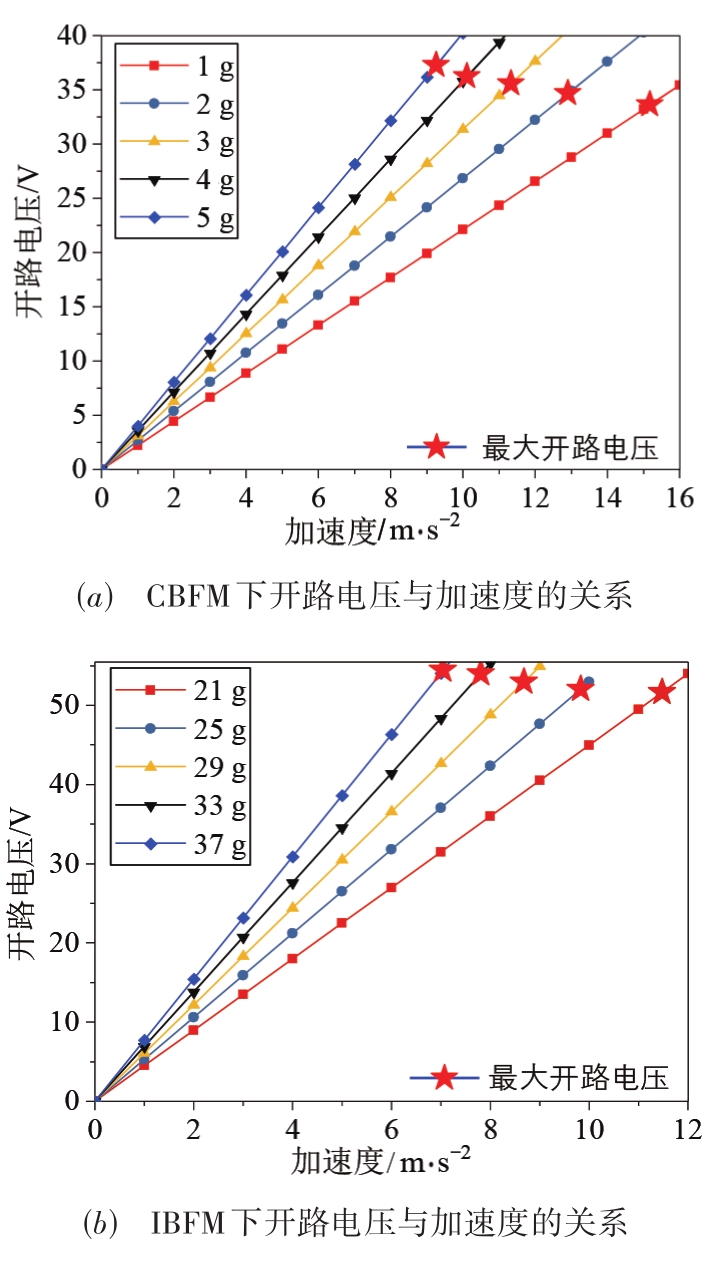

图8 2种固定方式开路电压与加速度的关系

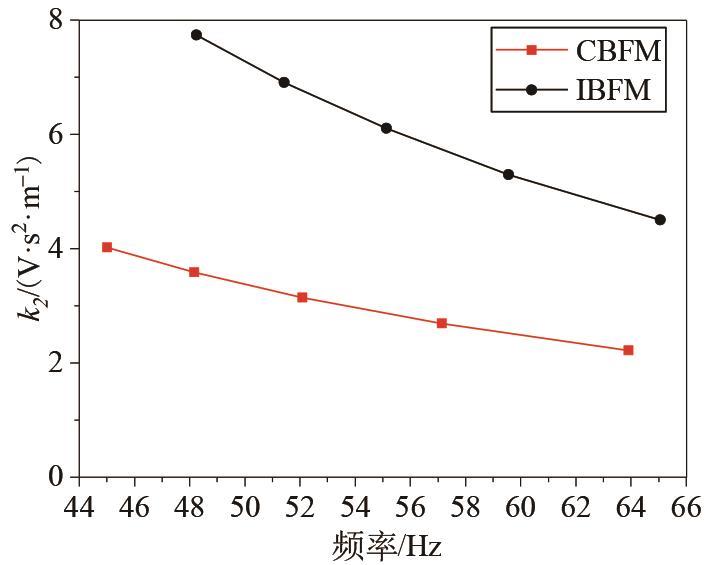

图9 两种固定方式在单位加速度条件时的最大开路电压

图10 2种固定方式的阻抗与频率的关系

表2 2种固定方式下EMCC

固定方式	质量块/g	f_a /Hz	f_r /Hz	EMCC	平均值
CBFM	1	64.25	59	0.395 913	0.394 806
	2	57	52.5	0.389 438
	3	52	47.5	0.406 925
	4	48	43.5	0.422 742
	5	45	42	0.359 011
IBFM	21	65	57	0.480 631	0.487 534
	25	61	53	0.495 071
	29	55	49	0.454 182
	33	53	45	0.528 302
	37	49	43	0.479 483

图11 两种固定方式的最优负载电阻

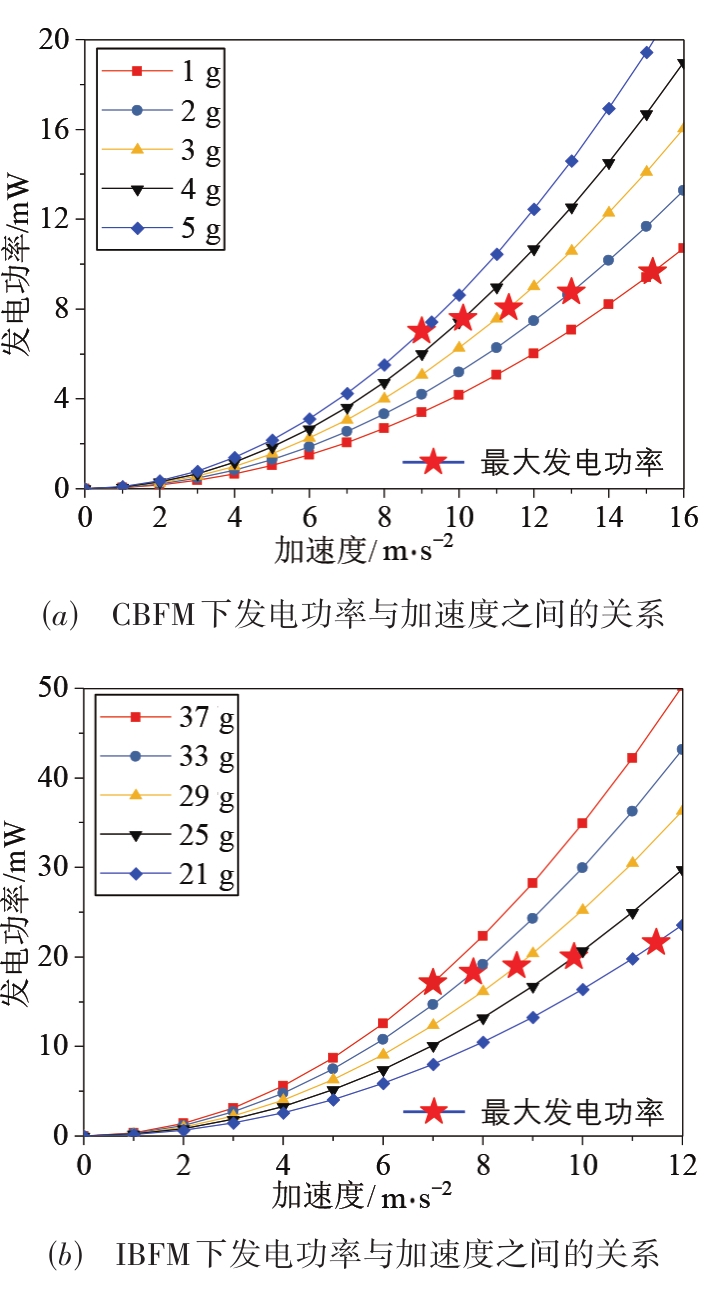

图12 2种固定方式的发电功率与加速度的关系

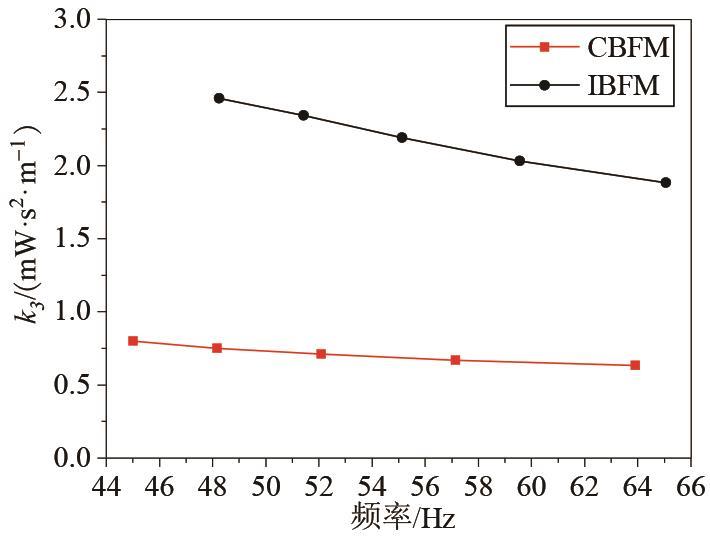

图13 2种固定方式在单位加速度条件时的最大发电功率

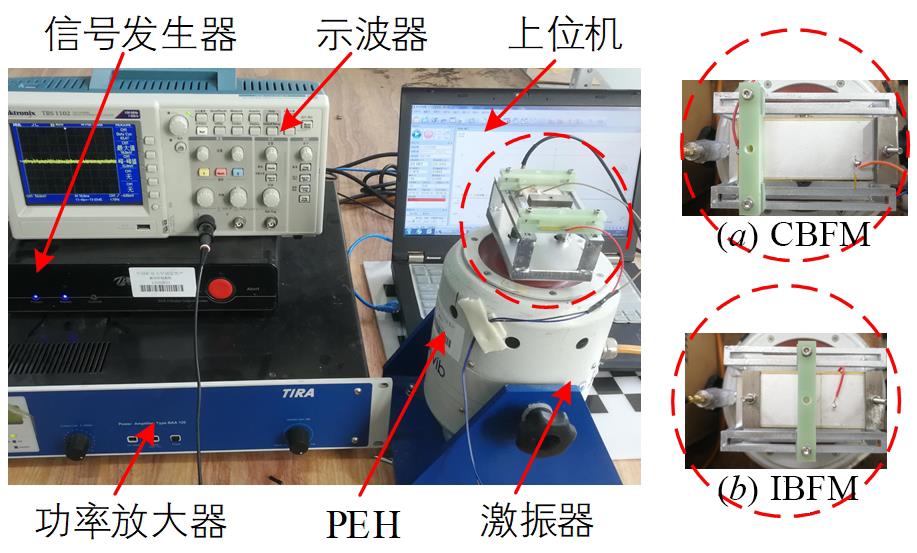

图14 实验平台

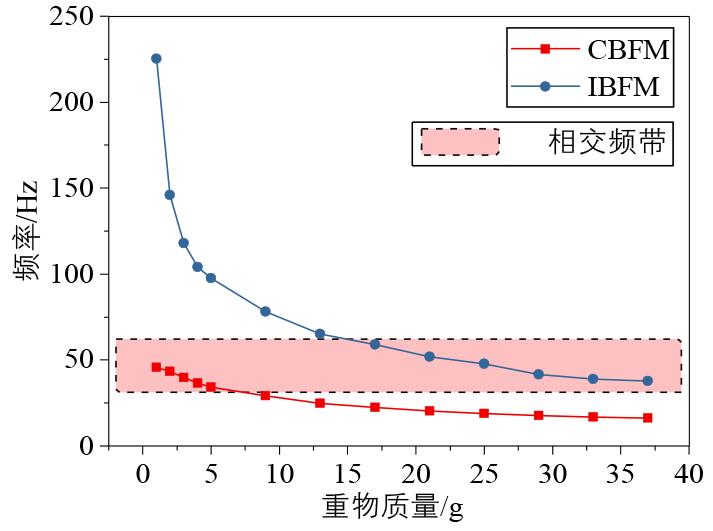

图15 2种固定方式的固有频率与重物质量的关系

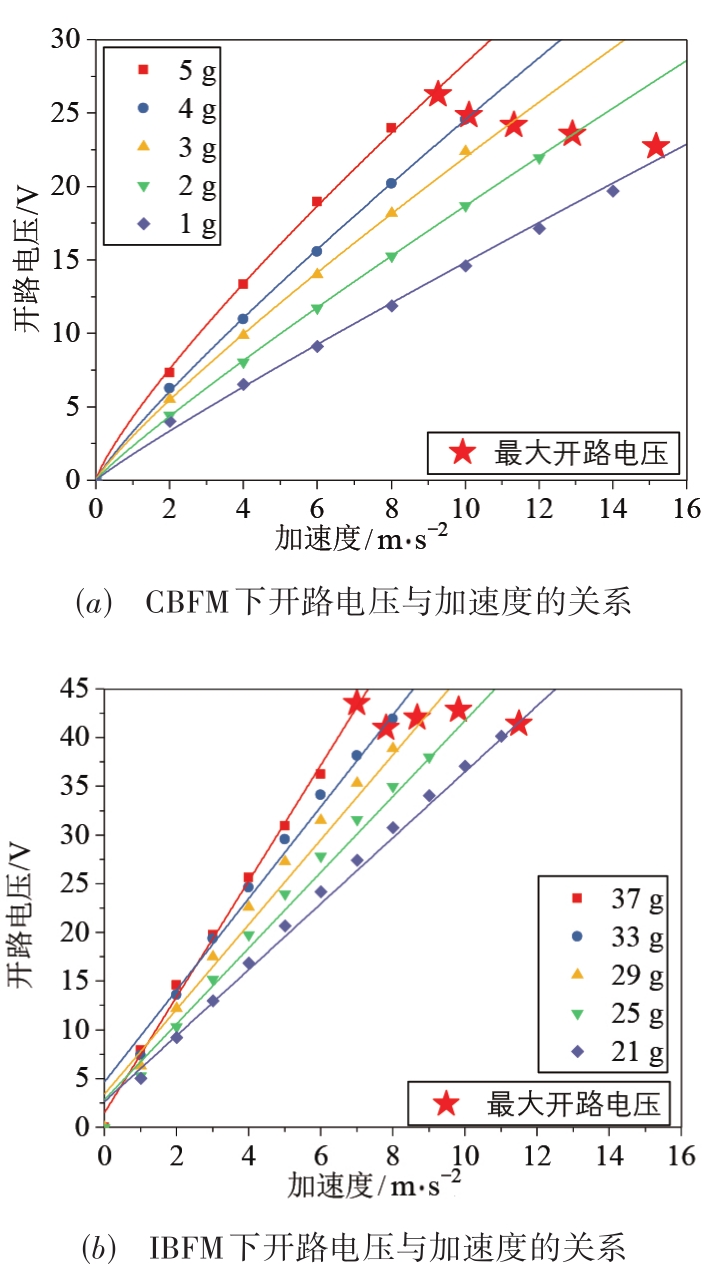

图16 两种固定方式的开路电压与加速度的关系

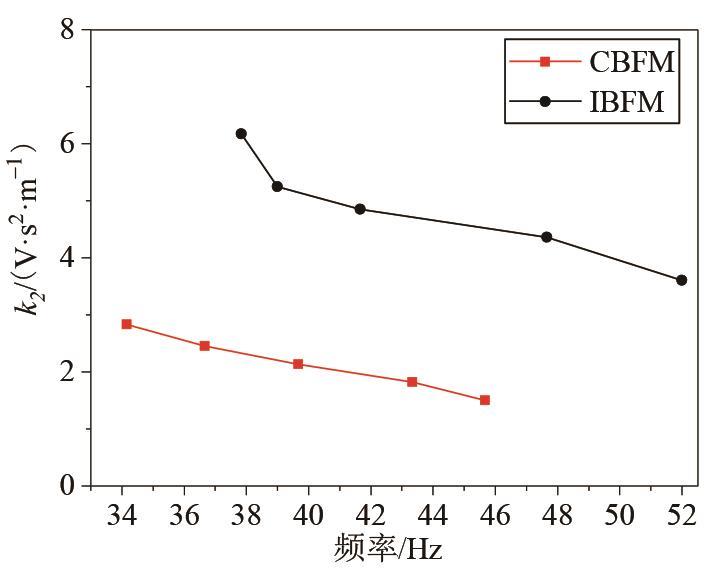

图17 2种固定方式在单位加速度条件时的最大开路电压

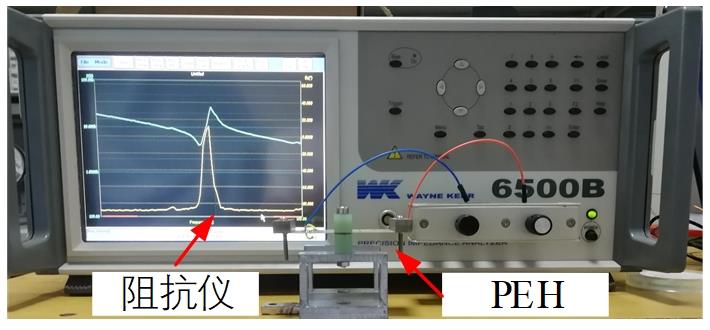

图18 阻抗分析实验

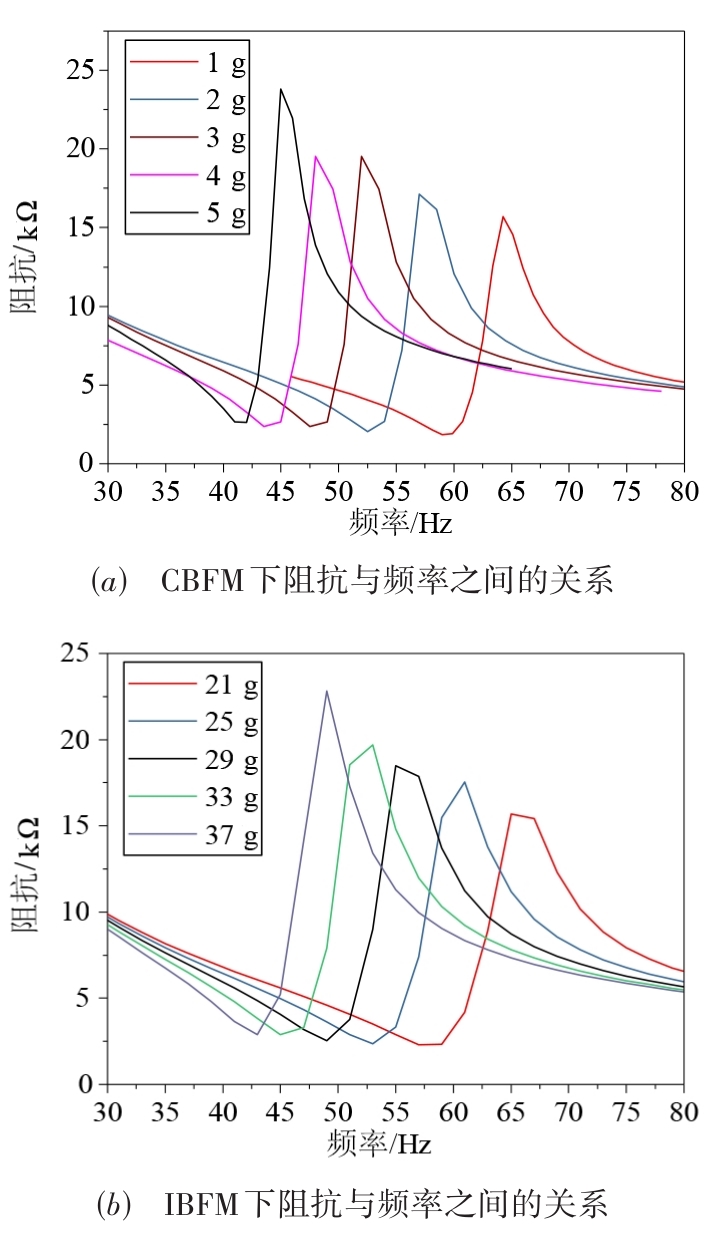

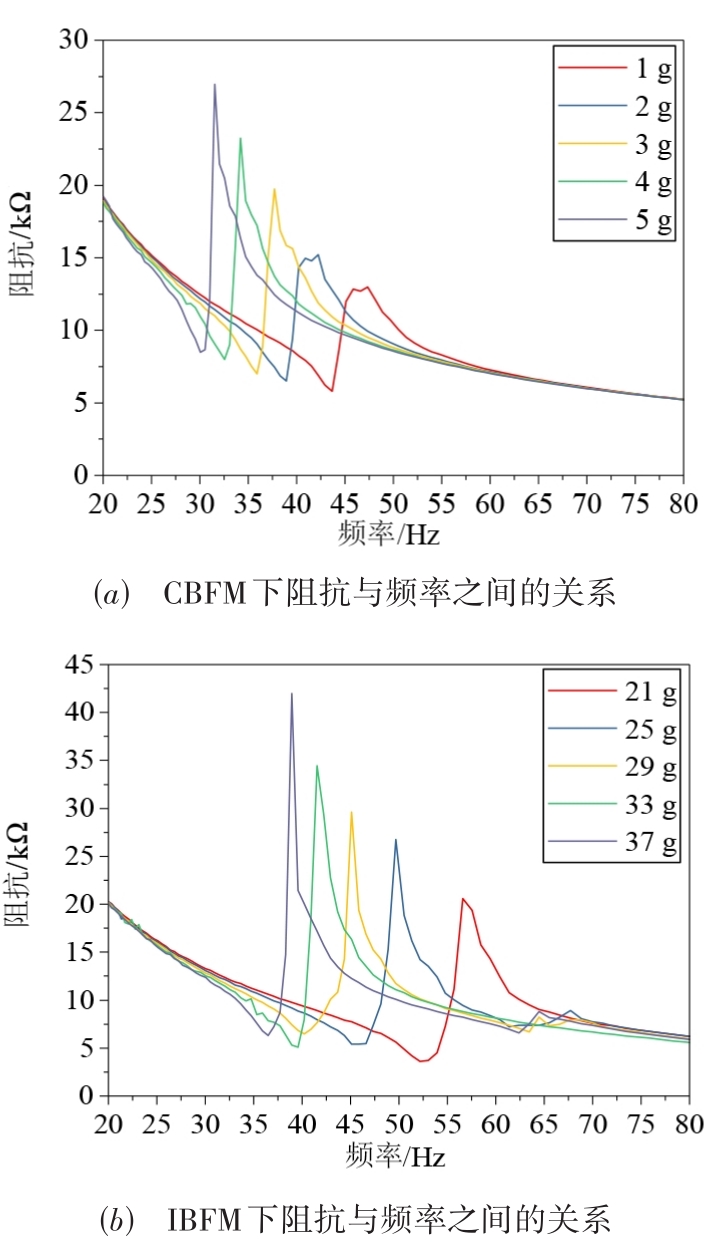

图19 2种固定方式下阻抗与频率的关系

表3 2种固定方式下EMCC

固定方式	质量块/g	f_a /Hz	f_r /Hz	EMCC	平均值
CBFM	1	47.34	43.64	0.387 565	0.337 755
	2	42.24	38.95	0.386 924
	3	37.7	35.91	0.304 476
	4	34.2	32.57	0.305 041
	5	31.53	30.03	0.304 769
IBFM	21	56.61	52.19	0.387 376	0.376 966
	25	49.71	45.83	0.387 315
	29	45.09	40.24	0.451 171
	33	41.64	39.59	0.309 902
	37	38.95	36.50	0.349 064

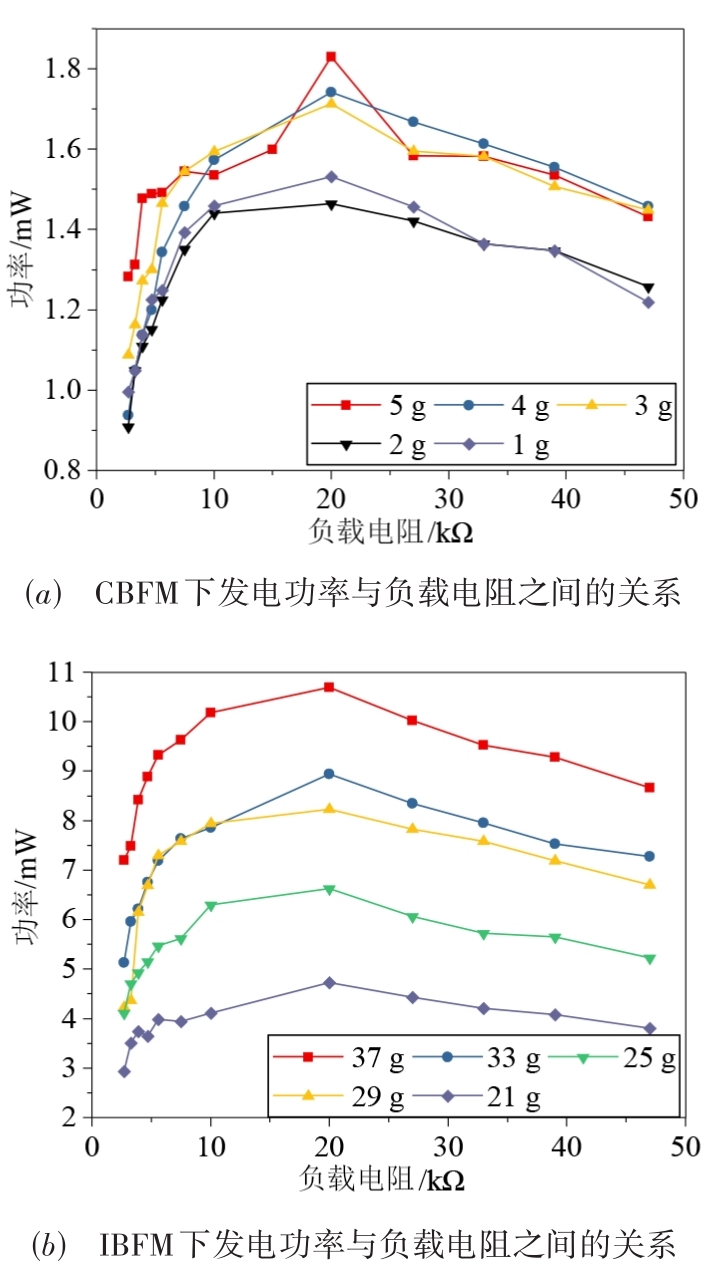

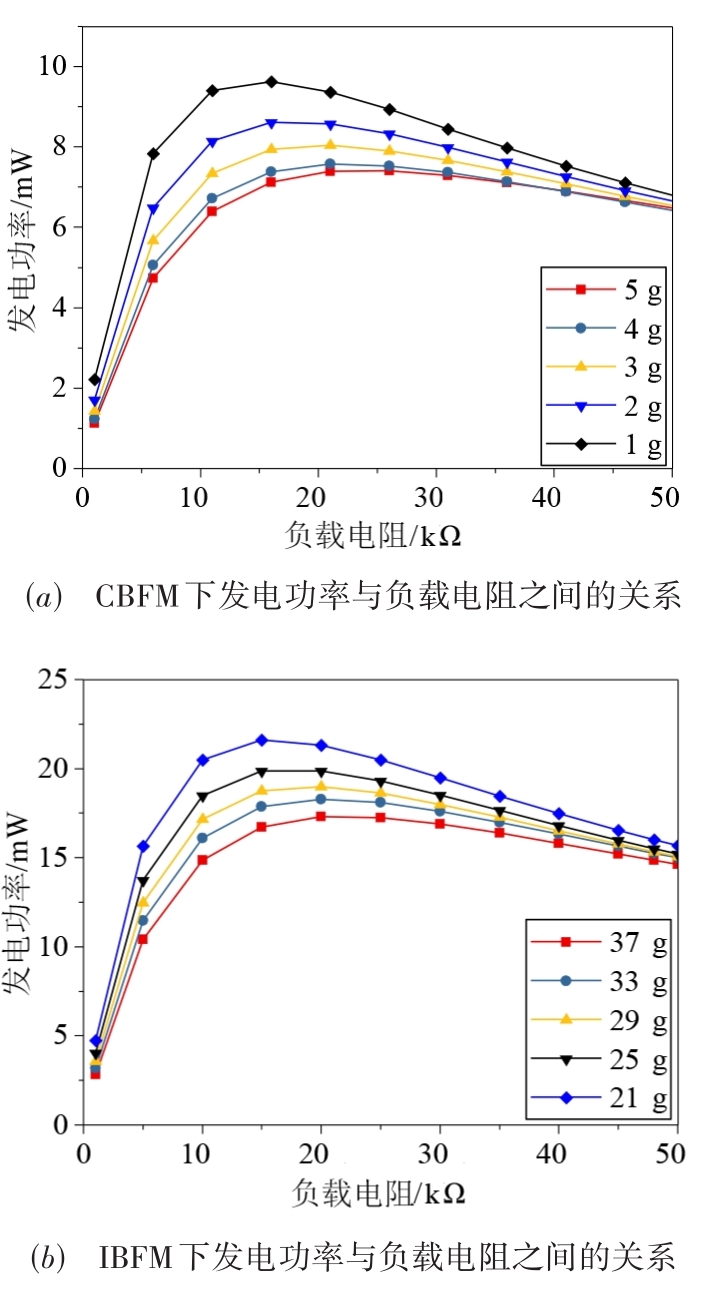

图20 两种固定方式的最优负载电阻

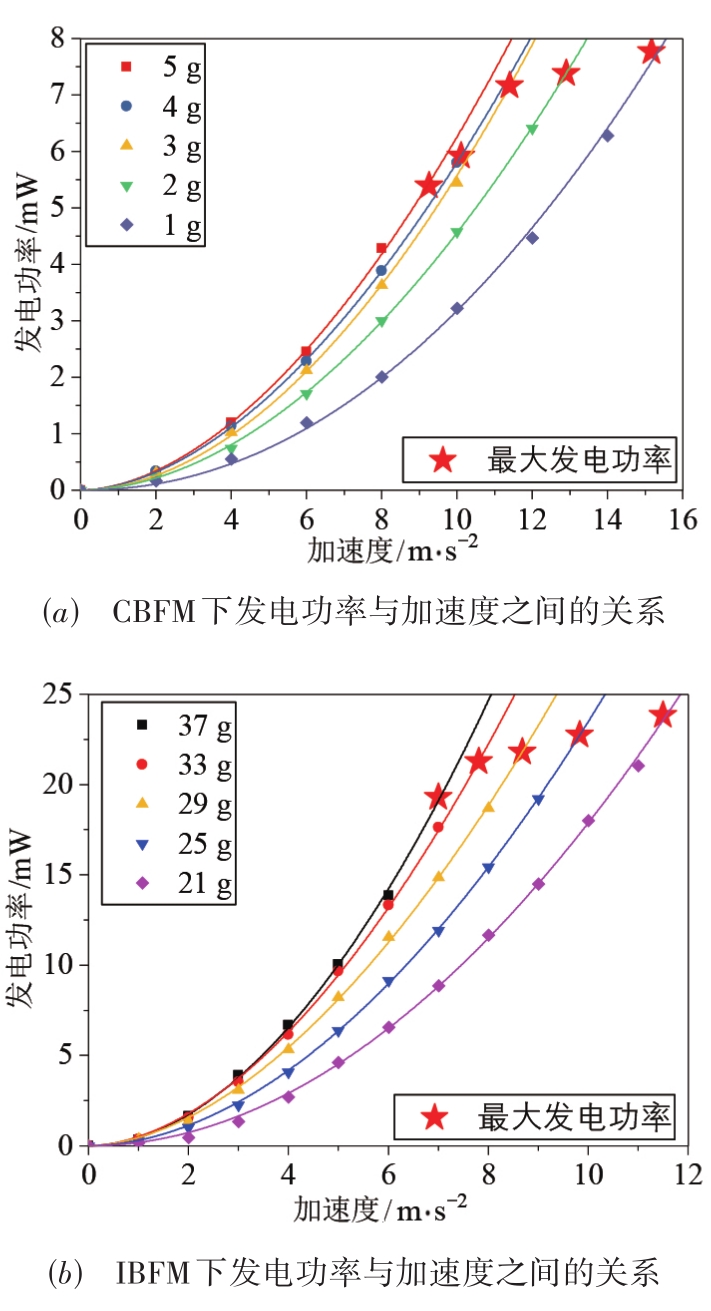

图21 2种固定方式的发电功率与加速度的关系

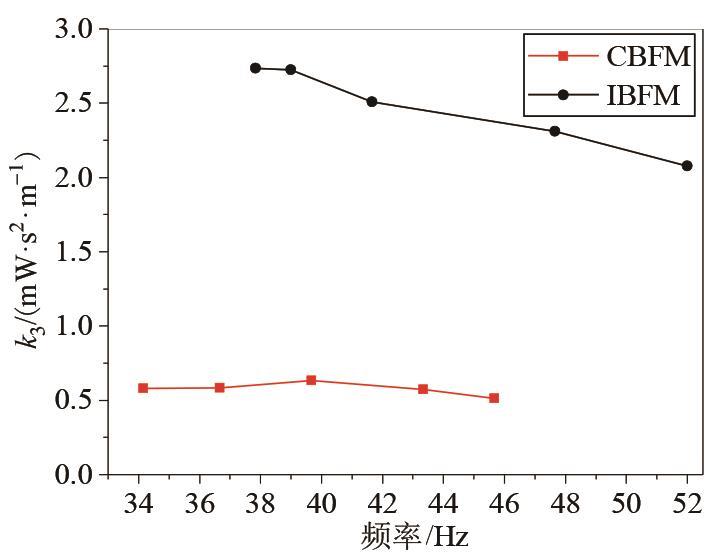

图22 2种固定方式在单位加速度条件时的最大发电功率

表4 2种固定方式在相交频带处性能参数比较

参数	CBFM	IBFM	提升率/%
开路电压 $k 2$ /（V·s²/m）	2.148 6	4.845 6	125.52
EMCC	0.337 8	0.377 0	11.60
发电功率 $k 3$ /（mW·s²/m）	0.576 4	2.470 4	328.59

表4 2种固定方式在相交频带处性能参数比较

参数	CBFM	IBFM	提升率/%
开路电压 $k 2$ /（V·s²/m）	2.148 6	4.845 6	125.52
EMCC	0.337 8	0.377 0	11.60
发电功率 $k 3$ /（mW·s²/m）	0.576 4	2.470 4	328.59
