3阶FLFB低通滤波器的最小可接受功耗分析

doi:10.12263/DZXB.20210002

电子学报 ›› 2022, Vol. 50 ›› Issue (6): 1480-1486.DOI: 10.12263/DZXB.20210002

3阶FLFB低通滤波器的最小可接受功耗分析

张旭东¹, 雷倩倩¹(), 张芳玲¹, 李弦², 李连碧¹

^1.西安工程大学理学院，陕西西安 710000
^2.深圳市纽瑞芯科技有限公司，广东深圳 518000

收稿日期:2020-12-22 修回日期:2021-03-24 出版日期:2022-06-25
- 通讯作者:
- 雷倩倩
- 作者简介:
- 张旭东男，1996年出生，河南平顶山人.西安工程大学在读硕士.研究方向为模拟基带有源滤波器.E-mail: 15202462872@163.com
  雷倩倩（通讯作者）女，1984年出生，陕西西安人.博士、副教授.主要研究方向为模拟、数模混合集成电路设计. E-mail: leiqianqian@163.com
- 基金资助:
- 深圳市科技计划资助项目 (KQTD20190929172628244)

Analysis of Minimum Acceptable Power Consumption of the 3^rd Follow-the-Leader-FeedBack Low Pass Filter

ZHANG Xu-dong¹, LEI Qian-qian¹(), ZHANG Fang-ling¹, LI Xian², LI Lian-bi¹

^1.School of Science, Xi’an Polytechnic University, Xi’an, Shaanxi 710000, China
^2.NewRadio Tech, Shenzhen, Guangdong 518000, China

Received:2020-12-22 Revised:2021-03-24 Online:2022-06-25 Published:2022-06-25
- Corresponding author:
- LEI Qian-qian
- Supported by:
- Program supported by Shenzhen Science and Technology Project of Guangdong Province (KQTD20190929172628244)

摘要/Abstract

摘要：

对于多重反馈滤波器提出了一种最小可接受功耗的分析方法.采用劳斯-赫尔维茨稳定性判据对3阶FLFB（Follow-the-Leader-FeedBack）低通滤波器进行分析，当滤波器处于稳定临界状态时，利用MATLAB拟合出最小可接受相位裕度曲线和跨导图，通过电路级分析和验证，给出了滤波器设计参数与功耗之间的关系.采用UMC 40 nm CMOS 工艺进行电路设计，后仿结果表明：滤波器的带宽可调范围为0.9~9.9 MHz，版图面积0.03 mm²，此时总功耗为0.36 mW，与传统采用60°相位裕度的设计相比，功耗减小了近30%.在保证滤波器稳定工作的前提下，降低了功耗，与理论相吻合.

关键词: 低通滤波器, 最小可接受功耗, FLFB, 稳定性判据

Abstract:

An analysis method about the minimum acceptable power consumption of multiple-loop feedback filter is presented. When a 3^rd follow-the-leader-feedback(FLFB) low pass filter working at the stable state edge, based on Routh-Hurwitz stability criteria, synthesize the minimum acceptable phase margin curve and transconductance figure by MATLAB, and the relationship between filter design parameters and power consumption is given through circuit-level analysis and verification. Design is fabricated in UMC 40 nm CMOS technology, the post-simulation results show that the cutoff frequency is adjustable for 0.9~9.9 MHz, the layout area is 0.03 mm², and the total power consumption is 0.36 mW, reduced nearly 30% compared with the traditional design that phase margin is 60°. Under the premise of ensuring the stable operation of the filter, the power consumption is reduced, confirmed the minimum acceptable power consumption theory.

Key words: low pass filter, minimum acceptable power consumption, follow-the-leader-feedback, stability criteria

中图分类号:

TN713

张旭东, 雷倩倩, 张芳玲, 等. 3阶FLFB低通滤波器的最小可接受功耗分析[J]. 电子学报, 2022, 50(6): 1480-1486.

Xu-dong ZHANG, Qian-qian LEI, Fang-ling ZHANG, et al. Analysis of Minimum Acceptable Power Consumption of the 3^rd Follow-the-Leader-FeedBack Low Pass Filter[J]. Acta Electronica Sinica, 2022, 50(6): 1480-1486.

图/表 11

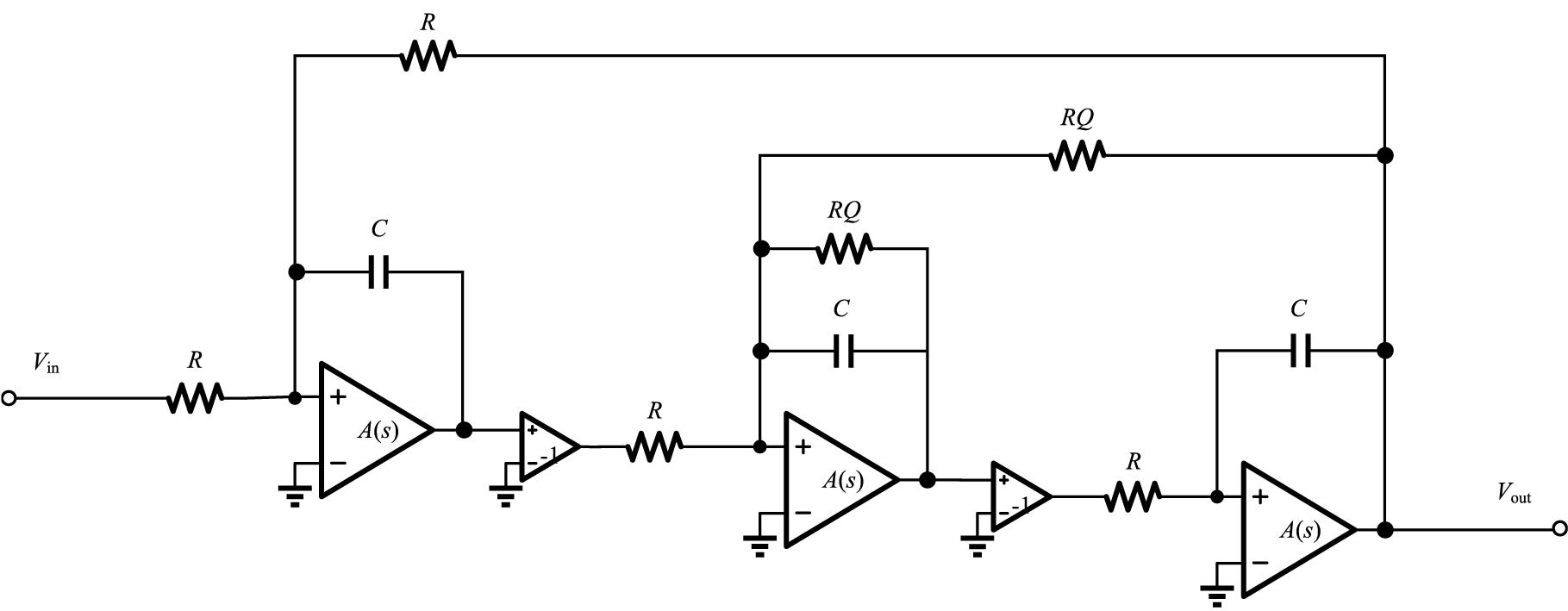

图1 3阶FLFB低通滤波器拓扑结构

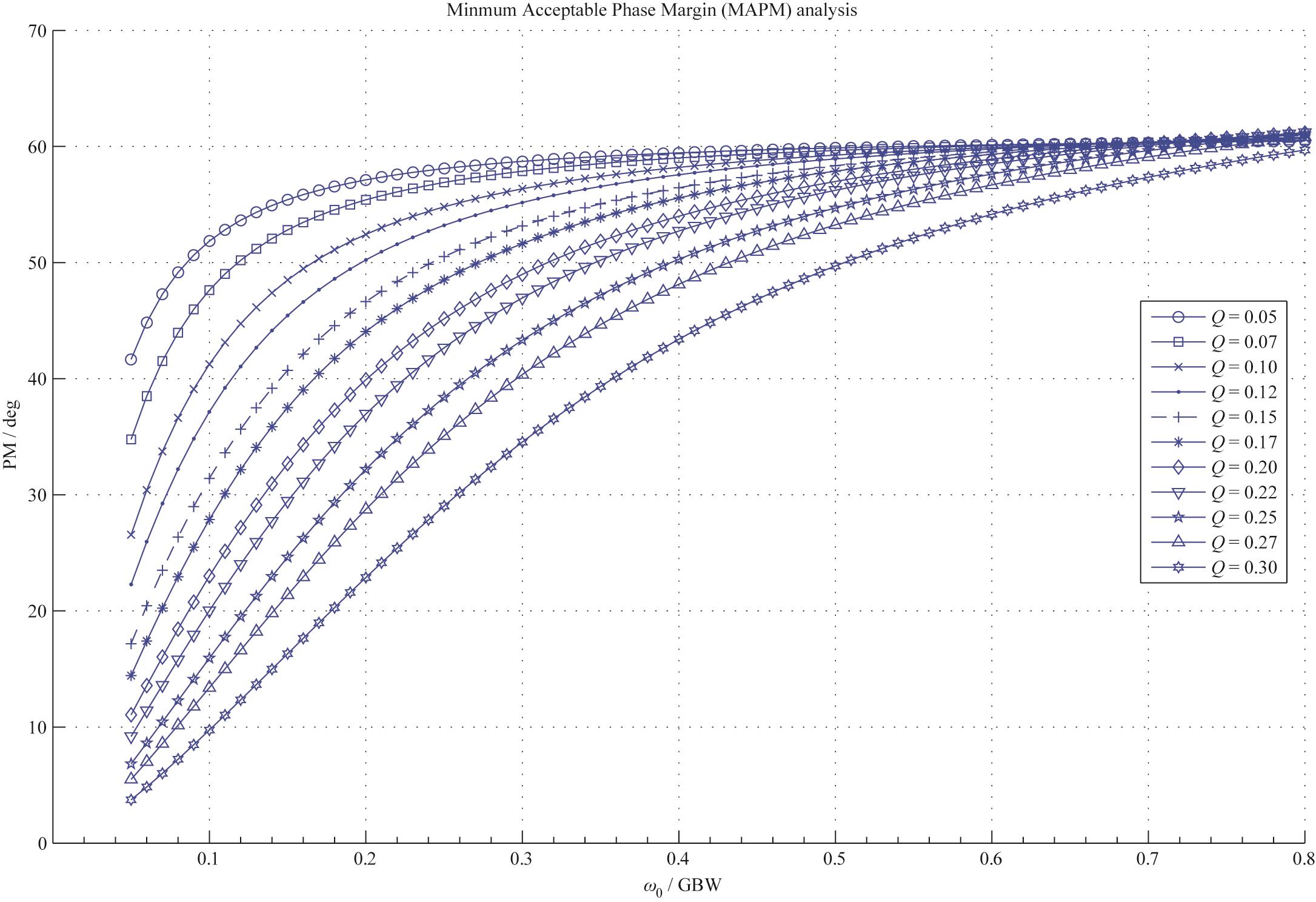

图2 最小可接受相位裕度

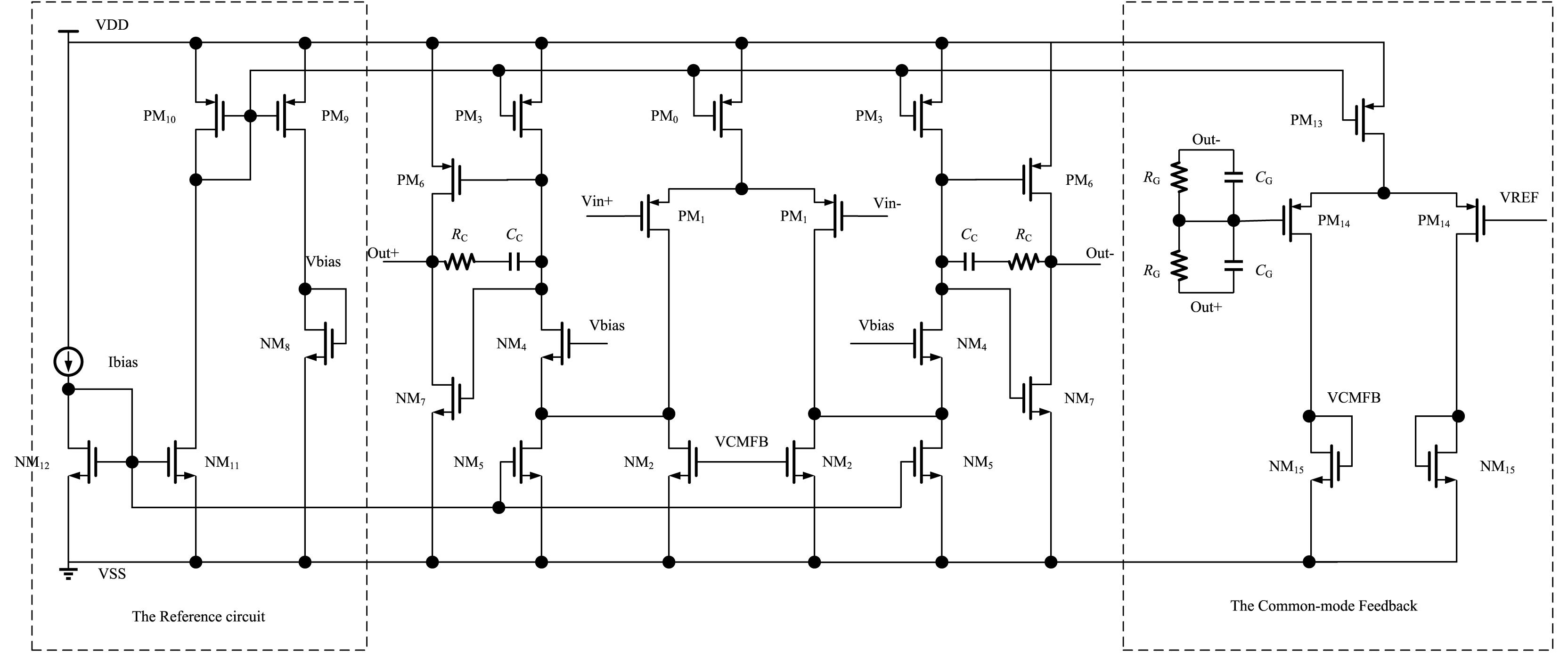

图3 Class AB两级运放电路图

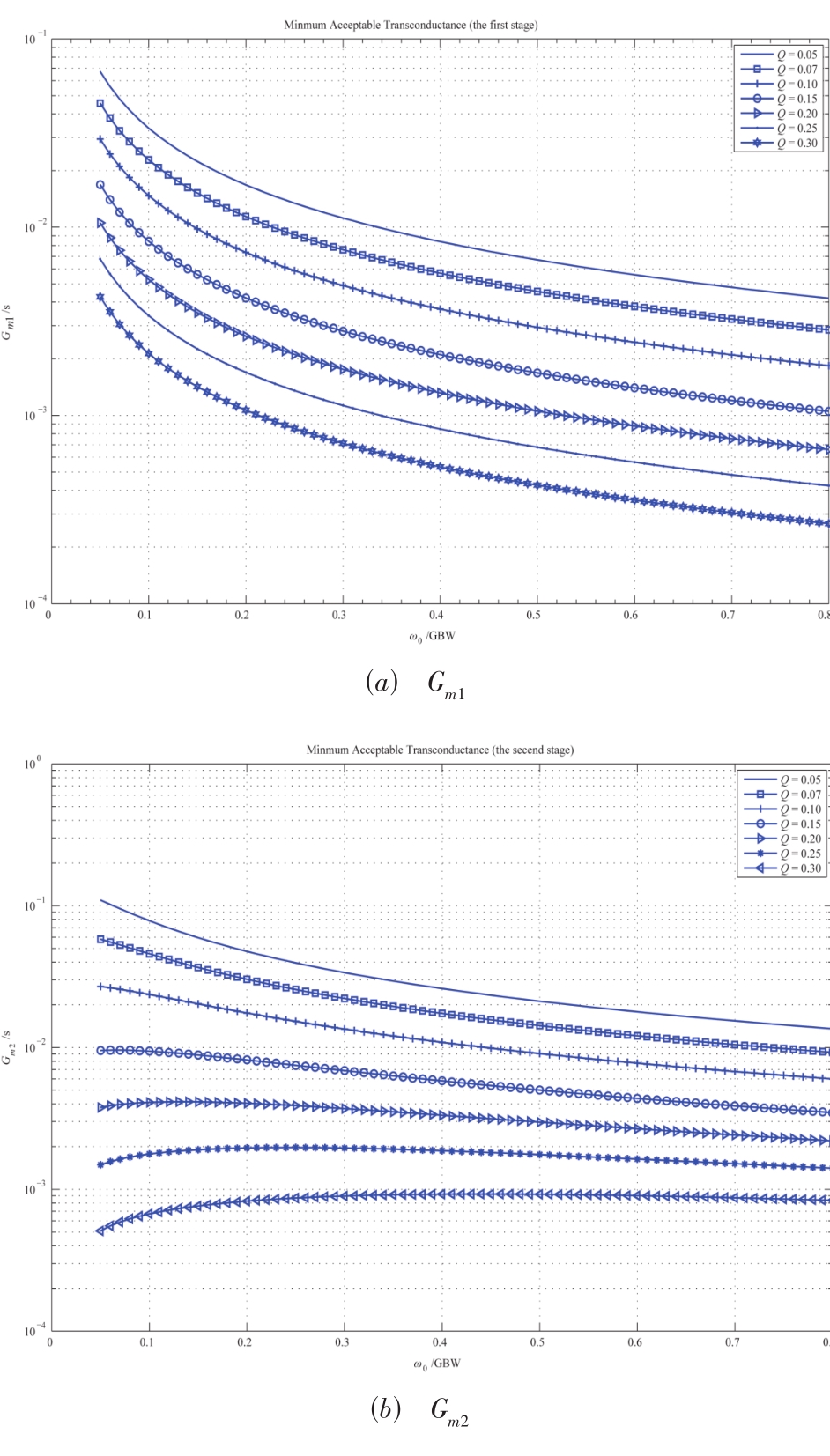

图4 最小可接受跨导分析图

图5 运放PM对功耗和GBW的影响

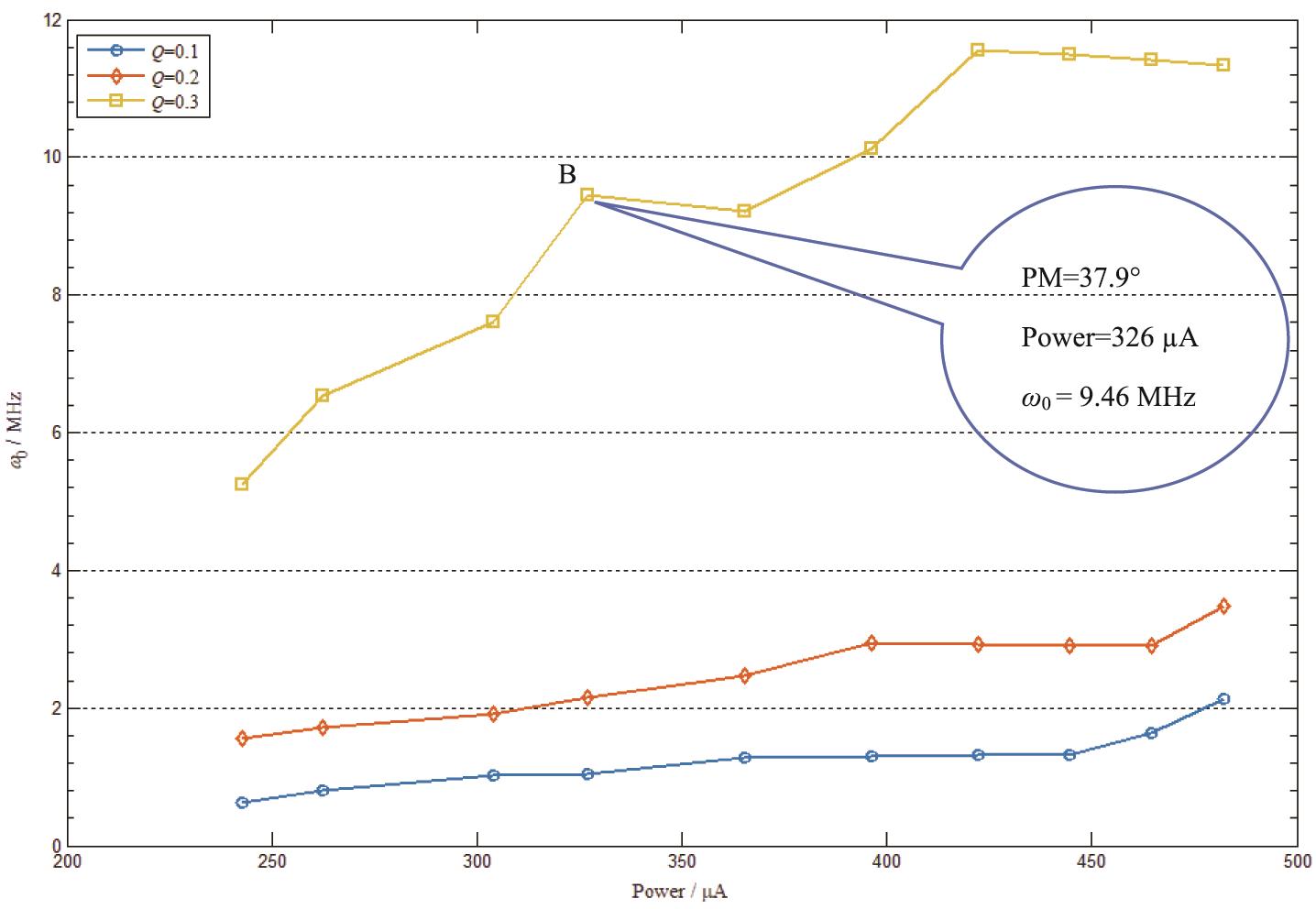

图6 滤波器的参数Q、ω0与功耗之间的关系

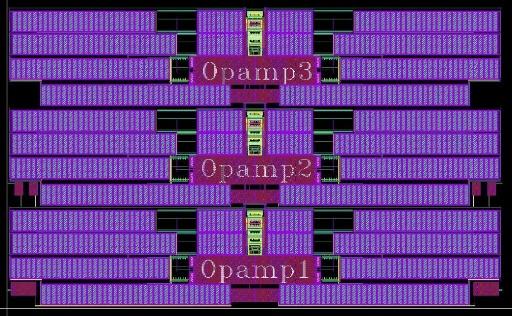

图7 3阶FLFB低通滤波器版图

表1 不同工艺角下运放性能参数

工艺角	增益 /dB	单位增益带宽/MHz	相位裕度/ (°)	功耗 /µA
TT 27 ℃	60.8	45.4	37.7	123
SS -30 ℃	61.0	34.4	32.2	81
SS 90 ℃	59.5	34.1	37.0	110
FF -30 ℃	61.6	60.9	38.7	142
FF 90 ℃	58.5	54.8	37.5	169

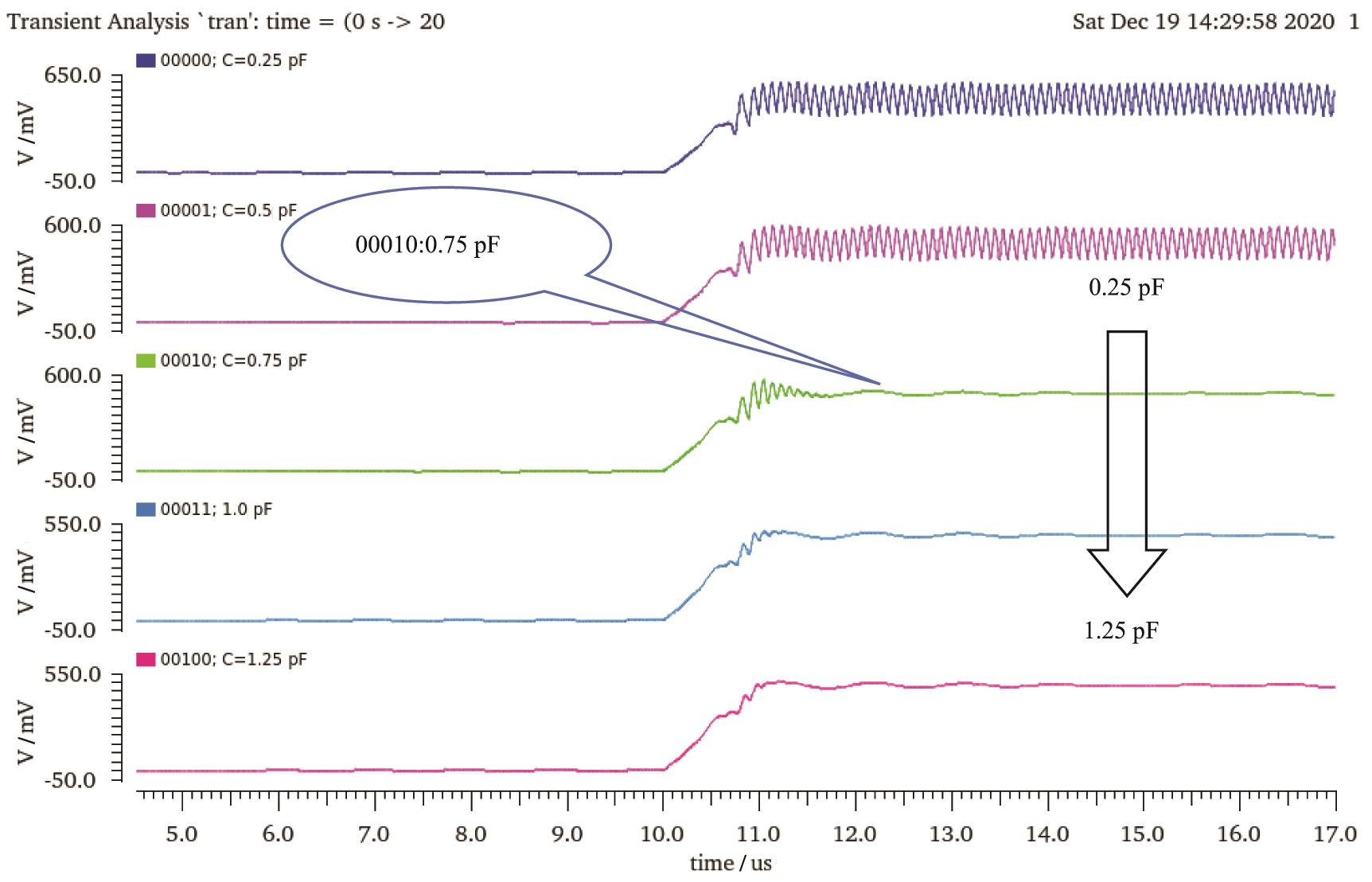

图8 滤波器输出瞬态响应曲线

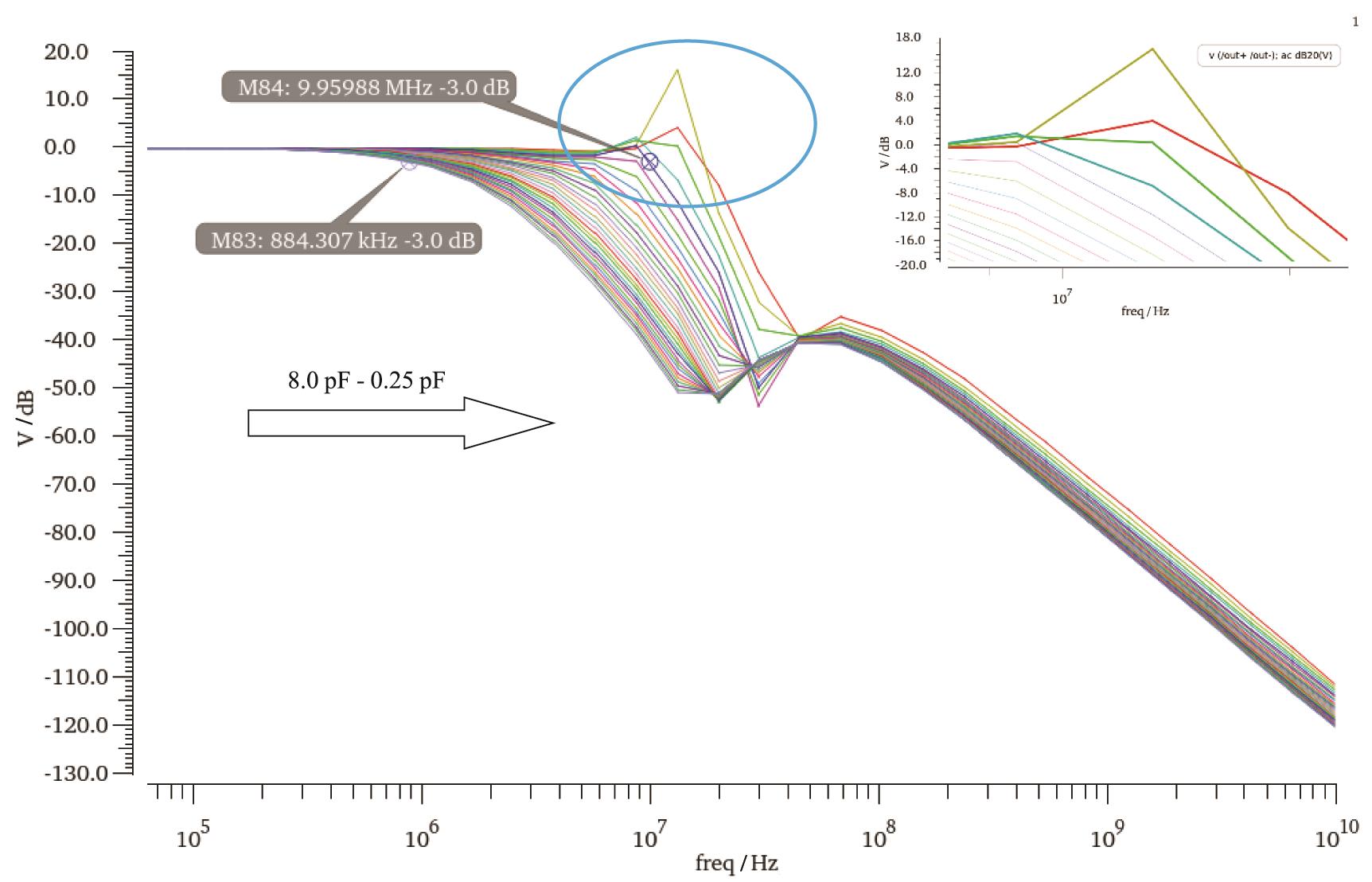

图9 滤波器全控制字下频率响应曲线

表2 性能指标对比

性能参数	文献[6]	文献[9]	文献[12]	本文*
工艺/nm	180	180	130	40
阶数	4	4	4	3
带宽/MHz	22.5	0.3~1	11.3	0.9~9.9
IIP3/dBm	21.5	25	10	12.6
噪声 /(nV/ $H z$ )	27/O	126/I	—	64.4/O
面积/mm²	0.35	0.14	0.43	0.03
功耗/mW	12.6	0.5	3.5	0.36
(功耗/极点数)/mW	3.15	0.125	0.85	0.12
电源电压/V	1.8	1.8	0.55	1.0
品质因数	0.006 5	0.005 0	0.007 7	0.000 9

表2 性能指标对比

性能参数	文献[6]	文献[9]	文献[12]	本文*
工艺/nm	180	180	130	40
阶数	4	4	4	3
带宽/MHz	22.5	0.3~1	11.3	0.9~9.9
IIP3/dBm	21.5	25	10	12.6
噪声 /(nV/ $H z$ )	27/O	126/I	—	64.4/O
面积/mm²	0.35	0.14	0.43	0.03
功耗/mW	12.6	0.5	3.5	0.36
(功耗/极点数)/mW	3.15	0.125	0.85	0.12
电源电压/V	1.8	1.8	0.55	1.0
品质因数	0.006 5	0.005 0	0.007 7	0.000 9

参考文献 15

1	LIM J, KIMJ. A 20-kHz~16-MHz programmable-bandwidth 4th order active filter using gain-boosted opamp with negative resistance in 65-nm CMOS[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2019, 66(2): 182-186.
2	ALZAHERH A. A CMOS highly linear digitally programmable active-RC design approach[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2011, 58(11): 2636-2646.
3	YINY D, YANGY T, ZHANGL H. A low-power low-cost 780MHz CMOS FSK receiver for short-range wireless communication[J]. Chinese Journal of Electronics, 2016, 25(2): 220-226.
4	DELIYANNIST, SUNY C, FIDLERJ K. Continuous-time Active Filter Design[M]. Boca Raton, Fla.: CRC Press, 1999.
5	SHIZ C, YANGY T, LID, et al. A fully-integrated low-power analog front-end for ZigBee transmitter applications[J]. Chinese Journal of Electronics, 2016, 25(3): 424-431.
6	DE MATTEISM, PIPINOA, RESTAF, et al. A 63-dB DR 22.5-MHz 21.5-dBm IIP3 fourth-order FLFB analog filter[J]. IEEE Journal of Solid-State Circuits, 2017, 52(7): 1977-1986.
7	COMPASSI-SEVEROL, NOIJEW VAN. A 0.4-V 10.9-µW/pole third-order complex BPF for low energy RF receivers[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2019, 66(6): 2017-2026.
8	DE MATTEISM, PEZZOTTAA, D'AMICOS, et al. A 33 MHz 70 dB-SNR super-source-follower-based low-pass analog filter[J]. IEEE Journal of Solid-State Circuits, 2015, 50(7): 1516-1524.
9	RASEKHA, SHARIF BAKHTIARM. Design of low-power low-area tunable active RC filters[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2018, 65(1): 6-10.
10	HUANGC, CHENC, ZHOUM J, et al. An active-RC reconfigurable lowpass-polyphase biquad filter for wireless receiver[J]. Analog Integrated Circuits and Signal Processing, 2015, 84(1): 97-105.
11	XIEZ S, WUJ H, CHENC. A compact low-power biquad for active- RC complex filter[J]. IEEE Transactions on Circuits and Systems Ⅱ: Express Briefs, 2018, 65(6): 709-713.
12	DE MATTEISM, D'AMICOS, BASCHIROTTOA. A 0.55 V 60 dB-DR fourth-order analog baseband filter[J]. IEEE Journal of Solid-State Circuits, 2009, 44(9): 2525-2534.
13	胡寿松. 自动控制原理基础教程[M]. 3版. 北京: 科学出版社, 2013.
14	AMIR-ASLANZADEHH, PANKRATZE J, SANCHEZ-SINENCIOE. Sanchez-Sinencio. A 1-V +31 dBm IIP3, reconfigurable, continuously tunable, power-adjustable active-RC LPF[J]. IEEE Journal of Solid-State Circuits, 2009, 44(2): 495-508.
15	毕查德・拉扎维. 模拟CMOS集成电路设计(第二版)[M]. 陈贵灿, 程军, 张瑞智, 等, 译. 西安: 西安交通大学出版社, 2018.
