退火温度对基于Bi1.5Zn1.05Nb1.5O7栅绝缘层的ZnO-TFTs性能的影响

doi:10.12263/DZXB.20210031

电子学报 ›› 2022, Vol. 50 ›› Issue (2): 455-460.DOI: 10.12263/DZXB.20210031

退火温度对基于Bi_1.5Zn_1.05Nb_1.5O₇栅绝缘层的ZnO-TFTs性能的影响

张琦¹, 叶伟¹, 孙芳莉², 萧生¹, 杜鹏飞¹

^1.陕西理工大学机械工程学院，陕西汉中 723001
^2.西北工业集团有限公司，陕西西安 710043

收稿日期:2020-12-28 修回日期:2021-06-19 出版日期:2022-02-25
- 通讯作者:
- 叶伟
- 作者简介:
- 张　琦　女，1983年1月生于陕西省汉中市.硕士.现为陕西理工大学机械工程学院讲师.主要研究方向为铁电材料.E-mail: 46604414@qq.com
  叶　伟（通讯作者）　男，1977年5月生于重庆市.博士.现为陕西理工大学机械工程学院副教授，硕士生导师.主要研究方向为电子器件、储能器件、功能材料及换能器技术研究.E-mail: yewei518@163.com
  孙芳莉　女，1975年3月生于陕西省乾县.本科.现为西北工业集团有限公司工程师.主要研究方向为功能材料. E-mail: 522162978@qq.com
  萧　生　男，1994年12月生于重庆市.现为陕西理工大学硕士研究生.主要研究方向为半导体光电子器件.E-mail: xiaosheng1220@qq.com
  杜鹏飞　男，1996年7月生于甘肃庄浪.现为陕西理工大学硕士研究生.主要研究方向为储能材料与器件.E-mail: 2411349154@qq.com
- 基金资助:
- 陕西省教育厅专项科学研究计划 (17JK0144); 陕西理工大学人才启动项目 (SLGQD2017-19)

Effect of Annealing Temperature on Performance of ZnO-TFTs Based on Bi_1.5Zn_1.05Nb_1.5O₇ Gate Insulator

ZHANG Qi¹, YE Wei¹, SUN Fang-li², XIAO Sheng¹, DU Peng-fei¹

^1.School of Mechanical Engineering, Shaanxi University of Technology, Hanzhong, Shaanxi 723001, China
^2.North Industries Group Pinance Company, Ltd., Xi’an, Shaanxi 710043, China

Received:2020-12-28 Revised:2021-06-19 Online:2022-02-25 Published:2022-02-25
- Corresponding author:
- YE Wei
- Supported by:
- Special Science Research Project of Education Department of Shaanxi Province (17JK0144); Startup Program for Introduced Talents of Shaanxi University of Technology (SLGQD2017-19)

摘要/Abstract

摘要：

具有高介电常数的Bi_1.5Zn_1.05Nb_1.5O₇薄膜存在氧空位和陷阱缺陷，因此，使用Bi_1.5Zn_1.05Nb_1.5O₇作为栅绝缘层的ZnO-TFTs具有高的界面费米能级钉扎效应和低的电学性能.为了解决这些问题，提高器件性能，本文采用射频磁控溅射制备了以Bi_1.5Zn_1.05Nb_1.5O₇为栅绝缘层的ZnO-TFTs，同时，详细研究了300℃、400℃、500℃和600℃等退火温度对ZnO-TFTs性能的影响，研究结果表明，随着退火温度的升高，Bi_1.5Zn_1.05Nb_1.5O₇栅绝缘层和ZnO-TFTs的性能先升高后降低，在退火温度为500℃时，Bi_1.5Zn_1.05Nb_1.5O₇栅绝缘层和ZnO-TFTs的性能都得到了显著提高，电容密度从165nF/cm²升高到222nF/cm²，开关比从10³升高到10⁵.

关键词: Bi_1.5Zn_1.05Nb_1.5O₇薄膜, 氧化锌薄膜晶体管, 射频磁控溅射, 退火温度, 电容密度, 高介电常数

Abstract:

Bi_1.5Zn_1.05Nb_1.5O₇ thin films with high dielectric constant have oxygen vacancy and trap defects. Therefore, ZnO-TFTs using Bi_1.5Zn_1.05Nb_1.5O₇ as gate insulator have high interface Fermi level pinning effect and low electrical properties. To solve these problems and improve device performance, ZnO-TFTs with Bi_1.5Zn_1.05Nb_1.5O₇ as gate insulator were prepared by RF magnetron sputtering. Meanwhile, the effect of the annealing temperature from 300℃ to 600℃ at an interval of 100℃ on the performance of ZnO-TFTs was studied. The research results showed that with the increase of annealing temperature, the properties of Bi_1.5Zn_1.05Nb_1.5O₇ gate insulator and ZnO-TFTs increased at first and then decreased. The performance of Bi_1.5Zn_1.05Nb_1.5O₇ gate insulator and ZnO-TFTs was significantly improved at annealing temperature of 500℃. The capacitance density and I_on/I_off increased from 165nF/cm² to 222nF/cm² and from 10³ to 10⁵, respectively.

Key words: Bi_1.5Zn_1.05Nb_1.5O₇ thin films, ZnO-TFTs, RF magnetron sputtering, annealing temperature, capacitance density, high dielectric constant

中图分类号:

TN321.5

张琦, 叶伟, 孙芳莉, 等. 退火温度对基于Bi_1.5Zn_1.05Nb_1.5O₇栅绝缘层的ZnO-TFTs性能的影响[J]. 电子学报, 2022, 50(2): 455-460.

Qi ZHANG, Wei YE, Fang-li SUN, et al. Effect of Annealing Temperature on Performance of ZnO-TFTs Based on Bi_1.5Zn_1.05Nb_1.5O₇ Gate Insulator[J]. Acta Electronica Sinica, 2022, 50(2): 455-460.

图/表 7

图1 ZnO-TFTs和栅绝缘层特性测试结构图(a) ZnO-TFTs测试结构 (b) 栅绝缘层的特性测试结构图

图2 BZN-5薄膜的SEM测试图(a) 退火300oC　　　　　　　　(b) 退火400oC　　　　　　　　　　(c) 退火500oC　　　　　　　　　(d) 退火600oC

图3 BZN-5薄膜的XRD测试图和I-E特性测试图

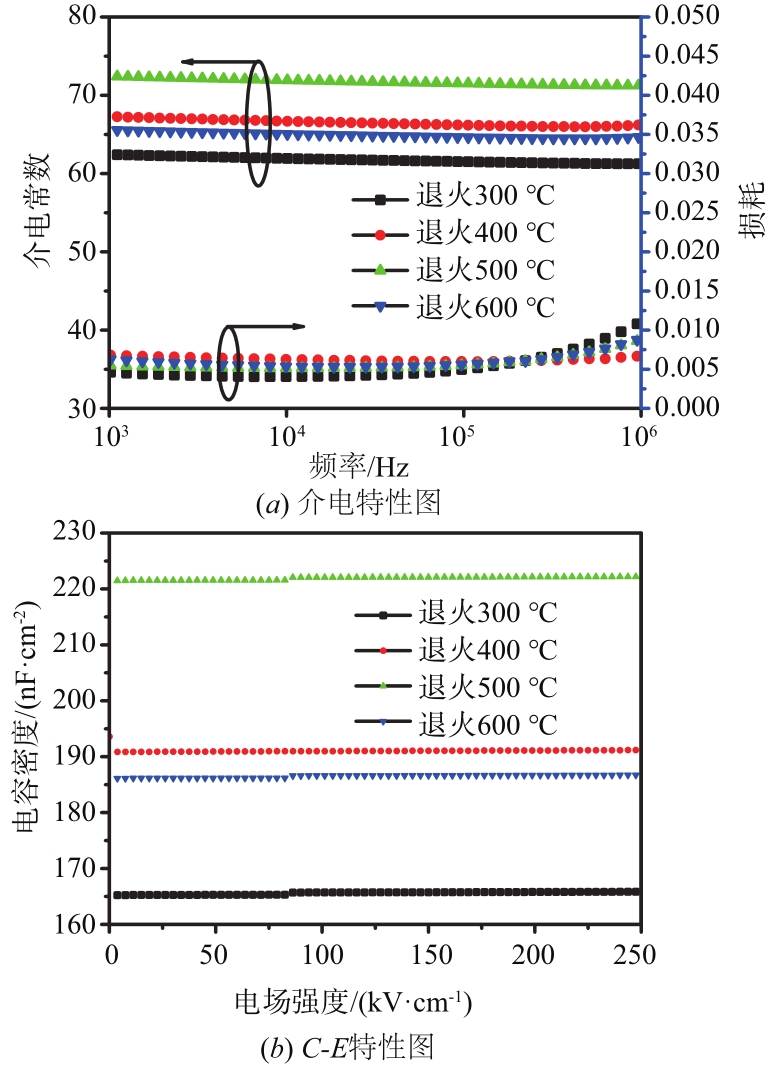

图4 BZN-5薄膜的介电和C-E特性图

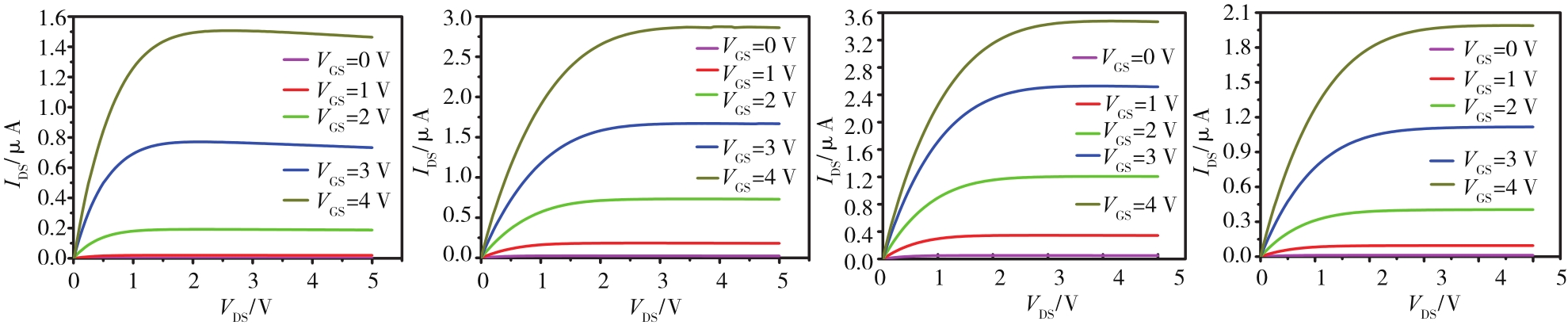

图5 ZnO-TFTs的输出特性(a) 退火300oC (b) 退火400oC (c) 退火500oC (d) 退火600oC

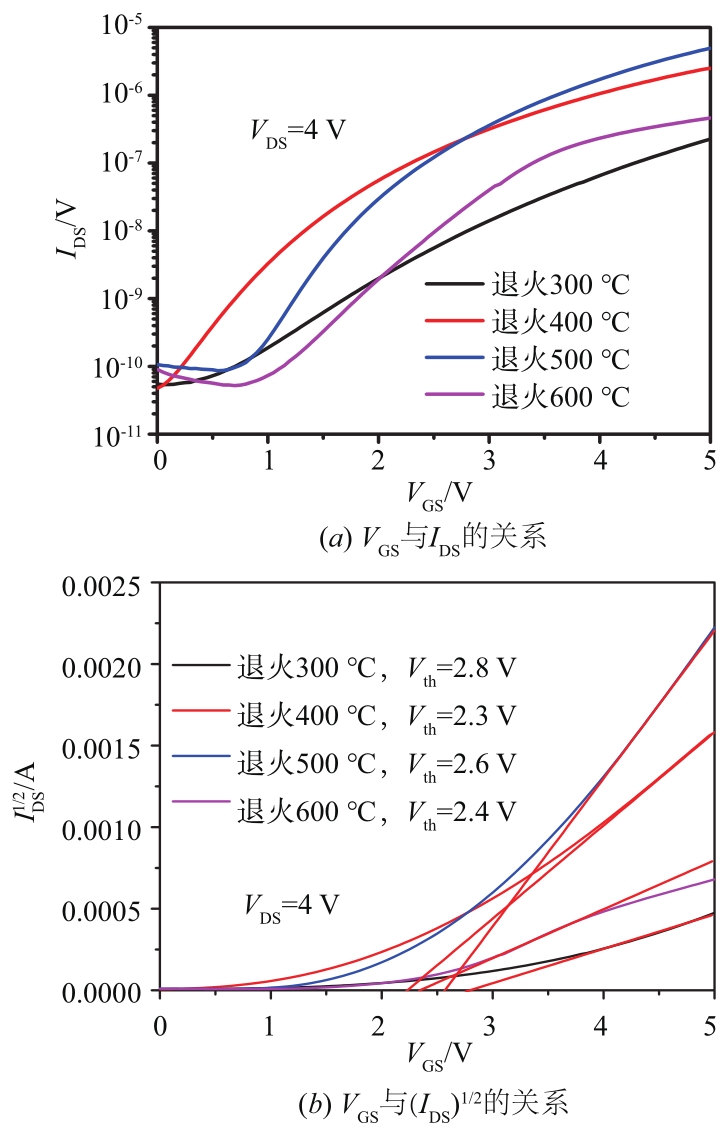

图6 ZnO-TFTs的转移特性

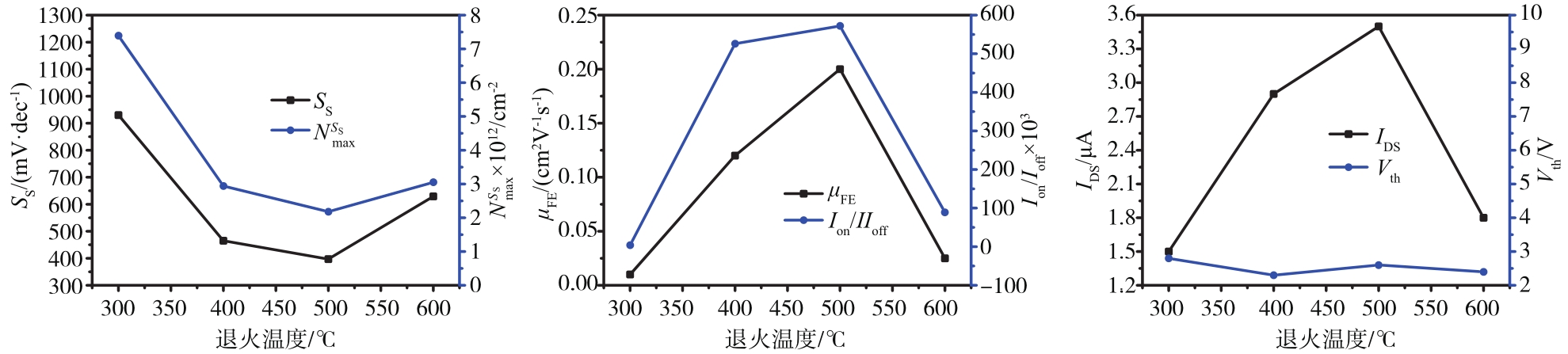

图7 ZnO-TFTs的性能与退火温度的关系(a) 亚阈值摆幅和界面态密度 (b) 迁移率和开关比 (c) 饱和电流和阈值电压

参考文献 23

1	YUX, MARKST J, FACCHETTIA. Metal oxides for optoelectronic applications[J]. Nature Materials, 2016, 15: 383‑396.
2	KANDPALK, GUPTAN. Perspective of zinc oxide based thin film transistors: A comprehensive review[J]. Microelectronics International, 2018, 35(1): 52‑63.
3	ABLIZA, XUL, WAND, et al. Effects of yttrium doping on the electrical performances and stability of ZnO thin-film transistors[J]. Applied Surface Science, 2019, 475: 565‑570.
4	VYASS, DWIVEDIA D D, DWIVEDIR D. Effect of gate dielectric on the performance of ZnO based thin film[J]. Superlattices and Microstructures, 2018, 120: 223‑234.
5	TAKAGI, SHIN-ICHI, TAKAYANAGIM. Experimental evidence of inversion-layer mobility lowering in ultrathin gate oxide metal-oxide-semiconductor field-effect-transistors with direct tunneling current[J]. Japanese Journal of Applied Physics, 2014, 41(4B): 2348‑2352.
6	WILKG D, WALLACER M, ANTHONYJ M. High-k gate dielectrics: Current status and materials properties considerations[J]. Journal of Applied Physics, 2001, 89(10): 5243‑5275.
7	CHOIY W, KIMII D, TULLERH L, et al. Low-voltage organic transistors and depletion-load inverters with high-k pyrochlore BZN gate dielectric on polymer substrate[J]. IEEE Transactions on Electron Devices, 2005, 52(12): 2819‑2824.
8	KIMII, CHOIY W, TULLERH L. Low-voltage ZnO thin-film transistors with high-k Bi_1.5Zn_1.0Nb_1.5O₇ gate insulator for transparent and flexible electronics[J]. Applied Physics Letters, 2005, 87(4): 0435091‑0435093.
9	KIMII D, LIMM H, KANGK T, et al. Room temperature fabricated ZnO thin film transistor using high-k Bi_1.5Zn_1.0Nb_1.5O₇ gate insulator prepared by sputtering[J]. Applied Physics Letters, 2006, 89(2): 0229051‑0229053.
10	YEW, RENW, SHIP, et al. Effect of sputtering power on properties of ZnO thin film transistors with Bi_1.5Zn_1.0Nb_1.5‑ O₇ gate insulator[J]. Ceramics International, 2015, 41: S750‑S757.
11	YEW, RENW, SHIP, et al. Effect of annealing temperature of Bi_1.5Zn_1.0Nb_1.5O₇ gate insulator on performance of ZnO based thin film transistors[J]. Journal of Semiconductors, 2016, 37(7): 0740071‑0740076.
12	NGWASHID K, PAULS, DEVIA, et al. Electrical performance and stability of ZnO thin-film transistors incorporating gadolinium oxide high-k dielectrics[J]. Advances in Materials, 2018, 7(4): 137‑143
13	ALSHAMMARIF H, NAYAKP K, WANGZ, et al. Enhanced ZnO thin-film transistor performance using bilayer gate dielectrics[J]. ACS Applied Materials & Interfaces, 2016, 35(8): 22751‑22755.
14	SAHAJ K, BUKKER N, MUDEN N, et al. Remarkable stability improvement of ZnO TFT with Al₂O₃ gate insulator by yttrium passivation with spray pyrolysis[J]. Nanomaterials, 2020, 10(5): 9761‑97611.
15	KATOK, MATSUIH, TABATAH, et al. TiN/Al₂O₃/ZnO gate stack engineering for top-gate thin film transistors by combination of post oxidation and annealing[J]. Applied Physics Letters, 2018, 112: 1621051‑1621054.
16	RAOM G S, SÁNCHEZ-MARTINEZA, GUTIÉRREZ-HEREDIAG, et al. Sol-gel derived low temperature HfO₂-GPTMS hybrid gate dielectric for a-IGZO thin-film transistors(TFTs)[J]. Ceramics International, 2018, 44:16428‑ 16434.
17	SAHAJ K, BILLAHM M, BUKKER N, et al. Highly stable, nanocrystalline, ZnO thin-film transistor by spray pyrolysis using high-k dielectric[J]. IEEE Transactions on Electron Devices, 2020, 67(3): 1021‑1026.
18	ISLAMM M, SAHAJ K, BUKKER N, et al. Solution-processed La alloyed ZrOx high-k dielectric for high-performance ZnO thin-film transistors[J]. IEEE Electron Device Letters, 2020, 41(7): 1021‑1024.
19	GOGOIP, SAIKIAR, SAIKIAD, et al. ZnO TFTs prepared by chemical bath deposition technique with high-k La₂O₃ gate dielectric annealed in ambient atmosphere[J]. Physica Status Solidi A, 2015, 212(4): 826‑830.
20	CHON G, KIMD H, KIMH G, et al. Zinc oxide thin film transistors using MgO-Bi_1.5Zn_1.0Nb_1.5O₇ composite gate insulator on glass substrate[J]. Thin Solid Films, 2010, 518(10): 2843‑2846.
21	JIANGL, HUANGK, LIJ, et al. High carrier mobility low-voltage ZnO thin film transistors fabricated at a low temperature via solution processing[J]. Ceramics International, 2018, 44: 11751‑11756.
22	LIH, HAND, YIZ, et al. High-performance ZnO thin-film transistors prepared by atomic layer deposition[J]. IEEE Transactions on Electron Devices, 2019, 66(7): 2965‑2970.
23	LIH, HAND, DONGJ, et al. Enhanced electrical properties of dual-layer channel ZnO thin film transistors prepared by atomic layer deposition[J]. Applied Surface Science, 2018, 439: 632‑637.
