基于联合互谱函数的短波同频多目标直接定位方法

doi:10.12263/DZXB.20210143

电子学报 ›› 2022, Vol. 50 ›› Issue (10): 2462-2468.DOI: 10.12263/DZXB.20210143

基于联合互谱函数的短波同频多目标直接定位方法

夏楠, 邢宝辉, 高丹阳, 崔桐

大连工业大学，辽宁大连 116034

收稿日期:2021-01-22 修回日期:2021-11-25 出版日期:2022-10-25
- 作者简介:
- 夏楠男，1983年5月出生，辽宁大连人.2013年在大连理工大学获工学博士学位，其后在国家无线电监测中心从事无线电监测定位研究工作，高级工程师，现为大连工业大学信息科学与工程学院副教授.主要研究方向为非线性参数估计技术.E-mail: xianan0520@aliyun.com
  邢宝辉女，1996年10月出生，河北承德人.现为大连工业大学硕士研究生.主要研究方向为通信信号处理和无线电定位.
  高丹阳女，1997年11月出生，河北唐山人.现为大连工业大学硕士研究生.主要研究方向为通信信号处理和无线电定位.
  崔桐男，1998年11月出生，辽宁本溪人.现为大连工业大学硕士研究生.主要研究方向为深度学习和信号检测.
- 基金资助:
- 辽宁省自然科学基金 (2019-ZD-0289)

A Direct Localization Method of HF Co-Channel Multi-Target Based on Joint Cross-Spectrum Functions

XIA Nan, XING Bao-hui, GAO Dan-yang, CUI Tong

Dalian Polytechnic University，Dalian，Liaoning 116034，China

Received:2021-01-22 Revised:2021-11-25 Online:2022-10-25 Published:2022-10-11

摘要/Abstract

摘要：

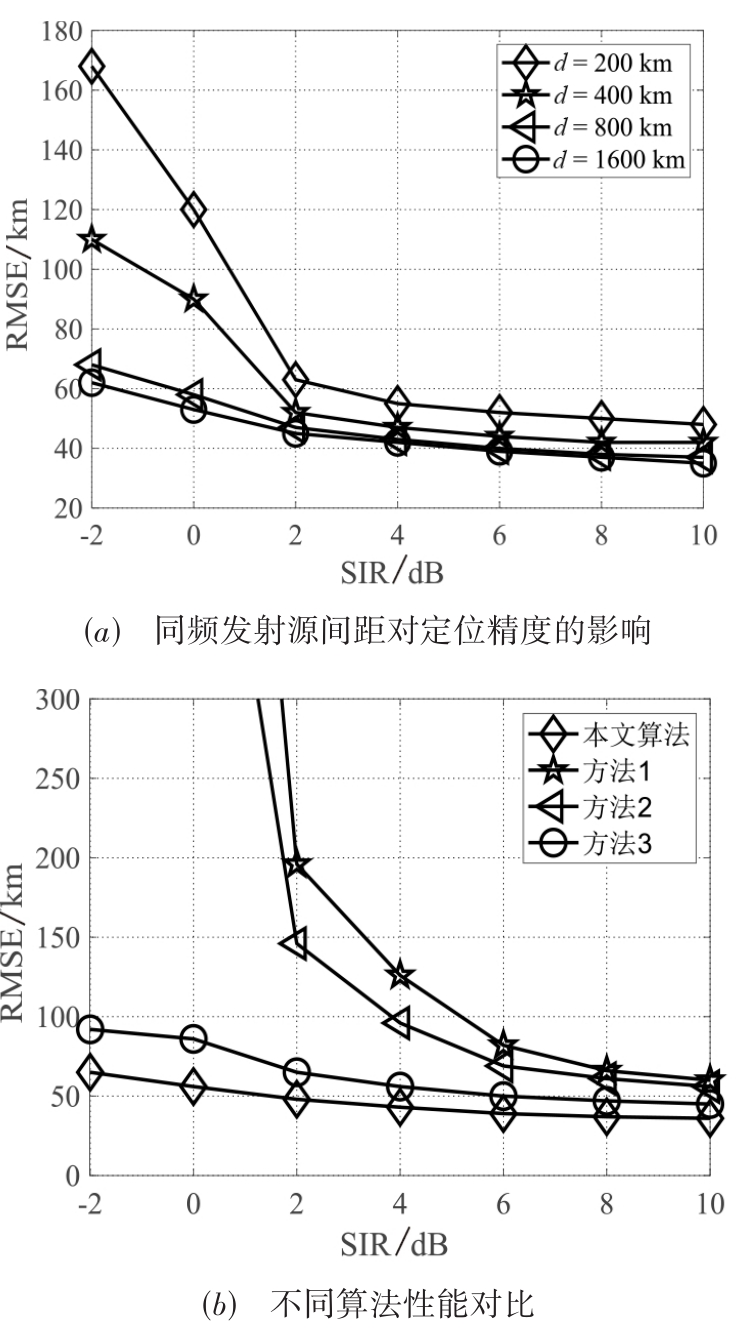

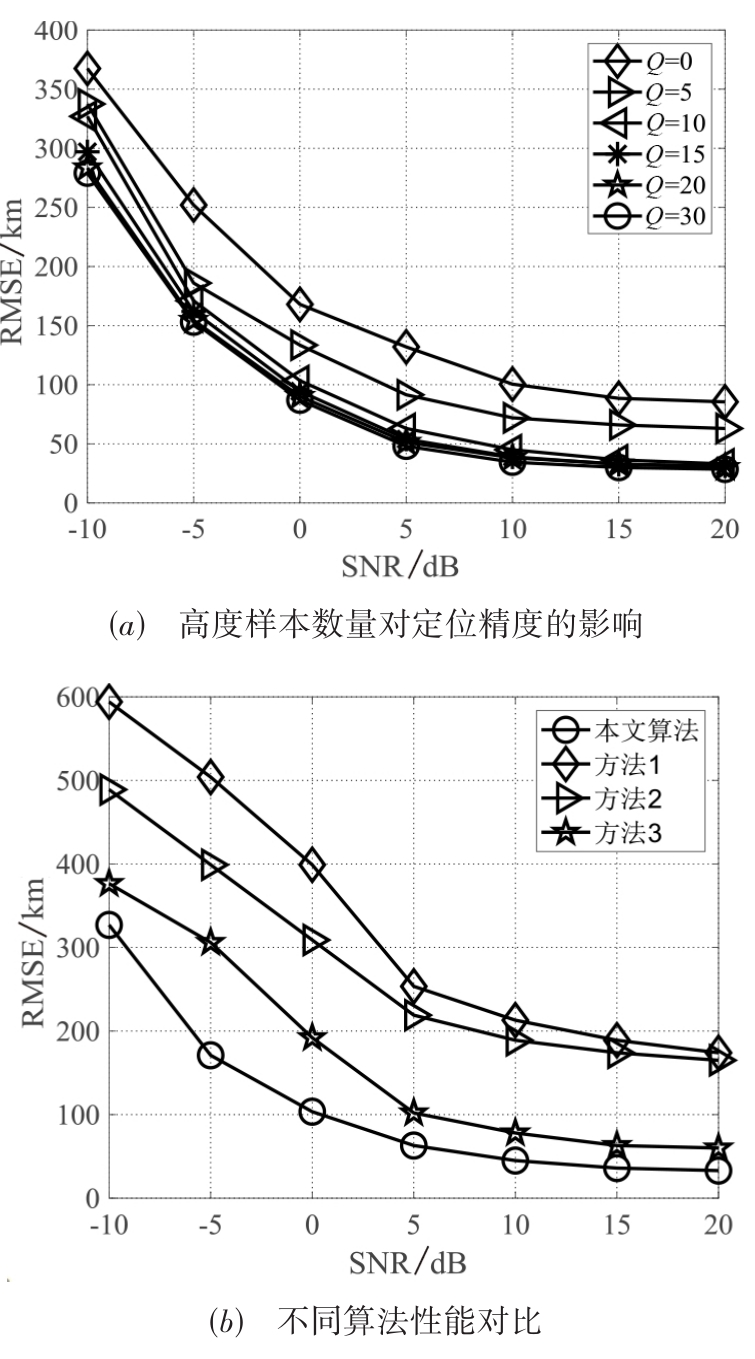

针对短波通信中的同频干扰问题，本文通过短波信号建模和计算时差样本点构建空间频移算子，从而进行时域信号的离散空间变换，大幅度抑制了多径和噪声分量的干扰.提出了信号的空间域稀疏化方法并利用聚类算法实现多发射源的直接定位.仿真结果表明，该算法性能在信噪比和信干比都较低的情况下优于现有的到达时间差（Time Difference Of Arrival，TDOA）定位算法，实测结果表明所提算法定位相对误差小于3%.

关键词: 短波通信, 短波同频干扰, 直接定位, 联合互谱函数, 稀疏化

Abstract:

With regard to the problem of co-channel interference in HF(High Frequency) communications, the HF signal is modeled and a set of random samples of time difference is introduced to construct the spatial frequency shift operator and give the discrete spatial transform of the time-domain signals. The influence of multipath and noise components are significantly reduced in the spatial domain. Then, the spatial sparse method combining with the clustering algorithm is proposed to realize the co-channel transmitters direct localization. Simulation results show that the localization performance of the proposed algorithm outperforms the existing time difference of arrival(TDOA) localization algorithm in the case of low signal-to-noise ratios(SNR) and low signal-to-interference ratios(SIR), and experimental results reveal that the relative locating error of the proposed method is less than 3%.

Key words: HF communications, HF co-channel interference, direct localization, joint cross spectrum function, sparsification

中图分类号:

TN911.72

夏楠, 邢宝辉, 高丹阳, 崔桐. 基于联合互谱函数的短波同频多目标直接定位方法[J]. 电子学报, 2022, 50(10): 2462-2468.

XIA Nan, XING Bao-hui, GAO Dan-yang, CUI Tong. A Direct Localization Method of HF Co-Channel Multi-Target Based on Joint Cross-Spectrum Functions[J]. Acta Electronica Sinica, 2022, 50(10): 2462-2468.

图/表 8

参考文献 19

1	BINGHAM E, HYVÄRINEN A. A fast fixed-point algorithm for independent component analysis of complex valued signals[J]. International Journal of Neural Systems, 2000, 10(1): 1-8.
2	CHABRIEL G, KLEINSTEUBER M, MOREAU E, et al. Joint matrices decompositions and blind source separation: A survey of methods, identification, and applications[J]. IEEE Signal Processing Magazine, 2014, 31(3): 34-43.
3	ADALI T, LI H L, NOVEY M, et al. Complex ICA using nonlinear functions[J]. IEEE Transactions on Signal Processing, 2008, 56(9): 4536-4544.
4	LI Y, MA H, YU D, et al. Iterative robust capon beamforming[J]. Signal Processing, 2016, 118: 211-220.
5	ZHANG Z Y, LIU W, LENG W, et al. Interference-plus-noise covariance matrix reconstruction via spatial power spectrum sampling for robust adaptive beamforming[J]. IEEE Signal Processing Letters, 2016, 23(1): 121-125.
6	熊坤来, 刘章孟, 柳征, 等. 基于EM算法的宽带信号DOA估计及盲分离[J]. 电子学报, 2015, 43(10): 2028-2033.
	XIONG K L, LIU Z M, LIU Z, et al. Broadband DOA estimation and blind source separation based on EM algorithm[J]. Acta Electronica Sinica, 2015, 43(10): 2028-2033. (in Chinese)
7	WU C L, LIU Z, WANG X, et al. Single-channel blind source separation of co-frequency overlapped GMSK signals under constant-modulus constraints[J]. IEEE Communications Letters, 2016, 20(3): 486-489.
8	LIU X B, GUAN Y L, KOH S N, et al. Low-complexity single-channel blind separation of co-frequency coded signals[J]. IEEE Communications Letters, 2018, 22(5): 990-993.
9	JIANG W, LI D B. Iterative single-antenna interference cancellation: Algorithms and results[J]. IEEE Transactions on Vehicular Technology, 2009, 58(5): 2214-2224.
10	JAIN A, PAGANI P, FLEURY R, et al. HF source geolocation using an operational TDoA receiver network: Experimental results[J]. IEEE Antennas and Wireless Propagation Letters, 2018, 17(9): 1643-1647.
11	XIA N, WEI W, LI J C, et al. Kalman particle filtering algorithm for symmetric alpha-stable distribution signals with application to high frequency time difference of arrival geolocation[J]. IET Signal Processing, 2016, 10(6): 619-625.
12	XIA N, LI B, WANG J. Direct tracking of co-channel moving sources with different cyclic frequencies[J]. IEEE Communications Letters, 2020, 24(8): 1715-1718.
13	XIA N, LI B, WANG J. A spatial sparse method for mobile localization of multiple co-channel transmitters[J]. IEEE Wireless Communications Letters, 2020, 9(9): 1408-1411.
14	王鼎, 吴志东, 尹洁昕. 信号波形已知条件下多目标直接定位性能分析及其改进算法[J]. 电子学报, 2017, 45(12): 2881-2889.
	WANG D, WU Z D, YIN J X. A performance analysis and improvement algorithm for multiple-source direct localization with known signal waveforms[J]. Acta Electronica Sinica, 2017, 45(12): 2881-2889. (in Chinese)
15	JIANG F, ZHANG Z K, ESMAEILI NAJAFABADI H. Deep Sea TDOA localization method based on improved OMP algorithm[J]. IEEE Access, 2019, 7: 168151-168161.
16	XIA N, WEITNAUER M A. TDOA-based mobile localization using particle filter with multiple motion and channel models[J]. IEEE Access, 2019, 7: 21057-21066.
17	LI S H, HEDLEY M, COLLINGS I B, et al. Joint trajectory and ranging offset estimation for accurate tracking in NLOS environments[J]. IEEE Transactions on Aerospace and Electronic Systems, 2020, 56(1): 3-14.
18	夏楠, 邢宝辉, 崔桐, 等. 一种短波同频信号直接定位方法: CN113203985A[P]. 2021-08-03.
	XIA N, XING B H, CUI T, et al. Short-Wave Same-Frequency Signal Direct Positioning Method: CN113203985A[P]. 2021-08-03. (in Chinese)
19	YANG M S, SINAGA K P. A feature-reduction multi-view k-means clustering algorithm[J]. IEEE Access, 2019, 7: 114472-114486.

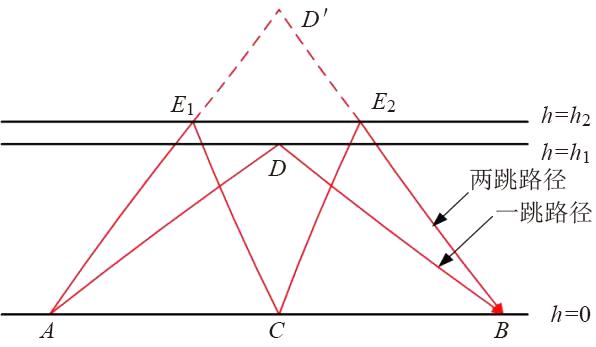

路径数	目标源/km	干扰源/km
(1, 1)	46	49
(1, 2)	48	52
(2, 1)	51	56
(2, 2)	52	58

路径数	目标源/km	干扰源/km
(1, 1)	46	49
(1, 2)	48	52
(2, 1)	51	56
(2, 2)	52	58

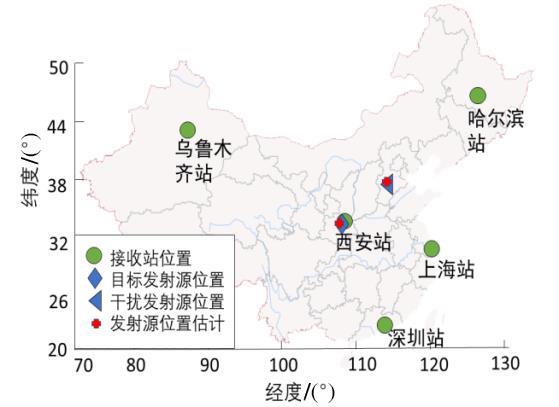

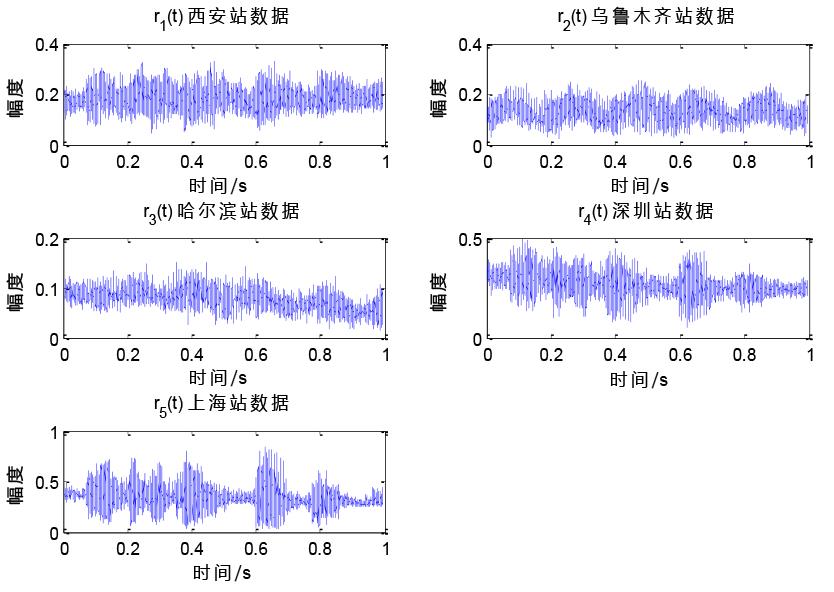

	乌鲁木齐站	哈尔滨站	西安站	上海站	深圳站
发射源	2 356	2061	52	1 234	1 429
干扰源	3 353	995	659	1 038	1 725

	乌鲁木齐站	哈尔滨站	西安站	上海站	深圳站
发射源	2 356	2061	52	1 234	1 429
干扰源	3 353	995	659	1 038	1 725

频点/MHz	测试时间	发射源	单次采集时长/s	标准差/(km/%)	最小误差/(km/%)	最大误差/(km/%)
8.69	9∶00-10∶30	目标源	2	53/2.2	39/1.7	68/2.9
			4	48/2.0	36/1.5	61/2.6
			6	40/1.7	32/1.4	56/2.4
		干扰源	2	83/2.5	76/2.3	91/2.7
			4	71/2.1	65/1.9	81/2.4
			6	61/1.8	49/1.5	69/2.0
