基于NOMA技术的PLC-VLC用户配对和子载波分配方法

刘焕淋¹, 黄美娜¹, 陈勇², 杨健¹, 黄冰川¹, 张彤¹

^1.重庆邮电大学通信与信息工程学院，重庆 400065
^2.重庆邮电大学自动化学院，重庆 400065

收稿日期:2021-01-27 修回日期:2021-07-11 出版日期:2021-11-29
- 作者简介:
- 刘焕淋女，1970年生,重庆人.重庆邮电大学教授、博士和硕士生导师.主要研究方向为光通信技术和网络. E-mail:liuhl@cqupt.edu.cn
  黄美娜女，1994年生，广东潮州人.重庆邮电大学硕士研究生.主要研究方向为可见光通信技术.
  陈勇男，1963年生，重庆人.重庆邮电大学教授、硕士生导师.主要研究方向为自动控制和光信号处理.
- 基金资助:
- 国家自然科学基金 (NSFC 51977021); 重庆市自然科学基金面上项目 (2019 jcyj-msxmX0613)

User Pairing and Subcarrier Allocation for PLC-VLC Based on NOMA Technology

LIU Huan-lin¹, HUANG Mei-na¹, CHEN Yong², YANG Jian¹, HUANG Bing-chuan¹, ZHANG Tong¹

^1.School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
^2.School of Automation, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Received:2021-01-27 Revised:2021-07-11 Online:2021-11-29 Published:2021-10-25
- Supported by:
- National Natural Science Foundation of China (NSFC 51977021); General Program of Natural Science Foundation of Chongqing Municipality, China (2019 jcyj-msxmX0613)

摘要/Abstract

摘要：

为了提高室内电力线通信和可见光通信（PLC-VLC）系统的吞吐量和用户体验的公平性，该文提出一种改进遗传算法优化用户配对联合子载波分配(IGA-JUPSA)方法.在IGA-JUPSA的用户配对阶段，设计了最优的非正交多址技术(NOMA)用户配对方法，提高PLC-VLC系统的吞吐量；在IGA-JUPSA 的子载波分配阶段，设计NOMA与正交多址技术结合的子载波分配策略，设计改进的遗传算法优化不同NOMA组的子载波分配，提高系统的吞吐量和用户体验的公平性.仿真结果表明，所提的用户配对和子载波联合方法可以提高PLC-VLC系统的吞吐量和用户体验的公平性.

关键词: PLC-VLC系统, NOMA, 子载波分配, 改进遗传算法, 系统吞吐量

Abstract:

For improving the throughput and the fairness of user experience of indoor power line communications-visible light communications (PLC-VLC) system, an improved genetic algorithm based joint user pairing and subcarrier allocation (IGA-JUPSA) method is proposed in the paper. In the user pairing stage, a method of optimal non-orthogonal multiple access (NOMA) user pairing is designed to improve the throughput of PLC-VLC system. During the process of subcarrier allocation, the subcarrier allocation scheme combined NOMA with orthogonal multiple access (OMA) is proposed, and the improved genetic algorithm is used to optimize the subcarrier allocation for different NOMA groups for improving the system throughput and user fairness. Simulation results show that the proposed IGA-JUPSA can improve the throughput of PLC-VLC cascaded system and the fairness experience of users.

Key words: PLC-VLC system, NOMA, sub-carrier allocation, improved genetic algorithm, system throughput

中图分类号:

TN929.11

刘焕淋, 黄美娜, 陈勇, 杨健, 黄冰川, 张彤. 基于NOMA技术的PLC-VLC用户配对和子载波分配方法[J]. 电子学报, 2021, 49(10): 1952-1959.

LIU Huan-lin, HUANG Mei-na, CHEN Yong, YANG Jian, HUANG Bing-chuan, ZHANG Tong. User Pairing and Subcarrier Allocation for PLC-VLC Based on NOMA Technology[J]. Acta Electronica Sinica, 2021, 49(10): 1952-1959.

图/表 6

图1 基于NOMA的PLC-VLC系统模型

表1 IGA-JUPSA算法仿真默认参数

参数	含义	数值
$Φ 1 / 2$	发射机半功率角	70^o
β	放大系数	1
P	每个LED发送功率	3W
B	VLC系统总带宽	30MHz
N_P	VLC子载波总数	128
φ _C	接收机视场角	90^o
N_popu	遗传算法种群规模	50
T_S（φ）	光滤波器增益	1.0
n	折射率	1.0
A_PD	检测器物理表面积	1.0cm²

表1 IGA-JUPSA算法仿真默认参数

参数	含义	数值
$Φ 1 / 2$	发射机半功率角	70^o
β	放大系数	1
P	每个LED发送功率	3W
B	VLC系统总带宽	30MHz
N_P	VLC子载波总数	128
φ _C	接收机视场角	90^o
N_popu	遗传算法种群规模	50
T_S（φ）	光滤波器增益	1.0
n	折射率	1.0
A_PD	检测器物理表面积	1.0cm²

表2 4种算法收敛性能对比

方法	收敛时的迭代次数	系统平均用户速率（Mbps）
IGA-JUPSA	52	60
GA-JUPSA	163	61.25
IGA-RUPSA	55	50
GA-RUPSA	168	50.5

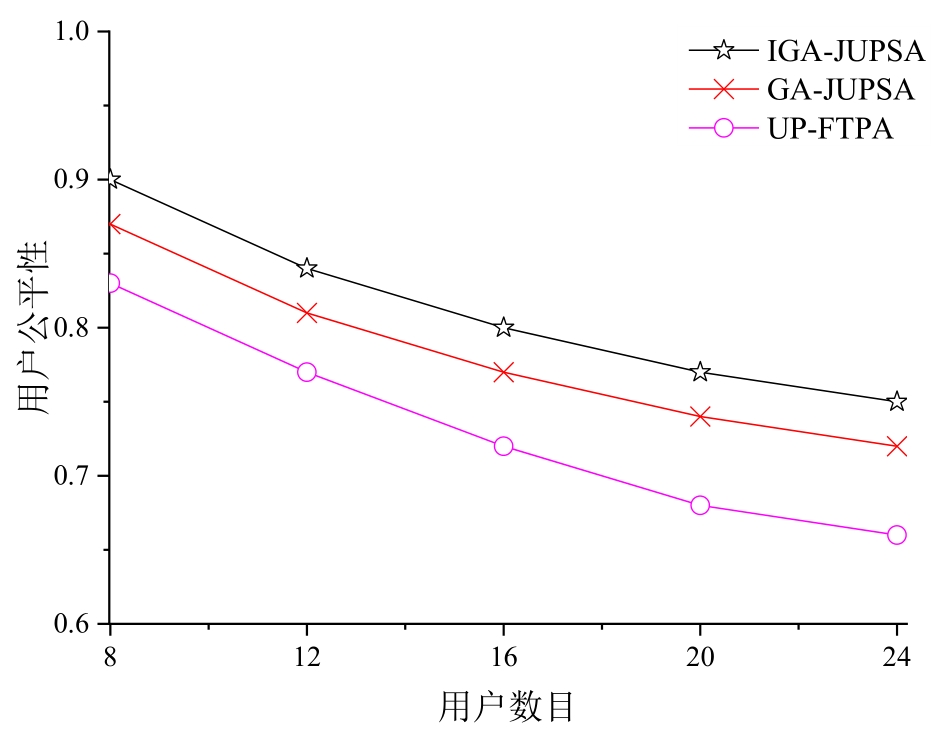

图2 PLC-VLC用户公平性随用户数量变化情况

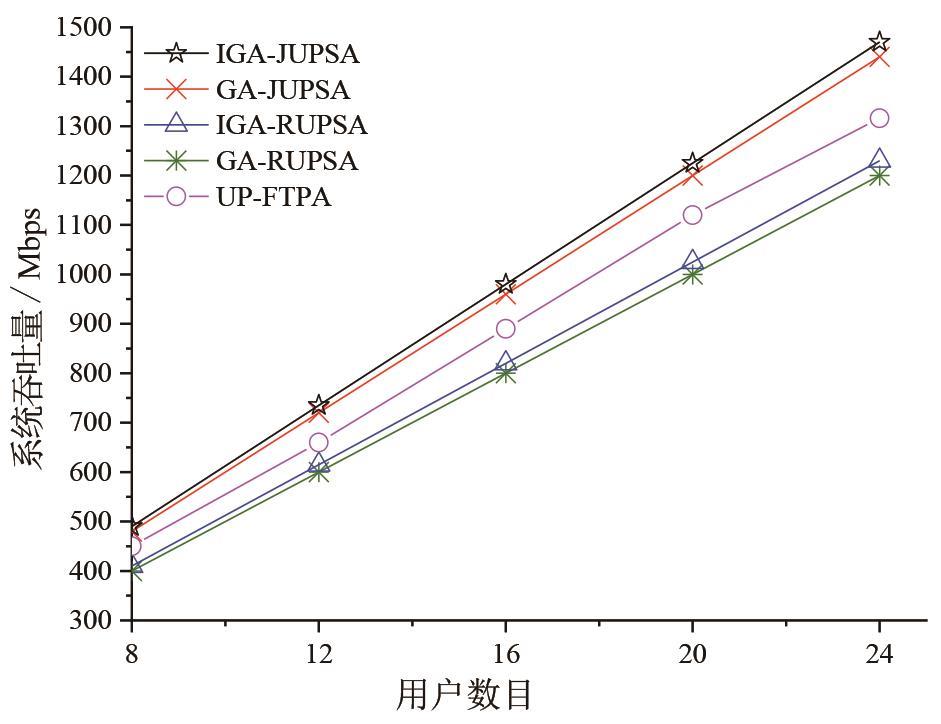

图3 PLC-VLC系统吞吐量随用户数量变化情况

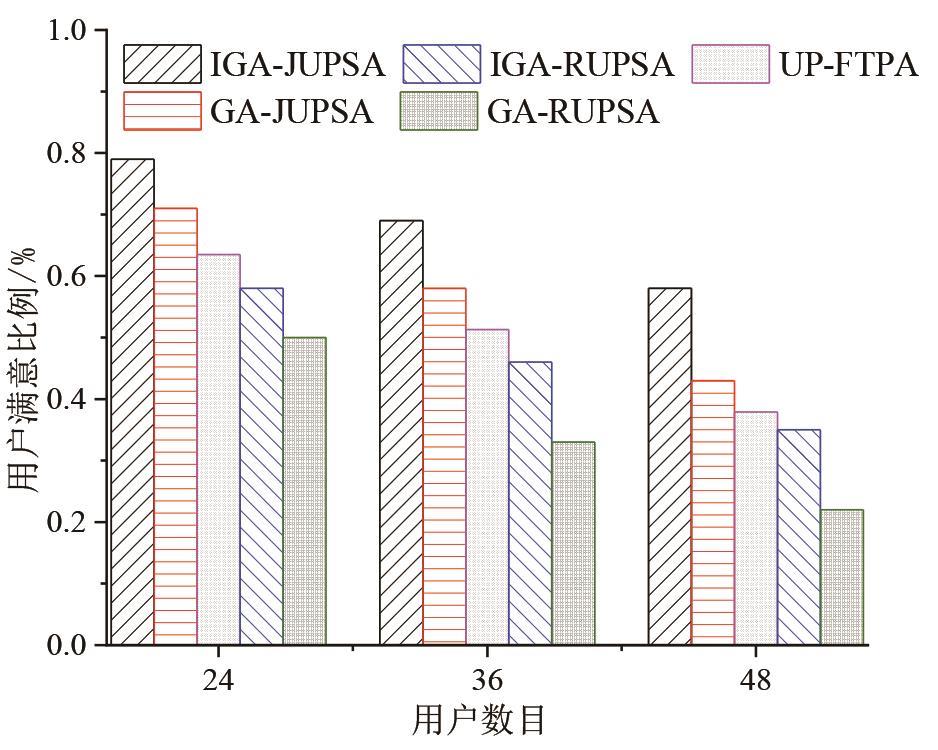

图4 PLC-VLC系统满意用户比例随用户数量变化情况
