超视距雷达中射频干扰仿真与距离-多普勒图检测方法

doi:10.12263/DZXB.20210402

电子学报 ›› 2022, Vol. 50 ›› Issue (5): 1174-1180.DOI: 10.12263/DZXB.20210402

超视距雷达中射频干扰仿真与距离-多普勒图检测方法

罗忠涛¹, 严美慧¹, 卢琨², 夏杭¹

^1.重庆邮电大学通信与信息工程学院, 重庆 400065
^2.南京电子技术研究所, 江苏南京 210013

收稿日期:2021-03-28 修回日期:2021-10-28 出版日期:2022-05-25
- 作者简介:
- 罗忠涛男,1984年生于四川省隆昌市. 现为重庆邮电大学通信与信息工程学院副教授.研究方向为统计信号处理、数字图像处理与机器学习.E-mail: luozt@cqupt.edu.cn
  严美慧女,1996年出生于江西省赣州市.现为重庆邮电大学通信与信息工程学院研究生.研究方向为雷达信号处理、图像分析与机器学习.E-mail: 1264212873@qq.com
  卢琨男,1977年出生于广西省桂林市.现为南京电子技术研究所研究员级高级工程师.研究方向为超视距雷达系统设计与信息处理.E-mail: mimimomoba@gmail.com
  夏杭男,1994年出生于贵州省安顺市.现为重庆邮电大学通信与信息工程学院研究生.研究方向为雷达信号处理、数字图像处理与机器学习.E-mail: 1790095607@qq.com
- 基金资助:
- 国家自然科学基金 (61701067)

Radio Frequency Interference Simulation and Detection in the Range-Doppler Map for Over-the-Horizon Radar

LUO Zhong-tao¹, YAN Mei-hui¹, LU Kun², XIA Hang¹

^1.School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
^2.Nanjing Research Institute of Electronics Technology, Nanjing, Jiangsu 210013, China

Received:2021-03-28 Revised:2021-10-28 Online:2022-05-25 Published:2022-06-18
- Supported by:
- National Natural Science Foundation of China (61701067)

摘要/Abstract

摘要：

超视距雷达存在射频干扰(Radio Frequency Interference, RFI)问题，尤以遍布全距离-多普勒(Range-Doppler, RD)图的宽带RFI影响最大.本文给出宽带RFI的仿真方法和基于RD图的RFI检测方法.首先，基于自回归滑动平均模型仿真宽带RFI，模拟实测RFI的时频特性和RD图形态.其次，基于图像分类思想，研究RD图宽带RFI检测器，通过提取RD图纹理特征，运用模式识别，实现RD图有无宽带RFI的分类.图库设计以仿真RFI数据的RD图库作训练集，以实测数据的RD图库作测试集，识别算法以K近邻为例.实验仿真3种纹理特征、5种距离度量及有无海杂波等多种组合，检测性能统计表明，适当设计的干扰识别率普遍能达到96%以上，验证了本文所提的干扰仿真与检测方法的有效性.

关键词: 超视距雷达, 距离-多普勒图, 射频干扰仿真, 干扰检测, 纹理特征, K近邻

Abstract:

Over-the-horizon radar(OTHR) is often threatened by radio frequency interference(RFI), among which the wideband RFI spreading all over the range-Doppler(RD) map is the worst. This paper proposes the methods for RFI simulation and wideband RFI detection based on the RD map. Firstly, based on the auto-regressive and moving-average model, the RFI signal is simulated and can imitate the real RFI characteristics in the time-frequency domain and the RD map. Secondly, by the idea of image classification, the wideband RFI detector is designed based on the RD map. Its guideline is: based on the RD maps, extract their texture features and use pattern recognition algorithms to classify whether the RD map has any wideband RFI. For the RD image datasets, the simulated RFI data is used for the training dataset, while the real data is used for the testing dataset. The K-nearest neighbor(KNN) algorithm is employed as an example for classification. The experiments investigate three kinds of texture features, five kinds of distance measurements, and whether the sea clutter is cancelled. The results show the accuracy of a proper design is generally higher than 96%, which demonstrates the effectiveness of the proposed methods for RFI simulation and detection.

Key words: over-the-horizon radar, range-Doppler map, radio frequency interference simulation, interference detection, texture features, K-nearest neighbor

中图分类号:

TN958.93

罗忠涛, 严美慧, 卢琨, 等. 超视距雷达中射频干扰仿真与距离-多普勒图检测方法[J]. 电子学报, 2022, 50(5): 1174-1180.

Zhong-tao LUO, Mei-hui YAN, Kun LU, et al. Radio Frequency Interference Simulation and Detection in the Range-Doppler Map for Over-the-Horizon Radar[J]. Acta Electronica Sinica, 2022, 50(5): 1174-1180.

图/表 7

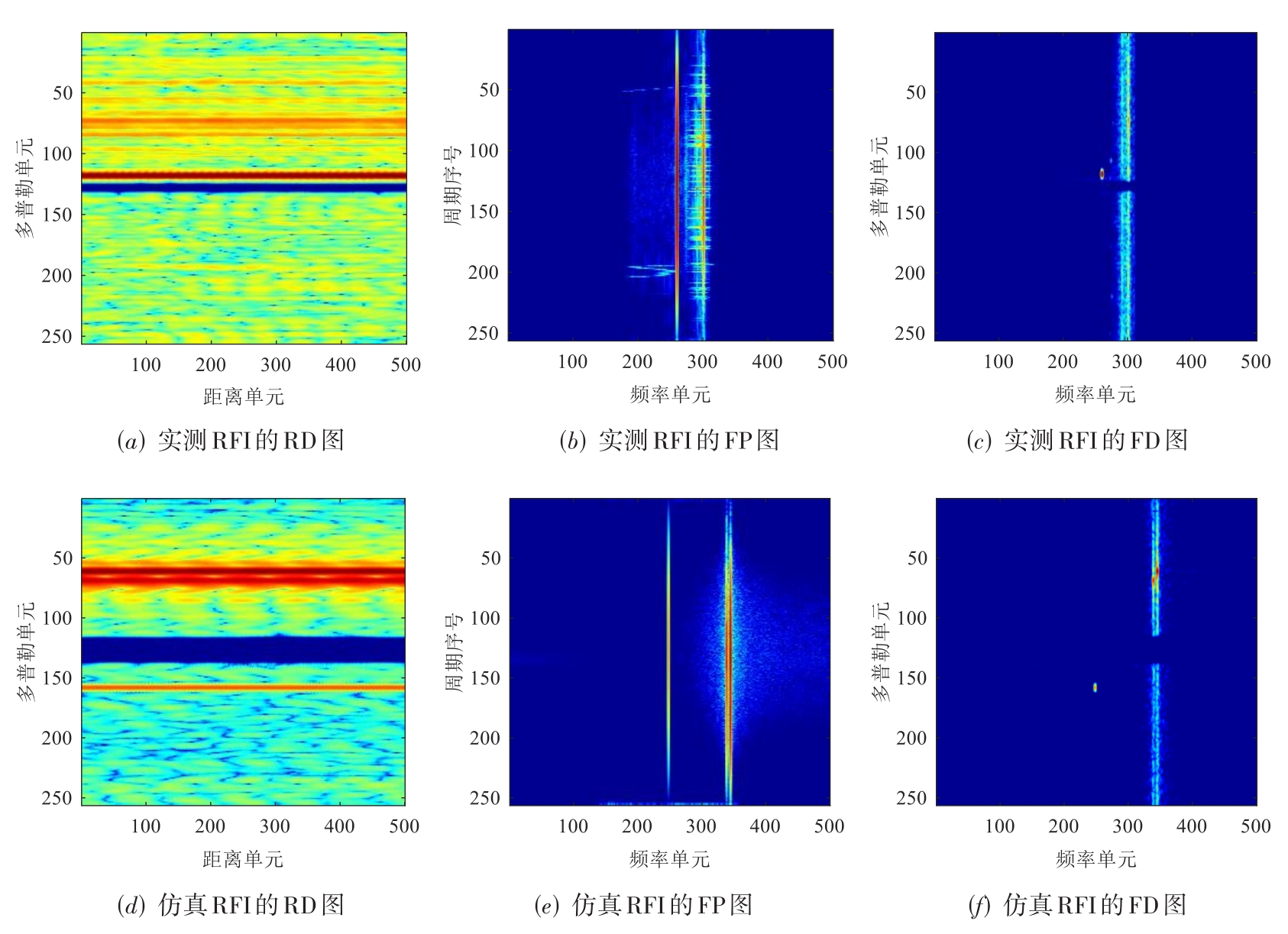

图1 实测与仿真RFI对比图

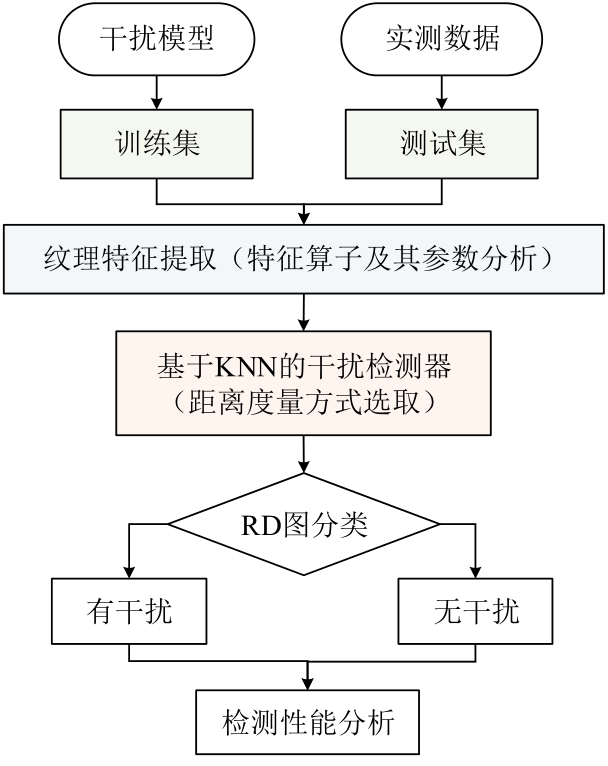

图2 基于RD图的干扰检测器

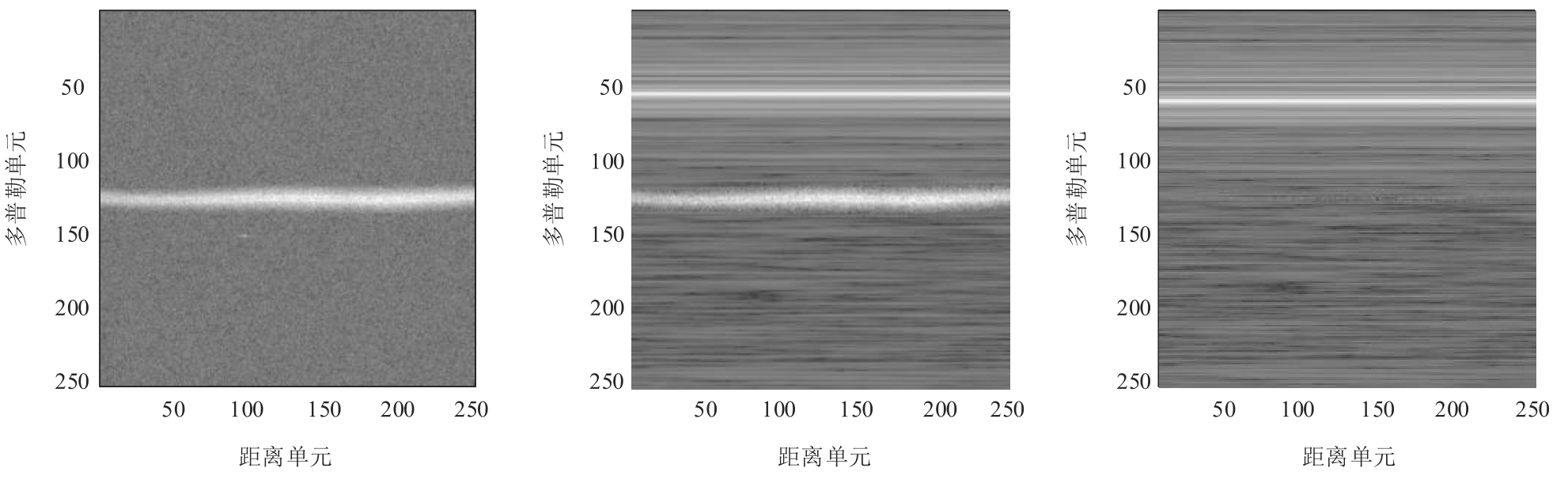

图3 去海杂波前后的RD灰度图(a)无RFI图 (b)有RFI图　 (c)无海杂波的RFI图

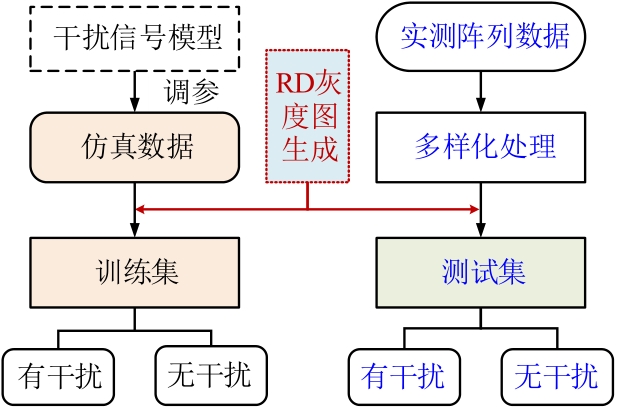

图4 训练集与测试集设计方案

表1 LBPQ,Ru2参数与海杂波的识别率

算法	有海杂波/无海杂波（%）
算法	$L B P 8, 1 u 2$	$L B P 8, 2 u 2$	$L B P 8, 3 u 2$	$L B P 8, 4 u 2$	$L B P 16,1 u 2$	$L B P 16,2 u 2$	$L B P 16,3 u 2$	$L B P 16,4 u 2$
欧氏	98.0/98.0	99.5/99.0	99.5/99.5	99.5/99.0	98.0/98.0	99.0/99.0	99.5/99.5	99.5/99.0
标欧	97.5/98.0	98.0/100	96.0/98.5	91.5/95.5	98.5/98.5	98.5/100	100/99.0	98.0/99.0
余弦	98.0/98.0	99.5/99.0	99.5/99.5	99.5/99.0	98.0/98.0	99.0/99.0	99.0/99.5	99.5/99.0
卡方	98.0/97.0	99.0/98.5	99.5/99.5	100/99.0	97.5/97.5	99.0/98.0	99.5/98.5	100/98.5
马氏	81.0/77.0	88.5/92.0	90.0/93.0	80.5/87.0	91.5/68.5	97.0/95.0	87.5/93.0	91.0/93.0

表1 LBPQ,Ru2参数与海杂波的识别率

算法	有海杂波/无海杂波（%）
算法	$L B P 8, 1 u 2$	$L B P 8, 2 u 2$	$L B P 8, 3 u 2$	$L B P 8, 4 u 2$	$L B P 16,1 u 2$	$L B P 16,2 u 2$	$L B P 16,3 u 2$	$L B P 16,4 u 2$
欧氏	98.0/98.0	99.5/99.0	99.5/99.5	99.5/99.0	98.0/98.0	99.0/99.0	99.5/99.5	99.5/99.0
标欧	97.5/98.0	98.0/100	96.0/98.5	91.5/95.5	98.5/98.5	98.5/100	100/99.0	98.0/99.0
余弦	98.0/98.0	99.5/99.0	99.5/99.5	99.5/99.0	98.0/98.0	99.0/99.0	99.0/99.5	99.5/99.0
卡方	98.0/97.0	99.0/98.5	99.5/99.5	100/99.0	97.5/97.5	99.0/98.0	99.5/98.5	100/98.5
马氏	81.0/77.0	88.5/92.0	90.0/93.0	80.5/87.0	91.5/68.5	97.0/95.0	87.5/93.0	91.0/93.0

表2 HOG参数与海杂波的识别率

算法	有海杂波/无海杂波（%）
算法	单元格8×8	单元格 16×16	单元格 32×32	单元格 128×128
欧氏	97.0/97.0	97.5/97.5	98.0/98.0	97.5/97.5
标欧	96.0/97.0	97.5/97.0	98.5/98.0	97.5/97.5
余弦	97.0/97.0	97.5/97.5	98.0/98.0	97.5/97.5
卡方	96.0/96.5	96.5/97.0	97.5/98.5	98.0/97.5
马氏	80.0/57.5	75.0/81.5	66.0/62.0	91.5/95.0

表3 GLCM参数与海杂波的识别率

θ=0°

θ平均

87.5/93.5

49.0/69.5

94.0/94.5

82.5/78.5

92.5/94.0

83.0/77.0

93.0/94.0

83.0/76.5

标欧

θ=0°

θ平均

90.0/95.0

51.0/75.0

90.0/96.5

53.5/82.5

92.5/96.0

67.0/84.0

92.0/96.5

74.0/84.5

余弦

θ=0°

θ平均

88.5/93.5

52.0/68.0

95.0/94.0

81.5/82.5

95.5/94.5

82.5/72.5

96.0/94.0

85.0/73.0

卡方

θ=0°

θ平均

91.0/94.0

53.5/65.0

94.0/94.5

83.0/78.5

94.0/94.0

81.5/74.5

93.5/94.0

81.5/75.5

马氏

θ=0°

θ平均

86.5/88.5

76.0/78.5

89.0/93.5

64.5/73.0

88.0/94.5

66.5/72.5

86.5/93.5

67.5/80.0

参考文献 19

1	周文瑜, 焦培南. 超视距雷达技术[M]. 北京: 电子工业出版社, 2008: 6‑10.
2	WANGW, WYATTL R. Radio frequency interference cancellation for sea-state remote sensing by high-frequency radar[J]. IET Radar Sonar Navigation, 2011, 5(4): 405‑415.
3	LUOZ T, HEZ S, LUK, et al. Optimal receive filter design under similarity constraint in coloured noise[J]. IET Radar Sonar Navigation, 2015, 9(7): 888‑899.
4	GUOX, SUNH B, YEOT S. Interference cancellation for high-frequency surface wave radar[J]. IEEE Transactions on Geoscience and Remote Sensing, 2008, 46(7): 1879‑1891.
5	罗忠涛, 夏杭, 卢琨, 何子述. 超视距雷达中距离-多普勒图的瞬态干扰自动识别方法[J]. 电子学报, 2021, 49(7): 1279‑1285.
	LUOZhong-tao, XIAHang, LUKun, HEZi-shu. Automatic recognition of transient interference in the range-Doppler map for over-the-horizon radar[J]. Acta Electronica Sinica, 2021, 49(7): 1279‑1285. (in Chinese)
6	刘丽, 匡纲要. 图像纹理特征提取方法综述[J]. 中国图像图形学报, 2009, 14(4): 622‑635.
	LIULi, KUANGGang-yao. Overview of image textural feature extraction methods[J]. Journal of Image and Graphics, 2009, 14(4): 622‑635. (in Chinese)
7	OJALAT, PIETIKAINENM. Multiresolution gray-scale and rotation invariant texture classification with local binary patterns[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2002, 24(7): 971‑987.
8	王凯丽, 张艳红, 肖斌, 等. 一种基于二维局部二值模式的纹理图像分类方法[J]. 电子学报, 2018, 46(10): 2519‑2526.
	WANGKai-li, ZHANGYan-hong, XIAOBin, et al. Texture images classification based on two dimensional local binary patterns[J]. Acta Electronica Sinica, 2018, 46(10): 2519‑2526. (in Chinese)
9	HARALICKR M, SHANMUGAMK, DINSTEINI. Textural features for image classification[J]. IEEE Transaction on Systems, Man, and Cybernetics, 1973, 3(6): 610‑621.
10	DALALN, TRIGGSB. Histograms of oriented gradients for human detection[C]//Proceedings of the IEEE Computer Vision and Pattern Recognition. San Diego, California, USA: IEEE, 2005: 886‑893.
11	王学文, 丁晓青, 刘长松. 基于Gabor变换的高鲁棒汉字识别新方法[J]. 电子学报, 2002, 30(9): 1317‑1322.
	WANGXue-wen, DINGXiao-qing, LIUChang-song. Gabor filters based feature extraction for robust Chinese character recognition[J]. Acta Electronica Sinica, 2002, 30(9): 1317‑1322. (in Chinese)
12	罗忠涛, 郭人铭, 郭杰, 等. OTH雷达图像的粗糙度指标及用于射频干扰自适应抑制[J/OL]. 自动化学报, .
	LUOZhong-tao, GUORen-ming, GUOJie, et al. Tamura coarseness for OTH radar image evaluation and its application in adaptive optimization of interference suppression[J/OL]. Acta Automatica Sinica, (in Chinese)
13	COVERT M, HARTP E. Nearest neighbor pattern classification[J]. IEEE Transactions on Information Theory, 1967, 13(1): 21‑27.
14	罗忠涛, 严美慧, 卢琨, 等. 超视距雷达海杂波与干扰信号的多域特征与海杂波检测[J]. 电子与信息学报, 2021, 43(3): 580‑588.
	LUOZhong-tao, YANMei-hui, LUKun, et al. The characteristics of sea-clutter and interferences in various domains and the detection of sea-clutter for OTH radar[J]. Journal of Electronics and Information Technology, 2021, 43(3): 580‑588. (in Chinese)
15	ZHOUH, WENB Y. Radio frequency interference suppression in small-aperture high-frequency radars[J]. IEEE Geoscience and Remote Sensing Letters, 2012, 9(4): 788‑792.
16	何子述, 夏威, 等. 现代数字信号处理及其应用[M]. 北京: 清华大学出版社, 2009: 66‑67.
17	薄华, 马缚龙, 焦李成. 图像纹理的灰度共生矩阵计算问题的分析[J]. 电子学报, 2006, 34(1): 155‑158.
	BOHua, MAFu-long, JIAOLi-cheng. Research on computation of GLCM of image texture[J]. Acta Electronica Sinica, 2006, 34(1): 155‑158. (in Chinese)
18	周志华. 机器学习[M]. 北京: 清华大学出版社, 2016: 121‑133.
19	李航. 统计学习方法[M]. 北京: 清华大学出版社, 2019: 255‑258.
