基于多流空间注意力图卷积SRU网络的骨架动作识别

doi:10.12263/DZXB.20210416

电子学报 ›› 2022, Vol. 50 ›› Issue (7): 1579-1585.DOI: 10.12263/DZXB.20210416

基于多流空间注意力图卷积SRU网络的骨架动作识别

赵俊男, 佘青山, 孟明, 陈云

杭州电子科技大学自动化学院，浙江杭州 310018

收稿日期:2021-03-29 修回日期:2021-12-30 出版日期:2022-07-25
- 作者简介:
- 赵俊男男，1996年12月出生于浙江湖州.现为杭州电子科技大学自动化学院硕士研究生，研究方向为3D骨架动作识别、人体姿态估计.E-mail: 663261972@qq.com
  佘青山男，1980年2月出生于湖北松滋. 现为杭州电子科技大学教授，主要研究方向为机器学习与脑-机接口、康复机器人、图像/视频处理与分析.E-mail: qsshe@hdu.edu.cn
- 基金资助:
- 国家自然科学基金 (61871427); 浙江省自然科学基金重点项目 (LZ22F010003)

Skeleton Action Recognition Based on Multi-Stream Spatial Attention Graph Convolutional SRU Network

ZHAO Jun-nan, SHE Qing-shan, MENG Ming, CHEN Yun

College of Automation, Hangzhou Dianzi University, Hangzhou, Zhejiang 310018, China

Received:2021-03-29 Revised:2021-12-30 Online:2022-07-25 Published:2022-07-30
- Supported by:
- National Natural Science Foundation of China (61871427); Key Program of National Natural Science Foundation of Zhejiang Province, China (LZ22F010003)

摘要/Abstract

摘要：

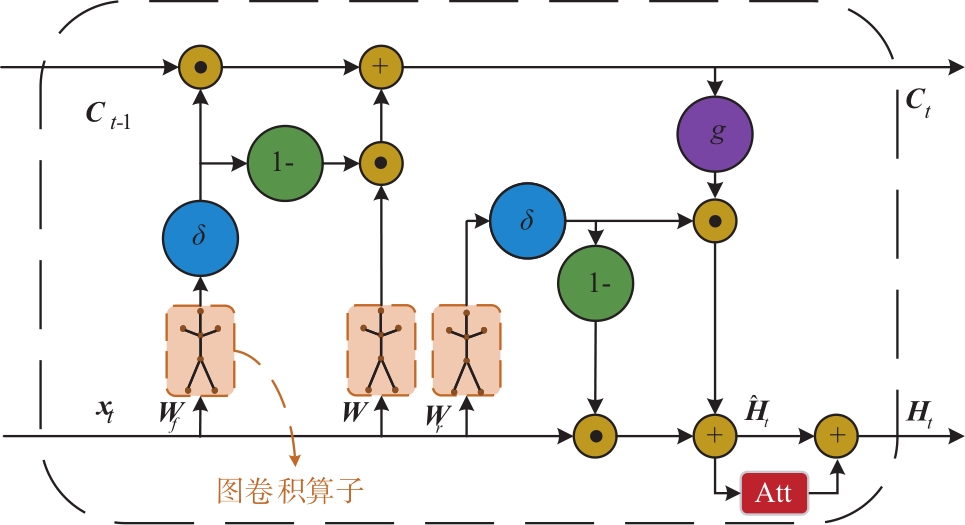

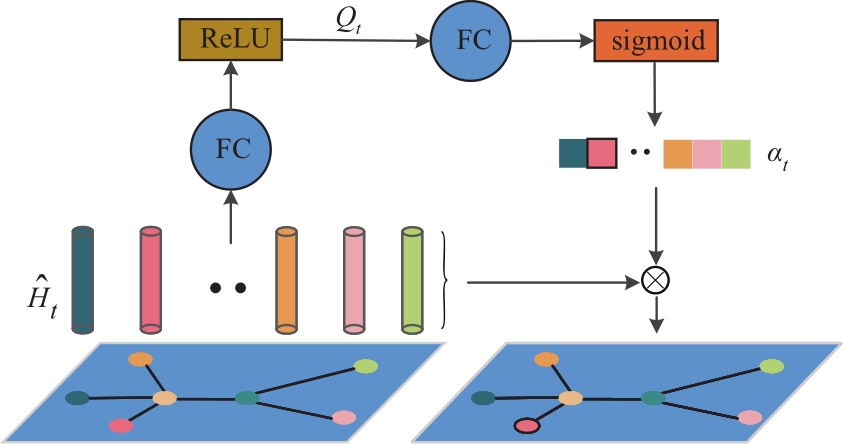

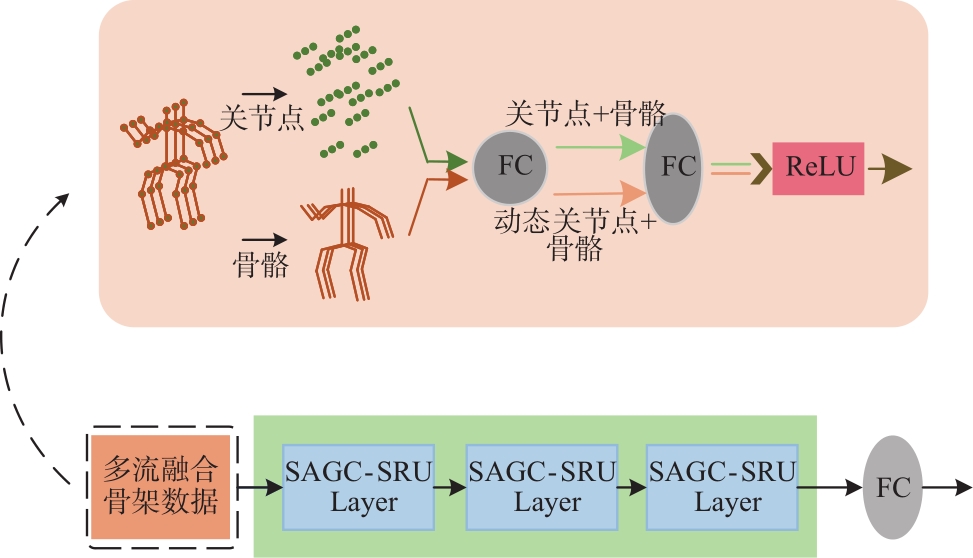

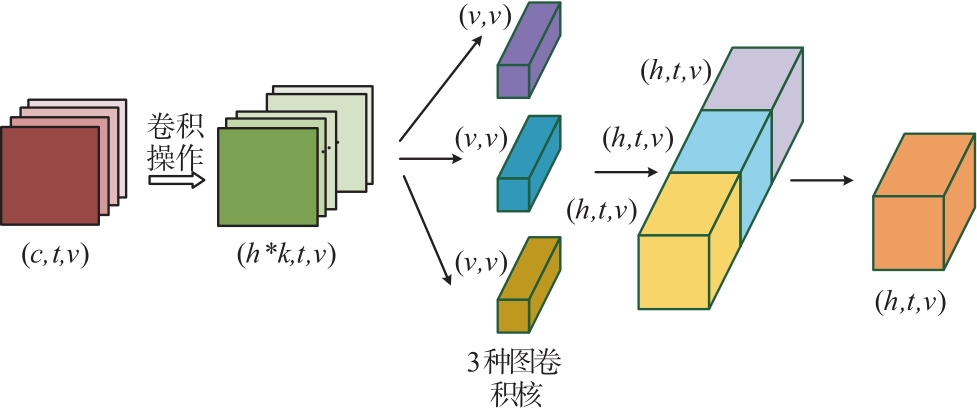

基于骨架的动作识别越来越受到重视.针对现有算法推理速度慢、数据模式单一等问题，本文提出了一种轻量且高效的方法.该网络在简单循环单元（Simple Recurrent Unit，SRU）中嵌入图卷积算子构建图卷积SRU（GC-SRU）模型，来捕获数据的时空域信息.同时，为了加强节点间的区分，采用空间注意力网络和多流数据融合方式，将GC-SRU拓展成多流空间注意力图卷积SRU（MSAGC-SRU）.最后，在公开数据集上进行实验分析.结果表明，本文方法在Northwestern-UCLA上的分类准确率达到了93.1%，模型FLOPs为4.4G；NTU RGB+D上的分类准确率在CV、CS评估协议下分别达到92.7%和87.3%，模型FLOPs为21.3G，达到了计算效率和分类精度的良好平衡.

关键词: 动作识别, 图卷积, 注意力机制, 数据融合

Abstract:

Action recognition with skeleton data has attracted more attention. In order to solve the problems of low reasoning speed and single data mode of most algorithms, a lightweight and efficient method is proposed. The network embeds the graph convolution operator in the simple recurrent unit(SRU) to construct the graph convolutional SRU(GC-SRU), which can capture the spatial-temporal information of data. Meanwhile, to enhance the distinction between nodes, spatial attention network and multi-stream data fusion are used to expand GC-SRU into multi-stream spatial attention graph convolutional SRU(MSAGC-SRU). Finally, the proposed method is evaluated on two public datasets. Experimental results show that the classification accuracy of our method on Northwestern-UCLA reaches 93.1% and the FLOPs of the model is 4.4G. The accuracy on NTU RGB+D reaches 92.7% and 87.3% under the CV and CS evaluation protocols, respectively, and the FLOPs of the model is 21.3G. The proposed model has achieved good trade-off between computational efficiency and classification accuracy.

Key words: action recognition, graph convolution, attention mechanism, data fusion

中图分类号:

TP391.4

赵俊男, 佘青山, 孟明, 陈云. 基于多流空间注意力图卷积SRU网络的骨架动作识别[J]. 电子学报, 2022, 50(7): 1579-1585.

ZHAO Jun-nan, SHE Qing-shan, MENG Ming, CHEN Yun. Skeleton Action Recognition Based on Multi-Stream Spatial Attention Graph Convolutional SRU Network[J]. Acta Electronica Sinica, 2022, 50(7): 1579-1585.

图/表 9

参考文献 23

1	罗会兰, 童康, 孔繁胜. 基于深度学习的视频中人体动作识别进展综述[J].电子学报, 2019, 47(5): 1162-1173.
	LUOHui-lan, TONGKang, KONGFan-sheng.Review of human action recognition in videos based on deep learning[J]. Acta Electronica Sinica, 2019, 47(5): 1162-1173. (in Chinese)
2	YANS, XIONGY, LIND, et al. Spatial temporal graph convolutional networks for skeleton-based action recognition[C]//Proceedings of the AAAI Conference on Artificial Intelligence. New Orleans: AAAI, 2018: 7444-7452.
3	SIC, CHENW, WANGW, et al. An attention enhanced graph convolutional LSTM network for skeleton-based action recognition[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Long Beach: IEEE,2019: 1227-1236.
4	SHIL, ZHANGY, CHENGJ, et al. Skeleton-based action recognition with multi-stream adaptive graph convolutional networks[J]. IEEE Transactions on Image Processing, 2020, 29: 9532-9545.
5	LEIT, ZHANGY, WANGS I, et al. Simple recurrent units for highly parallelizable recurrence[EB/OL]. (2018)[2021]. .
6	SHEQ, MUG, GANH, et al. Spatio-temporal SRU with global context-aware attention for 3D human action recognition[J]. Multimedia Tools and Applications, 2020, 79(17-18): 12349-12371.
7	PARKC, LEEC, HONGL, et al. S2-Net: Machine reading comprehension with SRU based self-matching networks[J]. ETRI Journal, 2019, 41(3): 371-382.
8	ZHUW, LANC, XINGJ, et al. Co-occurrence feature learning for skeleton based action recognition using regularized deep LSTM networks[C]//Proceedings of the AAAI Conference on Artificial Intelligence. Phoenix: AAAI, 2016: 3697-3703.
9	ZHANGL, ZHUG, MEIL, et al. Attention in convolutional LSTM for gesture recognition[C]//Proceedings of the Advances in Neural Information Processing Systems. Montréal: Curran Associates Inc., 2018: 1953-1962.
10	Di GangiM A, FedericoM. Deep neural machine translation with weakly-recurrent units[EB/OL]. (2018)[2021]. .
11	SONGS, LANC, XINGJ, et al. An end-to-end spatio-temporal attention model for human action recognition from skeleton data[C]//Proceedings of the AAAI Conference on Artificial Intelligence. San Francisco: AAAI, 2017:4263-4270.
12	朱红蕾, 朱昶胜, 徐志刚.人体行为识别数据集研究进展[J]. 自动化学报, 2018, 44(6): 978-1004.
	ZHUHong-lei, ZHUChang-sheng, XUZhi-gang. Research advances on human activity recognition datasets[J].Acta Automatica Sinica,2018,44(6):978-1004.(in Chinese)
13	XIEC, LIC, ZHANGB, et al. Memory attention networks for skeleton-based action recognition[EB/OL]. (2018)[2021]. .
14	WANGJ, NIEX, XIAY, et al. Cross-view action modeling, learning and recognition[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Columbus: IEEE, 2014: 2649-2656.
15	CHENGK, ZHANGY, HEX, et al. Skeleton-based action recognition with shift graph convolutional Network[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Seattle: IEEE, 2020: 183-192.
16	穆高原. 基于深度学习的危险驾驶行为识别研究[D]. 杭州: 杭州电子科技大学, 2020.
	MUGao-yuan. Study on dangerous driving behavior recognition based on deep learning[D]. Hangzhou: Hangzhou Dianzi University, 2020. (in Chinese)
17	VemulapalliR, ArrateF, ChellappaR. Human action recognition by representing 3D skeletons as points in a lie group[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Columbus: IEEE, 2014: 588-595.
18	WANGJ, LIUZ, WUY, et al. Learning actionlet ensemble for 3D human action recognition[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2013, 36(5): 914-927.
19	DUY, WANGW, WANGL. Hierarchical recurrent neural network for skeleton based action recognition[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Boston: IEEE, 2015: 1110-1118.
20	LIUM, LIUH, CHENC. Enhanced skeleton visualization for view invariant human action recognition[J]. Pattern Recognition, 2017, 68: 346-362.
21	LEED Kim, KANGS, LEES. Ensemble deep learning for skeleton-based action recognition using temporal sliding LSTM networks[C]//Proceedings of the IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 1012-1020.
22	SHIL, ZHANGY, CHENGJ, et al. Two-stream adaptive graph convolutional networks for skeleton-based action recognition[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Long Beach: IEEE, 2019: 12026-12035.
23	SHAHROUDYA, LIUJ, NGT T, et al. Nturgb+d: A large scale dataset for 3D human activity analysis[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 1010-1019.

Methods	Accuracy(%)	FLOPs(G)
Lie group^[17]	74.2	—
Actionletensemble^[18]	76.0	—
HBRNN-L^[19]	78.5	—
VisualizaionCNN^[20]	86.1	—
Ensemble TS-LSTM^[21]	89.2	—
AGC-LSTM^[3]	93.3	10.9
MSAGC-SRU	93.1	4.4

Methods	Accuracy(%)	FLOPs(G)
Lie group^[17]	74.2	—
Actionletensemble^[18]	76.0	—
HBRNN-L^[19]	78.5	—
VisualizaionCNN^[20]	86.1	—
Ensemble TS-LSTM^[21]	89.2	—
AGC-LSTM^[3]	93.3	10.9
MSAGC-SRU	93.1	4.4

Methods	Accuracy(%)	FLOPs(G)
SRU	81.3	—
GC-SRU	84.8	3.0
MSGC-SRU	90.3	3.5
SAGC-SRU	90.1	3.9
MSAGC-SRU	93.1	4.4

Methods	Accuracy(%)	FLOPs(G)
SRU	81.3	—
GC-SRU	84.8	3.0
MSGC-SRU	90.3	3.5
SAGC-SRU	90.1	3.9
MSAGC-SRU	93.1	4.4

Methods	Training time(s)	Testing time(s)
SRU	5.93	1.00
GC-SRU	6.08	1.86
MSGC-SRU	6.38	2.04
AGC-LSTM^[3]	14.30	4.74
SAGC-SRU	6.49	2.04
MSAGC-SRU	6.77	2.36

基于多流空间注意力图卷积SRU网络的骨架动作识别

Skeleton Action Recognition Based on Multi-Stream Spatial Attention Graph Convolutional SRU Network

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 23

相关文章 15

编辑推荐

Metrics

Methods	CV(%)	CS(%)	FLOPs(G)
HBRNN-L^[19]	64.0	59.1	—
Deep-LSTM^[23]	67.3	60.7	—
ST-GCN^[2]	88.3	81.5	16.2
AGC-LSTM^[3]	95.0	89.2	54.4
2s-Adaptive GCN^[22]	95.1	88.5	35.8
MS-AAGCN^[4]	96.2	90.0	71.6
MSAGC-SRU	92.7	87.3	21.3
