电子学报 ›› 2022, Vol. 50 ›› Issue (9): 2079-2089.DOI: 10.12263/DZXB.20210454
李雪莹, 王田路, 梁鹏, 王翀
收稿日期:
2021-04-09
修回日期:
2021-12-20
出版日期:
2022-09-25
作者简介:
基金资助:
LI Xue-ying, WANG Tian-lu, LIANG Peng, WANG Chong
Received:
2021-04-09
Revised:
2021-12-20
Online:
2022-09-25
Published:
2022-10-26
摘要:
移动应用程序中的用户评论是获取用户需求的重要来源. 从用户评论中获取的用户需求,不仅可以帮助开发人员维护现有系统,还可以快速、准确地定位新的用户需求. 本文主要关注移动应用用户评论中的非功能需求,并基于系统模型、采用机器学习和深度学习算法将其自动分类为行为型需求和表示型需求. 在使用机器学习方法分类时,将2种特征提取技术与5种机器学习算法进行组合. 在使用深度学习方法分类时,使用了2种基于词嵌入的深度学习算法和1种基于字符嵌入的深度学习算法. 从性能和时间消耗2个维度比较了机器学习模型和深度学习模型,结果表明,机器学习模型比深度学习模型表现更好. 此外,支持向量机(Support Vector Machine,SVM)与词频-逆文档频率(Term Frequency?Inverse Document Frequency,TF?IDF)组合获得了最好的分类性能,精确率为0.941,召回率为0.990,F1-score为0.965.
中图分类号:
李雪莹, 王田路, 梁鹏, 王翀. 基于系统模型的用户评论中非功能需求的自动分类[J]. 电子学报, 2022, 50(9): 2079-2089.
LI Xue-ying, WANG Tian-lu, LIANG Peng, WANG Chong. Automatic Classification of Non-Functional Requirements in App User Reviews Based on System Model[J]. Acta Electronica Sinica, 2022, 50(9): 2079-2089.

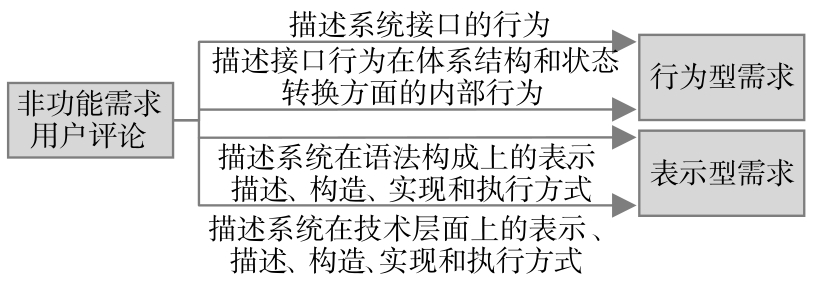

需求类型 | 描述 | 示例 |
---|---|---|
行为型 需求 | Requirements that describe behavioral properties of the system, including the behavioral of interface, architecture, and state. | App is not responding while sending the pictures. |
表示型 需求 | Requirements that describe the representation, description, construction, implementation, and execution of the system (i.e., the way that a system is syntactically and technically represented). | If there is another version released called ibooks classic with the wooden bookshelf UI, we will be thankful. |
表1 用户评论中行为型需求和表示型需求的示例
需求类型 | 描述 | 示例 |
---|---|---|
行为型 需求 | Requirements that describe behavioral properties of the system, including the behavioral of interface, architecture, and state. | App is not responding while sending the pictures. |
表示型 需求 | Requirements that describe the representation, description, construction, implementation, and execution of the system (i.e., the way that a system is syntactically and technically represented). | If there is another version released called ibooks classic with the wooden bookshelf UI, we will be thankful. |
Hyper-Parameter | Value |
---|---|
Dimension of word vector | 200 |
Length of word sequence | 200 |
Number of convolution kernel | 128 |
Size of convolution kernel | [ |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
表2 TextCNN模型的主要超参数
Hyper-Parameter | Value |
---|---|
Dimension of word vector | 200 |
Length of word sequence | 200 |
Number of convolution kernel | 128 |
Size of convolution kernel | [ |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
Hyper-parameter | Value |
---|---|
Dimension of word vector | 200 |
Length of word sequence | 200 |
Size of hidden layer | 128 |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
表3 RCNN模型的主要超参数
Hyper-parameter | Value |
---|---|
Dimension of word vector | 200 |
Length of word sequence | 200 |
Size of hidden layer | 128 |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
Hyper-Parameter | Value |
---|---|
Dimension of character vector | 70 |
Length of character sequence | 1014 |
Size of convolution and pooling layers | ([256,7,3], [256,7,3], [256,3,None], [256,3,None], [256,3,None], [256,3,3]) |
Size of fully-connected | [1024,1024,2] |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
表4 CharCNN模型的主要超参数
Hyper-Parameter | Value |
---|---|
Dimension of character vector | 70 |
Length of character sequence | 1014 |
Size of convolution and pooling layers | ([256,7,3], [256,7,3], [256,3,None], [256,3,None], [256,3,None], [256,3,3]) |
Size of fully-connected | [1024,1024,2] |
Learning rate | 0.001 |
Batch size | 64 |
Epoch | 10 |
TF-IDF | BoW | |||||
---|---|---|---|---|---|---|
Precision | Recall | F1-score | Precision | Recall | F1-score | |
NB | 0.914 | 0.980 | 0.946 | 0.989 | 0.908 | 0.947 |
LR | 0.931 | 0.969 | 0.950 | 0.941 | 0.979 | 0.960 |
DT | 0.934 | 0.867 | 0.899 | 0.939 | 0.949 | 0.944 |
RF | 0.922 | 0.969 | 0.945 | 0.922 | 0.969 | 0.945 |
SVM | 0.941 | 0.990 | 0.965 | 0.941 | 0.980 | 0.960 |

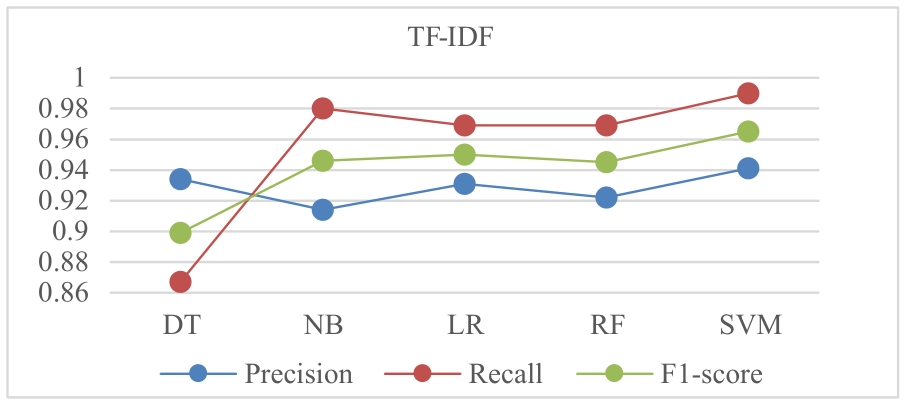

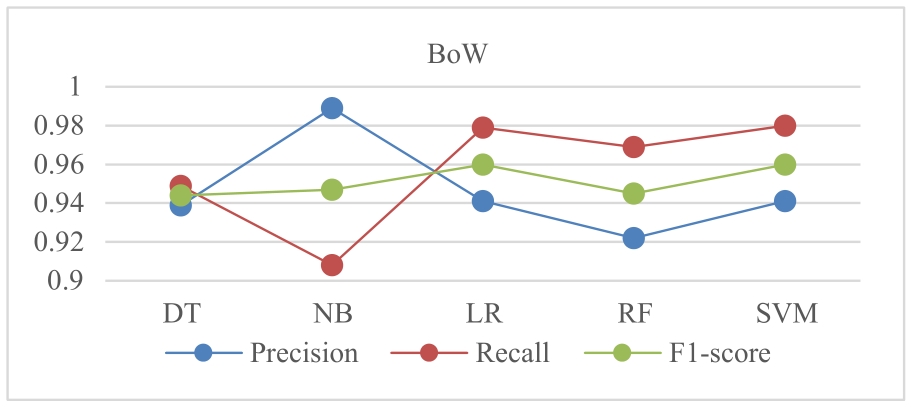

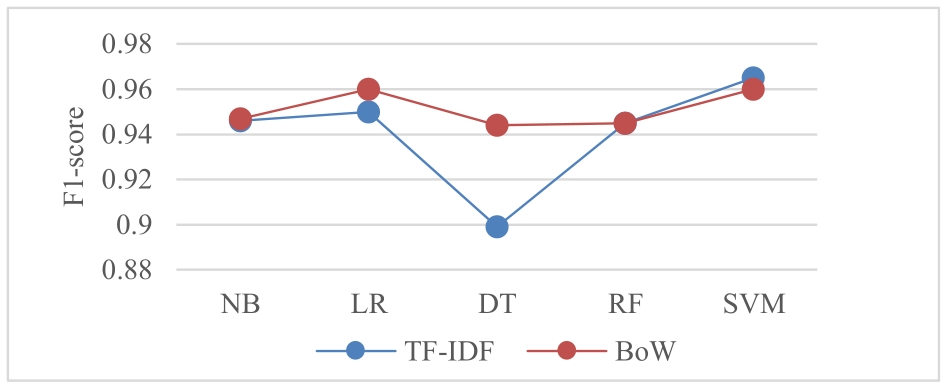

表5 使用机器学习模型对用户评论中的非功能需求进行分类的结果
TF-IDF | BoW | |||||
---|---|---|---|---|---|---|
Precision | Recall | F1-score | Precision | Recall | F1-score | |
NB | 0.914 | 0.980 | 0.946 | 0.989 | 0.908 | 0.947 |
LR | 0.931 | 0.969 | 0.950 | 0.941 | 0.979 | 0.960 |
DT | 0.934 | 0.867 | 0.899 | 0.939 | 0.949 | 0.944 |
RF | 0.922 | 0.969 | 0.945 | 0.922 | 0.969 | 0.945 |
SVM | 0.941 | 0.990 | 0.965 | 0.941 | 0.980 | 0.960 |

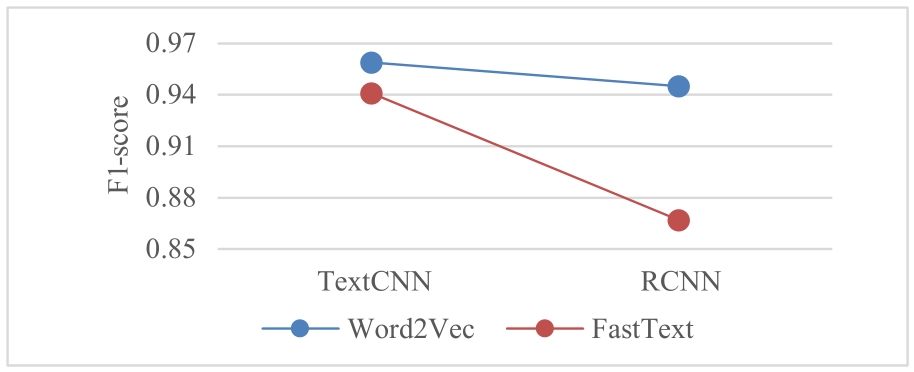

Precision | Recall | F1-score | |
---|---|---|---|
TextCNN + Word2Vec | 0.950 | 0.969 | 0.959 |
TextCNN + FastText | 0.989 | 0.898 | 0.941 |
RCNN + Word2Vec | 0.931 | 0.959 | 0.945 |
RCNN + FastText | 0.766 | 1.000 | 0.867 |
CharCNN | 0.876 | 0.867 | 0.871 |

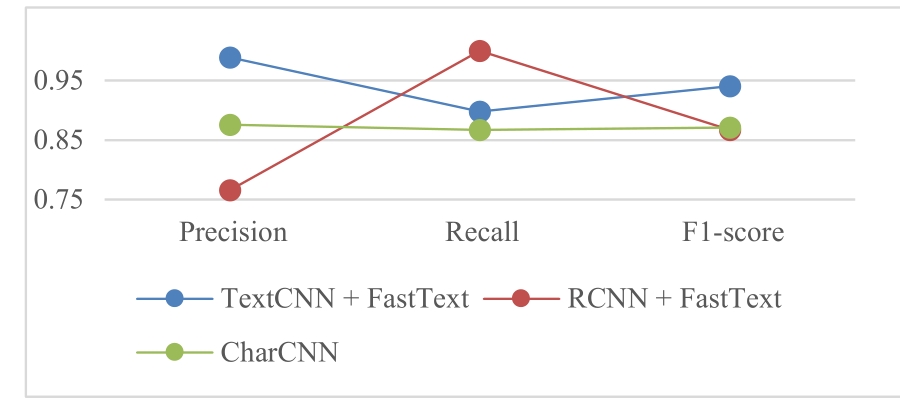

表6 使用深度学习模型对用户评论中的非功能需求进行分类的结果
Precision | Recall | F1-score | |
---|---|---|---|
TextCNN + Word2Vec | 0.950 | 0.969 | 0.959 |
TextCNN + FastText | 0.989 | 0.898 | 0.941 |
RCNN + Word2Vec | 0.931 | 0.959 | 0.945 |
RCNN + FastText | 0.766 | 1.000 | 0.867 |
CharCNN | 0.876 | 0.867 | 0.871 |
TF-IDF | BoW | |||
---|---|---|---|---|
Bt | Pt | Bt | Pt | |
NB | 548 | 4 | 491 | 4 |
LR | 853 | 4 | 848 | 6 |
DT | 585 | 3 | 514 | 3 |
RF | 880 | 17 | 994 | 18 |
SVM | 604 | 9 | 540 | 7 |
表7 机器学习算法的建模耗时(Bt)以及模型预测耗时(Pt) ms
TF-IDF | BoW | |||
---|---|---|---|---|
Bt | Pt | Bt | Pt | |
NB | 548 | 4 | 491 | 4 |
LR | 853 | 4 | 848 | 6 |
DT | 585 | 3 | 514 | 3 |
RF | 880 | 17 | 994 | 18 |
SVM | 604 | 9 | 540 | 7 |
Word Embedding | ||||
---|---|---|---|---|
Word2Vec | FastText | |||
Bt | Pt | Bt | Pt | |
TextCNN | 94575 | 27817 | 135659 | 27694 |
RCNN | 224776 | 82282 | 277075 | 72534 |
表8 深度学习算法(TextCNN、RCNN)的建模耗时(Bt)以及模型预 (测耗时(Pt) ms)
Word Embedding | ||||
---|---|---|---|---|
Word2Vec | FastText | |||
Bt | Pt | Bt | Pt | |
TextCNN | 94575 | 27817 | 135659 | 27694 |
RCNN | 224776 | 82282 | 277075 | 72534 |
CharCNN | Character Embedding | |
---|---|---|
Bt | Pt | |
514391 | 85078 |
表9 深度学习算法(CharCNN)的建模耗时(Bt)以及模型预测耗时(Pt)ms
CharCNN | Character Embedding | |
---|---|---|
Bt | Pt | |
514391 | 85078 |
1 | FERNÁNDEZ D M. Supporting requirements-engineering research that industry needs: The NaPiRE initiative[J]. IEEE Software, 2018, 35(1): 112-116. |
2 | BROY M. Rethinking Functional Requirements: A Novel Approach Categorizing System and Software Requirements[M]//Software Technology: 10 Years of Innovation in IEEE Computer. Hoboken, NJ, USA: John Wiley & Sons, Inc, 2018: 155-187. |
3 | BROY M. Rethinking nonfunctional software requirements[J]. Computer, 2015, 48(5): 96-99. |
4 | ECKHARDT J. Categorizations of Product-related Requirements in Practice[D]. München: Technische Universität München, 2017. |
5 | LU M M, LIANG P. Automatic classification of non-functional requirements from augmented app user reviews[C]//EASE'17: Proceedings of the 21st International Conference on Evaluation and Assessment in Software Engineering. New York: ACM, 2017: 344-353. |
6 | Joint Technical Committee ISO/IEC [S/OL].[2021-04-07].. |
7 | 李雪莹,王田路,梁鹏,王翀. 基于系统模型的用户评论中非功能需求的自动分类[EB/OL]. [2021-04-07] . |
8 | GLINZ M. On non-functional requirements[C]//15th IEEE International Requirements Engineering Conference. Piscataway: IEEE, 2007: 21-26. |
9 | ABAD Z S H, KARRAS O, GHAZI P, et al. What works better? A study of classifying requirements[C]//2017 IEEE 25th International Requirements Engineering Conference. Piscataway: IEEE, 2017: 496-501. |
10 | LI C Y, HUANG L G, GE J D, et al. Automatically classifying user requests in crowdsourcing requirements engineering[J]. Journal of Systems and Software, 2018, 138: 108-123. |
11 | STANIK C, HAERING M, MAALEJ W. Classifying multilingual user feedback using traditional machine learning and deep learning[C]//2019 IEEE 27th International Requirements Engineering Conference Workshops. Piscataway: IEEE, 2019: 220-226. |
12 | JHA N, MAHMOUD A. Mining non-functional requirements from App store reviews[J].Empirical Software Engineering, 2019, 24(6): 3659-3695. |
13 | WANG T L, LIANG P, LU M M. What aspects do non-functional requirements in app user reviews describe? an exploratory and comparative study[C]//2018 25th Asia-Pacific Software Engineering Conference(APSEC). Piscataway: IEEE, 2018: 494-503. |
14 | MIKOLOV T, CHEN K, CORRADO G, et al. Efficient estimation of word representations in vector space[EB/OL]. (2013-01-16). . |
15 | BOJANOWSKI P, GRAVE E, JOULIN A, et al. Enriching word vectors with subword information[J]. Transactions of the Association for Computational Linguistics, 2017, 5: 135-146. |
16 | KIM Y. Convolutional neural networks for sentence classification[C]//Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP). Stroudsburg, PA, USA: Association for Computational Linguistics, 2014: 1746-1751. |
17 | LAI S W, XU L H, LIU K, et al. Recurrent convolutional neural networks for text classification[C]//AAAI'15: Proceedings of the Twenty-Ninth AAAI Conference on Artificial Intelligence. Menlo Park, CA: AAAI, 2015: 2267-2273. |
18 | ZHANG X, ZHAO J, LECUN Y. Character-level convolutional networks for text classification[C]// Proceedings of the 28th International Conference on Neural Information Processing Systems - Volume 1. Cambridge, MA: MIT Press, 2015: 649-657. |
19 | COHEN J. A coefficient of agreement for nominal scales[J]. Educational and Psychological Measurement, 1960, 20(1): 37-46. |
20 | SHULL F, SINGER J, SJØBERG D. I. Guide to Advanced Empirical Software Engineering[M]. Berlin, German: Springer, 2008. |
