尺度敏感损失与特征融合的快速小目标检测方法

doi:10.12263/DZXB.20210530

摘要/Abstract

摘要：

现有通用深度学习目标检测方法对中、大目标有着较好的检测精度，而对小目标检测精度较低，主要原因在于小目标训练数据少以及下采样后特征图分辨率过低.针对上述问题，一方面，提出一种尺度敏感损失函数用于分类热图的训练，使小目标能够对模型更新产生更大的影响；另一方面，利用反卷积与可变形卷积提出一种自上而下的特征融合方法，获得高分辨率、强语义的特征图来检测目标.在上述两个方面的基础上，设计一种尺度敏感与特征融合的小目标检测方法.在PASCAL VOC数据集上，对提出方法进行了实验验证，实验结果表明：相比于现有目标检测方法，本文方法在保持较快检测速度的同时，提升了小目标检测的精度.

关键词: 深度学习, 小目标检测, 尺度敏感损失, 特征融合

Abstract:

The existing general deep learning target detection methods have good detection accuracy for medium and large targets, but the detection accuracy for small targets is low, mainly due to few data for small target training and low resolution of feature map after down sampling. To solve the above problems, on the one hand, a scale sensitive loss function is proposed for the training of classified heatmaps, so that small targets can have a greater impact on model updating; on the other hand, a top-down feature fusion method is proposed by using deconvolution and deformable convolution to obtain high-resolution and strong semantic feature map for target detection. On the basis of the above two aspects, a small target detection method based on scale sensitivity and feature fusion is designed. Experimental results on PASCAL VOC dataset show that compared with the existing target detection methods, the proposed method can maintain a faster detection speed and improve the accuracy of small object detection.

Key words: deep learning, small object detection, scale-sensitivity loss, feature fusion

中图分类号:

TP391.4

琚长瑞, 秦晓燕, 袁广林, 李豪, 朱虹. 尺度敏感损失与特征融合的快速小目标检测方法[J]. 电子学报, 2022, 50(9): 2119-2126.

JU Chang-rui, QIN Xiao-yan, YUAN Guang-lin, LI Hao, ZHU Hong. Fast Small Object Detection Method with Scale-Sensitivity Loss and Feature Fusion[J]. Acta Electronica Sinica, 2022, 50(9): 2119-2126.

图/表 10

图1 PASCAL VOC数据图像(其中黄色框为标注目标,红色框内是未标注的小目标)

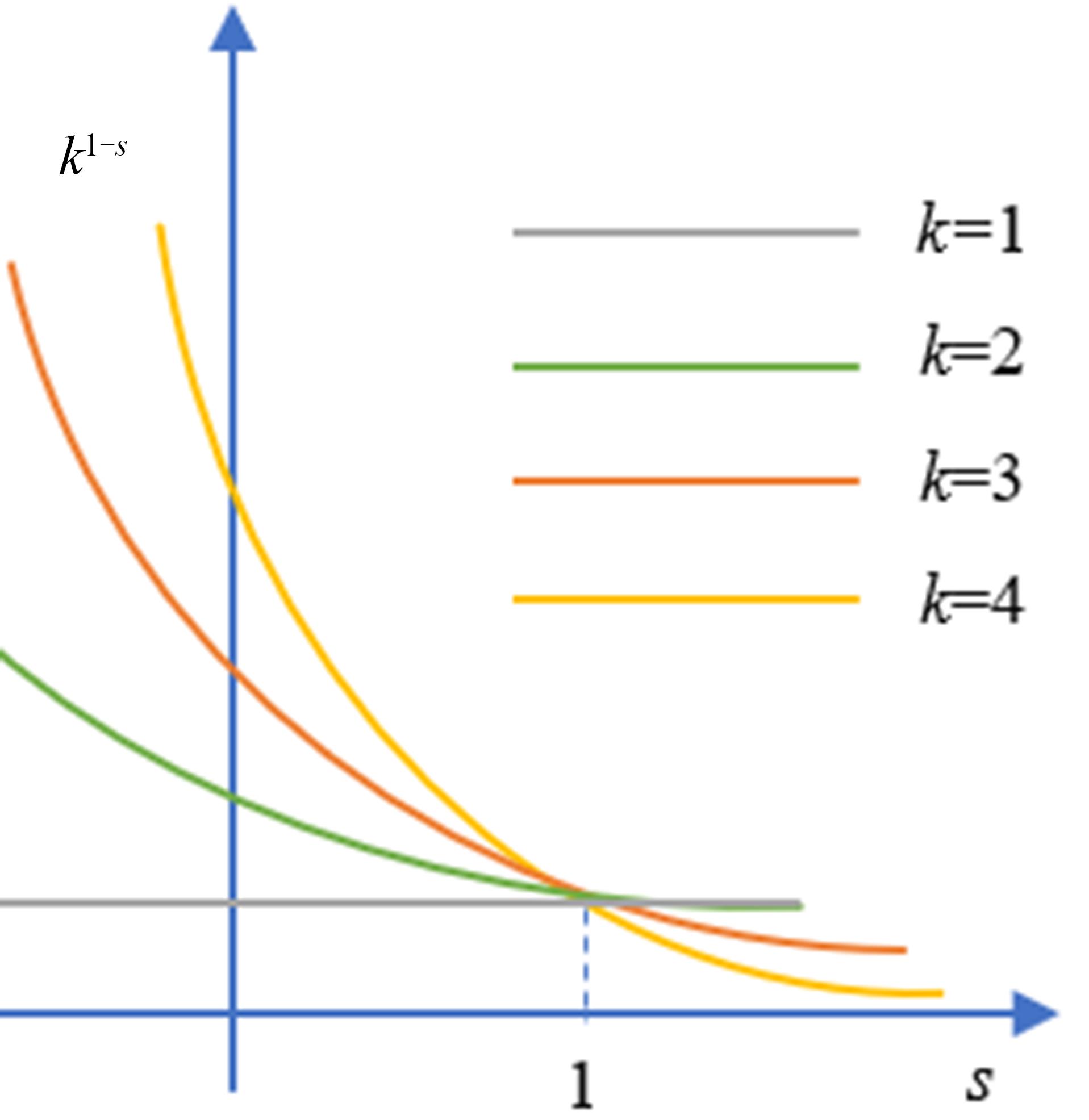

图 2 尺度敏感权重函数图像

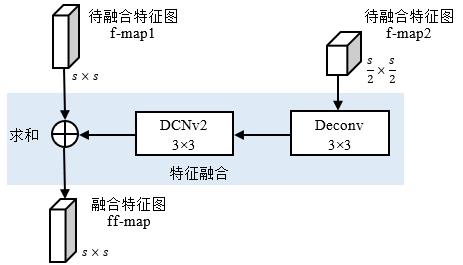

图 3 特征融合模块

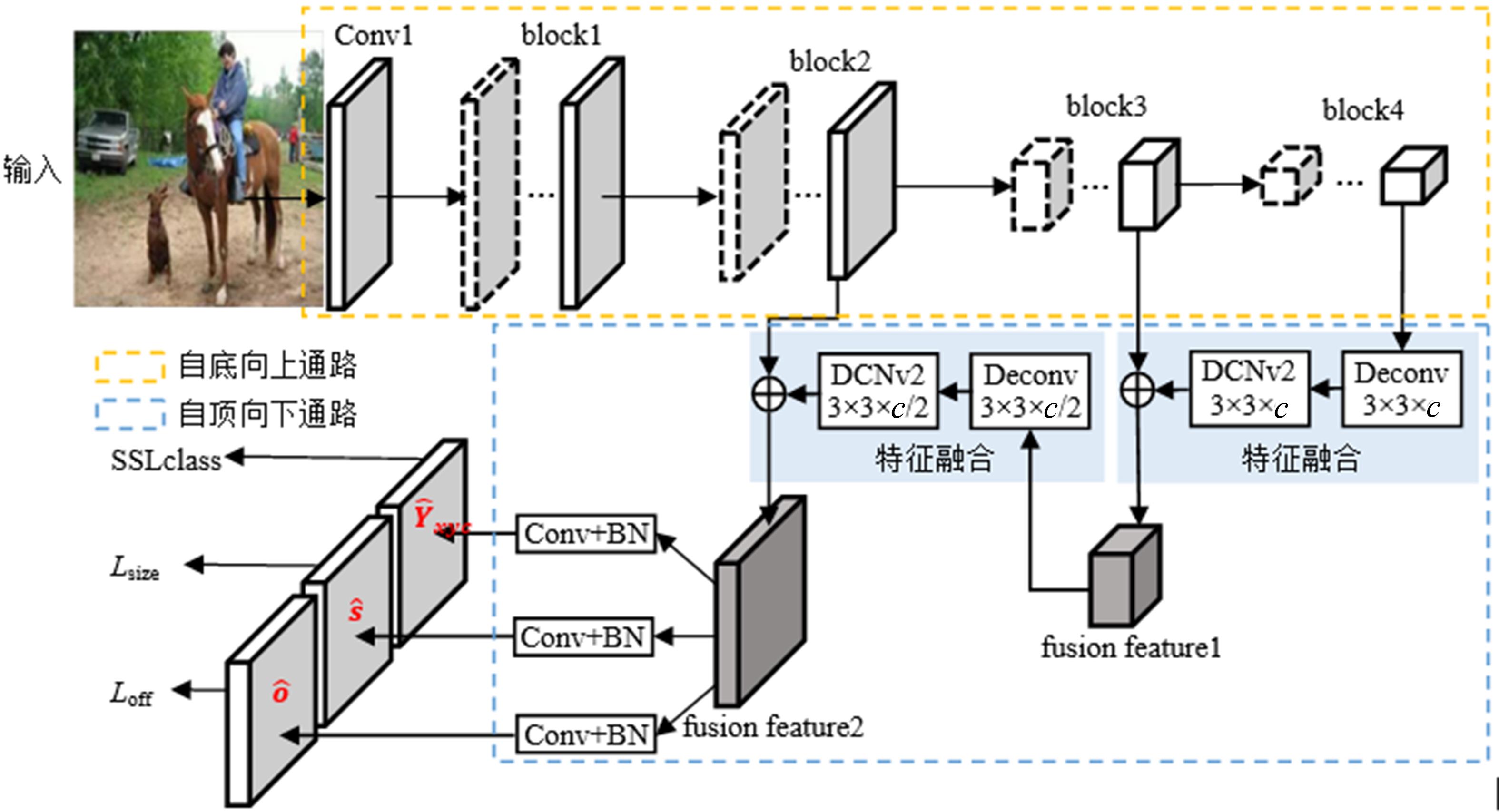

图 4 征融合网络结构

图 5 目标图像与特征图特征图特征图

表 1 不同k值的检测结果

k值	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$
k=1	77.1	80.4	75.6	25.5
k=2	75.5	77.5	73.5	28.6
k=3	73.4	75.3	70.6	29.1
k=4	70.2	73.3	69.1	29.3

表 1 不同k值的检测结果

k值	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$
k=1	77.1	80.4	75.6	25.5
k=2	75.5	77.5	73.5	28.6
k=3	73.4	75.3	70.6	29.1
k=4	70.2	73.3	69.1	29.3

表2 不同深度ResNet网络特征融合检测结果

骨干网络	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$	FPS
ResNet-18	73.2	75.0	72.5	26.9	142
ResNet-50	77.1	79.4	76.6	24.5	65
ResNet-101	80.5	82.4	78.5	23.4	45
FF-ResNet-18	65.1	67.9	60.2	27.6	122
FF-ResNet-50	76.8	77.1	76.4	27.9	50
FF-ResNet-101	78.5	79.0	77.5	28.8	29

表2 不同深度ResNet网络特征融合检测结果

骨干网络	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$	FPS
ResNet-18	73.2	75.0	72.5	26.9	142
ResNet-50	77.1	79.4	76.6	24.5	65
ResNet-101	80.5	82.4	78.5	23.4	45
FF-ResNet-18	65.1	67.9	60.2	27.6	122
FF-ResNet-50	76.8	77.1	76.4	27.9	50
FF-ResNet-101	78.5	79.0	77.5	28.8	29

表 3 综合影响实验结果

骨干网络	k	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$
FF-ResNet-18	2	64.9	67.2	60.0	28.3
FF-ResNet-50	2	76.5	76.9	74.5	30.6
FF-ResNet-101	2	77.4	78.3	74.6	31.4

表 3 综合影响实验结果

骨干网络	k	mAP	AP $50 : 95 l a r g e$	AP $50 : 95 m e d i u m$	AP $50 : 95 s m a l l$
FF-ResNet-18	2	64.9	67.2	60.0	28.3
FF-ResNet-50	2	76.5	76.9	74.5	30.6
FF-ResNet-101	2	77.4	78.3	74.6	31.4

表 4 本文方法与各类方法对比

方法类型	方法	网络结构	mAP	AP $50 : 95 s m a l l$	FPS
两阶段方法	Faster-RCNN^[20]	ResNet-50	74.5	24.3	15
	Cascade RCNN^[21]	ResNet-50	75.6	26.2	17
	R-FCN^[22]	ResNet-50	78.4	24.5	12
	FPN^[9]	ResNet-50	77.5	29.4	9
	CenterNet2^[26]	ResNet-50	80.3	29.1	27
单阶段方法	SSD321^[7]	ResNet-50	77.2	27.5	23
	SSD513^[7]	VGG16	78.8	26.6	33
	DSSD^[24]	ResNet-50	78.4	27.1	8
	YOLOv4^[23]	DarkNet-53	79.5	29.8	52
	YOLOv5	YOLOv5-l	78.3	23.9	121
	CornerNet^[25]	ResNet-50	75.3	23.6	26
	CenterNet^[18]	ResNet-50	77.1	25.5	65
	SSLFF-Det	ResNet-50	76.5	30.6	50

表 4 本文方法与各类方法对比

方法类型	方法	网络结构	mAP	AP $50 : 95 s m a l l$	FPS
两阶段方法	Faster-RCNN^[20]	ResNet-50	74.5	24.3	15
	Cascade RCNN^[21]	ResNet-50	75.6	26.2	17
	R-FCN^[22]	ResNet-50	78.4	24.5	12
	FPN^[9]	ResNet-50	77.5	29.4	9
	CenterNet2^[26]	ResNet-50	80.3	29.1	27
单阶段方法	SSD321^[7]	ResNet-50	77.2	27.5	23
	SSD513^[7]	VGG16	78.8	26.6	33
	DSSD^[24]	ResNet-50	78.4	27.1	8
	YOLOv4^[23]	DarkNet-53	79.5	29.8	52
	YOLOv5	YOLOv5-l	78.3	23.9	121
	CornerNet^[25]	ResNet-50	75.3	23.6	26
	CenterNet^[18]	ResNet-50	77.1	25.5	65
	SSLFF-Det	ResNet-50	76.5	30.6	50

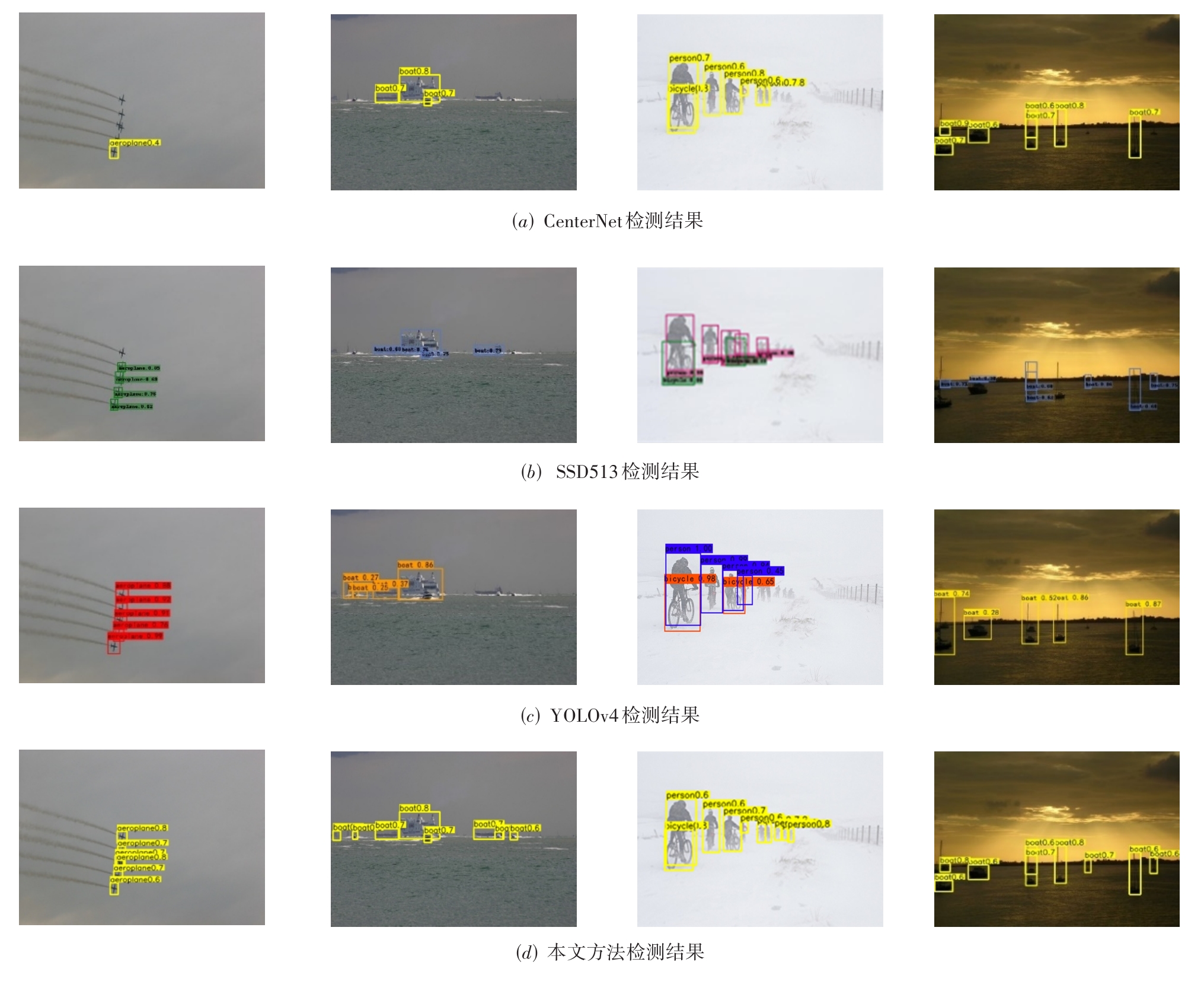

图6 不同检测方法检测结果
