一种基于数据标准差的卷积神经网络量化方法

doi:10.12263/DZXB.20210691

电子学报 ›› 2023, Vol. 51 ›› Issue (3): 639-647.DOI: 10.12263/DZXB.20210691

一种基于数据标准差的卷积神经网络量化方法

黄赟¹, 张帆², 郭威², 陈立¹, 羊光³

^1.信息工程大学, 河南郑州 450001
^2.国家数字交换系统工程技术研究中心, 河南郑州 450002
^3.河南省广播电视监测中心, 河南郑州 450002

收稿日期:2021-05-29 修回日期:2021-10-18 出版日期:2023-03-25
- 通讯作者:
- 张帆
- 作者简介:
- 黄赟男，1993年9月出生于江西省新余市. 信息工程大学硕士生. 主要研究方向为神经网络模型量化压缩、网络内生安全. E-mail: yyhuangz@163.com
  张帆（通讯作者）男，1981年9月出生. 博士. 现为国家数字交换系统工程技术研究中心副研究员、硕士生导师. 主要研究方向为主动防御、人工智能、高性能计算. 中国电子学会会员编号：E190013697M.
  郭威男，1990年8月出生. 博士. 现为国家数字交换系统工程技术研究中心助理研究员. 主要研究方向为主动防御、人工智能、高性能计算. 中国电子学会会员编号：E190029991M.E-mail: guowjss@126.com
  陈立男，1997年2月出生于浙江省义乌市. 信息工程大学硕士生. 主要研究方向为计算机视觉. E-mail: 2464863136@qq.com
  羊　光女，1986年11月出生于河南省驻马店市. 学士. 主要研究方向为网络流量分类、入侵检测、人工智能. E-mail: flyingaki@126.com
- 基金资助:
- 国家自然科学基金创新研究群体项目(61521003)

A Quantification Method of Convolutional Neural Network Based on Data Standard Deviation

HUANG Yun¹, ZHANG Fan², GUO Wei², CHEN Li¹, YANG Guang³

^1.Information Engineering University，Zhengzhou，Hennan 450001，China
^2.National Digital Switching System Engineering Technology Research Center，Zhengzhou，Hennan 450002，China
^3.Henan Administration of Radio and Television Monitoring Center，Zhengzhou，Hennan 450002，China

Received:2021-05-29 Revised:2021-10-18 Online:2023-03-25 Published:2023-04-20
- Corresponding author:
- ZHANG Fan
- Supported by:
- Foundation for Innovative Research Groups of the National Natural Science Foundation of China(61521003)

摘要/Abstract

摘要：

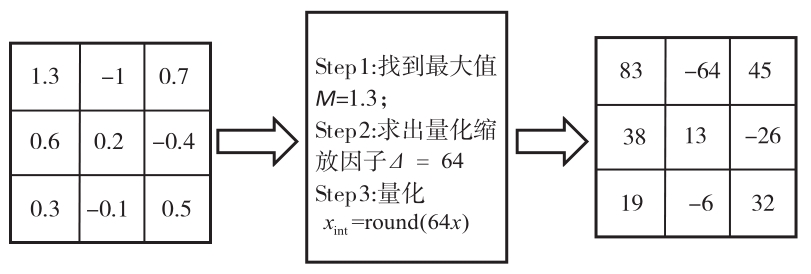

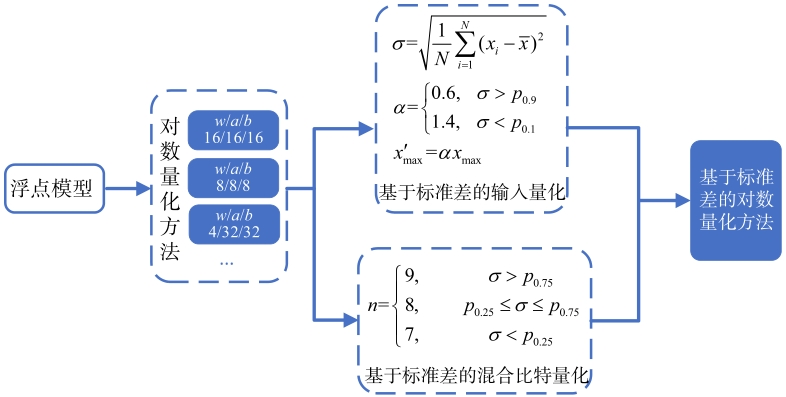

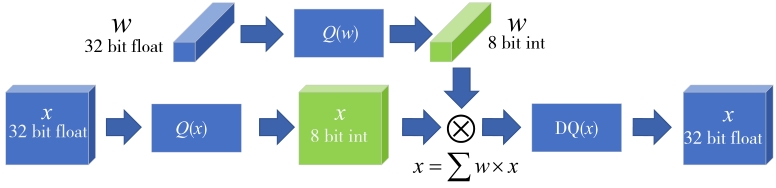

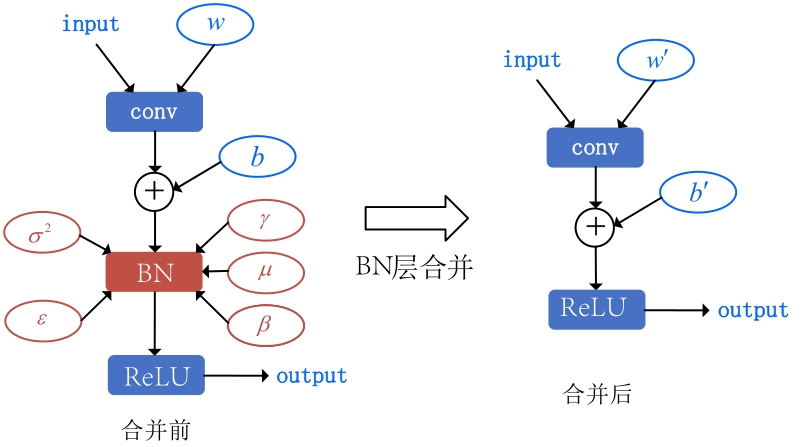

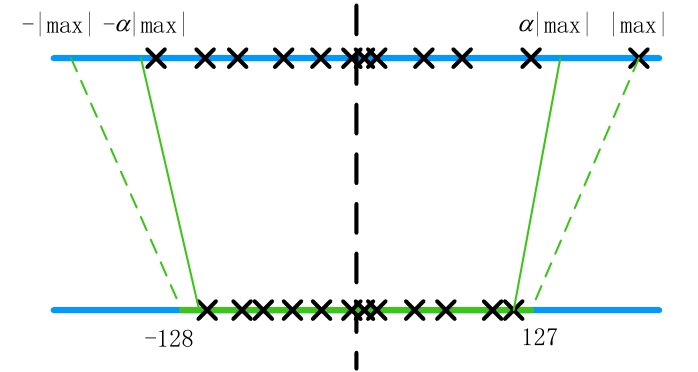

当前卷积神经网络模型存在规模过大且运算复杂的问题，难以应用部署在资源受限的计算平台. 针对此问题，本文基于数据标准差提出了一种适合部署在现场可编程门阵列（Field Programmable Gate Array， FPGA）上的对数量化方法. 首先，依据FPGA的特性提出对数量化方法，将32 bit浮点乘法运算转换为整数乘法及移位运算，提高了运算效率. 然后通过研究数据分布特点，提出基于数据标准差的输入量化及权值混合bit量化方法，能够有效减少量化损失. 通过对RepVGG、EfficientNet等网络进行效率与精度对比实验，8 bit量化使得大型神经网络精度仅下降1%左右；输入量化为8 bit，权重量化为10 bit场景下，模型精度损失小于0.2%，达到浮点模型几乎相同的准确率. 实验表明，所提量化方法能够使得模型大小减少75%左右，在基本保持原有模型准确率的同时有效地降低功耗损失、提高运算效率.

关键词: 卷积神经网络, 现场可编程门阵列, 对数量化, 数据标准差, 混合bit

Abstract:

Due to the large scale of the current convolutional neural network model and complex calculations, it is not suitable for deployment on resource-constrained computing platforms. In order to solve this problem, this paper proposes a logarithmic quantization method based on data standard deviation, which is suitable for deployment on FPGA (Field Programmable Gate Array). According to the characteristics of FPGA, this paper proposes a logarithmic quantization method to convert the 32 bit floating point multiplication operation into integer multiplication and shift operation, which improves the efficiency of the operation. By studying the characteristics of data distribution, the input quantization and mixed bit weight quantization methods based on data standard deviation are proposed, which can effectively reduce the quantization loss. The experimental results show that the accuracy of large-scale neural network is only reduced by about 1% due to 8-bit quantization. When the input is quantized to 8 bits and the weight is quantized to 10 bits, the accuracy loss of the model is less than 0.2%, which is almost the same as that of the floating-point model. Experimental results show that the proposed method can reduce the size of the model by about 75%, and effectively reduce the power loss and improve the computing efficiency while maintaining the accuracy of the original model.

Key words: convolutional neural networks, field programmable gate array(FPGA), logarithmic quantization, standard deviation of the data, mixed bit number

中图分类号:

TP391

黄赟, 张帆, 郭威, 等. 一种基于数据标准差的卷积神经网络量化方法[J]. 电子学报, 2023, 51(3): 639-647.

Yun HUANG, Fan ZHANG, Wei GUO, et al. A Quantification Method of Convolutional Neural Network Based on Data Standard Deviation[J]. Acta Electronica Sinica, 2023, 51(3): 639-647.

图/表 12

参考文献 26

1	KRIZHEVSKY A, SUTSKEVER I, HINTON G E. ImageNet classification with deep convolutional neural networks[C]//Proceedings of the 25th International Conference on Neural Information Processing Systems - Volume 1. Red Hook: Curran Associates Inc, 2012: 1097-1105.
2	江泽涛, 秦嘉奇, 张少钦. 参数池化卷积神经网络图像分类方法[J]. 电子学报, 2020, 48(9): 1729-1734.
	JIANG Z T, QIN J Q, ZHANG S Q. Parameterized pooling convolution neural network for image classification[J]. Acta Electronica Sinica, 2020, 48(9): 1729-1734. (in Chinese)
3	李宝奇, 贺昱曜, 强伟, 等. 基于并行附加特征提取网络的SSD地面小目标检测模型[J]. 电子学报, 2020, 48(1): 84-91.
	LI B Q, HE Y Y, QIANG W, et al. SSD with parallel additional feature extraction network for ground small target detection[J]. Acta Electronica Sinica, 2020, 48(1): 84-91. (in Chinese)
4	罗会兰, 陈鸿坤. 基于深度学习的目标检测研究综述[J]. 电子学报, 2020, 48(6): 1230-1239.
	LUO H L, CHEN H K. Survey of object detection based on deep learning[J]. Acta Electronica Sinica, 2020, 48(6): 1230-1239. (in Chinese)
5	SIMONYAN K, ZISSERMAN A. Very deep convolutional networks for large-scale image recognition[EB/OL]. (2014-09-04). .
6	HAN S, POOL J, TRAN J, et al. Learning both weights and connections for efficient neural networks[C]//Proceedings of the 28th International Conference on Neural Information Processing Systems - Volume 1. Cambridge, MA, USA: MIT Press, 2015. 1135－1143.
7	YE H J, LU S, ZHAN D C. Distilling cross-task knowledge via relationship matching[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2020: 12393-12402.
8	CAI Y H, YAO Z W, DONG Z, et al. ZeroQ: A novel zero shot quantization framework[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2020: 13166-13175.
9	DENTON E L, ZAREMBA W, Bruna J, et al. Exploiting linear structure within convolutional networks for efficient evaluation[C]//Proceedings of the Advances in Neural Information Processing Systems. Cambridge, MA, USA: MIT Press, 2014: 1269-1277.
10	ZHANG D Q, YANG J L, YE D, et al. LQ-Nets: Learned quantization for highly accurate and compact deep neural networks[C]//European Conference on Computer Vision. Cham: Springer, 2018: 373-390.
11	CHOUKROUN Y, KRAVCHIK E, YANG F, et al. Low-bit quantization of neural networks for efficient inference[C]//2019 IEEE/CVF International Conference on Computer Vision Workshop (ICCVW). Piscataway: IEEE, 2019: 3009-3018.
12	刘杰, 葛一凡, 田明, 等. 基于ZYNQ的可重构卷积神经网络加速器[J]. 电子学报, 2021, 49(4): 729-735.
	LIU J, GE Y F, TIAN M, et al. Reconfigurable convolutional network accelerator based on ZYNQ[J]. Acta Electronica Sinica, 2021, 49(4): 729-735. (in Chinese)
13	蹇强, 张培勇, 王雪洁. 一种可配置的CNN协加速器的FPGA实现方法[J]. 电子学报, 2019, 47(7): 1525-1531.
	JIAN Q, ZHANG P Y, WANG X J. An FPGA implementation method for configurable CNN co-accelerator[J]. Acta Electronica Sinica, 2019, 47(7): 1525-1531. (in Chinese)
14	KRISHNAMOORTHI R. Quantizing deep convolutional networks for efficient inference: A whitepaper[EB/OL]. (2018-06-21). .
15	FANG J, SHAFIEE A, ABDEL-AZIZ H, et al. Post-training Piecewise Linear Quantization for Deep Neural Networks[C]//European Conference on Computer Vision. Cham: Springer, 2020: 69-86.
16	ELHOUSHI M, CHEN Z H, SHAFIQ F, et al. DeepShift: towards multiplication-less neural networks[C]//2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW). Piscataway: IEEE, 2021: 2359-2368.
17	NAGEL M, BAALEN M V, BLANKEVOORT T, et al. Data-free quantization through weight equalization and bias correction[C]//2019 IEEE/CVF International Conference on Computer Vision (ICCV). Piscataway: IEEE, 2019: 1325-1334.
18	QIN H T, GONG R H, LIU X L, et al. Forward and backward information retention for accurate binary neural networks[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2020: 2247-2256.
19	IOFFE S, SZEGEDY C. Batch normalization: accelerating deep network training by reducing internal covariate shift[C]//Proceedings of the 32nd International Conference on International Conference on Machine Learning. Lille, France: JMLR.org, 2015: 448-456.
20	DENG J, DONG W, SOCHER R, et al. ImageNet: A large-scale hierarchical image database[C]//2009 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2009: 248-255.
21	HE K M, ZHANG X Y, REN S Q, et al. Deep residual learning for image recognition[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 770-778.
22	SZEGEDY C, VANHOUCKE V, IOFFE S, et al. Rethinking the inception architecture for computer vision[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 2818-2826.
23	SANDLER M, HOWARD A, ZHU M L, et al. MobileNetV2: inverted residuals and linear bottlenecks[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2018: 4510-4520.
24	DING X H, ZHANG X Y, MA N N, et al. RepVGG: making VGG-style ConvNets great again[C]//2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2021: 13728-13737.
25	TAN Mingxing, LE Quoc V. EfficientNet: Rethinking model scaling for convolutional neural networks[EB/OL]. (2019-05-28)..
26	HAN D, YUN S, HEO B, et al. Rethinking channel dimensions for efficient model design[C]//2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2021: 732-741.

模型	位宽(w/a/b)/bit	准确率/%
模型	位宽(w/a/b)/bit	Top1	Top5
Resnet50	32/32/32	75.202	92.194
	16/32/32	75.212	92.196
	16/16/16	74.912	91.91
	10/32/32	75.204	92.196
	8/32/32	74.62	91.886
	6/32/32	60.084	82.55
	8/32/8	74.526	91.866
	32/8/32	74.842	92.03
	8/8/8	74.242	91.588
	4/32/32	0.094	0.512
Inception V3	32/32/32	77.978	93.942
	16/32/32	77.980	93.944
	16/16/16	77.982	93.944
	10/32/32	77.96	93.88
	8/32/32	77.052	93.38
	6/32/32	50.302	73.446
	8/32/8	76.798	93.25
	32/8/32	77.728	93.812
	8/8/8	76.584	93.204
	4/32/32	0.144	0.544

模型	位宽(w/a/b)/bit	准确率/%
模型	位宽(w/a/b)/bit	Top1	Top5
Resnet50	32/32/32	75.202	92.194
	16/32/32	75.212	92.196
	16/16/16	74.912	91.91
	10/32/32	75.204	92.196
	8/32/32	74.62	91.886
	6/32/32	60.084	82.55
	8/32/8	74.526	91.866
	32/8/32	74.842	92.03
	8/8/8	74.242	91.588
	4/32/32	0.094	0.512
Inception V3	32/32/32	77.978	93.942
	16/32/32	77.980	93.944
	16/16/16	77.982	93.944
	10/32/32	77.96	93.88
	8/32/32	77.052	93.38
	6/32/32	50.302	73.446
	8/32/8	76.798	93.25
	32/8/32	77.728	93.812
	8/8/8	76.584	93.204
	4/32/32	0.144	0.544

Model	原始模型准确率/%		对数量化准确率/%		基于标准差的输入量化准确率/%		降低的量化损失/%
Model	Top1	Top5	Top1	Top5	Top1	Top5	Top1	Top5
Resnet50	75.202	92.194	74.842	92.03	75.164	92.038	82.56	4.88
Inception V3	77.978	93.942	77.728	93.812	77.914	93.838	75	2

Model	原始模型准确率/%		对数量化准确率/%		基于标准差的输入量化准确率/%		降低的量化损失/%
Model	Top1	Top5	Top1	Top5	Top1	Top5	Top1	Top5
Resnet50	75.202	92.194	74.842	92.03	75.164	92.038	82.56	4.88
Inception V3	77.978	93.942	77.728	93.812	77.914	93.838	75	2

Model	原始模型准确率/%		对数量化准确率/%		基于标准差的混合bit量化准确率/%
Model	Top1	Top5	Top1	Top5	Top1	Top5
Resnet50	75.202	92.194	74.62	91.886	73.804*	91.726*
Resnet50	75.202	92.194	74.62	91.886	74.866	92.088
Inception V3	77.978	93.942	77.052	93.38	76.274*	92.993*
Inception V3	77.978	93.942	77.052	93.38	77.284	93.566

一种基于数据标准差的卷积神经网络量化方法

A Quantification Method of Convolutional Neural Network Based on Data Standard Deviation

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 26

相关文章 15

编辑推荐

Metrics

Model	权重位宽/bit	原始模型准确率/%		基于标准差的对数量化准确率/%		量化误差/%		模型大小
Model	权重位宽/bit	Top1	Top5	Top1	Top5	Top1	Top5	量化前 /MB	量化后 /MB	压缩率/%
MobileNet v2	8	70.126	89.532	0.266	1.184	/	/	13.6	/	/
	12			68.298	88.44	1.828	1.092		/	/
	16			69.84	89.31	0.286	0.222		6.74	50.44
EfficientNet-b0	8	76.63	93.025	24.854	44.864	/	/	20.3	8.99	55.714
	12			76.054	92.83	0.576	0.195		/	/
	16			76.302	92.882	0.328	0.143		12.76	37.143

[1]	吕杭, 蒋明峰, 李杨, 张鞠成, 王志康. 基于混合时频域特征的卷积神经网络心律失常分类方法的研究[J]. 电子学报, 2023, 51(3): 701-711.
[2]	唐维伟, 钟胜, 卢金仪, 颜露新, 谭富中, 邹旭, 徐文辉. 基于FPGA的Skynet网络结构优化及高时效实现[J]. 电子学报, 2023, 51(2): 314-323.
[3]	许新征, 李杉. 基于特征膨胀卷积模块的轻量化技术研究[J]. 电子学报, 2023, 51(2): 355-364.
[4]	丁琪, 田萱, 孙国栋. 基于注意力增强的热点感知新闻推荐模型[J]. 电子学报, 2023, 51(1): 93-104.
[5]	张永梅, 孙捷. 基于动静态特征双输入神经网络的咳嗽声诊断COVID-19算法[J]. 电子学报, 2023, 51(1): 202-212.
[6]	袁海英, 成君鹏, 曾智勇, 武延瑞. Mobile_BLNet：基于Big-Little Net的轻量级卷积神经网络优化设计[J]. 电子学报, 2023, 51(1): 180-191.
[7]	吴靖, 叶晓晶, 黄峰, 陈丽琼, 王志锋, 刘文犀. 基于深度学习的单帧图像超分辨率重建综述[J]. 电子学报, 2022, 50(9): 2265-2294.
[8]	毛国君, 王者浩, 黄山, 王翔. 基于剪边策略的图残差卷积深层网络模型[J]. 电子学报, 2022, 50(9): 2205-2214.
[9]	袁海英, 曾智勇, 成君鹏. 面向灵活并行度的稀疏卷积神经网络加速器[J]. 电子学报, 2022, 50(8): 1811-1818.
[10]	张志文, 刘天歌, 聂鹏举. 基于实景数据增强和双路径融合网络的实时街景语义分割算法[J]. 电子学报, 2022, 50(7): 1609-1620.
[11]	王相海, 赵晓阳, 王鑫莹, 赵克云, 宋传鸣. 非抽取小波边缘学习深度残差网络的单幅图像超分辨率重建[J]. 电子学报, 2022, 50(7): 1753-1765.
[12]	张波, 陆云杰, 秦东明, 邹国建. 一种卷积自编码深度学习的空气污染多站点联合预测模型[J]. 电子学报, 2022, 50(6): 1410-1427.
[13]	丁毅, 沈薇, 李海生, 钟琼慧, 田明宇, 李洁. 面向CNN的区块链可信隐私服务计算模型[J]. 电子学报, 2022, 50(6): 1399-1409.
[14]	张云, 化青龙, 姜义成, 徐丹. 基于混合型复数域卷积神经网络的三维转动舰船目标识别[J]. 电子学报, 2022, 50(5): 1042-1049.
[15]	田春生, 陈雷, 王源, 王硕, 周婧, 张瑶伟, 庞永江, 周冲, 马筱婧, 杜忠, 薛钰. 面向FPGA的布局与布线技术研究综述[J]. 电子学报, 2022, 50(5): 1243-1254.

Model	原始模型准确率/%		基于标准差的对数量化准确率/%		量化误差/%		模型大小
Model	Top1	Top5	Top1	Top5	Top1	Top5	量化前/MB	量化后/MB	压缩率/%
Resnet50	75.202	92.194	74.406	91.862	0.796	0.332	97.84	24.51	74.95
Inception V3	77.978	93.942	76.984	93.484	0.994	0.458	91.23	22.82	74.98
VGG16	70.894	89.848	70.528	89.75	0.366	0.098	527.81	131.96	74.99
RexNet3	82.63	96.25	82.09	96.01	0.54	0.24	132.95	33.30	74.95
RepVGG A0	72.42	90.49	71.40	90.08	1.02	0.41	34.89	8.75	74.92

Model	原始模型准确率/%		基于标准差的对数量化准确率/%		量化误差/%		模型大小
Model	Top1	Top5	Top1	Top5	Top1	Top5	量化前/MB	量化后/MB	压缩率/%
Resnet50	75.202	92.194	74.406	91.862	0.796	0.332	97.84	24.51	74.95
Inception V3	77.978	93.942	76.984	93.484	0.994	0.458	91.23	22.82	74.98
VGG16	70.894	89.848	70.528	89.75	0.366	0.098	527.81	131.96	74.99
RexNet3	82.63	96.25	82.09	96.01	0.54	0.24	132.95	33.30	74.95
RepVGG A0	72.42	90.49	71.40	90.08	1.02	0.41	34.89	8.75	74.92

Model	原始模型准确率/%		基于标准差的对数量化准确率/%		量化误差/%
Model	Top1	Top5	Top1	Top5	Top1	Top5
Resnet50	75.202	92.194	75.052	92.1	0.15	0.094
Inception V3	77.978	93.942	77.814	93.812	0.164	0.13
VGG16	70.894	89.848	70.742	89.778	0.152	0.07
RexNet3	82.63	96.25	82.49	96.16	0.14	0.11
RepVGG A0	72.42	90.49	77.20	90.34	0.22	0.15

Model	原始模型准确率/%		基于标准差的对数量化准确率/%		量化误差/%
Model	Top1	Top5	Top1	Top5	Top1	Top5
Resnet50	75.202	92.194	75.052	92.1	0.15	0.094
Inception V3	77.978	93.942	77.814	93.812	0.164	0.13
VGG16	70.894	89.848	70.742	89.778	0.152	0.07
RexNet3	82.63	96.25	82.49	96.16	0.14	0.11
RepVGG A0	72.42	90.49	77.20	90.34	0.22	0.15
