吕分布时间尺度分析及实现方法研究

doi:10.12263/DZXB.20210816

电子学报 ›› 2022, Vol. 50 ›› Issue (11): 2790-2798.DOI: 10.12263/DZXB.20210816

吕分布时间尺度分析及实现方法研究

张亮¹^,², 于洪波¹, 张翔宇³^,⁴, 王国宏¹, 景洲²

^1.海军航空大学信息融合研究所, 山东烟台 264001
^2.中国人民解放军94326部队, 山东济南 250000
^3.海军航空大学航空电子与指挥系, 山东青岛 266041
^4.中北大学信息与通信工程学院, 山西太原 030023

收稿日期:2021-06-30 修回日期:2021-10-21 出版日期:2022-11-25
- 作者简介:
- 张亮男, 1987年出生于山东德州.现为海军航空大学信息融合研究所博士研究生.研究方向为雷达抗干扰.E‑mail: 332401479@qq.com
  于洪波男, 1983年出生于山东宁阳.现为海军航空大学信息融合研究所讲师.研究方向为雷达数据处理和情报分析.E‑mail: 281861081@qq.com
- 基金资助:
- 国家自然科学基金 (61731023); 山东省自然科学基金 (ZR2020QF071); 博士后科学基金 (2021M693003); 泰山学者攀登计划专项经费

LV’s Distribution Time-Scaling Analysis and the Research on Implementation Methods

ZHANG Liang¹^,², YU Hong-bo¹, ZHANG Xiang-yu³^,⁴, WANG Guo-hong¹, JING Zhou²

^1.Institute of Information Fusion，Naval Aviation University，Yantai，Shandong 264001，China
^2.Unit 94326 of PLA，Jinan，Shandong 250000，China
^3.Department of Avionics Engineering and Command，Naval Aviation University，Qingdao，Shandong 266041，China
^4.College of Information and Communication Engineering，North University of China，Taiyuan，Shanxi 030023，China

Received:2021-06-30 Revised:2021-10-21 Online:2022-11-25 Published:2022-11-19

摘要/Abstract

摘要：

吕分布（LV’s Distribution，LVD）是一种中心频率-调频斜率域信号分析工具，核心思想是对信号瞬时自相关函数进行时间尺度（Time-Scaling，TS），去除时间变量与延时变量的耦合关系. 本文从TS的角度对LVD进行了解释，在此基础上，分析了现有基于尺度傅里叶变换的TS实现方法，指出该方法存在频率混叠和频点丢失问题，并进行了修正，同时基于尺度变换和线性正则变换，进一步提出2种TS实现方法并将其应用于LVD. 试验表明，相比现有LVD实现方法，所提3种实现方法在计算复杂度、抗噪效能、检测非线性调频信号方面具备各自优势.

关键词: 吕分布, 时间尺度, 实现方法, 尺度傅里叶变换, 尺度变换, 线性正则变换

Abstract:

LV’s distribution(LVD) is a signal analysis tool in centroid frequency-chirp rate(CFCR) domain. The core idea of LVD is to remove the coupling relationship between time variables and delay variables, by performing time-scaling(TS) on signal instantaneous autocorrelation function. In this paper, LVD is reinterpreted from the perspective of TS. On this basis, the existing TS implementation method based on scaled Fourier transform(SFT) is analyzed and modified, owing to the problems of spectrum loss and frequency aliasing. At the same time, two TS implementation methods based on scale transform(ST) and linear canonical transform(LCT) are proposed and applied to LVD. Experimental results show that the proposed methods have their own advantages in computational complexity, anti-noise performance, and nonlinear frequency modulation signal detection, compared with the existing LVD implementation method.

Key words: LVD, TS, implementation methods, SFT, ST, LCT

中图分类号:

TN957

张亮, 于洪波, 张翔宇, 王国宏, 景洲. 吕分布时间尺度分析及实现方法研究[J]. 电子学报, 2022, 50(11): 2790-2798.

ZHANG Liang, YU Hong-bo, ZHANG Xiang-yu, WANG Guo-hong, JING Zhou. LV’s Distribution Time-Scaling Analysis and the Research on Implementation Methods[J]. Acta Electronica Sinica, 2022, 50(11): 2790-2798.

图/表 12

图1 Z平面频点分布图

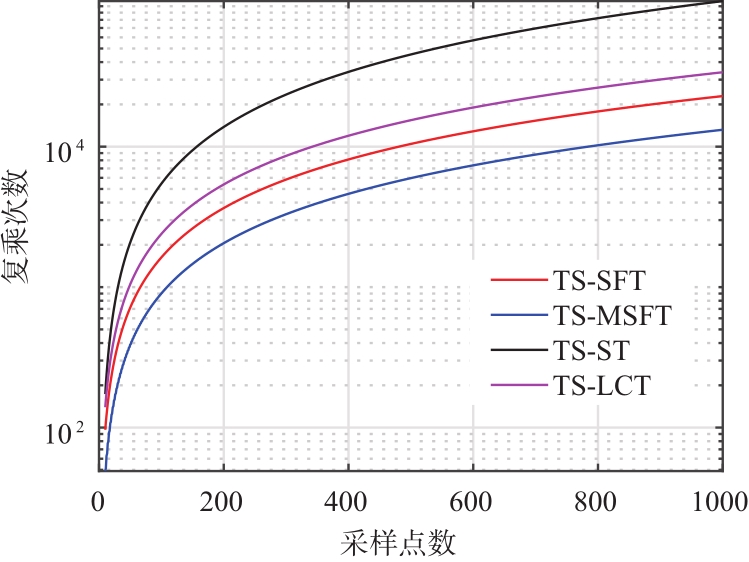

图2 复乘次数随信号采样点数变化曲线

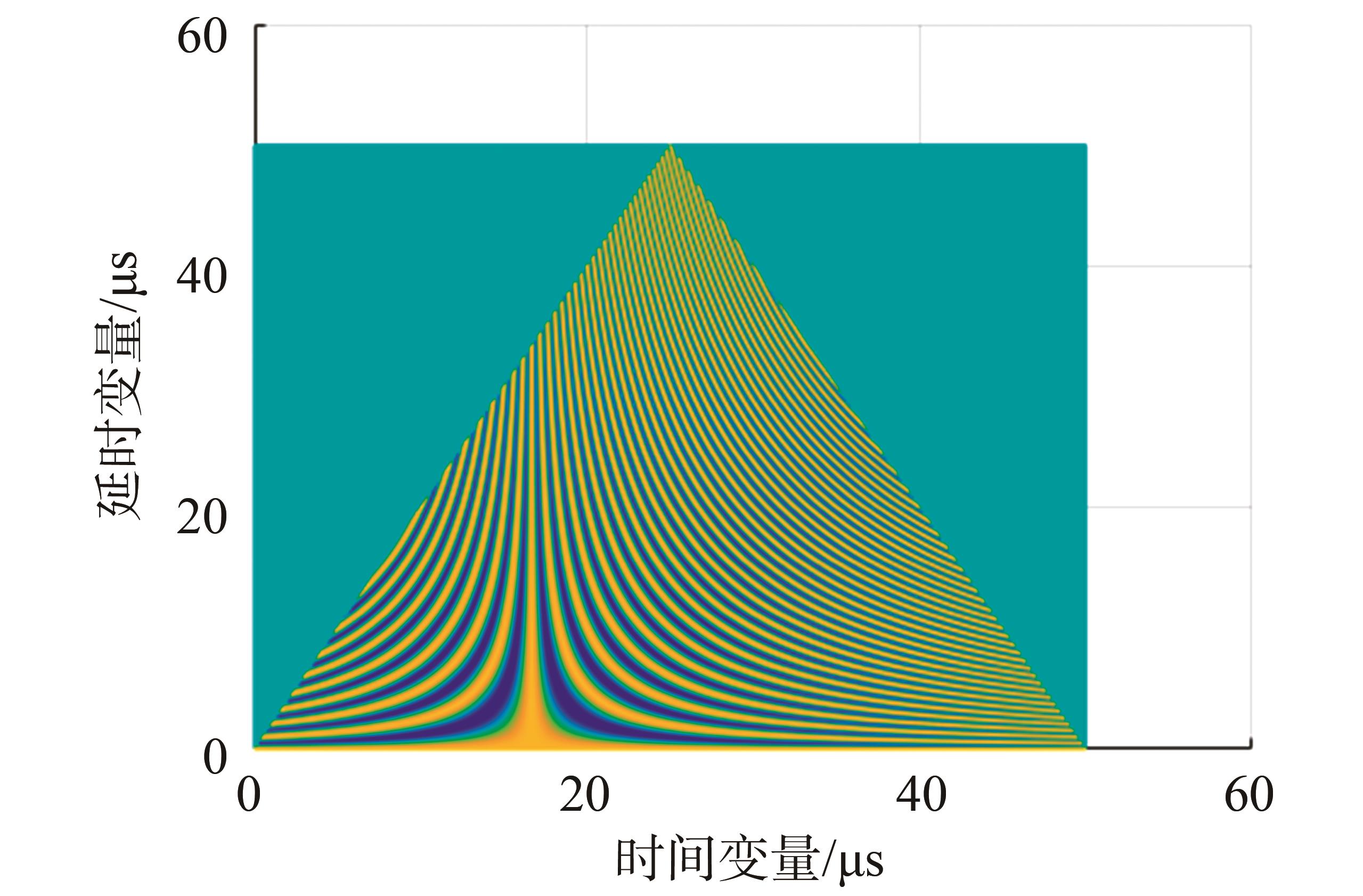

图3 对称参数瞬时自相关函数

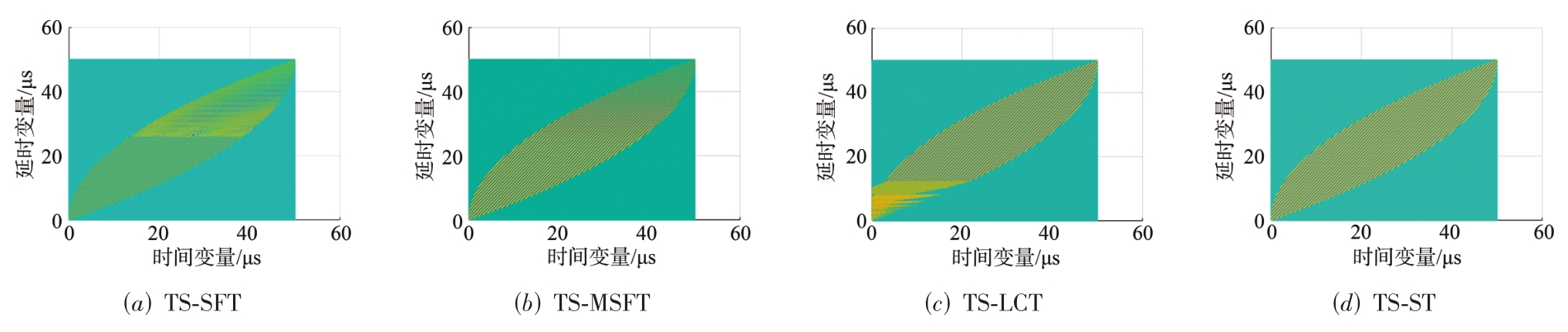

图4 去耦后的对称参数瞬时自相关函数

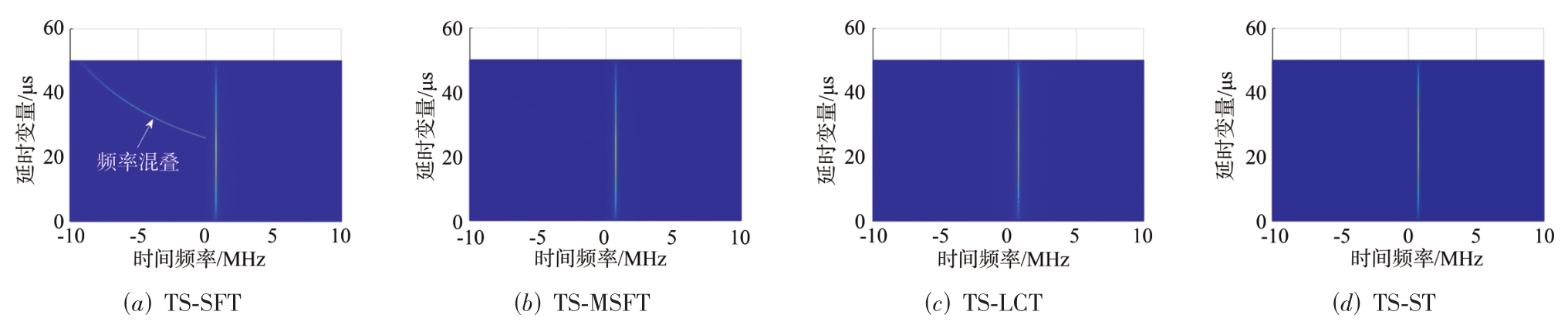

图5 一维傅里叶变换结果

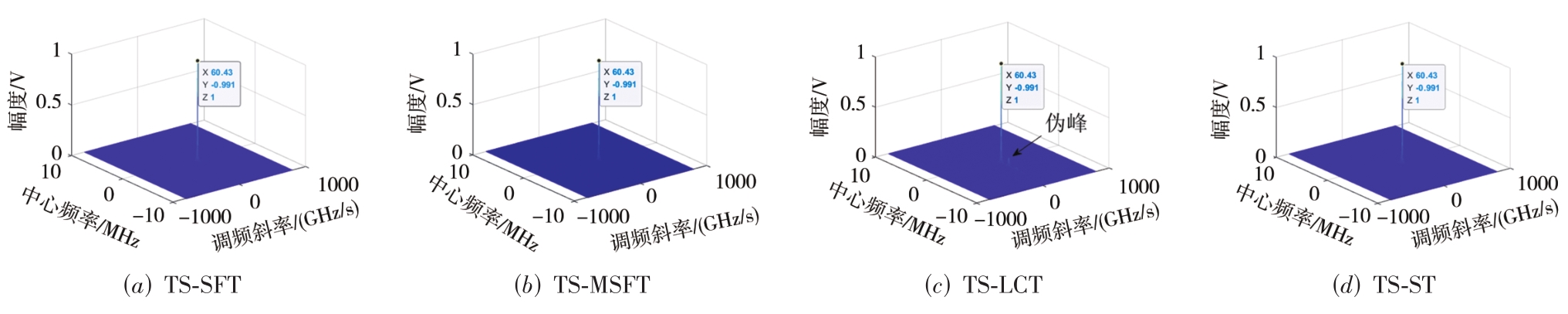

图6 第1个LFM分量吕分布

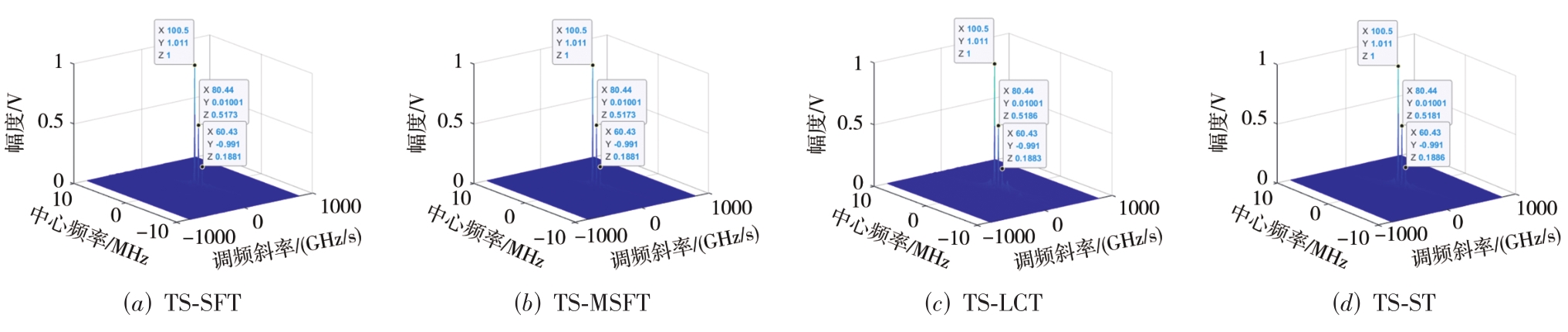

图7 多分量LFM信号吕分布

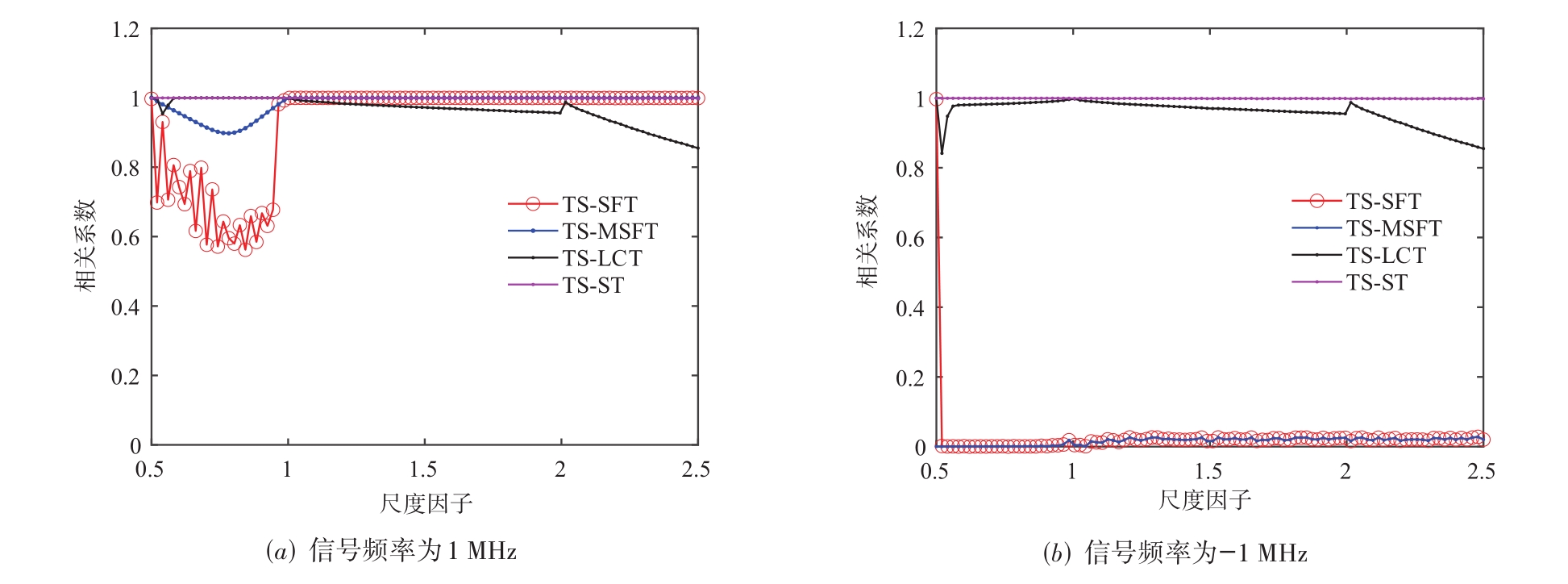

图8 皮尔逊相关系数随尺度因子变化曲线

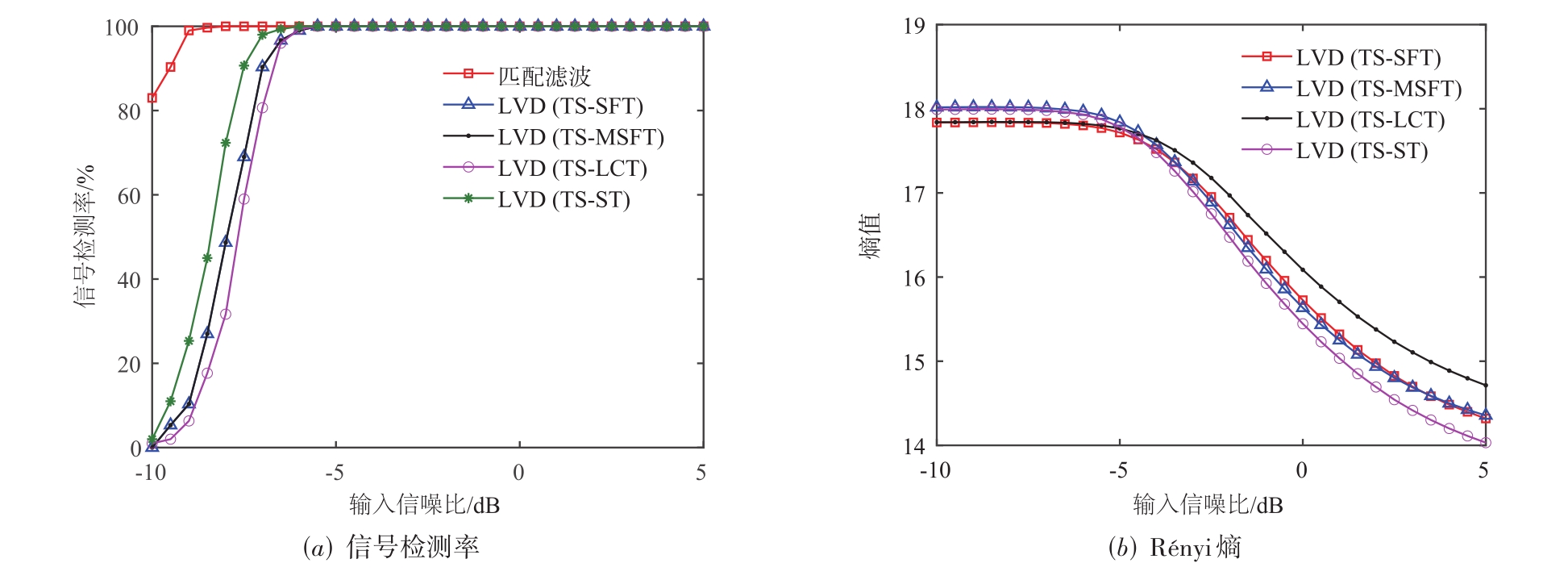

图9 信号检测率与Rényi熵随信噪比变化曲线

图10 参数估计平均相对误差随信噪比变化曲线

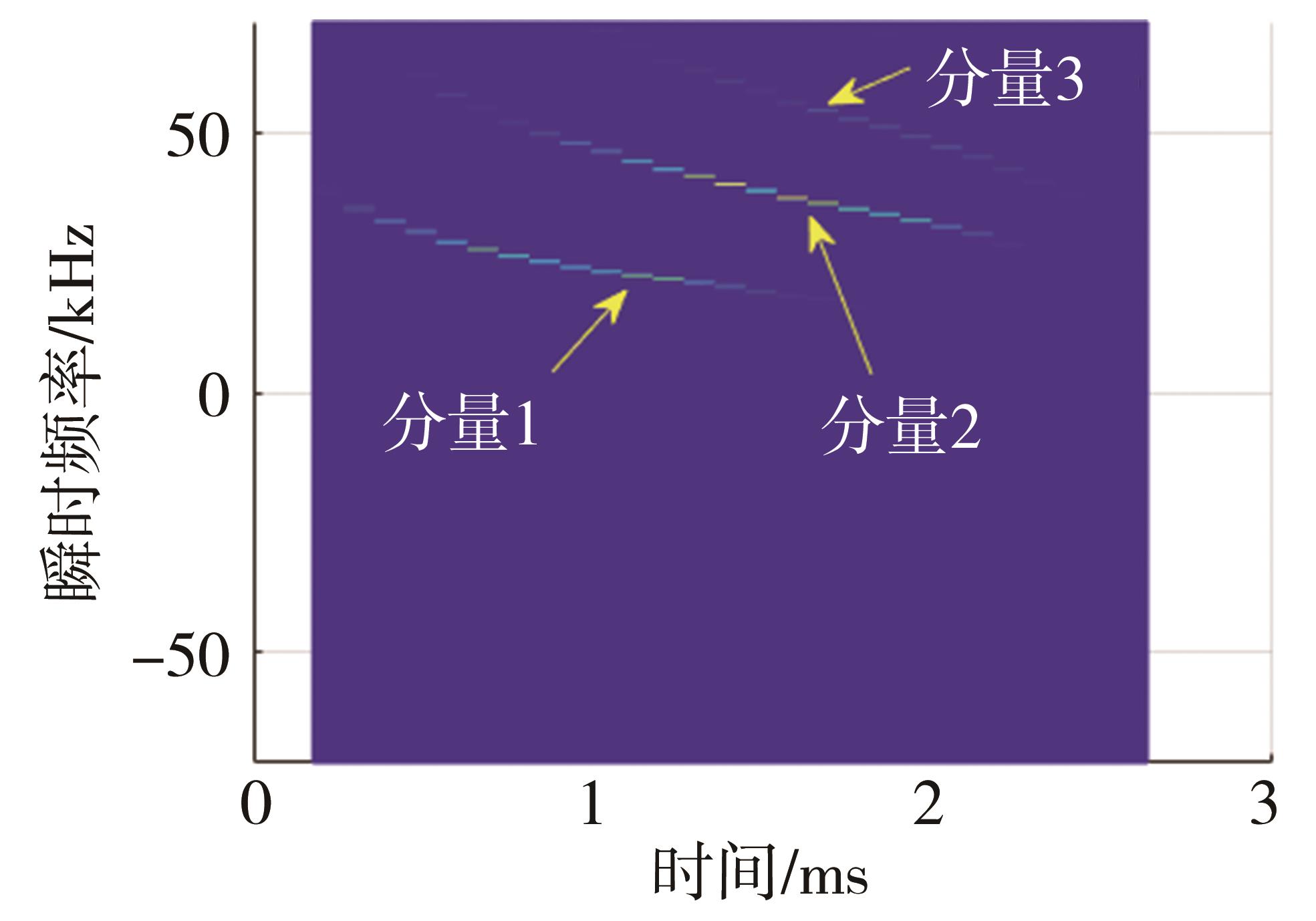

图11 蝙蝠超声波时频分布

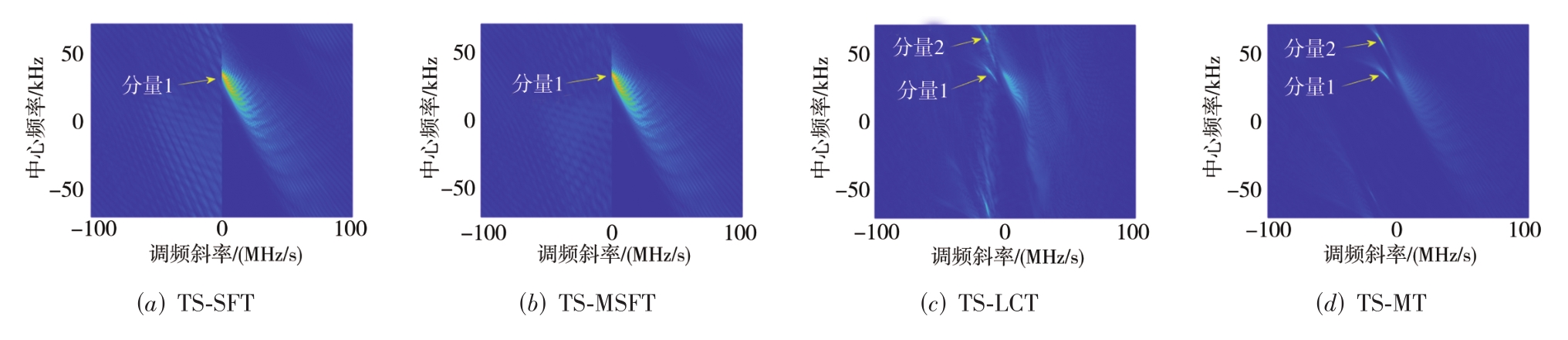

图12 蝙蝠超声波的吕分布

参考文献 21

1	BAI B W, DING Y, SHEN F F, et al. Effects of plasma sheath on parameter estimations of linear frequency modulation pulse signal[J]. IEEE Transactions on Plasma Science, 2019, 47(11): 4934‑4943.
2	MURRAY J J. On the Doppler bias of hyperbolic frequency modulation matched filter time of arrival estimates[J]. IEEE Journal of Oceanic Engineering, 2019, 44(2): 446‑450.
3	LV X L, XING M D, ZHANG S H, et al. Keystone transformation of the Wigner-Ville distribution for analysis of multicomponent LFM signals[J]. Signal Processing, 2009, 89(5): 791‑806.
4	LV X L, BI G A, WAN C R, et al. Lv's distribution: principle, implementation, properties, and performance[J]. IEEE Transactions on Signal Processing, 2011, 59(8): 3576‑3591.
5	LI X L, CUI G L, YI W, et al. Manoeuvring target detection based on keystone transform and Lv's distribution[J]. IET Radar Sonar & Navigation, 2016, 10(7): 1234‑1242.
6	万俊,周宇,张林让,等. 严重方位模糊下的合成孔径雷达微弱运动目标聚焦与参数估计方法[J]. 西安交通大学学报, 2019, 53(6): 85‑91.
	WAN Jun, ZHOU Yu, ZHANG Lin-rang, et al. A method for weak moving target focusing and parameter estimation of synthetic aperture radars in severe azimuth ambiguity[J]. Journal of Xi'an Jiaotong University, 2019, 53(6): 85‑91. (in Chinese)
7	LUO S, LI X M, LI S H, et al. Adaptive interference suppression based on Lv's distribution for DSSS communications[J]. Journal of Circuits, Systems and Computers, 2015, 24(1): 1550012.
8	金艳,段鹏婷,姬红兵. 复杂噪声环境下基于LVD的LFM信号参数估计[J]. 电子与信息学报, 2014, 36(5): 1106‑1111.
	JIN Yan, DUAN Peng-ting, JI Hong-bing. Parameter estimation of LFM signals based on LVD in complicated noise environments[J]. Journal of Electronics & Information Technology, 2014, 36(5): 1106‑1111. (in Chinese)
9	JIN K, LAI T, WANG Y B, et al. Parameter estimation of quadratic frequency modulated signal based on three-dimensional scaled Fourier transform[J]. IET Radar, Sonar & Navigation, 2019, 13(10): 1689‑1696.
10	WANG Y, WANG K, JING F L, et al. LFM signal analysis based on improved Lv's distribution[J]. IEEE Access, 2019, 7: 169038‑169046.
11	LUO S, BI G A, XIAO Y, et al. A keystone-based cosine transform[J]. Circuits, Systems, and Signal Processing, 2017, 36: 3438‑3447.
12	JIN K, LAI T, WANG Y B, et al. Radar coherent detection for Doppler-ambiguous maneuvering target based on product scaled periodic Lv's distribution[J]. Signal Processing, 2020, 174(15): 107617.
13	CHEN X L, ZHANG H, GUAN J. Sparse Lv's distribution and its application for radar low-observable maneuvering target detection[C]//2019 International Applied Computa-tional Electromagnetics Society Symposium. Nanjing: ACES, 2019: 1‑2.
14	LUO S, XU Q, WU T, et al. An introduction to Lv's distribution: definition and performance for time-frequency analysis[C]//Proceedings of 2017 3rd IEEE International Conference on Computer and Communications. New York, USA: IEEE, 2017: 2864‑2867.
15	PERRY R P, DIPIETRO R C, FANTE R L. SAR imaging of moving targets[J]. IEEE Transactions on Aerospace and Electronic Systems, 1999, 35(1): 188‑200.
16	COHEN L. The scale representation[J]. IEEE Transactions on Signal Processing, 1994, 41(12): 3275‑3292.
17	CULHA O, TANIK Y. Low complexity Keystone transform and Radon Fourier transform utilizing Chirp-Z transform[J]. IEEE Access, 2020, 8: 105535‑105541.
18	SENA D A, ROCCHESSO D. A fast Mellin and Scale transform[J]. EURASIP Journal on Advances in Signal Processing, 2007: 089170.
19	Pei S C, Huang S G. Fast discrete linear canonical transform based on CM-CC-CM Decomposition and FFT[J]. IEEE Transactions on Signal Processing, 2016, 64(4): 855‑866.
20	MOGHADASIAN S S, GAZOR S. Sparsely localized time-frequency energy distribution for muti-component LFM signals[J]. IEEE Signal Processing Letters, 2020, 27: 6‑10.
21	荆福龙,张春杰,司伟建,等. 一种有效的CFCR域LFM信号分析方法[J]. 西安电子科技大学学报, 2019, 46(3): 102‑107.
	JING Fu-long, ZHANG Chun-jie, SI Wei-jian, et al. Effective method for analysis of LFM signals in the CFCR domain[J]. Journal of Xidian University, 2019, 46(3): 102‑107. (in Chinese)
