联合遮挡约束与残差补偿的特征金字塔光流计算方法

doi:10.12263/DZXB.20211052

电子学报 ›› 2023, Vol. 51 ›› Issue (3): 648-657.DOI: 10.12263/DZXB.20211052

联合遮挡约束与残差补偿的特征金字塔光流计算方法

范兵兵¹, 何庭建¹, 张聪炫¹^,², 陈震¹, 黎明¹

^1.南昌航空大学无损检测技术教育部重点实验室, 江西南昌 330063
^2.中国科学院自动化研究所, 北京 100190

收稿日期:2021-08-05 修回日期:2021-12-29 出版日期:2023-03-25
- 通讯作者:
- 张聪炫
- 作者简介:
- 范兵兵男，1997年3月出生于江西省瑞昌市. 现为南昌航空大学测试与光电工程学院硕士研究生. 主要研究方向为图像检测与智能识别. E-mail: 2652459616@qq.com
  何庭建男，1995年4月出生于江西省抚州市， 2021年6月南昌航空大学信息工程学院硕士研究生毕业，主要研究方向为图像检测与智能识别. E-mail: 511076738@qq.com
  张聪炫（通讯作者）男，1984年7月出生于河南省焦作市. 2014年在南京航空航天大学获博士学位. 现为南昌航空大学教授，硕士生导师. 主要研究方向为图像检测与智能识别. 中国电子学会会员编号：E190014621M.
  陈震男，1969年11月出生于江西省九江市. 2003年在西北工业大学获得博士学位. 现为南昌航空大学教授，博士生导师. 主要研究方向为计算机视觉、图像处理与模式识别. E-mail: dr_chenzhen@163.com
  黎明男，1965年2月出生于江西省樟树市. 1997年获南京航空航天大学博士学位. 现为南昌航空大学教授，博士生导师. 主要研究方向为图像处理与模式识别、智能计算.E-mail: limingniat@hotmail.com
- 基金资助:
- 国家自然科学基金(61866026);江西省优势科技创新团队计划(20165BCB19007);江西省技术创新引导类计划项目(20212AEI91005);江西省自然科学基金重点项目(20202ACB214007);航空科学基金(2018ZC56008);中国博士后科学基金(2019M650894);江西省教育厅科学技术研究项目(GJJ210910);江西省图像处理与模式识别重点实验室开放基金资助(ET202104413)

Feature Pyramid Optical Flow Estimation Method Jointing Occlusion Constraint and Residual Compensation

FAN Bing-bing¹, HE Ting-jian¹, ZHANG Cong-xuan¹^,², CHEN Zhen¹, LI Ming¹

^1.Key Laboratory of Nondestructive Testing，Ministry of Education，Nanchang Hangkong University，Nanchang，Jiangxi 330063，China
^2.Institute of Automation，Chinese Academy of Sciences，Beijing 100190，China

Received:2021-08-05 Revised:2021-12-29 Online:2023-03-25 Published:2023-04-20
- Corresponding author:
- ZHANG Cong-xuan
- Supported by:
- National Natural Science Foundation of China(61866026);Advantage Subject Team of Jiangxi Province(20165BCB19007);Technological Innovation Guidance Program of Jiangxi Province(20212AEI91005);Natural Science Foundation of Jiangxi Province(20202ACB214007);Aeronautical Science Foundation of China(2018ZC56008);China Postdoctoral Science Foundation(2019M650894);Science and Technology Program of Education Department of Jiangxi Province(GJJ210910);Open Fund of Jiangxi Key Laboratory of Image Processing and Pattern Recognition(ET202104413)

摘要/Abstract

摘要：

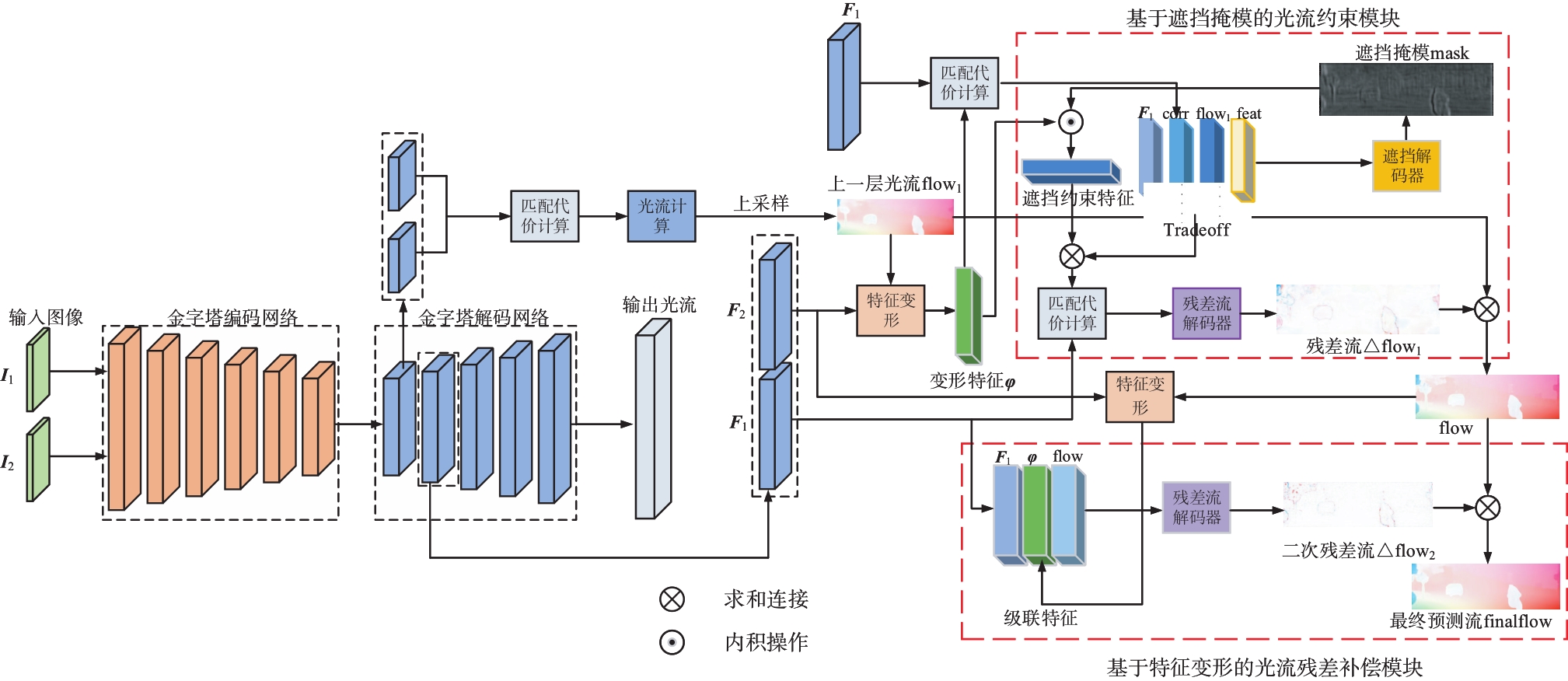

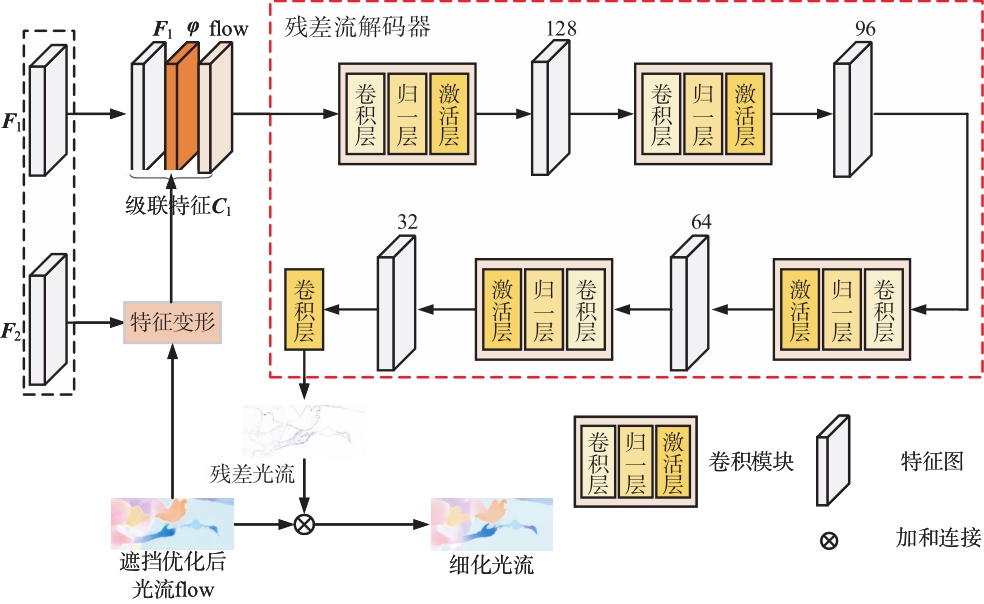

针对现有深度学习光流计算模型在运动遮挡和大位移等场景下光流计算的准确性与鲁棒性问题，本文提出一种联合遮挡约束与残差补偿的特征金字塔光流计算方法.首先，构造基于遮挡掩模的光流约束模块，通过预测遮挡掩模特征图抑制变形特征的边缘伪影，克服运动遮挡区域的图像边缘模糊问题.然后，采用特征图变形策略构建基于特征变形的光流残差补偿模块，利用该模块学习到的残差光流细化原始光流场，改善大位移运动区域的光流计算效果.最后，采用特征金字塔框架构建联合遮挡约束与残差补偿的光流计算网络模型，提升大位移和运动遮挡场景下的光流计算精度.分别采用MPI-Sintel （Max-Planck Institute and Sintel）和KITTI （Karlsruhe Institute of Technology and Toyota Technological Institute）数据集对本文方法和代表性传统光流计算方法、深度学习光流计算方法进行综合对比分析，实验结果表明本文方法相对于其他方法能够有效提升大位移和运动遮挡场景下的光流计算精度与鲁棒性.

关键词: 光流, 遮挡约束, 残差补偿, 特征金字塔网络, 深度学习, 边缘保护

Abstract:

To improve the accuracy and robustness of the deep-learning based optical flow estimation under motion occlusions and large displacements, we propose a feature pyramid optical flow computation method by jointing the occlusion constraint with residual compensation. First, an optical flow constraint module is designed based on the learning occlusion mask. The proposed constraint module predicts the occlusion feature map to restrain the edge artifacts of the warping features, which is able to overcome the issue of edge blurring in the motion occlusion areas. Second, a residual compensation module is constructed by using the feature map warping strategy, and the residual optical flows learned from the presented module are employed to refine the original flow fields. Third, the proposed occlusion constraint model and residual compensation module are incorporated into a feature pyramid framework to construct an optical flow estimation network. Finally, the MPI-Sintel (Max-Planck Institute and Sintel) and KITTI (Karlsruhe Institute of Technology and Toyota Technological Institute) datasets are employed to conduct a comprehensive comparison between the proposed method and the representative traditional optical flow methods, deep-learning optical flow methods. The experimental results demonstrate that the presented method significantly improves the accuracy and robustness of optical flow estimation under large displacements and motionocclusions.

Key words: optical flow, occlusion constraint, residual compensation, feature pyramid network, deep-learning, edge-preserving

中图分类号:

TP391

范兵兵, 何庭建, 张聪炫, 等. 联合遮挡约束与残差补偿的特征金字塔光流计算方法[J]. 电子学报, 2023, 51(3): 648-657.

Bing-bing FAN, Ting-jian HE, Cong-xuan ZHANG, et al. Feature Pyramid Optical Flow Estimation Method Jointing Occlusion Constraint and Residual Compensation[J]. Acta Electronica Sinica, 2023, 51(3): 648-657.

图/表 11

参考文献 31

1	吴晓军, 鞠光亮. 一种无标记点人脸表情捕捉与重现算法[J]. 电子学报, 2016, 44(9): 2141-2147.
	WU X J, JU G L. A markerless facial expression capture and reproduce algorithm[J]. Acta Electronica Sinica, 2016, 44(9): 2141-2147. (in Chinese)
2	JI Y L, YANG Y, SHEN F M, et al. Arbitrary-view human action recognition: A varying-view RGB-D action dataset[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2021, 31(1): 289-300.
3	丁新尧, 张鑫. 基于显著性特征的选择性目标跟踪算法[J]. 电子学报, 2020, 48(1): 118-123.
	DING X Y, ZHANG X. Visual tracking with salient features and selective mechanism[J]. Acta Electronica Sinica, 2020, 48(1): 118-123. (in Chinese)
4	张聪炫, 陈震, 黎明. 单目图像序列光流三维重建技术研究综述[J]. 电子学报, 2016, 44(12): 3044-3052.
	ZHANG C X, CHEN Z, LI M. Review of the 3D reconstruction technology based on optical flow of monocular image sequence[J]. Acta Electronica Sinica, 2016, 44(12): 3044-3052. (in Chinese)
5	HORN B K P, SCHUNCK B G. Determining optical flow[J]. Artificial Intelligence, 1981, 17(1/2/3): 185-203.
6	MEI L, LAI J H, XIE X H, et al. Illumination-invariance optical flow estimation using weighted regularization transform[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2020, 30(2): 495-508.
7	ZHANG C X, GE L Y, CHEN Z, et al. Refined TV-L1 optical flow estimation using joint filtering[J]. IEEE Transactions on Multimedia, 2020, 22(2): 349-364.
8	SUN D Q, ROTH S, BLACK M J. A quantitative analysis of current practices in optical flow estimation and the principles behind them[J].International Journal of Computer Vision, 2014, 106(2): 115-137.
9	ZHANG C X, CHEN Z, WANG M R, et al. Robust non-local TV- L1 optical flow estimation with occlusion detection[J]. IEEE Transactions on Image Processing, 2017, 26(8): 4055-4067.
10	ZIMMER H, BRUHN A, WEICKERT J. Optic flow in harmony[J].International Journal of Computer Vision, 2011, 93(3): 368-388.
11	SEVILLA-LARA L, SUN D Q, JAMPANI V, et al. Optical flow with semantic segmentation and localized layers[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 3889-3898.
12	张聪炫, 周仲凯, 陈震, 等. 深度学习光流计算技术研究进展[J]. 电子学报, 2020, 48(9): 1841-1849.
	ZHANG C X, ZHOU Z K, CHEN Z, et al. Research progress of deep learning based optical flow computation technology[J]. Acta Electronica Sinica, 2020, 48(9): 1841-1849. (in Chinese)
13	DOSOVITSKIY A, FISCHER P, ILG E, et al. FlowNet: learning optical flow with convolutional networks[C]//2015 IEEE International Conference on Computer Vision. Boston: IEEE, 2015: 2758-2766.
14	ILG E, MAYER N, SAIKIA T, et al. FlowNet 2.0: evolution of optical flow estimation with deep networks[C]//2017 IEEE Conference on Computer Vision and Pattern Recognition. Hawaii: IEEE, 2017: 1647-1655.
15	RANJAN A, BLACK M J. Optical flow estimation using a spatial pyramid network[C]//2017 IEEE Conference on Computer Vision and Pattern Recognition. Honolulu: IEEE, 2017: 2720-2729.
16	SUN D Q, YANG X D, LIU M Y, et al. PWC-net: CNNs for optical flow using pyramid, warping, and cost volume[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2018: 8934-8943.
17	HUI T W, TANG X O, LOY C C. LiteFlowNet: A lightweight convolutional neural network for optical flow estimation[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2018: 8981-8989.
18	ZHAO S Y, SHENG Y L, DONG Y, et al. MaskFlownet: asymmetric feature matching with learnable occlusion mask[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2020: 6277-6286.
19	LU Y, VALMADRE J, WANG H, et al. Devon: Deformable volume network for learning optical flow[C]//2020 IEEE Winter Conference on Applications of Computer Vision. Snowmass: IEEE Press, 2020. 2705-2713.
20	YANG G, RAMANAN D. Volumetric correspondence networks for optical flow[C]//33rd International Conference on Neural Information Processing Systems. Vancouver: Curran Associates Inc, 2019: 794-805.
21	YU J J, HARLEY A W, DERPANIS K G. Back to basics: Unsupervised learning of optical flow via brightness constancy and motion smoothness[C]//European Conference on Computer Vision. Cham: Springer, 2016: 3-10.
22	MEISTER S, HUR J, ROTH S. UnFlow: Unsupervised learning of optical flow with a bidirectional census loss[C]//AAAI Conference on Artificial Intelligence. New Orleans: AAAI Press, 2018: 7251-7259.
23	LIU P P, KING I, LYU M R, et al. DDFlow: learning optical flow with unlabeled data distillation[J]. Proceedings of the AAAI Conference on Artificial Intelligence. Hawaii: AAAI Press, 2019, 33: 8770-8777.
24	LAI W S, HUANG J B, YANG M H. Semi-supervised learning for optical flow with Generative Adversarial Networks[C]//31st International Conference on Neural Information Processing Systems. Long Beach: Curran Associates Inc, 2017: 353-363.
25	SONG X L, ZHAO Y Y, YANG J Y, et al. FPCR-net: Feature pyramidal correlation and residual reconstruction for optical flow estimation[EB/OL]. (2020-01-17). .
26	KINGMA D, BA J. Adam: A method for stochastic optimization[C]//International Conference for Learning Representations. San Diego: Elsevier Press, 2015: 1-15.
27	MAYER N, ILG E, HÄUSSER P, et al. A large dataset to train convolutional networks for disparity, optical flow, and scene flow estimation[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 4040-4048.
28	BUTLER D J, WULFF J, STANLEY G B, et al. A naturalistic open source movie for optical flow evaluation[C]//European Conference on Computer Vision. Berlin, Heidelberg: Springer, 2012: 611-625.
29	HU Y L, SONG R, LI Y S. Efficient coarse-to-fine patch match for large displacement optical flow[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2016: 5704-5712.
30	REVAUD J, WEINZAEPFEL P, HARCHAOUI Z, et al. EpicFlow: Edge-preserving interpolation of correspondences for optical flow[C]//2015 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2015: 1164-1172.
31	MENZE M, GEIGER A. Object scene flow for autonomous vehicles[C]//2015 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE, 2015: 3061-3070.

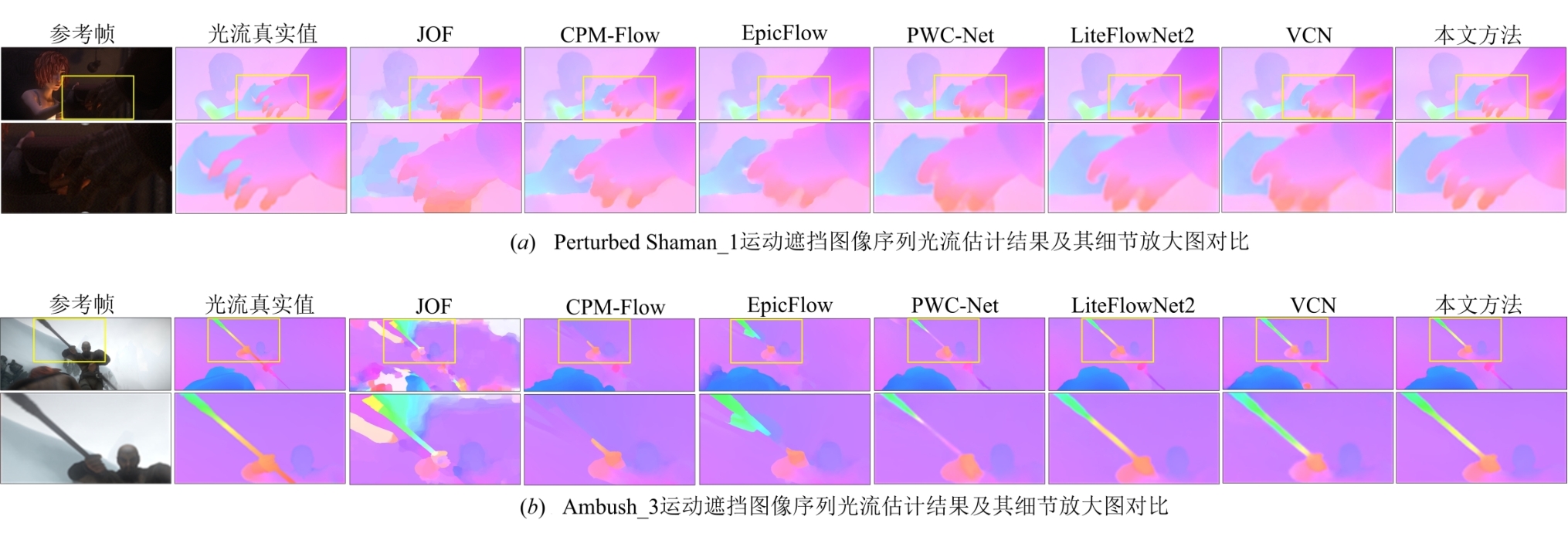

对比方法	all /pixel	matched /pixel	Unmatched /pixel	时间 /s
JOF^[17]	8.818	4.599	43.175	654
CPM-Flow^[29]	5.960	2.990	30.177	4.3
EpicFlow^[30]	6.285	3.060	32.564	16
FlowNet2^[14]	6.016	2.977	30.807	0.10
PWC-Net^[16]	5.042	2.445	26.221	0.03
LiteFlowNet2^[17]	4.686	2.248	24.571	0.04
UnFlow^[22]	10.219	6.061	44.110	0.12
DDFlow^[23]	6.176	2.269	38.053	0.06
VCN^[20]	4.404	2.216	22.238	0.18
本文方法	4.607	2.482	21.923	0.20

对比方法	all /pixel	matched /pixel	Unmatched /pixel	时间 /s
JOF^[17]	8.818	4.599	43.175	654
CPM-Flow^[29]	5.960	2.990	30.177	4.3
EpicFlow^[30]	6.285	3.060	32.564	16
FlowNet2^[14]	6.016	2.977	30.807	0.10
PWC-Net^[16]	5.042	2.445	26.221	0.03
LiteFlowNet2^[17]	4.686	2.248	24.571	0.04
UnFlow^[22]	10.219	6.061	44.110	0.12
DDFlow^[23]	6.176	2.269	38.053	0.06
VCN^[20]	4.404	2.216	22.238	0.18
本文方法	4.607	2.482	21.923	0.20

对比方法	d0-10/pixel	d10-60/pixel	d60-140/pixel	s0-10/ppf	s10-40/ppf	s40+/ppf
JOF^[17]	7.049	4.617	3.131	1.170	4.196	57.923
CPM-Flow^[29]	5.038	2.419	2.143	1.155	3.755	35.136
EpicFlow^[30]	5.205	2.611	2.216	1.135	3.727	38.021
FlowNet2^[14]	5.139	2.786	2.102	1.243	4.027	34.505
PWC-Net^[16]	4.636	2.087	1.475	0.799	2.986	31.070
LiteFlowNet2^[17]	4.048	1.899	1.473	0.811	2.433	29.375
UnFlow^[22]	8.407	5.828	4.665	1.742	6.689	60.765
DDFlow^[23]	4.208	2.084	1.416	0.860	2.562	41.337
VCN^[20]	4.381	1.782	1.423	0.955	2.725	25.570
本文方法	3.935	1.935	1.842	1.082	2.387	27.462

对比方法	d0-10/pixel	d10-60/pixel	d60-140/pixel	s0-10/ppf	s10-40/ppf	s40+/ppf
JOF^[17]	7.049	4.617	3.131	1.170	4.196	57.923
CPM-Flow^[29]	5.038	2.419	2.143	1.155	3.755	35.136
EpicFlow^[30]	5.205	2.611	2.216	1.135	3.727	38.021
FlowNet2^[14]	5.139	2.786	2.102	1.243	4.027	34.505
PWC-Net^[16]	4.636	2.087	1.475	0.799	2.986	31.070
LiteFlowNet2^[17]	4.048	1.899	1.473	0.811	2.433	29.375
UnFlow^[22]	8.407	5.828	4.665	1.742	6.689	60.765
DDFlow^[23]	4.208	2.084	1.416	0.860	2.562	41.337
VCN^[20]	4.381	1.782	1.423	0.955	2.725	25.570
本文方法	3.935	1.935	1.842	1.082	2.387	27.462

对比方法	KITTI2015			KITTI2012
对比方法	Fl-all	Fl-fg	Fl-bg	Fl-all	Fl-noc
CPM-Flow^[29]	22.32	22.81	22.40	5.79	13.70
EpicFlow^[30]	25.81	28.69	26.29	7.88	17.08
FlowNet2^[14]	10.41	8.75	10.75	8.80	4.82
PWC-Net^[16]	9.60	9.31	9.66	8.10	4.22
LiteFlowNet2^[17]	7.62	7.64	7.62	6.16	2.63
UnFlow^[22]	11.11	15.93	10.15	8.42	4.28
DDFlow^[23]	14.29	20.40	13.08	7.34	4.57
VCN^[20]	6.30	8.66	5.83	5.64	2.48
本文方法	5.91	8.11	5.46	5.54	2.38

联合遮挡约束与残差补偿的特征金字塔光流计算方法

Feature Pyramid Optical Flow Estimation Method Jointing Occlusion Constraint and Residual Compensation

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 31

相关文章 15

编辑推荐

Metrics

对比模型	Fl-bg /%	Fl-fg /%	Fl-all /%	训练时间/h	测试时间/s
Baseline	5.83	8.66	6.30	227	0.18
Base_Occ	6.13	8.60	6.54	255	0.19
Base_ResF	5.44	8.17	5.89	241	0.19
本文方法	5.46	8.11	5.91	279	0.20
