电子学报 ›› 2022, Vol. 50 ›› Issue (11): 2575-2583.DOI: 10.12263/DZXB.20211065
收稿日期:
2021-08-09
修回日期:
2021-11-16
出版日期:
2022-11-25
通讯作者:
作者简介:
基金资助:
LIU Geng-geng1, LI Ze-peng1, GUO Wen-zhong1, CHEN Guo-long1, XU Ning2()
Received:
2021-08-09
Revised:
2021-11-16
Online:
2022-11-25
Published:
2022-11-19
Corresponding author:
摘要:

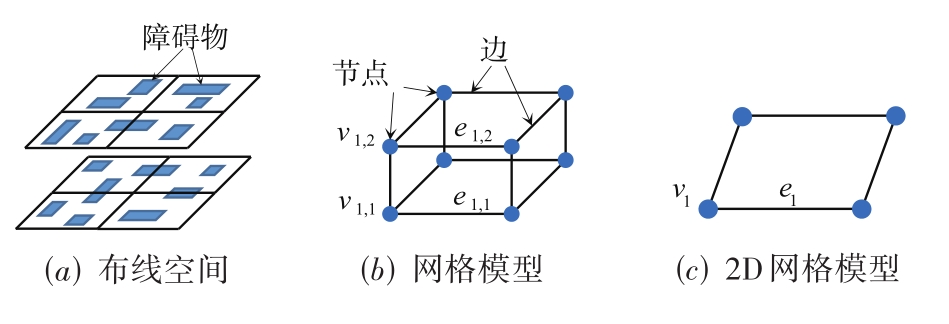

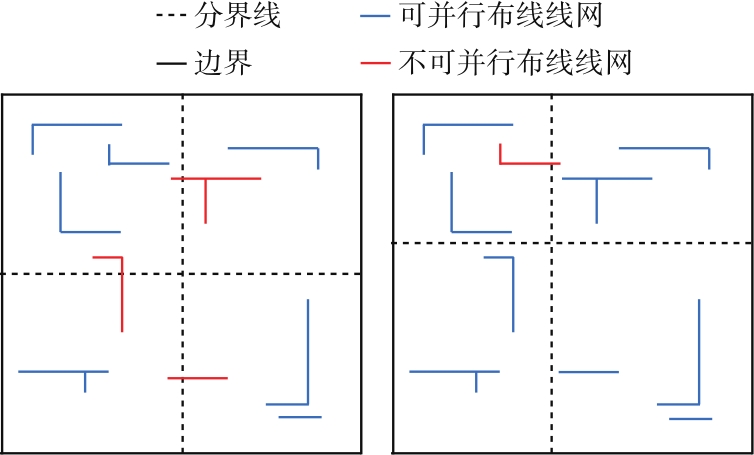

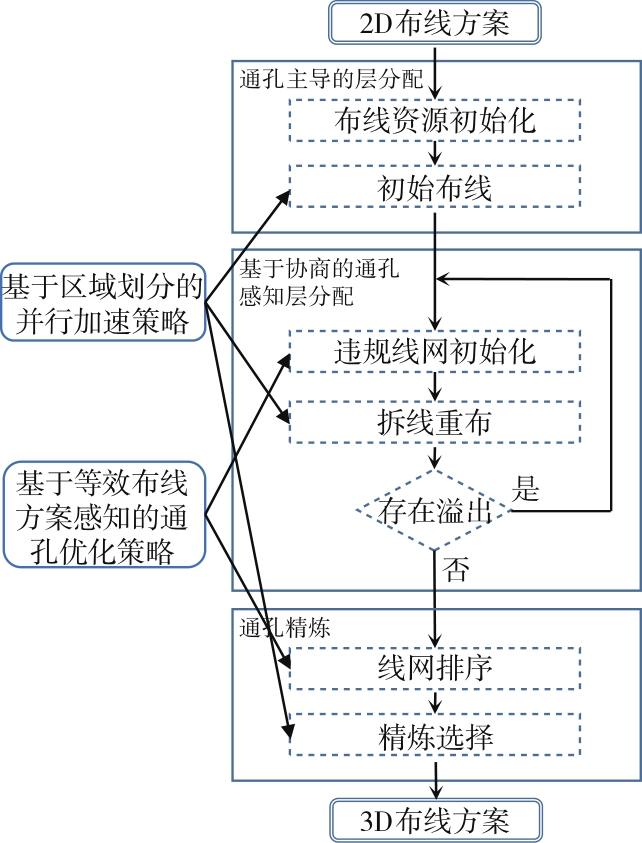

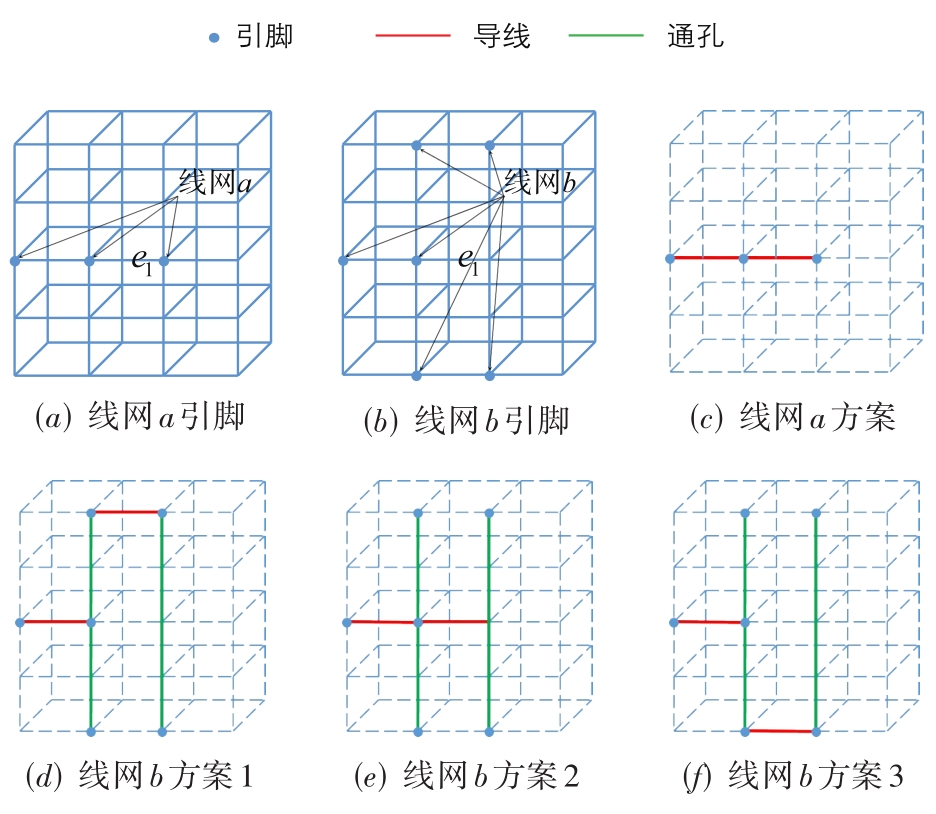

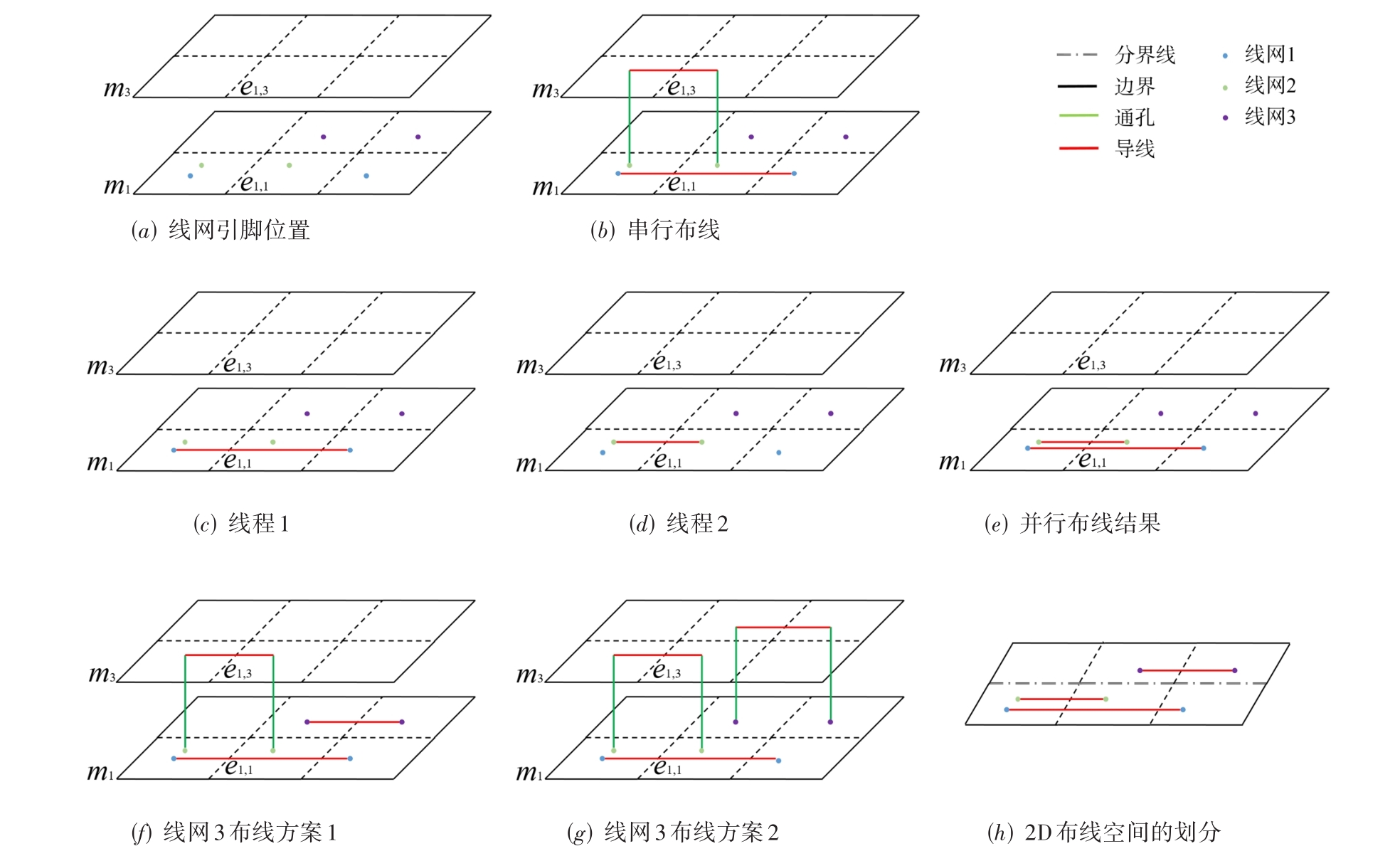

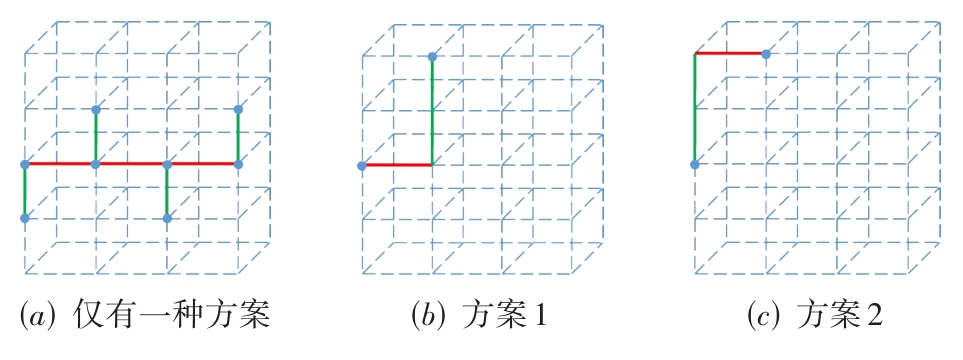

随着集成电路规模的日益增长, 需要处理的线网数量显著增多, 层分配算法运行时间增大成为限制高效设计布线方案的重要因素; 此外在生产工艺中, 通孔的制造成本较高. 针对以上两个问题, 本文提出了两种新颖的策略分别用于优化算法运行时间和通孔数量: (1)一种高效的基于区域划分的并行策略, 实现各区域在并行布线阶段负载均衡, 以提高并行布线的效率; (2)基于线网等效布线方案感知的通孔优化策略, 决定各线网对布线资源使用的优先级, 进而减少层分配方案的通孔数量. 最终将上述两种策略相结合, 提出了一种面向超大规模集成电路物理设计的通孔感知的并行层分配算法. 实验结果表明该算法对通孔数量和运行时间均有良好的优化效果.
中图分类号:
刘耿耿, 李泽鹏, 郭文忠, 陈国龙, 徐宁. 面向超大规模集成电路物理设计的通孔感知的并行层分配算法[J]. 电子学报, 2022, 50(11): 2575-2583.
LIU Geng-geng, LI Ze-peng, GUO Wen-zhong, CHEN Guo-long, XU Ning. Via-Aware Parallel Layer Assignment Algorithm for VLSI Physical Design[J]. Acta Electronica Sinica, 2022, 50(11): 2575-2583.
benchmark | #grid | #layer | #net |
---|---|---|---|
superblue2 | 770×891 | 9 | 990899 |
superblue3 | 800×415 | 9 | 898001 |
superblue6 | 649×495 | 9 | 1006629 |
superblue7 | 499×713 | 9 | 1340418 |
superblue9 | 426×570 | 9 | 833808 |
superblue11 | 631×878 | 9 | 935731 |
superblue12 | 444×518 | 9 | 1293436 |
superblue14 | 406×473 | 9 | 619815 |
superblue16 | 465×404 | 9 | 697458 |
superblue19 | 321×518 | 9 | 511685 |
表1 测试用例特征表
benchmark | #grid | #layer | #net |
---|---|---|---|
superblue2 | 770×891 | 9 | 990899 |
superblue3 | 800×415 | 9 | 898001 |
superblue6 | 649×495 | 9 | 1006629 |
superblue7 | 499×713 | 9 | 1340418 |
superblue9 | 426×570 | 9 | 833808 |
superblue11 | 631×878 | 9 | 935731 |
superblue12 | 444×518 | 9 | 1293436 |
superblue14 | 406×473 | 9 | 619815 |
superblue16 | 465×404 | 9 | 697458 |
superblue19 | 321×518 | 9 | 511685 |
benchmark | VLA_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 46.407 | 17.438 | 2.66 |
superblue3 | 24.558 | 11.913 | 2.06 |
superblue6 | 22.903 | 11.770 | 1.95 |
superblue7 | 30.187 | 11.690 | 2.58 |
superblue9 | 16.459 | 8.159 | 2.02 |
superblue11 | 25.200 | 9.544 | 2.64 |
superblue12 | 26.055 | 11.109 | 2.35 |
superblue14 | 14.041 | 7.130 | 1.97 |
superblue16 | 16.737 | 9.407 | 1.78 |
superblue19 | 9.226 | 4.513 | 2.04 |
average | 2.20 |
表2 通孔主导的层分配阶段串行算法与基于区域划分的并行算法的运行时间对比
benchmark | VLA_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 46.407 | 17.438 | 2.66 |
superblue3 | 24.558 | 11.913 | 2.06 |
superblue6 | 22.903 | 11.770 | 1.95 |
superblue7 | 30.187 | 11.690 | 2.58 |
superblue9 | 16.459 | 8.159 | 2.02 |
superblue11 | 25.200 | 9.544 | 2.64 |
superblue12 | 26.055 | 11.109 | 2.35 |
superblue14 | 14.041 | 7.130 | 1.97 |
superblue16 | 16.737 | 9.407 | 1.78 |
superblue19 | 9.226 | 4.513 | 2.04 |
average | 2.20 |
benchmark | NVLA_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 240.144 | 100.979 | 2.38 |
superblue3 | 167.022 | 86.836 | 1.92 |
superblue6 | 137.432 | 67.692 | 2.03 |
superblue7 | 177.883 | 74.700 | 2.38 |
superblue9 | 96.693 | 46.674 | 2.07 |
superblue11 | 103.781 | 43.040 | 2.41 |
superblue12 | 164.388 | 78.414 | 2.10 |
superblue14 | 85.886 | 40.345 | 2.13 |
superblue16 | 108.72 | 70.933 | 1.53 |
superblue19 | 44.396 | 23.626 | 1.88 |
average | 2.08 |
表3 基于协商的通孔感知层分配阶段串行算法与基于区域划分的并行算法的运行时间对比
benchmark | NVLA_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 240.144 | 100.979 | 2.38 |
superblue3 | 167.022 | 86.836 | 1.92 |
superblue6 | 137.432 | 67.692 | 2.03 |
superblue7 | 177.883 | 74.700 | 2.38 |
superblue9 | 96.693 | 46.674 | 2.07 |
superblue11 | 103.781 | 43.040 | 2.41 |
superblue12 | 164.388 | 78.414 | 2.10 |
superblue14 | 85.886 | 40.345 | 2.13 |
superblue16 | 108.72 | 70.933 | 1.53 |
superblue19 | 44.396 | 23.626 | 1.88 |
average | 2.08 |
benchmark | VRO_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 67.037 | 24.493 | 2.74 |
superblue3 | 39.515 | 16.427 | 2.41 |
superblue6 | 37.739 | 15.853 | 2.38 |
superblue7 | 48.160 | 16.991 | 2.83 |
superblue9 | 26.944 | 11.225 | 2.40 |
superblue11 | 37.795 | 13.195 | 2.86 |
superblue12 | 40.811 | 17.307 | 2.36 |
superblue14 | 23.018 | 9.983 | 2.31 |
superblue16 | 27.575 | 12.868 | 2.14 |
superblue19 | 13.725 | 6.088 | 2.25 |
average | 2.47 |
表4 通孔精炼阶段串行算法与基于区域划分的并行算法的运行时间对比
benchmark | VRO_runtime | SUP | |
---|---|---|---|
VR | PVR | ||
superblue2 | 67.037 | 24.493 | 2.74 |
superblue3 | 39.515 | 16.427 | 2.41 |
superblue6 | 37.739 | 15.853 | 2.38 |
superblue7 | 48.160 | 16.991 | 2.83 |
superblue9 | 26.944 | 11.225 | 2.40 |
superblue11 | 37.795 | 13.195 | 2.86 |
superblue12 | 40.811 | 17.307 | 2.36 |
superblue14 | 23.018 | 9.983 | 2.31 |
superblue16 | 27.575 | 12.868 | 2.14 |
superblue19 | 13.725 | 6.088 | 2.25 |
average | 2.47 |
benchmark | total_runtime | SUP | |||
---|---|---|---|---|---|
VR | 文献[ | PVR | 文献[ | PVR | |
superblue2 | 353.588 | 161.582 | 142.910 | 2.19 | 2.47 |
superblue3 | 231.095 | 126.879 | 115.175 | 1.82 | 2.01 |
superblue6 | 198.074 | 110.927 | 95.315 | 1.79 | 2.08 |
superblue7 | 256.230 | 104.435 | 103.381 | 2.45 | 2.48 |
superblue9 | 140.096 | 85.728 | 66.058 | 1.63 | 2.12 |
superblue11 | 166.766 | 55.983 | 65.799 | 2.98 | 2.54 |
superblue12 | 231.254 | 107.340 | 106.830 | 2.15 | 2.16 |
superblue14 | 122.945 | 119.577 | 57.458 | 1.03 | 2.14 |
superblue16 | 153.032 | 81.969 | 93.208 | 1.87 | 1.64 |
superblue19 | 67.347 | 34.430 | 34.227 | 1.96 | 1.97 |
average | 1.99 | 2.16 |
表5 基于通孔感知的并行层分配算法整体运行时间对比
benchmark | total_runtime | SUP | |||
---|---|---|---|---|---|
VR | 文献[ | PVR | 文献[ | PVR | |
superblue2 | 353.588 | 161.582 | 142.910 | 2.19 | 2.47 |
superblue3 | 231.095 | 126.879 | 115.175 | 1.82 | 2.01 |
superblue6 | 198.074 | 110.927 | 95.315 | 1.79 | 2.08 |
superblue7 | 256.230 | 104.435 | 103.381 | 2.45 | 2.48 |
superblue9 | 140.096 | 85.728 | 66.058 | 1.63 | 2.12 |
superblue11 | 166.766 | 55.983 | 65.799 | 2.98 | 2.54 |
superblue12 | 231.254 | 107.340 | 106.830 | 2.15 | 2.16 |
superblue14 | 122.945 | 119.577 | 57.458 | 1.03 | 2.14 |
superblue16 | 153.032 | 81.969 | 93.208 | 1.87 | 1.64 |
superblue19 | 67.347 | 34.430 | 34.227 | 1.96 | 1.97 |
average | 1.99 | 2.16 |
benchmark | via_count | ratio | |||
---|---|---|---|---|---|
DDR[ | DLA[ | VR | DDR[ | DLA[ | |
superblue2 | 7129655 | 6794969 | 5703736 | 20.00% | 16.06% |
superblue3 | 6382992 | 6094468 | 5276904 | 17.33% | 13.41% |
superblue6 | 6202333 | 5993170 | 5316640 | 14.28% | 11.29% |
superblue7 | 9335272 | 9008199 | 7785024 | 16.61% | 13.58% |
superblue9 | 5120143 | 4928392 | 4248455 | 17.02% | 13.80% |
superblue11 | 5592279 | 5463358 | 4692009 | 16.10% | 14.12% |
superblue12 | 8500960 | 8180039 | 7321668 | 13.87% | 10.49% |
superblue14 | 4038943 | 3917782 | 3539881 | 12.36% | 9.65% |
superblue16 | 4122687 | 3899307 | 3371064 | 18.23% | 13.55% |
superblue19 | 3038941 | 2960095 | 2614623 | 13.96% | 11.67% |
average | 15.98% | 12.76% |
表6 基于线网等效布线方案感知的通孔优化策略验证
benchmark | via_count | ratio | |||
---|---|---|---|---|---|
DDR[ | DLA[ | VR | DDR[ | DLA[ | |
superblue2 | 7129655 | 6794969 | 5703736 | 20.00% | 16.06% |
superblue3 | 6382992 | 6094468 | 5276904 | 17.33% | 13.41% |
superblue6 | 6202333 | 5993170 | 5316640 | 14.28% | 11.29% |
superblue7 | 9335272 | 9008199 | 7785024 | 16.61% | 13.58% |
superblue9 | 5120143 | 4928392 | 4248455 | 17.02% | 13.80% |
superblue11 | 5592279 | 5463358 | 4692009 | 16.10% | 14.12% |
superblue12 | 8500960 | 8180039 | 7321668 | 13.87% | 10.49% |
superblue14 | 4038943 | 3917782 | 3539881 | 12.36% | 9.65% |
superblue16 | 4122687 | 3899307 | 3371064 | 18.23% | 13.55% |
superblue19 | 3038941 | 2960095 | 2614623 | 13.96% | 11.67% |
average | 15.98% | 12.76% |
benchmark | via_count | ratio | |||
---|---|---|---|---|---|
DDR[ | DLA[ | PVR | DDR[ | DLA[ | |
superblue2 | 7129655 | 6794969 | 5885709 | 17.45% | 13.38% |
superblue3 | 6382992 | 6094468 | 5494079 | 13.93% | 9.85% |
superblue6 | 6202333 | 5993170 | 5532920 | 10.79% | 7.68% |
superblue7 | 9335272 | 9008199 | 7884639 | 15.54% | 12.47% |
superblue9 | 5120143 | 4928392 | 4268805 | 16.63% | 13.38% |
superblue11 | 5592279 | 5463358 | 4909798 | 12.20% | 10.13% |
superblue12 | 8500960 | 8180039 | 7807668 | 8.16% | 4.55% |
superblue14 | 4038943 | 3917782 | 3688443 | 8.68% | 5.85% |
superblue16 | 4122687 | 3899307 | 4105378 | 0.42% | -5.28% |
superblue19 | 3038941 | 2960095 | 2668770 | 12.18% | 9.84% |
average | 11.60% | 8.19% |
表7 本文算法的有效性验证
benchmark | via_count | ratio | |||
---|---|---|---|---|---|
DDR[ | DLA[ | PVR | DDR[ | DLA[ | |
superblue2 | 7129655 | 6794969 | 5885709 | 17.45% | 13.38% |
superblue3 | 6382992 | 6094468 | 5494079 | 13.93% | 9.85% |
superblue6 | 6202333 | 5993170 | 5532920 | 10.79% | 7.68% |
superblue7 | 9335272 | 9008199 | 7884639 | 15.54% | 12.47% |
superblue9 | 5120143 | 4928392 | 4268805 | 16.63% | 13.38% |
superblue11 | 5592279 | 5463358 | 4909798 | 12.20% | 10.13% |
superblue12 | 8500960 | 8180039 | 7807668 | 8.16% | 4.55% |
superblue14 | 4038943 | 3917782 | 3688443 | 8.68% | 5.85% |
superblue16 | 4122687 | 3899307 | 4105378 | 0.42% | -5.28% |
superblue19 | 3038941 | 2960095 | 2668770 | 12.18% | 9.84% |
average | 11.60% | 8.19% |
