基于自适应梯度优化的二值神经网络

doi:10.12263/DZXB.20211084

摘要/Abstract

摘要：

二值神经网络由于其在储存空间和计算上的高效性，在视觉任务中被广泛运用.为了训练不可导的二值网络，直通近似（Straight-Through Estimator）和 S型近似（Sigmoid）等多种松弛优化方法被用来拟合量化函数.但是，这些方法存在两个问题：（1）由于松弛函数和量化算子的差异导致的梯度失配，（2）由于激活值饱和引起的梯度消失.量化函数自身的特性使得二值网络梯度的准确性和有效性无法同时保证.本文提出了基于自适应梯度优化的二值神经网络（Adaptive Gradient based Binary Neural Networks， AdaBNN），其通过自适应地寻找梯度准确性和有效性之间的最佳平衡来解决梯度失配和梯度消失的问题.具体而言，本文从理论上证明了梯度准确性和有效性之间的矛盾，并通过比较松弛梯度的范数和松弛梯度与真实梯度之间的差距，构建了这一平衡的度量标准.因此，二值神经网络能根据所提出的度量调整松弛函数，从而得到有效训练. 在ImageNet数据集上的实验表明，本文的方法相较于被广泛使用的BNN 网络将top-1准确率提升了17.1%.

关键词: 二值神经网络, 梯度饱和, 梯度失配, 自适应梯度, 图像分类

Abstract:

Binary neural networks are widely employed in visual tasks due to the computation acceleration and storage shrinkage compared with the float counterparts. In order to train the non-differentiable networks, some continuous relaxation methods were proposed to approximate the quantizer including Straight-Through Estimator (STE) and Sigmoid. However, these methods cause: (1) gradient mismatch due to the discrepancy between the quantizer and the relaxed function, (2) gradient vanishing due to the activation saturation. Because of the nature of quantization, the accuracy and validity of the gradient cannot be obtained for binary neural networks at the same time. In this paper, we propose AdaBNN that simultaneously solves the gradient mismatch and vanishing by adaptively achieving the optimal trade-off. Specifically, we theoretically prove the contradiction between gradient accuracy and validity, and formulate the evaluation measure for the trade-off by comparing the relaxed gradient norm and the discrepancy with true gradients. Therefore, the binary neural networks are trained effectively by changing the relaxation function based on the measure. Compared with the widely adopted BNN, experiments on ImageNet show that our method increases the top-1 classification accuracy by 17.1%.

Key words: binary neural networks, gradient saturation, gradient mismatch, adaptive gradients, image classification

中图分类号:

TP391.4

王子为, 鲁继文, 周杰. 基于自适应梯度优化的二值神经网络[J]. 电子学报, DOI: 10.12263/DZXB.20211084.

WANG Zi-Wei, LU Ji-Wen, ZHOU Jie. Learning Adaptive Gradients for Binary Neural Networks[J]. Acta Electronica Sinica, DOI: 10.12263/DZXB.20211084.

图/表 11

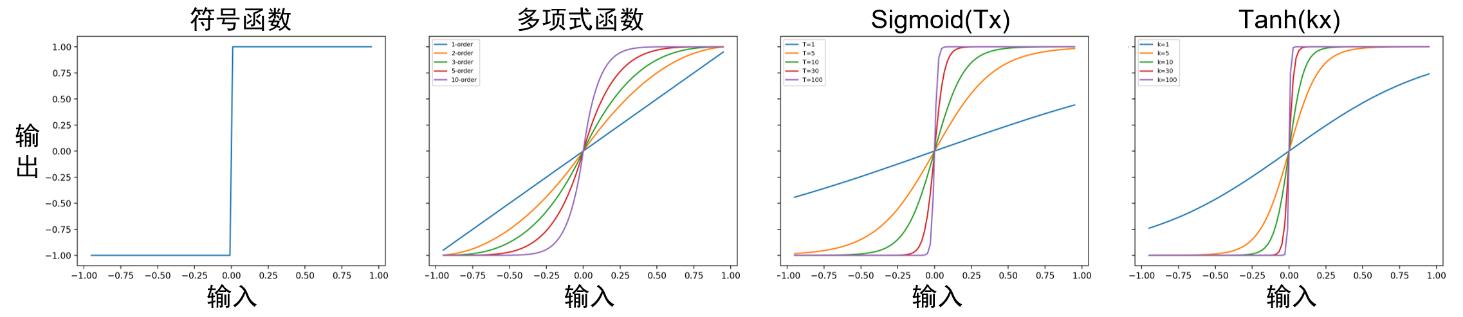

图1 符号函数,多项式函数,S形函数和双曲正切函数之间的比较.松弛函数不同的超参数影响着其对符号函数的近似程度.平缓的松弛函数会导致梯度失配,而陡峭的松弛函数会因为输入饱和导致梯度消失.传统方法使用固定的松弛函数或手动调整松弛函数的陡度,导致训练过程中梯度准确性和有效性之间的平衡只能获得次优解.而我们提出的基于自适应梯度优化二值神经网络可以在训练阶段根据评估度量,动态自适应地寻找最优松弛函数.

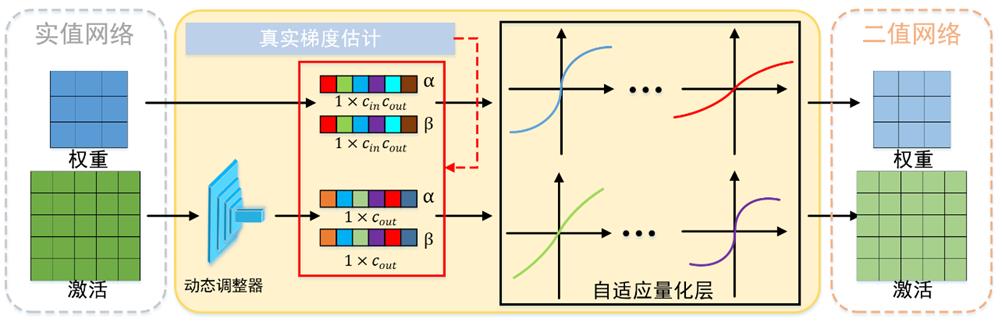

图2 基于自适应梯度优化的二值神经网络训练流程图.各层全精度的权重和激活值通过自适应量化层(AdaBin)量化成二值,其中尺度和陡度参数α和β决定了松弛函数的形式.对于权重,这两个参数在网络优化的过程中进行更新;对于激活值,我们利用动态调整器计算α和β.我们的方法使得梯度准确性和有效性的平衡能够在训练阶段动态保持最优.在模型推理阶段,我们移除动态调整器,并将自适应量化层替换为符号函数.

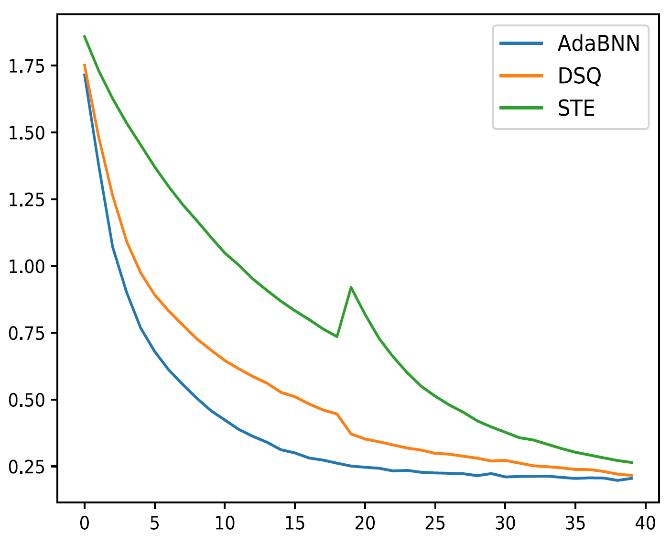

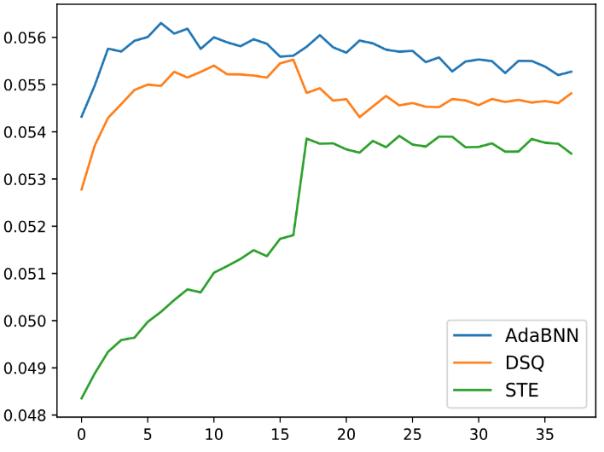

图3 (a) 松弛梯度的模长相比于它与真实梯度之间的差异的领先量

图3 (b) 训练时的分类误差

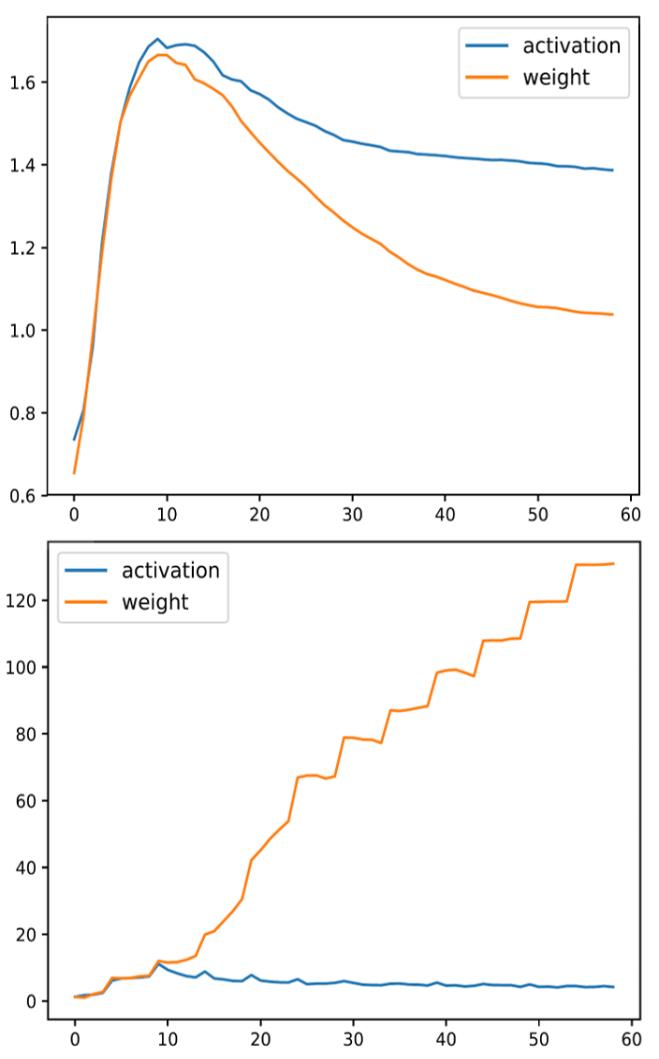

图4 权重激活非线性量化的尺度参数α(上)和陡度参数β(下)的演化过程.对于可训练的权重量化参数,这里表示它们的值;对于动态的激活量化参数,这里表示各训练样本相应参数的平均值.

表1 选用不同的松弛函数时我们的方法在CIFAR-10数据集上的分类准确率(%)，其中网络结构是ResNet20

	松弛函数	ResNet20
全精度	-	92.10
二值	恒等	89.90
	S形函数	90.53
	双曲正切	90.17
	多项式	89.66

表2 我们选用了不同的真实梯度估计器，来比较其在CIFAR-10数据集上的分类准确率(%)，其中网络结构是ResNet20

m	50	100	200
S形函数	89.99	90.53	89.97
双曲正切	90.09	90.49	90.18

表3 CIFAR-10数据集上的分类准确率，选用不同的α和β自由度来作比较

	固定 $β$	静态 $β$	动态 $β$
固定 $α$	88.81	88.63	89.15
静态 $α$	89.38	89.18	89.45
动态 $α$	89.86	89.94	90.53

表3 CIFAR-10数据集上的分类准确率，选用不同的α和β自由度来作比较

	固定 $β$	静态 $β$	动态 $β$
固定 $α$	88.81	88.63	89.15
静态 $α$	89.38	89.18	89.45
动态 $α$	89.86	89.94	90.53

表4 在CIFAR-10上与现有方法的分类准确率比较(%)，其中VGG-small和ResNet20的结构被采用.位宽表示权重/激活的比特数

方法	位宽	VGG-small	ResNet20
全精度	32/32	93.20	92.10
BC	1/32	90.10	-
TTQ	2/32	-	91.13
HWGQ	1/2	92.50	-
LQ-Net	1/2	93.40	88.40
PACT	2/2	-	89.70
BNN	1/1	89.90	-
DoReFa-Net	1/1	-	79.30
Xnor-Net	1/1	89.80	-
DSQ	1/1	91.72	84.11
AdaBNN	1/1	92.52	90.53

表5 在ImageNet上与现有方法关于第一和前五分类准确率(%)的比较，其中ResNet18和ResNet34的结构被采用.位宽表示权重/激活的比特数

方法	位宽	ResNet18		ResNet34
方法	位宽	top-1	top-5	top-1	top-5
全精度	32/32	69.3	89.2	7.3	91.3
BWN	1/32	60.8	80.3	-	-
HWGQ	1/2	59.6	82.2	64.3	85.7
LQ-Net	1/2	62.6	84.3	66.6	86.9
PACT	2/2	55.4	78.6	-	-
BNN	1/1	42.2	67.1	-	-
Xnor-Net	1/1	51.2	73.2	-	-
ABC-Net	1/1	42.7	67.6	52.4	76.5
QN	1/1	53.6	75.3	-	-
AdaBNN	1/1	54.3	77.4	60.6	82.2
Bi-Real-Net	1/1	56.4	79.5	62.2	83.9
AdaBNN+SC	1/1	59.3	81.2	63.8	84.8

表6 在ResNet18结构上与现有二值网络在计算量和存储代价上的比较

		存储量	FLOPs(G)
ResNet18	全精度	374.1Mbit	1.81
	Xnor-Net	33.7Mbit	0.17
	Bi-Real-Net	33.6Mbit	0.16
	AdaBNN	33.4Mbit	0.15
