光场相机三维重建研究进展与展望

doi:10.12263/DZXB.20211615

电子学报 ›› 2022, Vol. 50 ›› Issue (7): 1774-1792.DOI: 10.12263/DZXB.20211615

光场相机三维重建研究进展与展望

刘玉轩, 张力, 艾海滨, 许彪, 孙钰珊, 樊仲藜

中国测绘科学研究院摄影测量与遥感研究所，北京 100036

收稿日期:2021-12-03 修回日期:2022-02-28 出版日期:2022-07-25
- 作者简介:
- 刘玉轩男，1990年生于河南省南阳市.现为中国测绘科学研究院摄影测量与遥感研究所助理研究员.主要研究方向为摄影测量与计算机视觉、光场相机三维重建等.E-mail: yxliu@casm.ac.cn
  张力男，1970年生于山东省潍坊市.现为中国测绘科学研究院摄影测量与遥感研究所研究员.主要研究方向为数字摄影测量、卫星数据处理、点云语义化建模等.E-mail: zhangl@casm.ac.cn
  艾海滨男，1976年生于江西省九江市.现为中国测绘科学研究院摄影测量与遥感研究所研究员.主要研究方向为数字摄影测量、航空影像三维建模等.E-mail: Aihb@casm.ac.cn
  孙钰珊女，1982年生于黑龙江省哈尔滨市.现为中国测绘科学研究院摄影测量与遥感研究所助理研究员.主要研究方向为卫星影像处理、无人机影像三维重建等.E-mail: sunys@casm.ac.cn
  樊仲藜男，1997年生于山东省菏泽市.现为中国测绘科学研究院摄影测量与遥感研究所硕士研究生.主要研究方向为星载多源数据联合处理.E-mail： fzl110466@163.com
- 基金资助:
- 中国测绘科学研究院基本科研业务费 (AR2106)

Progress and Prospect of 3D Reconstruction Based on Light Field Cameras

LIU Yu-xuan, ZHANG Li, AI Hai-bin, XU Biao, SUN Yu-shan, FAN Zhong-li

Institute of Photogrammetry and Remote Sensing, Chinese Academy of Surveying and Mapping, Beijing 100036, China

Received:2021-12-03 Revised:2022-02-28 Online:2022-07-25 Published:2022-07-30
- Supported by:
- Fundamental Research Funds for Chinese Academy of Surveying &Mapping (AR2106)

摘要/Abstract

摘要：

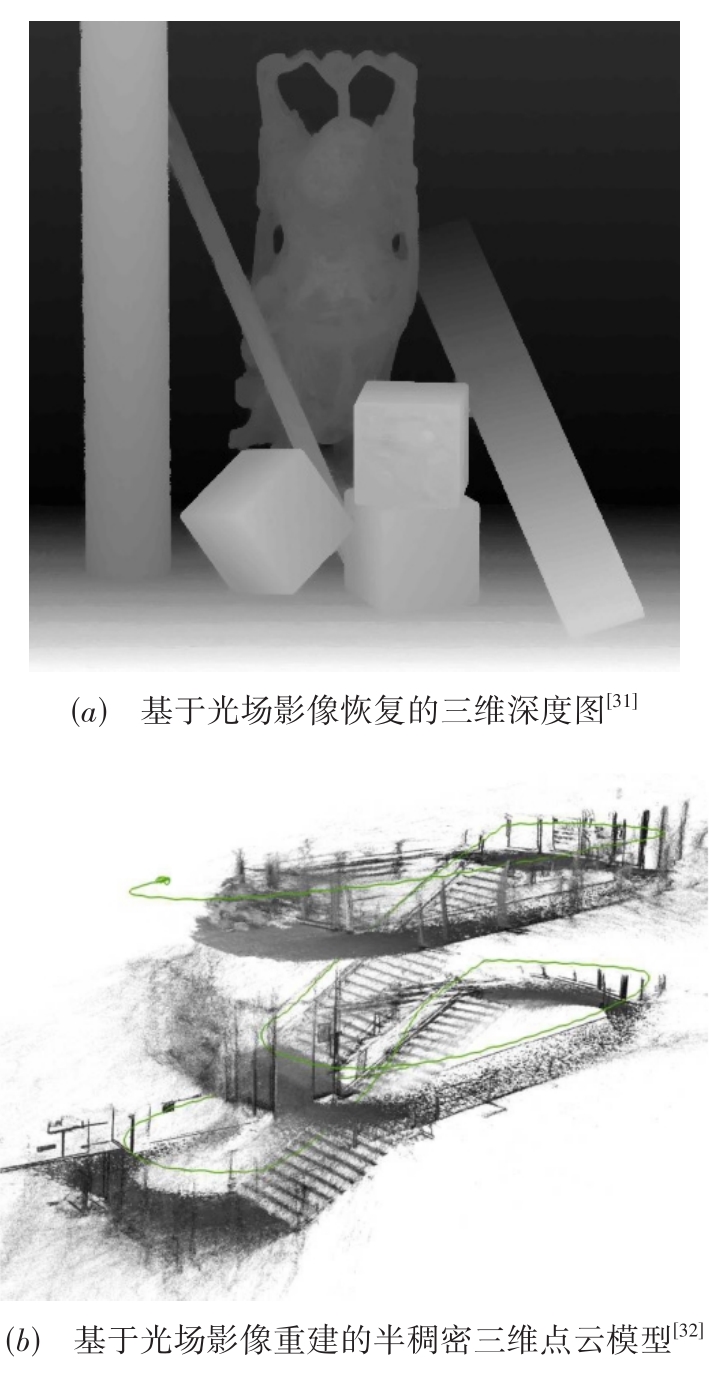

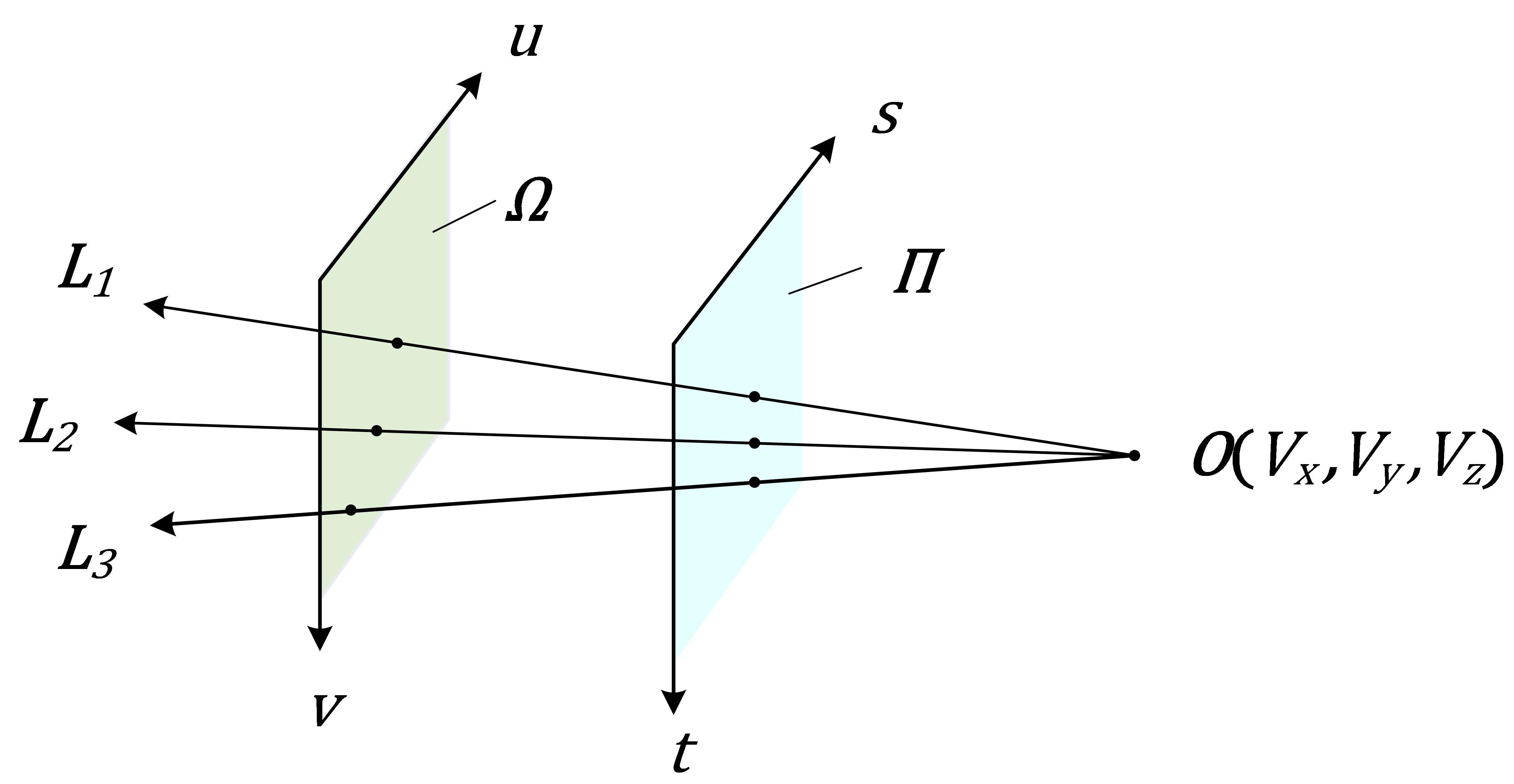

光场相机利用二维影像同时记录空间中光线的位置和方向信息，能够恢复相机内部的光场，为三维重建提供了新的解决思路.围绕光场相机的三维重建问题，本文综述了光场数据获取手段，梳理和讨论了针对光场相机的标定算法，总结和分析了基于光场影像的三维深度信息恢复方法.在此基础上，介绍了当前主要的公开光场数据和算法.最后，展望了未来的研究方向，以期为后续研究者提供参考.

关键词: 光场相机, 三维重建, 光场采集, 相机标定, 深度估计, 公开光场资源

Abstract:

Light field cameras use two-dimensional images to simultaneously record the position and direction information of light in space, which can restore the light field inside the camera and provide a new solution for three-dimensional reconstruction. Focusing on the 3D reconstruction of light field cameras, this paper summarizes the light field acquisition methods, sorts out and discusses the calibration algorithms for light field cameras; then summarizes and analyzes the 3D depth information recovery methods based on light field images. In addition, the primary open-source datasets and algorithms related to light fields are introduced. Finally, the future research directions are elaborated to provide references for subsequent researchers.

Key words: light field cameras, 3D reconstruction, light field acquisition, camera calibration, depth estimation, public light field resources

中图分类号:

TP391

刘玉轩, 张力, 艾海滨, 等. 光场相机三维重建研究进展与展望[J]. 电子学报, 2022, 50(7): 1774-1792.

Yu-xuan LIU, Li ZHANG, Hai-bin AI, et al. Progress and Prospect of 3D Reconstruction Based on Light Field Cameras[J]. Acta Electronica Sinica, 2022, 50(7): 1774-1792.

图/表 17

参考文献 103

1	王之卓. 摄影测量原理[M]. 北京: 测绘出版社, 1990.
	WANGZhi-zuo. Principle of Photogrammetry[M]. Beijing: Publishing House of Surveying and Mapping, 1990. (in Chinese)
2	张祖勋, 张剑清, 张力. 数字摄影测量发展的机遇与挑战[J]. 武汉测绘科技大学学报, 2000, 25(1): 7-11.
	ZHANGZu-xun, ZHANGJian-qing, ZHANGLi. Opportunities and challenges for development of digital photogrammetry[J]. Journal of Wuhan Technical University of Surveying and Mapping(Wtusm), 2000, 25(1):7-11. (in Chinese)
3	NEX F, REMONDINOF. UAV for 3D mapping applications: A review[J]. Applied Geomatics, 2014, 6(1): 1-15.
4	BRUNOF, BRUNOS, DE SENSIG, et al. From 3D reconstruction to virtual reality: A complete methodology for digital archaeological exhibition[J]. Journal of Cultural Heritage, 2010, 11(1): 42-49.
5	YANGM D, CHAOC F, HUANGK S, et al. Image-based 3D scene reconstruction and exploration in augmented reality[J]. Automation in Construction, 2013, 33: 48-60.
6	NUCHTERA, SURMANNH, HERTZBERGJ. Automatic model refinement for 3D reconstruction with mobile robots[C]//Fourth International Conference on 3-D Digital Imaging and Modeling, 2003.3DIM 2003. Banff, Canada: IEEE, 2003: 394-401.
7	SONGL M, LIX Y, YANGY G, et al. Structured-light based 3D reconstruction system for cultural relic packaging[J]. Sensors, 2018, 18(9): 2981.
8	JIANGD L, HUY X, YANS C, et al. Efficient 3D reconstruction for face recognition[J]. Pattern Recognition, 2005, 38(6): 787-798.
9	KHANU, YASINA U, ABIDM, et al. A methodological review of 3D reconstruction techniques in tomographic imaging[J]. Journal of Medical Systems, 2018, 42(10): 190.
10	KLEING, MURRAYD. Parallel tracking and mapping for small AR workspaces[C]//2007 6th IEEE and ACM International Symposium on Mixed and Augmented Reality. Nara, Japan: IEEE, 2007: 225-234.
11	DAVISONA J, REIDI D, MOLTONN D, et al. MonoSLAM: Real-time single camera SLAM[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2007, 29(6): 1052-1067.
12	MUR-ARTALR, MONTIELJ M M, TARDÓSJ D. ORB-SLAM: A versatile and accurate monocular SLAM system[J]. IEEE Transactions on Robotics, 2015, 31(5): 1147-1163.
13	MUR-ARTALR, TARDÓSJ D. ORB-SLAM2: An open-source SLAM system for monocular, stereo, and RGB-D cameras[J]. IEEE Transactions on Robotics, 2017, 33(5): 1255-1262.
14	CAMPOSC, ELVIRAR, RODRÍGUEZJ J G, et al. ORB-SLAM3: An accurate open-source library for visual, visual-inertial, and multimap SLAM[J]. IEEE Transactions on Robotics, 2021, 37(6): 1874-1890.
15	HESSW, KOHLERD, RAPPH, et al. Real-time loop closure in 2D LIDAR SLAM[C]//2016 IEEE International Conference on Robotics and Automation. Stockholm, Sweden: IEEE, 2016: 1271-1278.
16	ZHANGJ, SINGHS. LOAM: Lidar odometry and mapping in real-time[C]//Robotics: Science and Systems. Berkeley, California, USA: University of California, Berkeley, 2014, 2(9): 1-9.
17	YEH Y, CHENY Y, LIUM. Tightly coupled 3D lidar inertial odometry and mapping[C]//2019 International Conference on Robotics and Automation(ICRA). Montreal, Canada: IEEE, 2019: 3144-3150.
18	KOIDEK, MIURAJ, MENEGATTIE. A portable three-dimensional LIDAR-based system for long-term and wide-area people behavior measurement[J]. International Journal of Advanced Robotic Systems, 2019, 16(2): 1729881419841532.
19	XUW, ZHANGF. FAST-LIO: A fast, robust LiDAR-inertial odometry package by tightly-coupled iterated Kalman filter[J]. IEEE Robotics and Automation Letters, 2021, 6(2): 3317-3324.
20	CHENX, MILIOTOA, PALAZZOLOE, et al. SuMa++: Efficient LiDAR-based semantic SLAM[C]//2019 IEEE/RSJ International Conference on Intelligent Robots and Systems(IROS). Macau, China: IEEE, 2019: 4530-4537.
21	KERLC, STURMJ, CREMERSD. Dense visual SLAM for RGB-D cameras[C]//2013 IEEE/RSJ International Conference on Intelligent Robots and Systems. Tokyo, Japan: IEEE, 2013: 2100-2106.
22	NEWCOMBER A, IZADIS, HILLIGESO, et al. KinectFusion: Real-time dense surface mapping and tracking[C]//2011 10th IEEE International Symposium on Mixed and Augmented Reality. Basel, Switzerland: IEEE, 2011: 127-136.
23	WHELANT, LEUTENEGGERS, SALAS MORENOR, et al. ElasticFusion: Dense SLAM without a pose graph[C]//Robotics: Science and Systems. Rome, Italy: Sapienza University of Rome, 2015: 1-9.
24	DAIA, NIEßNERM, ZOLLHÖFERM, et al. BundleFusion: Real-time globally consistent 3D reconstruction using on-the-fly surface reintegration[J]. ACM Transactions on Graphics, 2017, 36(4): 76a.
25	SUZ, XUL, ZHENGZ R, ET AL. RobustFusion: Human Volumetric Capture with Data-driven Visual Cues Using A RGBD Camera[M]//Computer Vision-ECCV 2020. Switzerland: Springer, Cham, 2020: 246-264.
26	NG R. Light field photography with a hand-held plenoptic camera[D]. Palo Alto: Stanford University, 2005.
27	NG R. Fourier slice photography[J]. ACM Transactions on Graphics, 2005, 24(3): 735-744.
28	RAYTRIXGMBH. Raytrix\|3d light field camera technology[EB/OL]. [2022]. .
29	VENKATARAMANK, LELESCUD, DUPARRÉJ, et al. PiCam: An ultra-thin high performance monolithic camera array[J]. ACM Transactions on Graphics, 2013, 32(6): 1-13.
30	方璐, 戴琼海. 计算光场成像[J]. 光学学报, 2020, 40(1): 9-30.
	FANGLu, DAIQing-hai. Computational light field imaging[J]. Acta Optica Sinica, 2020, 40(1): 9-30. (in Chinese)
31	WILLIEM, PARKI K, LEEK M. Robust light field depth estimation using occlusion-noise aware data costs[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2018, 40(10): 2484-2497.
32	ZELLERN, QUINTF, STILLAU. Scale-awareness of light field camera based visual odometry[C]//Proceedings of the European Conference on Computer Vision(ECCV). Munich, Germany: Springer, 2018: 715-730.
33	MITRAK, VEERARAGHAVANA. Light field denoising, light field superresolution and stereo camera based refocussing using a GMM light field patch prior[C]//2012 IEEE Computer Society Conference on Computer Vision and Pattern Recognition Workshops. Providence, RI, USA: IEEE, 2012: 22-28.
34	孙福盛, 韩燮. 光场相机精确色彩矢量约束下的超分辨率算法[J]. 光学学报, 2019, 39(3): 59-68.
	SUNFu-sheng, HANXie. Super-resolution algorithm based on precise color vector constraint of light field camera[J]. Acta Optica Sinica, 2019, 39(3): 59-68. (in Chinese)
35	刘亚美, 张骏, 张旭东, 等. 光场显著性检测研究综述[J]. 中国图象图形学报, 2020, 25(12): 2465-2483.
	LIUYa-mei, ZHANGJun, ZHANGXu-dong, et al. Review of saliency detection on light fields[J]. Journal of Image and Graphics, 2020, 25(12):2465-2483. (in Chinese)
36	YÜCERK, SORKINE-HORNUNGA, WANGO, et al. Efficient 3D object segmentation from densely sampled light fields with applications to 3D reconstruction[J]. ACM Transactions on Graphics, 2016, 35(3): 1-15.
37	PEIZ, ZHANGY N, YANGT, et al. A novel multi-object detection method in complex scene using synthetic aperture imaging[J]. Pattern Recognition, 2012, 45(4): 1637-1658.
38	GUOX Q, YUZ, KANGS B, et al. Enhancing light fields through ray-space stitching[J]. IEEE Transactions on Visualization and Computer Graphics, 2016, 22(7): 1852-1861.
39	刘玉轩. 光场相机三维重建方法研究[D]. 武汉:武汉大学, 2020.
	LIUYu-xuan. 3D Reconstruction Based on Light Field Cameras[D]. Wuhan: Wuhan University, 2020. (in Chinese)
40	WUG C, MASIAB, JARABOA, et al. Light field image processing: An overview[J]. IEEE Journal of Selected Topics in Signal Processing, 2017, 11(7): 926-954.
41	GERSHUNA. The light field[J]. Journal of Mathematics and Physics, 1939, 18(1/2/3/4): 51-151.
42	ADELSONE H, BERGENJ R. The plenoptic function and the elements of early vision[J]. Computational Models of Visual Processing, 1991, 3-20.
43	LEVOYM, HANRAHANP. Light field rendering[C]//Proceedings of the 23rd annual conference on Computer graphics and interactive techniques-SIGGRAPH'96. New York: ACM Press, 1996: 31-42.
44	JOHANNSENO, HONAUERK, GOLDLUECKEB, et al. A taxonomy and evaluation of dense light field depth estimation algorithms[C]//2017 IEEE Conference on Computer Vision and Pattern Recognition Workshops. Honolulu, HI, USA: IEEE, 2017: 1795-1812.
45	YANGJ C, EVERETTM, BUEHLERC, et al. A real-time distributed light field camera[J]. Rendering Techniques, 2002, 2002: 77-86.
46	WILBURNB S, SMULSKIM, LEEH H K, et al. Light field video camera[C]//Proceedings of Media Processors 2002. San Jose: SPIE, 2001, 4674: 29-36.
47	WILBURNB, JOSHIN, VAISHV, et al. High performance imaging using large camera arrays[J]. ACM Transactions on Graphics, 2005, 24(3): 765-776.
48	ZHANGC, CHENT. A self-reconfigurable camera array[C]//SIGGRAPH'04: ACM SIGGRAPH 2004 Sketches. New York: ACM Press, 2004: 151.
49	LINX, WUJ M, ZHENGG A, et al. Camera array based light field microscopy[J]. Biomedical Optics Express, 2015, 6(9): 3179-3189.
50	VAISHV, ADAMSA. Stanford(New) light field archive[EB/OL].[2022]. .
51	KIMC, ZIMMERH, PRITCHY, et al. Scene reconstruction from high spatio-angular resolution light fields[J]. ACM Transactions on Graphics, 2013, 32(4): 1-12.
52	LIANGC K, LINT H, WONGB Y, et al. Programmable aperture photography[J]. ACM Transactions on Graphics, 2008, 27(3): 1-10.
53	VEERARAGHAVANA, RASKARR, AGRAWALA, et al. Dappled photography: Mask enhanced cameras for heterodyned light fields and coded aperture refocusing[J]. ACM Transactions on Graphics, 2007, 26(3): 69.
54	MARWAHK, WETZSTEING, BANDOY, et al. Compressive light field photography using overcomplete dictionaries and optimized projections[J]. ACM Transactions on Graphics, 2013, 32(4): 46(1-12.
55	ADELSONE H, WANGJ Y A. Single lens stereo with a plenoptic camera[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 1992, 14(2): 99-106.
56	DUANH X, MEIL, WANGJ, et al. A new imaging model of Lytro light field camera and its calibration[J]. Neurocomputing, 2019, 328: 189-194.
57	LUMSDAINEA, GEORGIEVT. The focused plenoptic camera[C]//2009 IEEE International Conference on Computational Photography. San Francisco: IEEE, 2009: 1-8.
58	LEVOYM, NG R, ADAMSA, et al. Light field microscopy[J]. ACM Transactions on Graphics, 2006, 25(3): 924-934.
59	SHEHZADK, XUY. Graphene light-field camera[J]. Nature Photonics, 2020, 14(3): 134-136.
60	PLESSR. Using many cameras as one[C]//2003 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. WI, USA: IEEE, 2003: II-587.
61	DANSEREAUD G, PIZARROO, WILLIAMSS B. Decoding, calibration and rectification for lenselet-based plenoptic cameras[C]//2013 IEEE Conference on Computer Vision and Pattern Recognition. Portland, Oregon, USA: IEEE, 2013: 1027-1034.
62	BOK Y, JEONH G, KWEONI S. Geometric calibration of micro-lens-based light field cameras using line features[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39(2): 287-300.
63	ZHANGQ, ZHANGC P, LINGJ B, et al. A generic multi-projection-center model and calibration method for light field cameras[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2019, 41(11): 2539-2552.
64	JIY, WUJ. Calibration method of light-field camera for photogrammetry application[J]. Measurement, 2019, 148: 106943.
65	PERTUZS, PULIDO-HERRERAE, KAMARAINENJ K. Focus model for metric depth estimation in standard plenoptic cameras[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2018, 144: 38-47.
66	ZHOUP, YANGZ, CAIW J, et al. Light field calibration and 3D shape measurement based on epipolar-space[J]. Optics Express, 2019, 27(7): 10171-10184.
67	LIUQ S, XIEX F, ZHANGX Z, et al. Stepwise calibration of plenoptic cameras based on corner features of raw images[J]. Applied Optics, 2020, 59(14): 4209-4219.
68	刘青松, 谢晓方, 张烜喆, 等. 用于聚焦型光场相机标定的棋盘角点检测算法[J]. 光学学报, 2020, 40(14): 153-160.
	LIUQing-song, XIEXiao-fang, ZHANGXuan-zhe, et al. Checkboard corner detection algorithm for calibration of focused plenoptic camera[J]. Acta Optica Sinica, 2020, 40(14): 153-160. (in Chinese)
69	LIUY X, MOF, ALEKSANDROVM, et al. Accurate calibration of standard plenoptic cameras using corner features from raw images[J]. Optics Express, 2021, 29(1): 158-169.
70	NOUSIASS, CHADEBECQF, PICHATJ, et al. Corner-based geometric calibration of multi-focus plenoptic cameras[C]//2017 IEEE International Conference on Computer Vision. Venice, Italy: IEEE, 2017: 957-965.
71	YUJ Y, MCMILLANL, GORTLERS. Scam light field rendering[C]//10th Pacific Conference on Computer Graphics and Applications. Beijing, China: IEEE, 2002: 137-144.
72	BOLLESR C, BAKERH H, MARIMONTD H. Epipolar-plane image analysis: An approach to determining structure from motion[J]. International Journal of Computer Vision, 1987, 1(1): 7-55.
73	HEBERS, RANFTLR, POCKT. Variational shape from light field[C]//Energy Minimization Methods in Computer Vision and Pattern Recognition. Berlin: Springer, 2013: 66-79.
74	YUZ, GUOX Q, LINGH B, et al. Line assisted light field triangulation and stereo matching[C]//2013 IEEE International Conference on Computer Vision. Sydney: IEEE, 2013: 2792-2799.
75	JEONH G, PARKJ, CHOEG, et al. Accurate depth map estimation from a lenslet light field camera[C]//2015 IEEE Conference on Computer Vision and Pattern Recognition. Boston: IEEE, 2015: 1547-1555.
76	TAOM W, HADAPS, MALIKJ, et al. Depth from combining defocus and correspondence using light-field cameras[C]//2013 IEEE International Conference on Computer Vision. Sydney: IEEE, 2013: 673-680.
77	TAOM W, SRINIVASANP P, MALIKJ, et al. Depth from shading, defocus, and correspondence using light-field angular coherence[C]//2015 IEEE Conference on Computer Vision and Pattern Recognition. Boston: IEEE, 2015: 1940-1948.
78	WANGT C, EFROSA A, RAMAMOORTHIR. Depth estimation with occlusion modeling using light-field cameras[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2016, 38(11): 2170-2181.
79	WANGT C, EFROSA A, RAMAMOORTHIR. Occlusion-aware depth estimation using light-field cameras[C]//2015 IEEE International Conference on Computer Vision. Santiago, Chile: IEEE, 2015: 3487-3495.
80	CHENC, LINH T, YUZ, et al. Light field stereo matching using bilateral statistics of surface cameras[C]//2014 IEEE Conference on Computer Vision and Pattern Recognition. Columbus, Ohio, USA: IEEE, 2014: 1518-1525.
81	WILLIEMW, PARKI K. Robust light field depth estimation for noisy scene with occlusion[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 4396-4404.
82	WANNERS, GOLDLUECKEB. Variational light field analysis for disparity estimation and super-resolution[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2014, 36(3): 606-619.
83	LIJ Q, LUM L, LIZ N. Continuous depth map reconstruction from light fields[J]. IEEE Transactions on Image Processing, 2015, 24(11): 3257-3265.
84	ZHANGY B, LVH J, LIUY B, et al. Light-field depth estimation via epipolar plane image analysis and locally linear embedding[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2017, 27(4): 739-747.
85	SUZUKIT, TAKAHASHIK, FUJIIT. Sheared EPI analysis for disparity estimation from light fields[J]. IEICE Transactions on Information and Systems, 2017, E100.D(9): 1984-1993.
86	ZHANGS, SHENGH, LIC, et al. Robust depth estimation for light field via spinning parallelogram operator[J]. Computer Vision and Image Understanding, 2016, 145: 148-159.
87	SHENGH, ZHAOP, ZHANGS, et al. Occlusion-aware depth estimation for light field using multi-orientation EPIs[J]. Pattern Recognition, 2018, 74: 587-599.
88	SCHILLINGH, DIEBOLDM, ROTHERC, et al. Trust your model: Light field depth estimation with inline occlusion handling[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City, UT, USA: IEEE, 2018: 4530-4538.
89	SHINC, JEONH G, YOONY, et al. EPINET: A fully-convolutional neural network using epipolar geometry for depth from light field images[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City, USA: IEEE, 2018: 4748-4757.
90	TSAIY J, LIUY L, OUHYOUNGM, et al. Attention-based view selection networks for light-field disparity estimation[C]//Proceedings of the AAAI Conference on Artificial Intelligence. New York: AAAI Press, 2020, 34(7): 12095-12103.
91	ZHOUW H, LIANGL K, ZHANGH, et al. Scale and orientation aware EPI-patch learning for light field depth estimation[C]//2018 24th International Conference on Pattern Recognition(ICPR). Beijing: IEEE, 2018: 2362-2367.
92	WANGX C, TAOC N, WUR M, et al. Light-field-depth-estimation network based on epipolar geometry and image segmentation[J]. Journal of the Optical Society of America. A, 2020, 37(7): 1236-1243.
93	WANNERS, MEISTERS, GOLDLUECKEB. Datasets and benchmarks for densely sampled 4D light fields[C]//Proceedings of 18th VMV. Lugano, Switzerland: Università della Svizzera italiana(USI), 2013, 13: 225-226.
94	RERABEKM, EBRAHIMIT. New light field image dataset[C]//Proceedings of the 8th International Conference on Quality of Multimedia Experience(QoMEX). Lisbon, Portugal: IEEE, 2016: 1-2.
95	DANSEREAUD G, GIRODB, WETZSTEING. LiFF: Light field features in scale and depth[C]//2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition(CVPR). Long Beach: IEEE, 2019: 8034-8043.
96	WETZSTEING. The MIT Synthetic Light Field Archive[EB/OL]. [2022-02-22]. .
97	HONAUERK, JOHANNSENO, KONDERMANND, et al. A dataset and evaluation methodology for depth estimation on 4D light fields[C]//Computer Vision-ACCV 2016. Taipei: Springer, Cham, 2017: 19-34.
98	PAUDYALP, OLSSONR, SJÖSTRÖMM, et al. SMART: A light field image quality dataset[C]//MMSys'16: Proceedings of the 7th International Conference on Multimedia Systems. Klagenfurt, Austria: ACM Press, 2016: 1-6.
99	HAZIRBASC, SOYERS G, STAABM C, et al. Deep depth from focus[C]//Proceedings of 2018 Asian Conference on Computer Vision.Perth, Australia: Springer, Cham, 2018: 525-541.
100	ZELLERN, QUINTF, STILLAU. A synchronized stereo and plenoptic visual odometry dataset[DB/OL]. [2018]. .
101	INRIA. Light field software & datasets[DS/OL]. [2022-02-22]. .
102	AHMADW, PALMIERIL, KOCHR, et al. Matching light field datasets from plenoptic cameras 1.0 and 2.0[C]//2018-3DTV-Conference: The True Vision-Capture, Transmission and Display of 3D Video(3DTV-CON). Helsinki, Finland: IEEE, 2018: 1-4.
103	HAHNEC, AGGOUNA, VELISAVLJEVICV, et al. Refocusing distance of a standard plenoptic camera[J]. Optics Express, 2016, 24(19): 21521-21540.

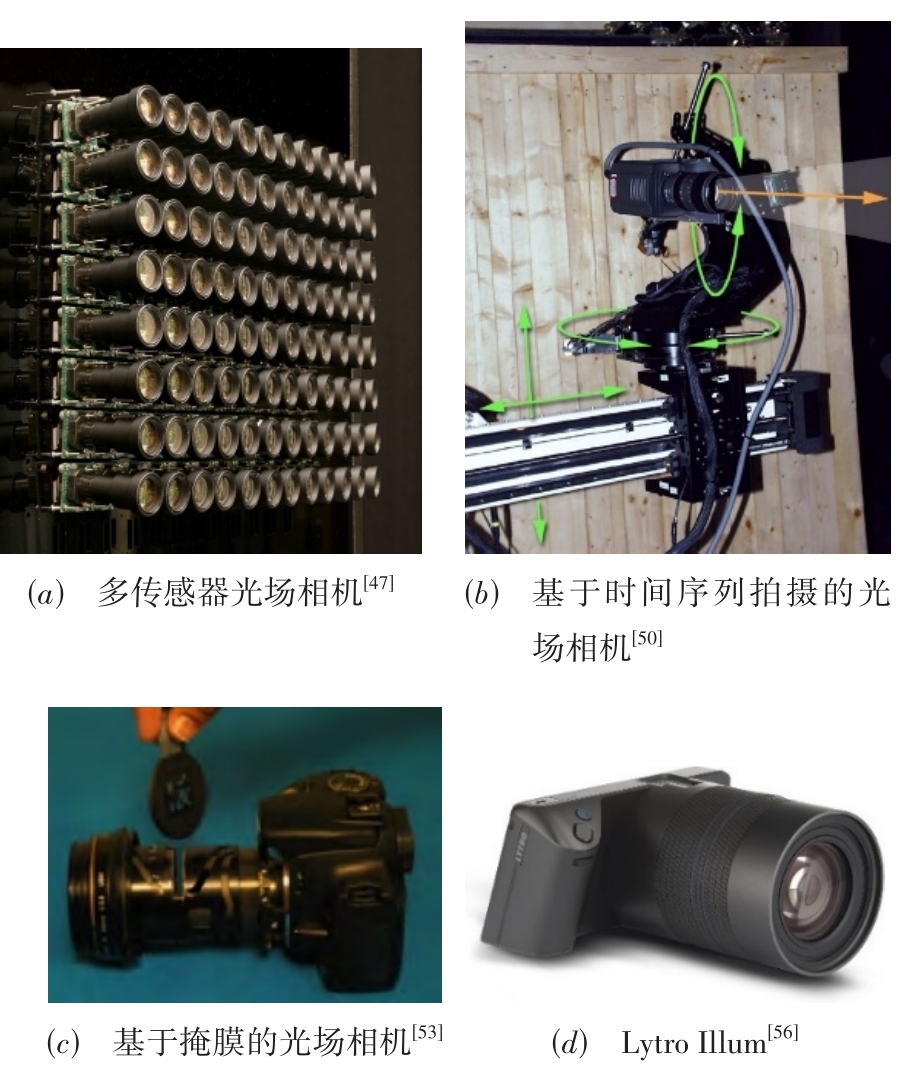

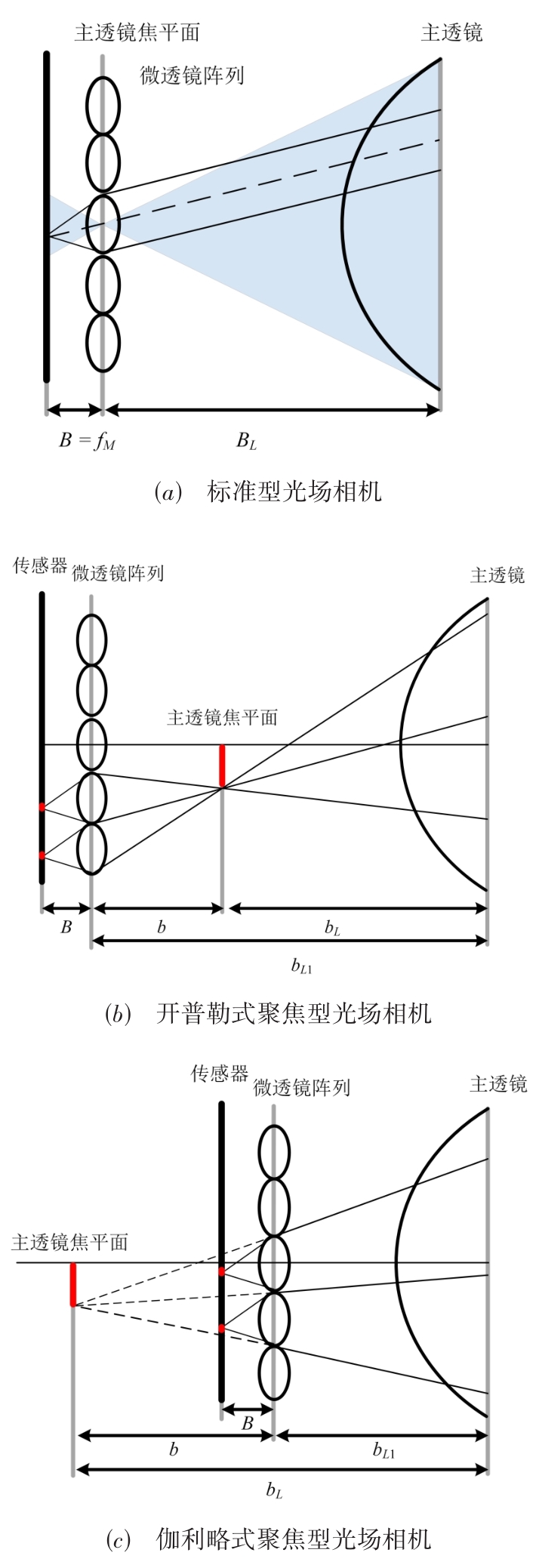

光场相机类别	方法	时间	实现	分辨率	拍照速度
多传感器	文献[45]	2002	8×8 camera array	320×240×8×8	15~20 fps
	文献[48]	2004	6×8 camera array	320×240×6×8	15~20 fps
	文献[47]	2005	10×10 camera array	640×480×10×10	30 fps
	文献[29]	2013	4×4 camera array	1 000×750×4×4	25 fps
	文献[49]	2015	5×5 camera array	1 024×768×5×5	30 fps
时序	文献[50]	2002	Gantry	1 300×1 030×62×56	‒
	文献[51]	2013	Linear stage	5 616×3 744×100	‒
	文献[52]	2008	Programmable aperture	3 039×2 014×5×5	0.5 s
掩膜	文献[53]	2007	Attenuation mask	228×181×9×9	‒
掩膜	文献[54]	2013	Attenuation mask	480×270×5×5	‒
微透镜阵列	文献[26]	2005	MLA	292×292×14×14	16 ms
	文献[56]	2014	MLA	625×434×15×15	1/(4 000) s
	文献[58]	2006	MLA	120×120×17×17	1/15 s
	文献[28]	‒	Multi-Focus MLA	Depends on type	‒

光场相机类别	方法	时间	实现	分辨率	拍照速度
多传感器	文献[45]	2002	8×8 camera array	320×240×8×8	15~20 fps
	文献[48]	2004	6×8 camera array	320×240×6×8	15~20 fps
	文献[47]	2005	10×10 camera array	640×480×10×10	30 fps
	文献[29]	2013	4×4 camera array	1 000×750×4×4	25 fps
	文献[49]	2015	5×5 camera array	1 024×768×5×5	30 fps
时序	文献[50]	2002	Gantry	1 300×1 030×62×56	‒
	文献[51]	2013	Linear stage	5 616×3 744×100	‒
	文献[52]	2008	Programmable aperture	3 039×2 014×5×5	0.5 s
掩膜	文献[53]	2007	Attenuation mask	228×181×9×9	‒
掩膜	文献[54]	2013	Attenuation mask	480×270×5×5	‒
微透镜阵列	文献[26]	2005	MLA	292×292×14×14	16 ms
	文献[56]	2014	MLA	625×434×15×15	1/(4 000) s
	文献[58]	2006	MLA	120×120×17×17	1/15 s
	文献[28]	‒	Multi-Focus MLA	Depends on type	‒

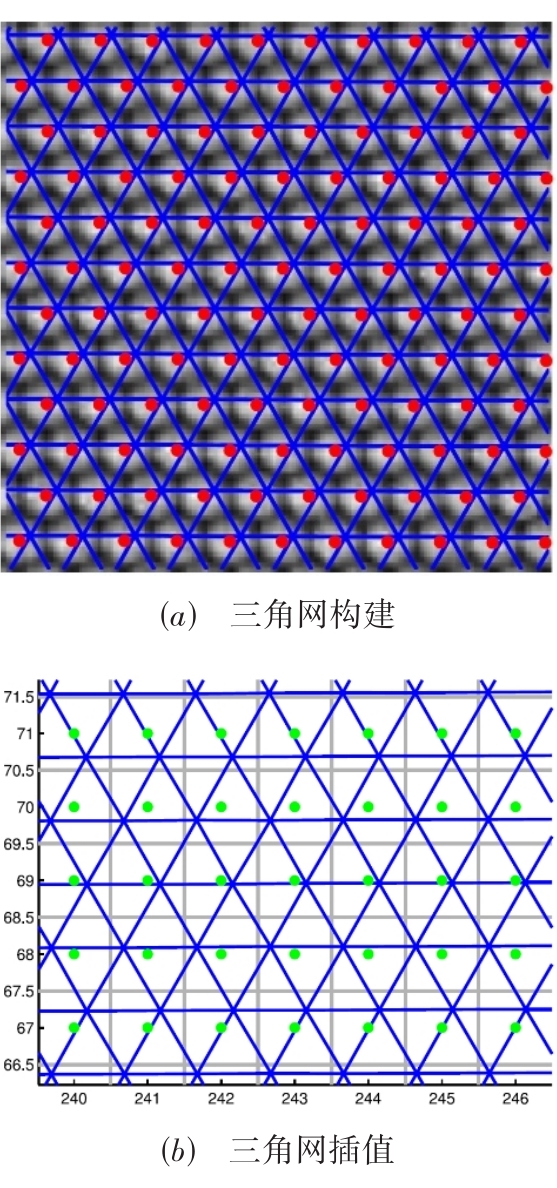

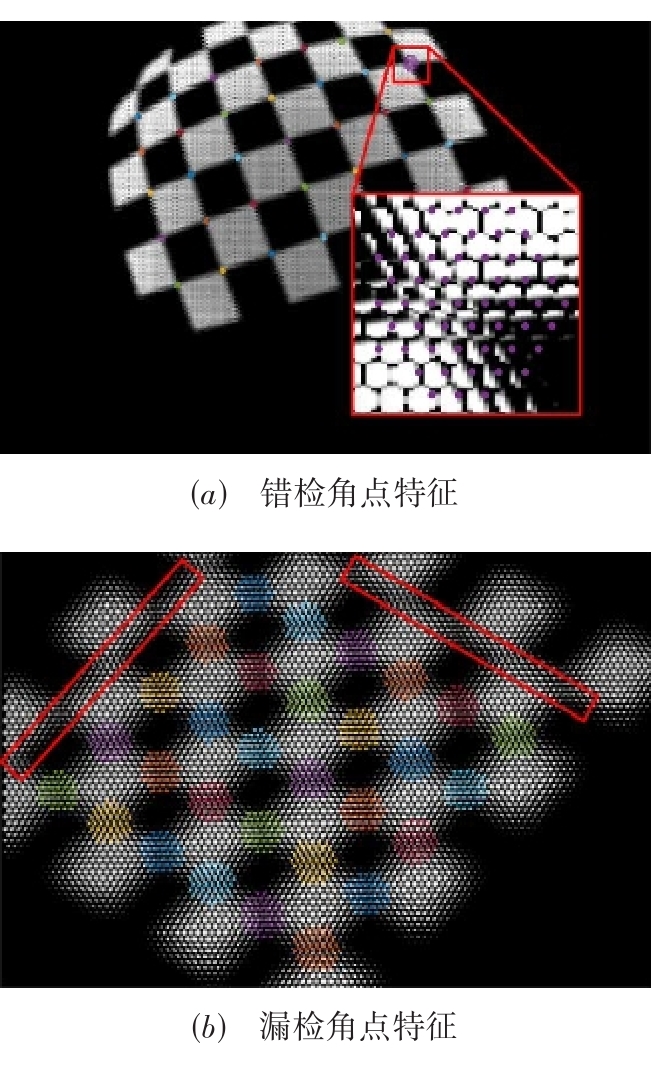

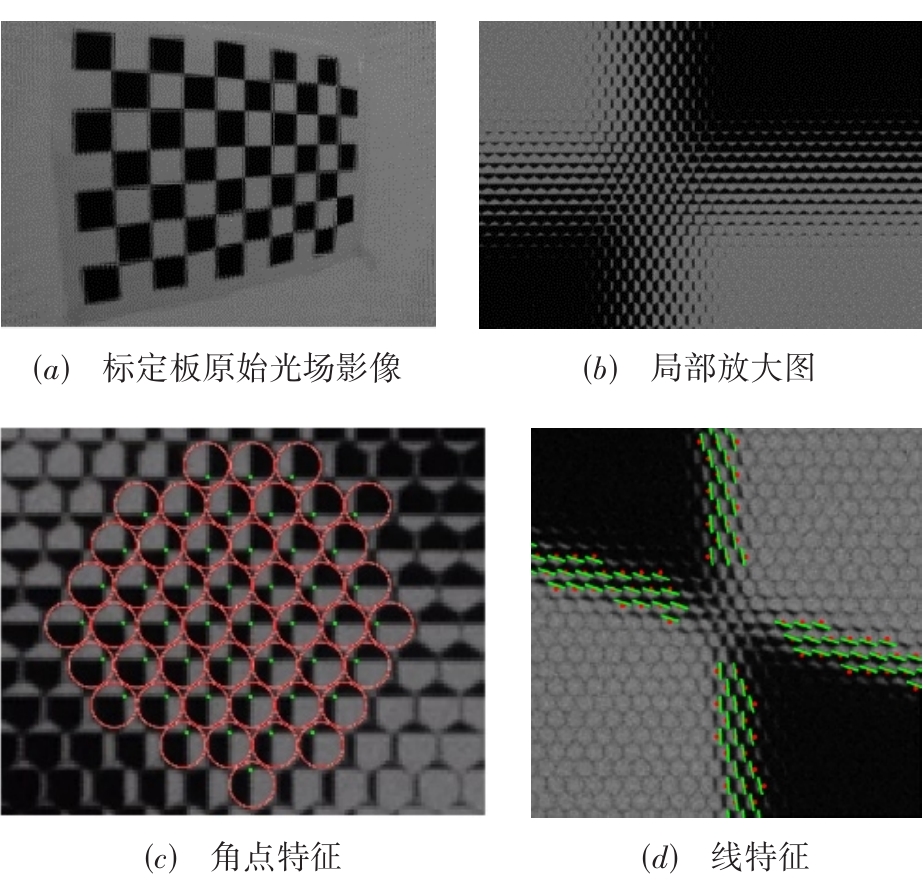

数据集/ 网格大小(毫米)	评价标准	先解码后标定的方法		基于原始光场影像的标定方法
数据集/ 网格大小(毫米)	评价标准	DPW^[61]	MPC^[63]	BJW^[62]	SCC^[67]	LFC^[69]
A/3.61	PE(像素)	0.228(18)	0.220(18)	0.730(5)	‒	0.713(5)
A/3.61	R-PE(毫米)	0.082(18)	0.081(18)	0.218(5)	‒	0.214(5)
B/3.61	PE(像素)	0.158(18)	0.157(18)	0.483(9)	0.346(9)	0.464(9)
B/3.61	R-PE(毫米)	0.059(18)	0.057(18)	0.147(9)	0.097(9)	0.142(9)
C/7.22	PE(像素)	0.195(18)	0.175(18)	‒	‒	‒
C/7.22	R-PE(毫米)	0.130(18)	0.112(18)	‒	‒	‒
D/7.22	PE(像素)	0.167(18)	0.148(18)	‒	‒	‒
D/7.22	R-PE(毫米)	0.115(18)	0.105(18)	‒	‒	‒
E/35.1	PE(像素)	0.336(18)	0.273(18)	0.284(15)	0.686(15)	0.224(15)
E/35.1	R-PE(毫米)	0.384(18)	0.539(18)	0.558(15)	0.994(15)	0.348(15)

数据集/ 网格大小(毫米)	评价标准	先解码后标定的方法		基于原始光场影像的标定方法
数据集/ 网格大小(毫米)	评价标准	DPW^[61]	MPC^[63]	BJW^[62]	SCC^[67]	LFC^[69]
A/3.61	PE(像素)	0.228(18)	0.220(18)	0.730(5)	‒	0.713(5)
A/3.61	R-PE(毫米)	0.082(18)	0.081(18)	0.218(5)	‒	0.214(5)
B/3.61	PE(像素)	0.158(18)	0.157(18)	0.483(9)	0.346(9)	0.464(9)
B/3.61	R-PE(毫米)	0.059(18)	0.057(18)	0.147(9)	0.097(9)	0.142(9)
C/7.22	PE(像素)	0.195(18)	0.175(18)	‒	‒	‒
C/7.22	R-PE(毫米)	0.130(18)	0.112(18)	‒	‒	‒
D/7.22	PE(像素)	0.167(18)	0.148(18)	‒	‒	‒
D/7.22	R-PE(毫米)	0.115(18)	0.105(18)	‒	‒	‒
E/35.1	PE(像素)	0.336(18)	0.273(18)	0.284(15)	0.686(15)	0.224(15)
E/35.1	R-PE(毫米)	0.384(18)	0.539(18)	0.558(15)	0.994(15)	0.348(15)

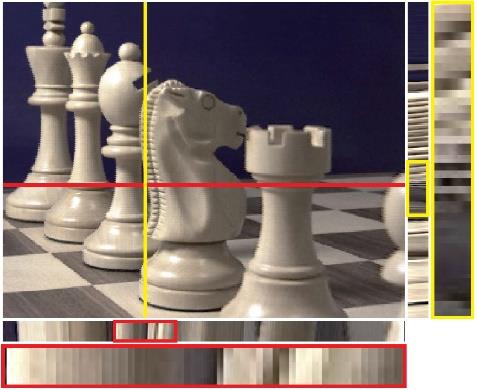

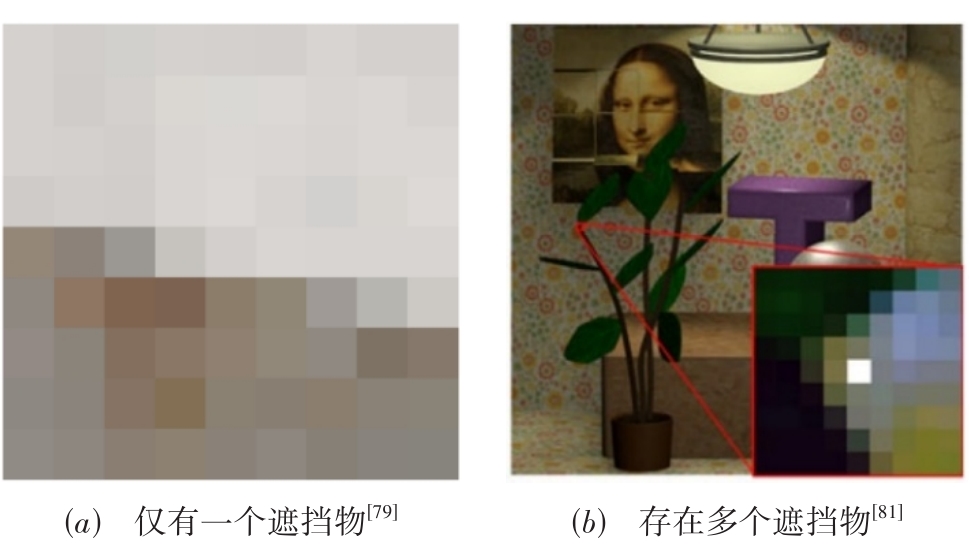

光场数据	类别	MVP^[75]		OV^[78]		CAE^[31]		SPO^[86]
光场数据	类别	RMSE	RMSE_OCC	RMSE	RMSE_OCC	RMSE	RMSE_OCC	RMSE	RMSE_OCC
Buddha	Local	4.388	12.135	0.769	7.412	0.434	7.323	3.947	11.647
Buddha	Optimized	1.147	12.380	0.990	13.238	0.628	11.626	0.386	8.398
Mona	Local	7.211	21.873	1.257	8.365	1.113	9.591	5.077	13.701
Mona	Optimized	1.019	11.676	0.992	6.457	0.749	11.441	0.762	8.946
Stilllife	Local	0.676	2.661	0.430	2.088	0.147	1.741	2.690	2.531
Stilllife	Optimized	0.533	2.249	0.403	1.947	0.124	1.782	0.135	1.566
Papillon	Local	4.301	12.173	0.846	4.517	0.540	4.878	2.250	6.987
Papillon	Optimized	2.086	8.539	0.288	2.977	0.216	3.982	0.205	2.793
平均值	Local	4.144	12.211	0.826	5.596	0.559	5.883	3.491	8.717
平均值	Optimized	1.196	8.711	0.675	6.155	0.429	7.208	0.372	5.426

光场相机三维重建研究进展与展望

Progress and Prospect of 3D Reconstruction Based on Light Field Cameras

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 17

参考文献 103

相关文章 12

编辑推荐

Metrics

数据集	获取方式	发布机构	时间
The new Stanford LF archive^[50]	Multi-Camera Array; Lego gantry; Light field miroscope	Stanford University	2008,2016,2019
The Stanford Lytro LF archive^[50]	Lytro Illum
The Stanford Multiview LF^[95]	Multi-view LF captured by Lytro Illum
MIT LF archive^[96]	Synthetic	Massachusetts Institute of Technology	2011,2012,2013
4D LF dataset^[93,97]	Synthetic	Heidelberg University	2013,2016
EPFL LF dataset^[99]	Lytro Illum	École Polytechnique Fédérale de Lausanne	2016
SMART Dataset^[100]	Lytro Illum	University of Rome	2016
Disney LFs^[51]	A DSLR camera on a motorized linear stage	Disney	2013
UCB LF^[79]	Synthetic Lytro Illum	University of California,Berkeley(UCB)	2015
DDFT^[99]	Lytro Illum	Technische Universität München(TUM)	2018
LF and Stereo^[100]	Raytrix R5 Stereo camera	Technische Universität München(TUM)	2018
INRIA LF dataset^[101]	Lytro Lytro Illum Raytrix R8 Synthetic	Institut national de recherche en informatique et en automatique(INRIA)	2015, 2018, 2018, 2019
MLRD^[102]	Lytro Illum Raytrix R29	Mid Sweden University	2018
CPCD^[103]	Custom-built	University of Bedfordshire	2016

用途	方法	发布机构	时间
光场相机标定	文献[61]	University of Sydney	2013
	文献[62]	Korea Advanced Institute of Science and Technology(KAIST)	2017
	文献[63]	西北工业大学上海科技大学	2019
	文献[70]	University College London	2017
	文献[67]	海军航空大学	2020
光场影像三维深度恢复	文献[80]	University of Delaware; Microsoft Reserach	2014
	文献[75]	KAIST	2015
	文献[79]	UCB University of California,San Diego(UCSD)	2015
	文献[31]	Bina Nusantara University Inha University Seoul National University	2018
	文献[86]	北京航空航天大学 University of Wisconsin-Milwaukee	2016
	文献[89]	Yonsei University KAIST	2018
	文献[90]	台湾大学	2020
	文献[90]	MediaTek	2020

[1]	李燕, 严永财. 基于同心圆阵列的结构光主动视觉系统标定算法[J]. 电子学报, 2021, 49(3): 536-541.
[2]	张成, 汪东, 沈川, 王美琴, 陈倩文, 韦穗. 部分遮挡三维彩色物体的压缩全息[J]. 电子学报, 2019, 47(1): 33-39.
[3]	陈宝华, 邓磊, 陈志祥, 段岳圻, 周杰. 基于即时稠密三维重构的无人机视觉定位[J]. 电子学报, 2017, 45(6): 1294-1300.
[4]	邓磊, 陈宝华, 黄思远, 段岳圻, 周杰. 一种基于射线模型的图像定位系统[J]. 电子学报, 2017, 45(1): 1-7.
[5]	张聪炫, 陈震, 黎明. 单目图像序列光流三维重建技术研究综述[J]. 电子学报, 2016, 44(12): 3044-3052.
[6]	袁红星, 吴少群, 朱仁祥, 安鹏. 加权SIFT流深度迁移的单幅图像2D转3D[J]. 电子学报, 2015, 43(2): 242-247.
[7]	张慧滔;于平;胡修炎;张朋. 利用GPU实现单层螺旋CT的三维图像重建[J]. 电子学报, 2011, 39(1): 76-81.
[8]	署光;姚莉秀;杨晓超;左昕;杨杰. 基于稀疏形变模型的三维卡通人脸生成[J]. 电子学报, 2010, 38(8): 1798-1802.
[9]	侯文广, 陈大为, 丁明跃. 一种基于多重影像实现真实感人脸三维重建的方法[J]. 电子学报, 2008, 36(4): 661-666.
[10]	邱兆文;张田文. 文物三维重建关键技术[J]. 电子学报, 2008, 36(12): 2423-2427.
[11]	洪伟, 牟轩沁, 蔡元龙. 基于多分辨投影匹配和对应点分析的三维血管轴重建[J]. 电子学报, 2005, 33(10): 1901-1904.
[12]	俞恒永;牟轩沁;汤少杰;蔡元龙. 基于先验信息的二值血管锥束迭代重建[J]. 电子学报, 2004, 32(4): 575-579.
