Mobile_BLNet：基于Big-Little Net的轻量级卷积神经网络优化设计

doi:10.12263/DZXB.20211671

电子学报 ›› 2023, Vol. 51 ›› Issue (1): 180-191.DOI: 10.12263/DZXB.20211671

Mobile_BLNet：基于Big-Little Net的轻量级卷积神经网络优化设计

袁海英, 成君鹏, 曾智勇, 武延瑞

北京工业大学信息学部，北京 100124

收稿日期:2021-12-18 修回日期:2022-03-07 出版日期:2023-01-25
- 作者简介:
- 袁海英女，1976年出生于四川阆中.北京工业大学信息学部副教授.主要研究方向为面向人工智能应用的高能效计算芯片系统、面向信号检测与信息处理的嵌入式系统、电子系统容错与通信总线技术.E-mail: yhycn@126.com
  成君鹏男，1995年出生于江苏盐城.北京工业大学信息学部硕士研究生.主要研究方向为轻量级卷积神经网络建模技术.E-mail: chengjp@emails.bjut.edu.cn
  曾智勇男，1997年出生于北京.北京工业大学信息学部硕士研究生.主要研究方向为基于FPGA的卷积神经网络加速器架构设计.E-mail: m_x_zy@126.com
  武延瑞男，1996年出生于河北衡水.北京工业大学信息学部硕士研究生.主要研究方向为医学影像智能处理技术.E-mail: 15226525376@163.com
- 基金资助:
- 国家自然科学基金 (61001049); 北京市自然科学基金 (4172010)

Mobile_BLNet: Optimization Design of Lightweight Convolutional Neural Network Based on Big-Little Net

YUAN Hai-ying, CHENG Jun-peng, ZENG Zhi-yong, WU Yan-rui

Faculty of Information Technology, Beijing University of Technology, Beijing 100124, China

Received:2021-12-18 Revised:2022-03-07 Online:2023-01-25 Published:2023-02-23
- Supported by:
- National Natural Science Foundation of China (61001049); Beijing Municipal Natural Science Foundation (4172010)

摘要/Abstract

摘要：

针对深度卷积神经网络难以部署到资源受限的端侧设备这一问题，本文提出一种高效精简的轻量化卷积神经网络Mobile_BLNet，在模型规模、计算量和性能之间取得了良好的平衡.该网络引入深度可分离卷积和倒残差结构，通过合理分配不同分支的运算量缩减模型规模并节省大量计算资源；采用通道剪枝操作压缩网络模型，基于占总和比值方法裁剪对模型贡献度低的卷积通道，在相同压缩效果情况下提升了分类准确率；基于通道裁剪情况重构网络，进一步降低模型所需计算资源.实验结果表明，Mobile_BLNet结构精简、性能优异，在CIFAR-10/CIFAR-100数据集上以0.1 M/0.3 M参数量、9.6 M/12.7 M浮点计算量获得91.2%/71.5%分类准确率；在Food101/ImageNet数据集上以1.0 M/2.1 M参数量、203.0 M/249.6 M浮点计算量获得82.8%/70.9%分类准确率，满足轻量化卷积神经网络的端侧硬件高能效部署需求.

关键词: 轻量化设计, 卷积神经网络, 模型重构, 剪枝操作, 深度学习

Abstract:

Since it is difficult for deep convolutional neural network to be deployed to terminal equipment with limited resources, this paper proposes an efficient, compact, and lightweight network Mobile_BLNet, which achieves a good balance between model size, computation, and performance. The network uses depthwise separable convolution and inverse residual structure, reduces the scale of the model and saves a lot of computing resources by reasonably allocating the amount of computation of different branches. The total ratio method is used to prune the convolution channel with low contribution, which has excellent performance under the same compression effect. Model reconstruction is based on the clipping, which further reduces the computational resources. The experimental results show that Mobile_BLNet has excellent performance. On CIFAR-10/CIFAR-100 dataset, 91.2%/71.5% accuracy is obtained with 0.1 M/0.3 M parameters and 9.6 M/12.7 M floating point operations. On Food101/ImageNet dataset, 82.8%/70.9% accuracy is obtained with 1.0 M/2.1 M parameters and 203.0 M/249.6 M floating point operations. The network meets the requirements of energy-efficient and lightweight hardware deployment.

Key words: lightweight design, convolutional neural network, model reconstruction, pruning operation, deep learning

中图分类号:

TP391

袁海英, 成君鹏, 曾智勇, 等. Mobile_BLNet：基于Big-Little Net的轻量级卷积神经网络优化设计[J]. 电子学报, 2023, 51(1): 180-191.

Hai-ying YUAN, Jun-peng CHENG, Zhi-yong ZENG, et al. Mobile_BLNet: Optimization Design of Lightweight Convolutional Neural Network Based on Big-Little Net[J]. Acta Electronica Sinica, 2023, 51(1): 180-191.

图/表 20

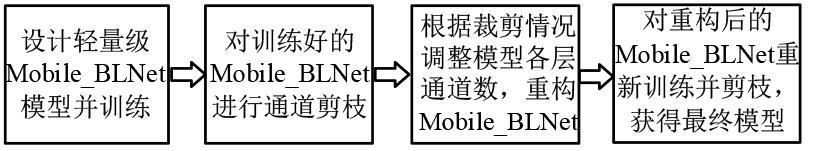

图1 本文轻量级卷积神经网络设计流程

表1 CNN模型复杂度对比

模型类别	模型名称	参数量	浮点计算量
传统CNN模型	VGG16	138.4 M	15.5 G
	ResNet50	25.6 M	3.8 G
	DenseNet121^[14]	8.0 M	2.9 G
轻量级CNN模型	MobileNet V2	3.4 M	300 M
	ShuffleNet V2(2×)	7.4 M	591 M
	EfficientNet b0	5.3 M	399.3 M
本文网络	Mobile_BLNet	2.1 M	249.6 M

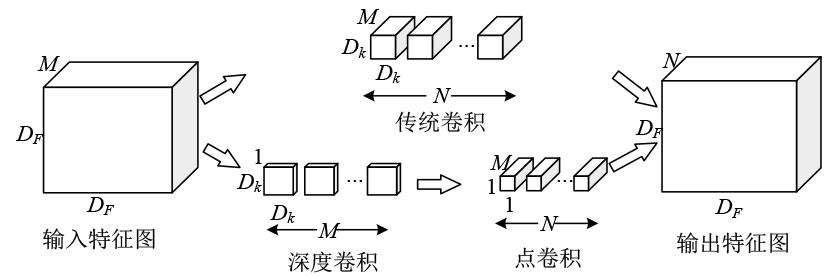

图2 传统卷积与深度可分离卷积对比

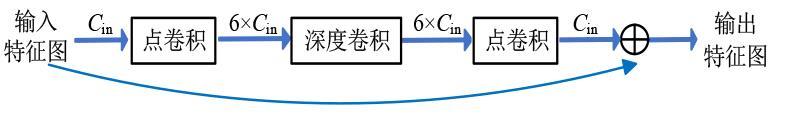

图3 倒残差结构

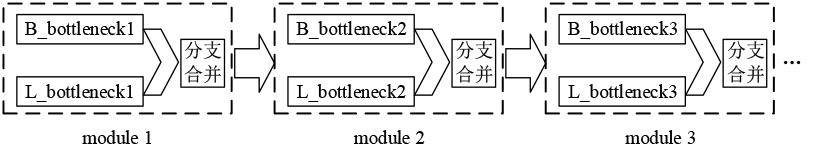

图4 Mobile_BLNet网络模型

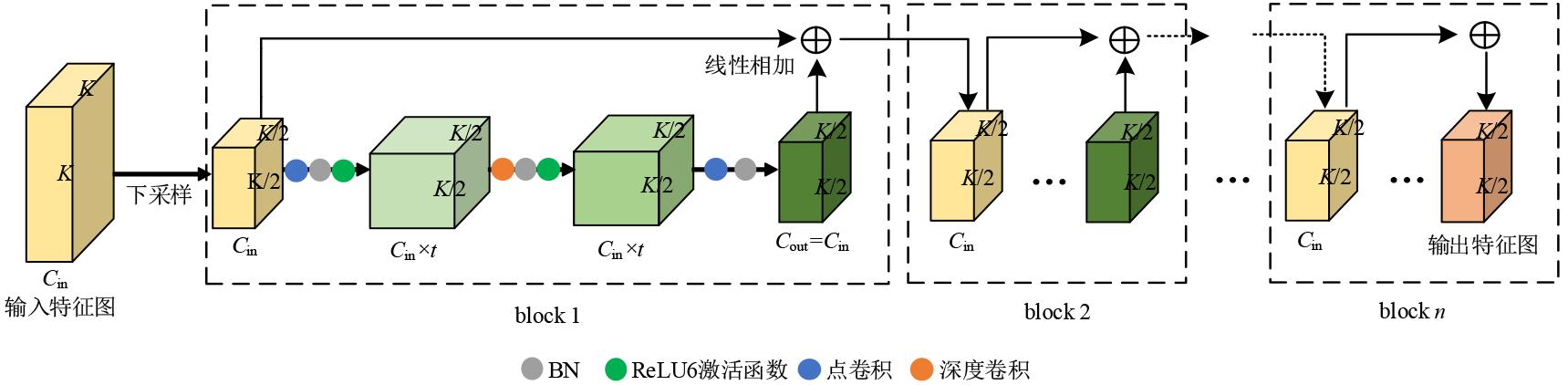

图5 B_bottleneck结构图

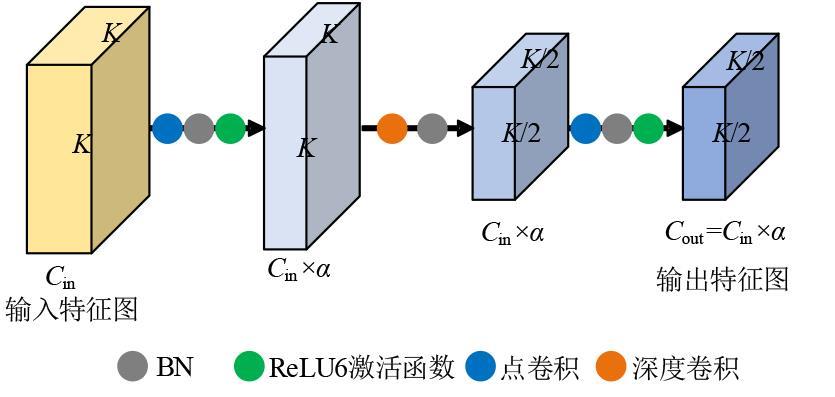

图6 L_bottleneck结构图

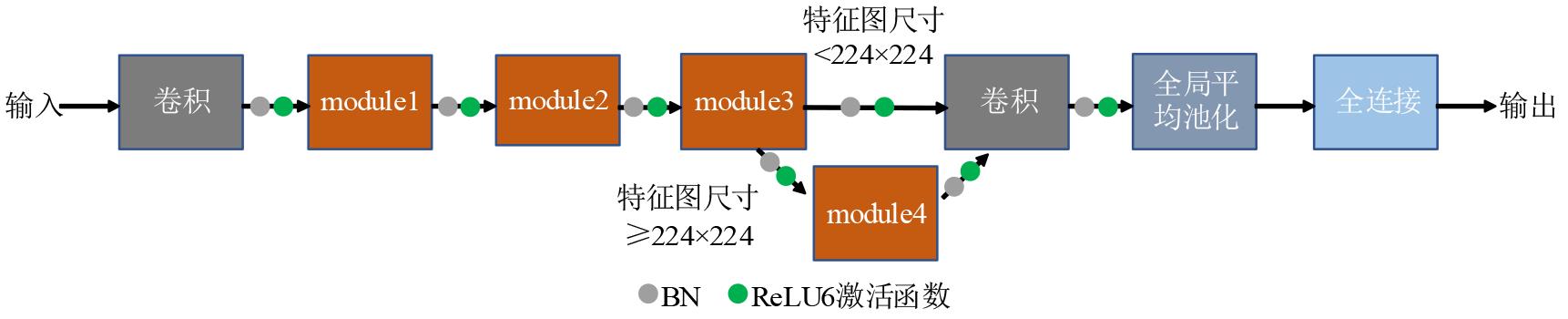

图7 Mobile_BLNet总体结构

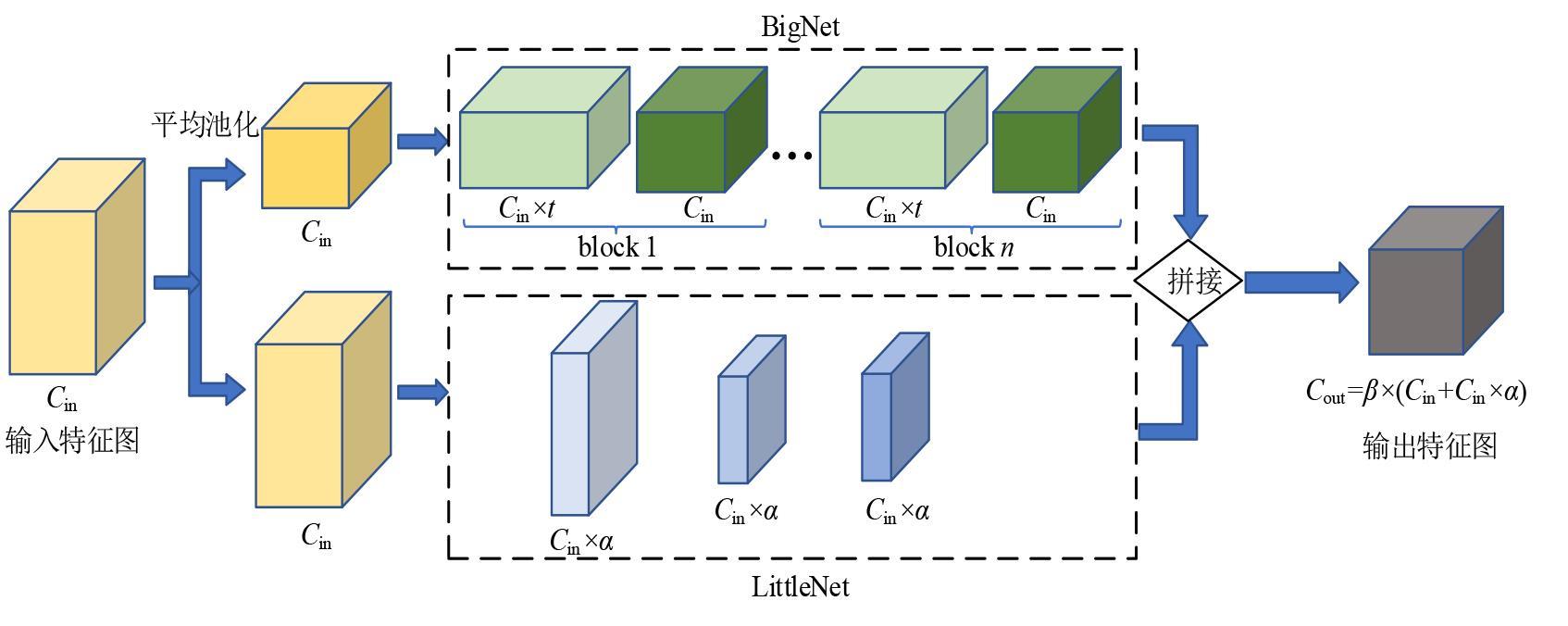

图8 Mobile_BLNet中单个module结构

表2 Mobile_BLNet结构

结构	操作
卷积1	3×3卷积,步长=1,输出尺寸32×32×32
Module1	B_bottleneck1 (t=6, n=3) 输出尺寸16×16×32	L_bottleneck1 输出尺寸16×16×(32×α)
Module1	拼接并点卷积,输出通道数 $k$ 1=β×(32+32×α)
Module2	B_bottleneck2 (t=4, n=4) 输出尺寸8×8× $k$ 1	L_bottleneck2 输出尺寸8×8×( $k$ 1×α)
Module2	拼接并点卷积,输出通道数 $k$ 2=β×( $k$ 1+ $k$ 1×α)
Module3	B_bottleneck3 (t=2, n=1) 输出尺寸4×4× $k$ 2	L_bottleneck3 输出尺寸4×4×( $k$ 2×α)
Module3	拼接并点卷积,输出通道数 $k$ 3=β×( $k$ 2+ $k$ 2×α)
卷积2	点卷积,输出通道数=512
池化	4×4平均池化
全连接	分类数目

表2 Mobile_BLNet结构

结构	操作
卷积1	3×3卷积,步长=1,输出尺寸32×32×32
Module1	B_bottleneck1 (t=6, n=3) 输出尺寸16×16×32	L_bottleneck1 输出尺寸16×16×(32×α)
Module1	拼接并点卷积,输出通道数 $k$ 1=β×(32+32×α)
Module2	B_bottleneck2 (t=4, n=4) 输出尺寸8×8× $k$ 1	L_bottleneck2 输出尺寸8×8×( $k$ 1×α)
Module2	拼接并点卷积,输出通道数 $k$ 2=β×( $k$ 1+ $k$ 1×α)
Module3	B_bottleneck3 (t=2, n=1) 输出尺寸4×4× $k$ 2	L_bottleneck3 输出尺寸4×4×( $k$ 2×α)
Module3	拼接并点卷积,输出通道数 $k$ 3=β×( $k$ 2+ $k$ 2×α)
卷积2	点卷积,输出通道数=512
池化	4×4平均池化
全连接	分类数目

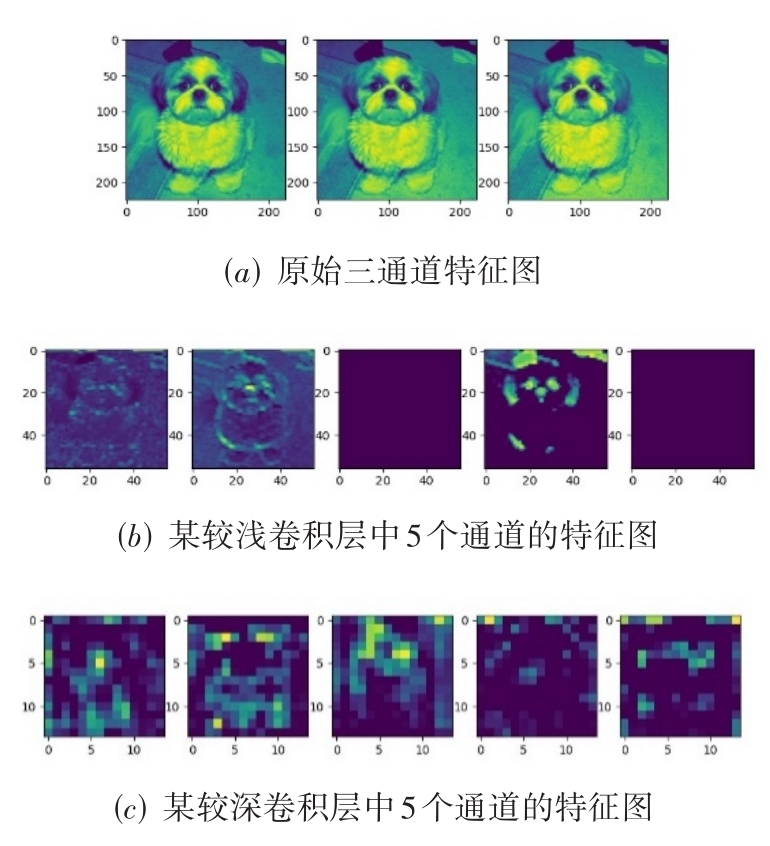

图9 CNN中的特征提取示例

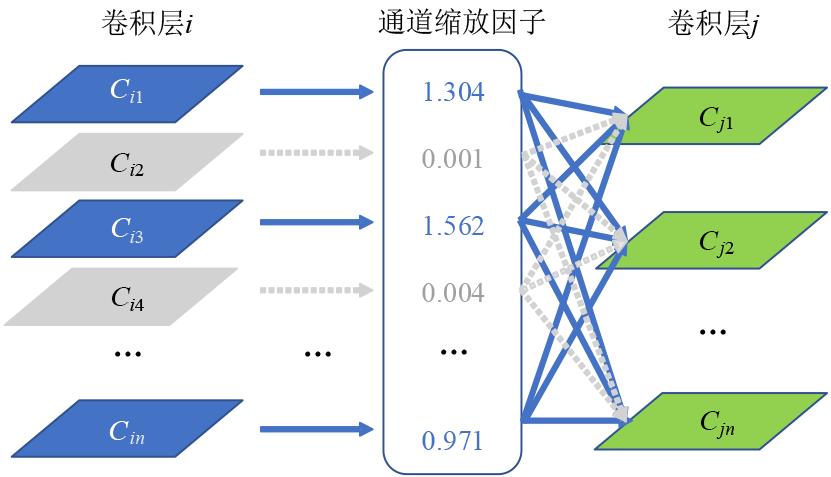

图10 剪枝示意图

表3 Mobile_BLNet在CIFAR-10上的准确率

$λ$ 值	$λ$ =10^-3	$λ$ =10^-4	$λ$ =10^-5	$λ$ =0
准确率	82.5%	91.7%	92.4%	92.7%

表3 Mobile_BLNet在CIFAR-10上的准确率

$λ$ 值	$λ$ =10^-3	$λ$ =10^-4	$λ$ =10^-5	$λ$ =0
准确率	82.5%	91.7%	92.4%	92.7%

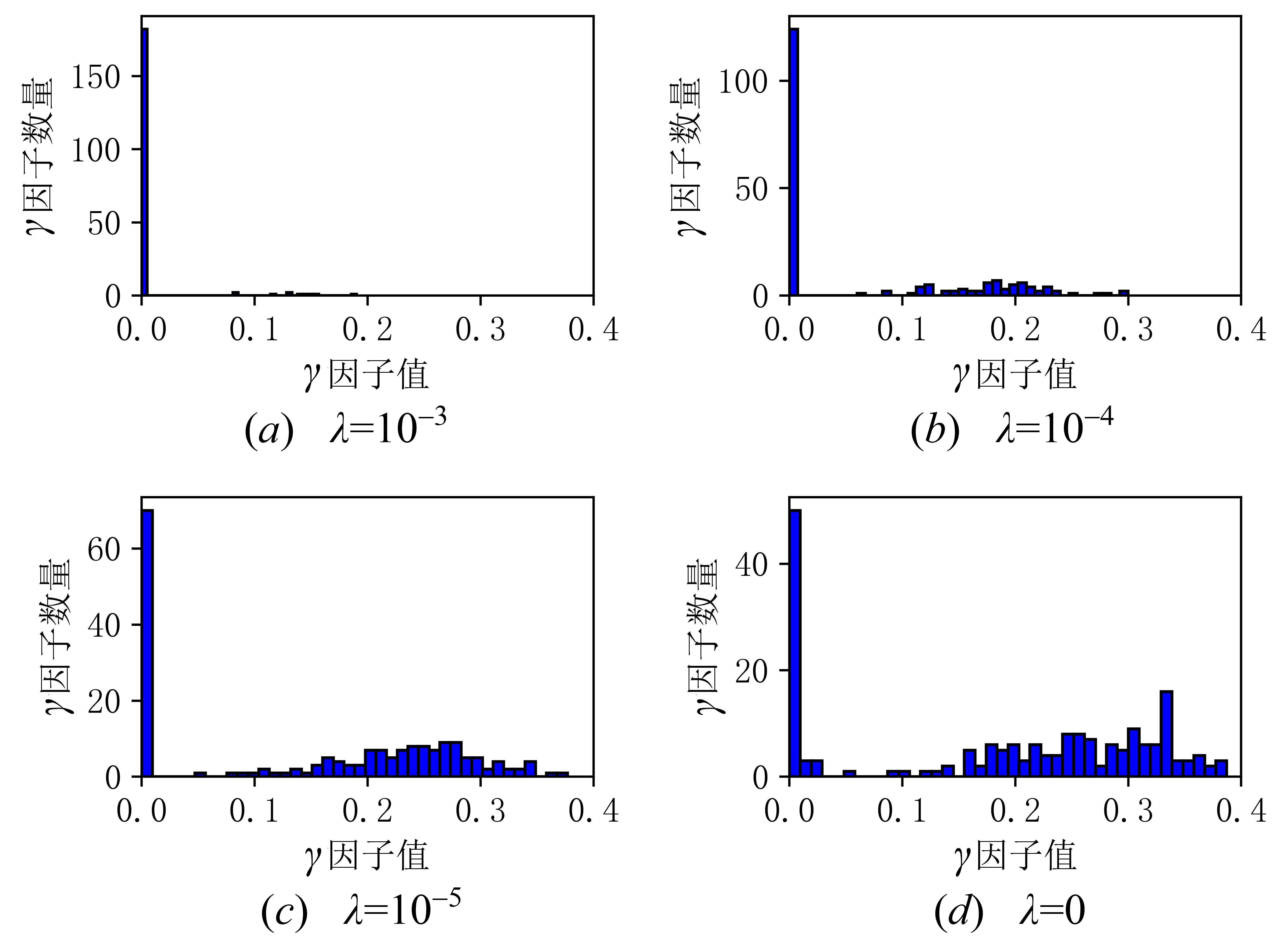

图11 不同λ值下γ因子的分布情况

表4 不同网络在CIFAR-10和CIFAR-100上的实验结果

网络	参数量/M		浮点计算量/M		准确率/%
网络	CIFAR-10	CIFAR-100	CIFAR-10	CIFAR-100	CIFAR-10	CIFAR-100
SqueezeNet^[7]	0.7	0.8	54.1	54.9	90.5	69.4
Xception^[30]	20.8	21.0	1 135.7	1 135.9	94.8	75.0
MobileNet V1^[8]	3.2	3.3	47.2	47.3	89.6	66.0
MobileNet V2^[9]	2.3	2.4	94.6	94.7	91.8	68.1
MobileNet V3-Small^[31]	1.4	1.5	18.9	19.1	91.6	68.8
MobileNet V3-Large^[31]	4.3	4.4	69.5	69.6	93.4	74.3
ShuffleNet V1(g=3)^[10]	0.9	0.9	42.2	42.3	89.9	70.1
ShuffleNet V2(1×)^[11]	1.3	1.4	47.4	47.5	90.9	69.5
ShuffleNet V2(2×)^[11]	5.3	5.5	186.1	186.5	92.0	71.8
GhostNet (0.5×)^[32]	1.3	1.4	13.2	13.4	91.4	69.9
GhostNet (1×)^[32]	3.9	4.0	44.9	45.0	92.6	72.8
Mobile_BLNet	0.5	0.6	32.9	33.0	92.7	72.9

表5 不同网络在Food101和ImageNet上的实验结果

网络类型	参数量/M		浮点计算量/M		准确率/%
网络类型	Food101	ImageNet	Food101	ImageNet	Food101	ImageNet
SqueezeNet^[7]	0.8	1.2	751.8	830.1	77.9	57.5
Xception^[30]	21.0	22.9	8 418.7	8 420.5	85.7	79.0
MobileNet V1^[8]	3.3	4.2	574	575	82.5	70.6
MobileNet V2^[9]	2.4	3.4	299	300	83.1	72.0
MobileNet V3-Small^[31]	1.5	2.5	55	56	78.2	67.4
MobileNet V3-Large^[31]	4.4	5.4	218	219	83.3	75.2
ShuffleNet V1(g=3)^[10]	1.0	1.8	139	140	77.3	67.4
ShuffleNet V2(1×)^[11]	1.4	2.3	145	146	79.7	69.4
ShuffleNet V2(2×)^[11]	5.6	7.4	590	591	83.2	74.9
CondenseNet(G=C=8)^[33]	2.0	2.9	273	274	82.7	71.0
GhostNet (0.5×)^[32]	1.4	2.6	40	42	75.0	66.2
GhostNet (1×)^[32]	4.0	5.2	140	141	82.4	73.9
EfficientNet b0^[12]	4.1	5.3	398.2	399.3	84.0	77.1
Mobile_BLNet	1.5	2.4	373.0	373.9	83.8	71.6

表6 不同裁剪阈值下的实验结果

裁剪率	裁剪后参数量/M	裁剪后浮点计算量/M	裁剪后准确率/%
裁剪率	CIFAR-10/100	CIFAR-10/100	CIFAR-10/100
0.1	0.49/0.53	30.63/30.69	91.6/69.7
0.2	0.44/0.48	27.73/27.80	91.6/67.0
0.3	0.40/0.43	24.85/24.92	91.0/64.5
0.4	0.35/0.38	21.96/22.03	90.8/61.5
0.5	0.31/0.33	18.93/19.00	89.5/54.1
0.6	0.27/0.28	16.08/16.16	87.2/36.5
0.7	0.22/0.23	13.19/13.27	79.7/15.0
0.8	0.18/0.19	10.31/10.40	41.5/4.7
0.9	0.13/0.14	7.41/7.51	16.6/1.8
占总和比值	0.23/0.37	11.92/15.75	91.5/71.4

表7 Mobile_BLNet裁剪前后变化

数据集	参数量变化/M	参数量裁剪率/%	FLOPs 变化/M	FLOPs裁剪率/%	准确率变化/%	微调准确率/%
CIFAR-10	0.5-> 0.2	60.00%	32.9-> 11.9	63.80%	91.7-> 91.5	91.7
CIFAR-100	0.6-> 0.4	33.30%	33.0-> 15.1	54.20%	71.6-> 71.4	71.5
Food101	1.5-> 1.2	20.00%	373.0-> 219.8	41.10%	82.8-> 81.9	82.8
ImageNet	2.4-> 2.1	12.50%	373.9-> 257.5	31.10%	70.8-> 69.7	70.7

表8 Mobile_BLNet通道结构变化

Layers	输入通道变化
Layers	CIFAR-10	CIFAR-100	Food101	ImageNet
B_bottleneck1	32->32	32->32	32->32	32->32
L_bottleneck1	32->32	32->32	32->25	32->32
B_bottleneck2	64->57	64->57	64->68	64->57
L_bottleneck2	64->22	64->34	64->68	64->57
B_bottleneck3	128->71	128->109	128->122	128->136
L_bottleneck3	128->28	128->65	128->73	128->108
B_bottleneck4	—	—	256->292	256->292
L_bottleneck4	—	—	256->116	256->233

表9 Mobile_BLNet重构前后在各数据集上的表现

数据集		裁剪前后参数量/M	裁剪前后FLOPs/M	裁剪前后准确率/%	微调准确率/%
CIFAR-10	重构前	0.5->0.2	32.9->11.9	91.7->91.5	91.7
CIFAR-10	重构后	0.3->0.1	25.1->9.6	91.2->91.0	91.2
CIFAR-100	重构前	0.6->0.4	33.0->15.1	71.6->71.4	71.5
CIFAR-100	重构后	0.4->0.3	27.4->12.7	71.5->71.3	71.5
Food101	重构前	1.5->1.2	373.0->219.8	82.8->81.9	82.8
Food101	重构后	1.2->1.0	350.3->203.0	82.8->81.8	82.8
ImageNet	重构前	2.4->2.1	373.9->257.5	70.8->69.7	70.8
ImageNet	重构后	2.4->2.1	355.8->249.6	71.0->69.9	70.9
