面向大规模网络测量的数据恢复算法：基于关联学习的张量填充

doi:10.12263/DZXB.20211703

电子学报 ›› 2022, Vol. 50 ›› Issue (7): 1653-1663.DOI: 10.12263/DZXB.20211703

面向大规模网络测量的数据恢复算法：基于关联学习的张量填充

欧阳与点¹, 谢鲲¹(), 谢高岗²^,³, 文吉刚¹^,⁴

^1.湖南大学信息科学与工程学院，湖南长沙 410006
^2.中国科学院计算机网络信息中心，北京 100089
^3.中国科学院大学，北京 100089
^4.湖南友道信息技术有限公司，湖南长沙 410006

收稿日期:2021-12-25 修回日期:2022-04-05 出版日期:2022-07-25
- 通讯作者:
- 谢鲲
- 作者简介:
- 欧阳与点女，1996年5月出生于湖南省衡阳市.湖南大学信息科学与工程学院博士研究生.主要研究方向为网络测量、张量填充和深度学习.E-mail: yudian@hnu.edu.cn
  谢鲲（通讯作者）女，1978年10月出生于湖南省怀化市.博士.湖南大学信息科学与工程学院教授，博士生导师.主要研究方向为计算机网络、网络测量、网络安全、大数据和人工智能.E-mail: xiekun@hnu.edu.cn
  谢高岗男，1974年5月出生于浙江省衢州市.博士.中国科学院计算机网络信息中心研究员，中国科学院大学岗位教授，博士生导师.主要从事计算机网络体系结构与系统的研究工作.E-mail: xie@cnic.cn
  文吉刚男，1978年3月出生于湖南省常德市.博士.中国科学院计算技术研究所博士后.现为湖南友道信息技术有限公司技术首席和湖南大学校外导师.主要从事高速网络测量和管理的研究和开发工作.E-mail: wenjigang@gmail.co
- 基金资助:
- 国家自然科学基金杰出青年基金 (62025201); 国家自然科学基金 (61972144)

A Data Recovery Algorithm for Large-Scale Network Measurements: Association Learning Based Tensor Completion

OUYANG Yu-dian¹, XIE Kun¹(), XIE Gao-gang²^,³, WEN Ji-gang¹^,⁴

^1.College of Computer Science and Electronic Engineering, Hunan University, Changsha, Hunan 410006, China
^2.Computer Network Information Center, Chinese Academy of Sciences, Beijing 100089, China
^3.The University of Chinese Academy of Sciences, Beijing 100089, China
^4.Hunan cnSunet Information Technology Co., Ltd, Changsha, Hunan 410006, China

Received:2021-12-25 Revised:2022-04-05 Online:2022-07-25 Published:2022-07-30
- Corresponding author:
- XIE Kun
- Supported by:
- Distinguished Young Scholars Fund supported by National Natural Science Foundation of China (62025201); National Natural Science Foundation of China (61972144)

摘要/Abstract

摘要：

网络应用，如网络状态跟踪、服务等级协议保障和网络故障定位等，依赖于完整准确的吞吐量测量数据.由于测量代价大，网络监控系统通常难以获得全网吞吐量测量数据.稀疏网络测量技术基于采样的方式降低测量代价，通过张量填充等算法挖掘数据内部的时空相关性，从部分网络测量数据恢复缺失数据.然而，现有研究仅考虑了单个性能指标，忽略了多个指标之间的关联信息，导致恢复精度受限且整体测量代价依然很大.本文提出了一个面向大规模网络测量的数据恢复算法——基于关联学习的张量填充（Association Learning based Tensor Completion，ALTC）.为了捕获网络性能指标之间的复杂关系，设计了一个关联学习模型，使用低测量开销的往返时延推测高测量开销的吞吐量，降低网络测量代价.在此基础上设计了一个张量填充模型，同时学习吞吐量测量数据内部的时空相关性和来自往返时延的外部辅助关联信息，最终以更高的恢复精度获取全网吞吐量数据.实验表明，在相同的吞吐量测量代价下，本文所提算法的恢复误差比目前主流方法的恢复误差降低了13%，达到了更好的恢复效果.

关键词: 网络监控, 稀疏网络测量, 张量填充, 多指标关联, 深度学习

Abstract:

Network applications, such as network state tracking, service level agreement guarantee, and network fault location, rely on complete and accurate throughput measurement data. Due to the high measurement cost, it is hard to obtain network-wide throughput measurement data for network monitoring systems. Sparse network measurement techniques reduce the measurement cost based on sampling and recover missing data from partial network measurement data by exploiting spatio-temporal correlations within the data through algorithms such as tensor completion. However, existing studies only consider individual performance metrics and ignore the correlation information between multiple metrics, resulting in limited recovery accuracy and high overall measurement cost. This paper proposes a data recovery algorithm for large-scale network measurements—association learning based tensor completion(ALTC). To capture the complex correlations among network performance metrics, an association learning model is designed to reduce the network measurement cost by using the round-trip delay with low measurement overhead to infer the throughput with high measurement overhead. Based on this, a tensor completion model is designed to learn both the spatio-temporal correlation within the throughput measurement data and the external auxiliary correlation information from the round-trip delay, and finally obtain the network-wide throughput data with higher recovery accuracy. Experiments show that the recovery error of the proposed algorithm is 13% lower than that of the current mainstream methods at the same throughput measurement cost, achieving better recovery results.

Key words: network monitoring, sparse network measurement, tensor completion, multi-metrics association, deep learning

中图分类号:

TP393

欧阳与点, 谢鲲, 谢高岗, 文吉刚. 面向大规模网络测量的数据恢复算法：基于关联学习的张量填充[J]. 电子学报, 2022, 50(7): 1653-1663.

OUYANG Yu-dian, XIE Kun, XIE Gao-gang, WEN Ji-gang. A Data Recovery Algorithm for Large-Scale Network Measurements: Association Learning Based Tensor Completion[J]. Acta Electronica Sinica, 2022, 50(7): 1653-1663.

图/表 13

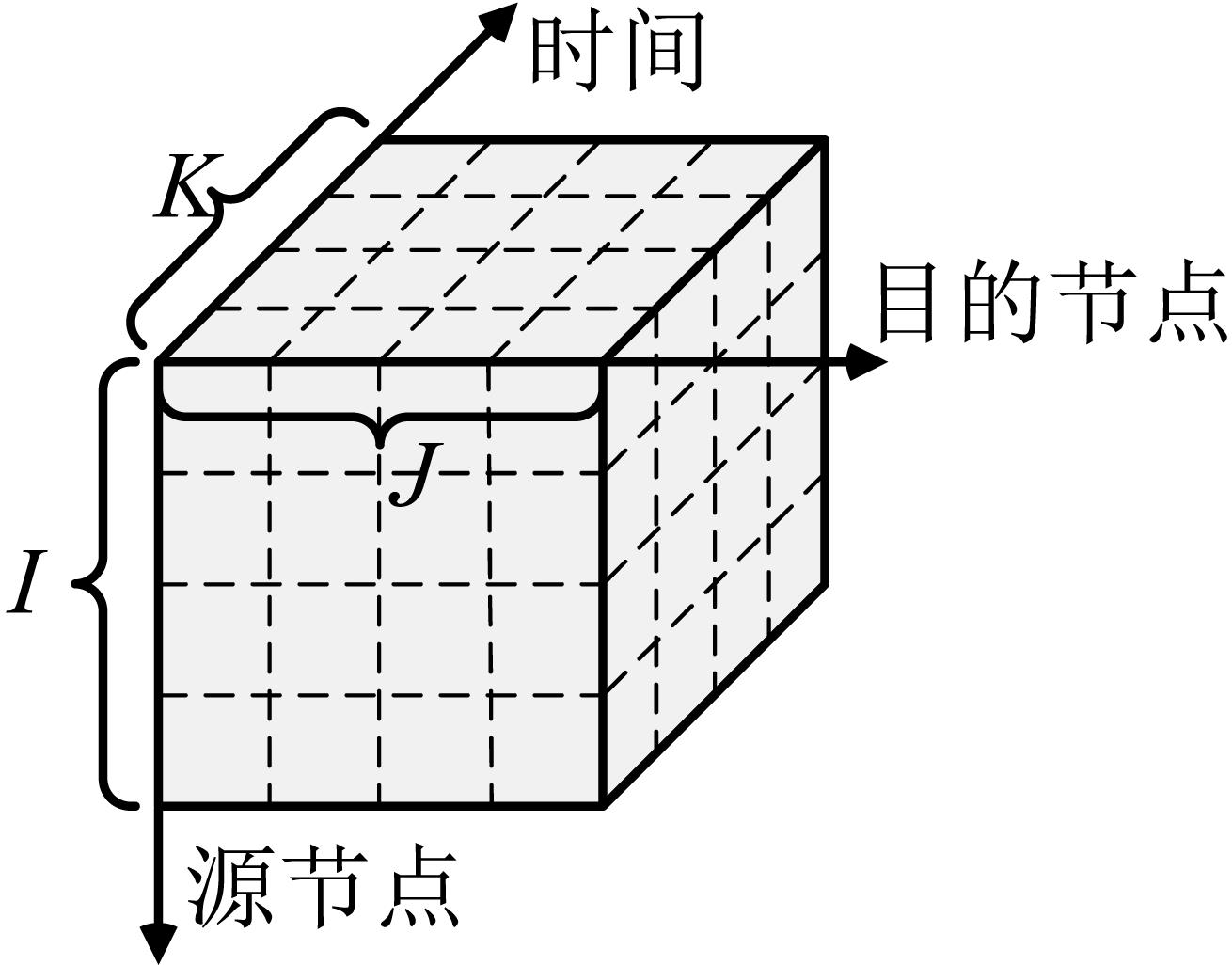

图1 网络测量数据的三维张量模型

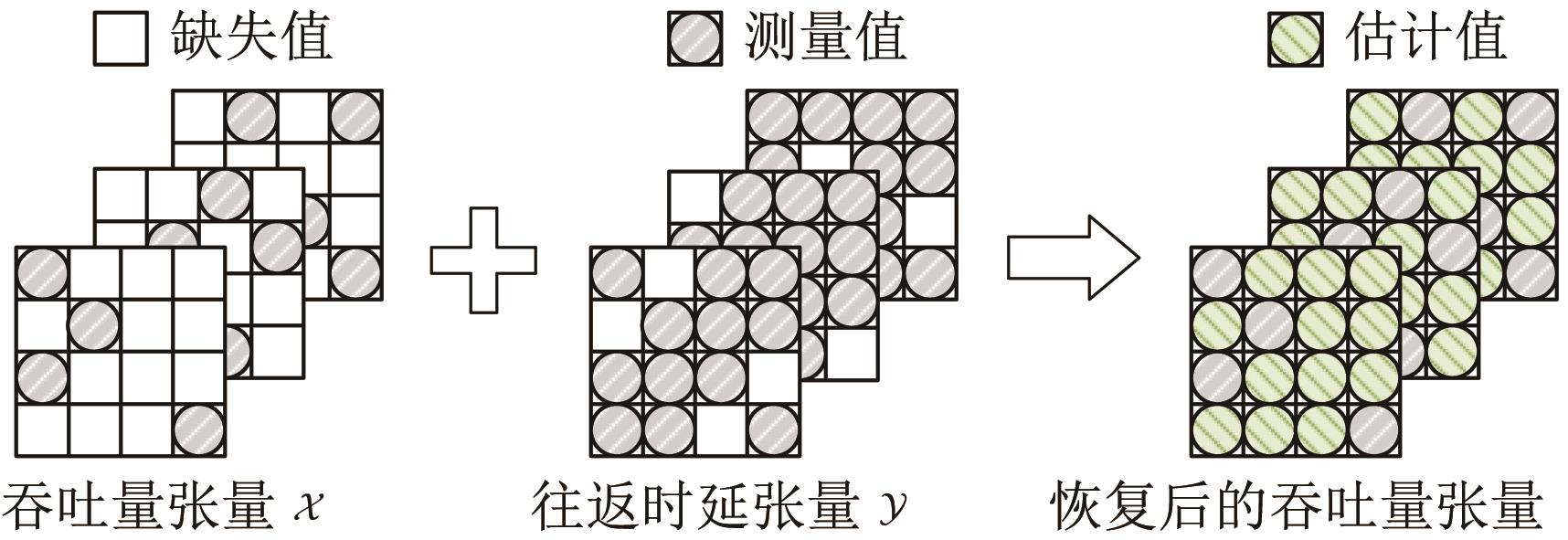

图2 网络测量数据恢复问题

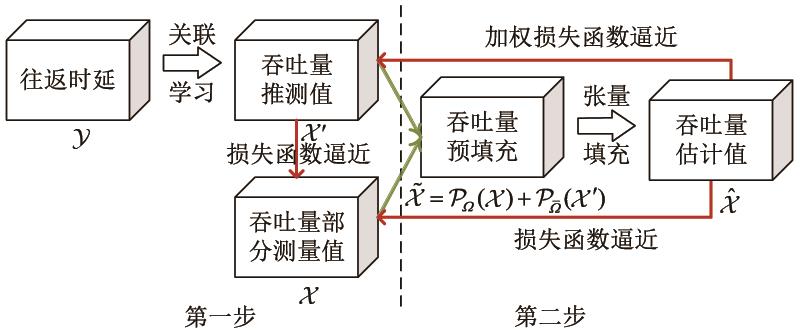

图3 基于关联学习的张量填充算法的整体框架

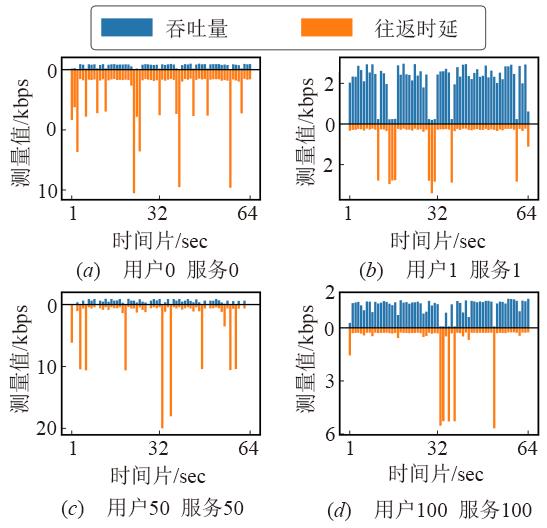

图4 吞吐量-往返时延关联

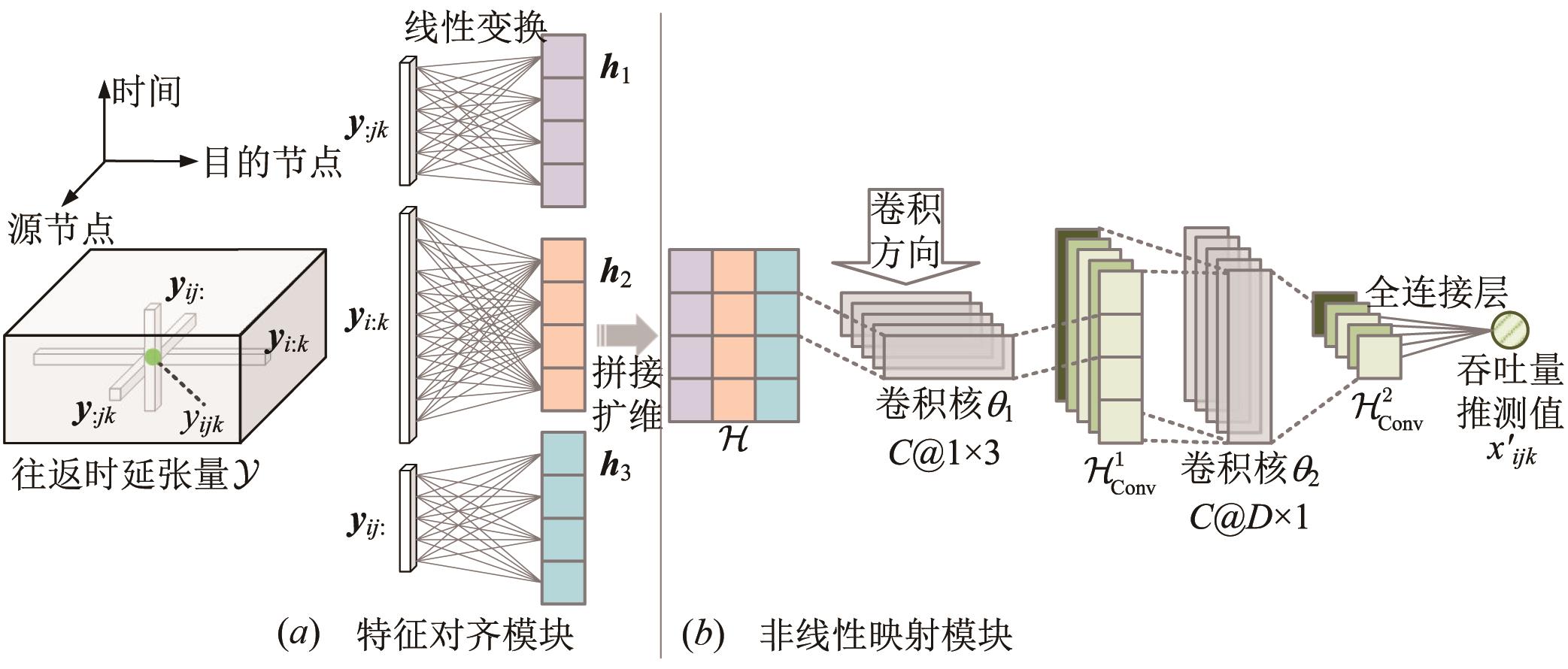

图5 吞吐量-往返时延关联学习模型(图中例子:特征维度D=4,卷积通道数C=5)

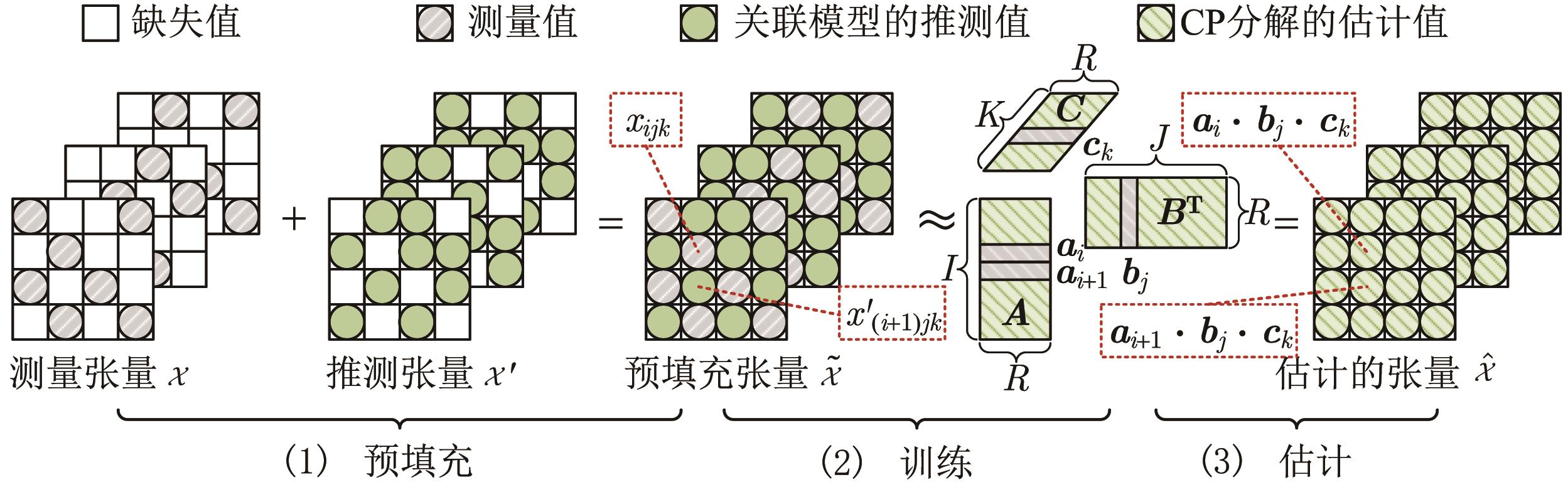

图6 基于关联学习的张量填充算法的步骤

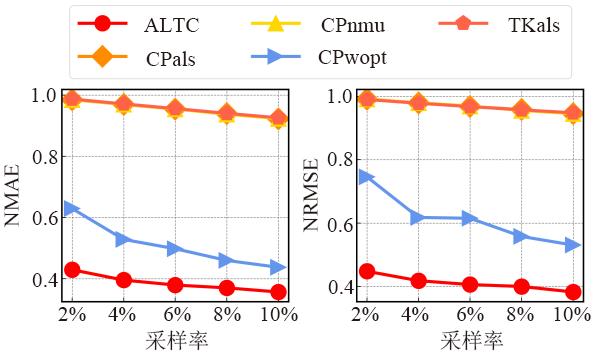

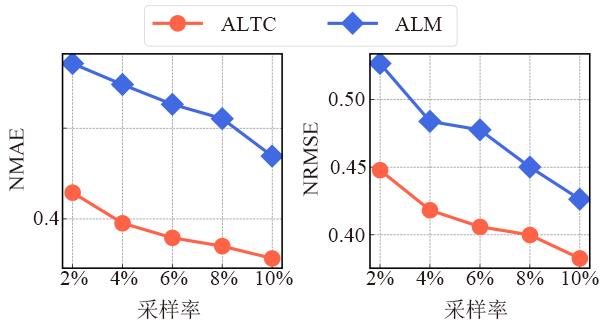

图7 ALTC在不同采样率下与传统线性算法对比恢复性能

表1 不同采样率下与神经网络算法比较NMAE

算法	采样率
算法	2%	4%	6%	8%	10%
ALTC	0.429 0	0.395 2	0.379 0	0.369 8	0.356 3
NTC	0.493 1	0.498 3	0.481 8	0.461 9	0.435 5
NTF	0.678 8	0.533 5	0.497 6	0.462 0	0.411 4
NTM	0.633 7	0.721 0	0.650 2	0.639 0	0.632 0
CoSTCo	0.541 2	0.532 1	0.465 5	0.450 1	0.443 0

表2 不同采样率下与神经网络算法比较NRMSE

算法	采样率
算法	2%	4%	6%	8%	10%
ALTC	0.447 8	0.418 2	0.405 9	0.399 9	0.382 5
NTC	0.530 8	0.473 7	0.449 0	0.425 9	0.414 0
NTF	0.620 6	0.510 5	0.478 2	0.475 7	0.437 9
NTM	0.622 9	0.561 3	0.578 8	0.538 9	0.512 8
CoSTCo	0.528 6	0.464 3	0.459 5	0.423 4	0.412 0

图8 关联学习模型在不同采样率下的推测效果

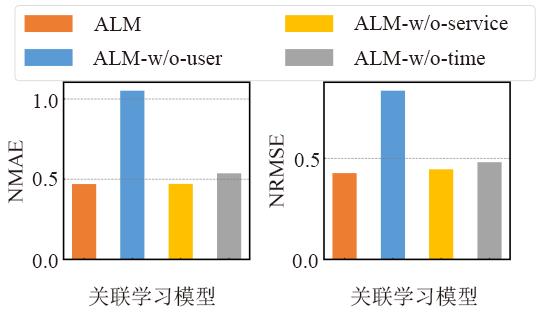

图9 考虑不同上下文信息的关联学习模型的推测效果

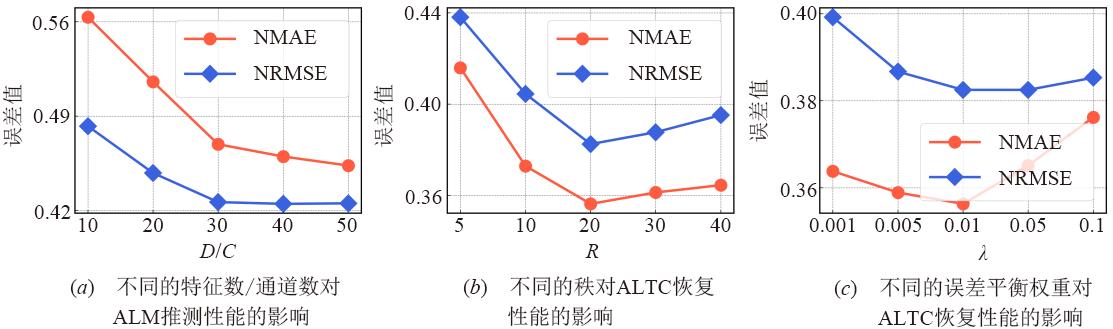

图10 不同的超参数对模型性能的影响

表3 训练时间对比

模型	训练一批数据需要的时间/ms	训练一轮全部数据需要的时间/s
CP	1.367 5	28.598 4
ALTC	1.589 4	300.308 1
ALM	2.591 1	44.602 1
