基于时空图神经网络的手势识别

doi:10.12263/DZXB.20211069

电子学报 ›› 2022, Vol. 50 ›› Issue (4): 921-931.DOI: 10.12263/DZXB.20211069

所属专题：机器学习交叉融合创新

• 机器学习交叉融合创新 • 上一篇下一篇

基于时空图神经网络的手势识别

袁冠¹^,², 邴睿¹, 刘肖¹, 代伟³, 张艳梅¹, 蔡卓¹

^1.矿山数字化教育部工程研究中心，江苏徐州 221116
^2.中国矿业大学计算机科学与技术学院，江苏徐州 221116
^3.中国矿业大学信息与控制工程学院，江苏徐州 221116

收稿日期:2021-08-11 修回日期:2021-12-12 出版日期:2022-04-25
- 作者简介:
- 袁冠男，1982年生，江苏睢宁人.现为中国矿业大学计算机科学与技术学院教授.主要研究方向为时空大数据技术以及计算智能.E-mail： yuanguan@cumt.edu.cn
  邴睿男，1994年生，甘肃兰州人. 现为中国矿业大学博士生.主要研究方向为图数据挖掘. E-mail： bingrui@cumt.edu.cn
  刘肖男，1994年生，江苏徐州人. 主要研究方向为模式识别与感知计算. E-mail： liuxiaocumt2018@163.com
- 基金资助:
- 国家自然科学基金 (71774159); 中国博士后科学基金 (2021T140707)

Spatial-Temporal Graph Neural Network based Hand Gesture Recognition

YUAN Guan¹^,², BING Rui¹, LIU Xiao¹, DAI Wei³, ZHANG Yan-mei¹, CAI Zhuo¹

^1.Digitization of Mine, Engineering Research Center of Ministry of Education, Xuzhou, Jiangsu 221116, China
^2.School of Computer Science and Technology, China University of Mining and Technology, Xuzhou, Jiangsu 221116, China
^3.School of Information and Control Engineering, China University of Mining and Technology, Xuzhou, Jiangsu 221116, China

Received:2021-08-11 Revised:2021-12-12 Online:2022-04-25 Published:2022-04-25
- Supported by:
- National Natural Science Foundation of China (71774159); China Postdoctoral Science Foundation (2021T140707)

摘要/Abstract

摘要：

随着感知计算以及传感器集成技术的发展，使用各种传感设备实时捕捉的手势运动数据，为人机交互提供了新的驱动力，并被广泛地应用于智能家居、远程医疗、虚拟现实等领域.由于手势动作具有时序性与空间连接性，因此在手势识别中需要考虑手势空间连接关系和手势长距离依赖特性.然而现有的手势识别方法忽略了上述两种特性，导致识别精度不高.本文提出了基于时空图神经网络的手势识别算法，该方法从传感器空间分布角度出发，基于传感器的空间位置信息，借助图神经网络（Graph Neural Networks，GNN）对手势数据之间的空间关联性进行表征，并引入门控循环单元（Gated Recurrent Unit，GRU）解决手势的时序性和长距离依赖问题，增强手势识别性能.在多种数据集上的实验结果证明本文方法可行且有效.

关键词: 手势识别, 多传感器融合, 时空图神经网络, 循环神经网络

Abstract:

With the development of perceptual computing and sensor integration technology, hand gesture motion data collected by various sensor devices provides a new data-driven way for human-computer interaction, and widely used in smart home, telemedicine, virtual reality and other fields. Due to hand gestures have temporality and spatial connectivity, it is necessary to consider spatial connection and long-distance dependence of hand gesture in gesture recognition. However, existing hand gesture recognition models ignore the aforementioned two problems, resulting in low recognition accuracy. Therefore, we propose a spatial-temporal graph neural network based hand gesture recognition model(STGNN-HGR). From the perspective of spatial distribution of sensors, based on the spatial location information of sensors, the model represents spatial correlation of hand gesture data with the help of graph neural networks(GNN), and introduces gated recurrent unit(GRU) to solve temporality and long-distance dependence in dynamic hand gestures, so as to enhance the performance of gesture recognition. The experimental results on a variety of datasets show that our model is feasible and effective.

Key words: hand gesture recognition, multi-sensor fusion, spatial-temporal graph neural network, recurrent neural network

中图分类号:

TP391.4

袁冠, 邴睿, 刘肖, 等. 基于时空图神经网络的手势识别[J]. 电子学报, 2022, 50(4): 921-931.

Guan YUAN, Rui BING, Xiao LIU, et al. Spatial-Temporal Graph Neural Network based Hand Gesture Recognition[J]. Acta Electronica Sinica, 2022, 50(4): 921-931.

图/表 18

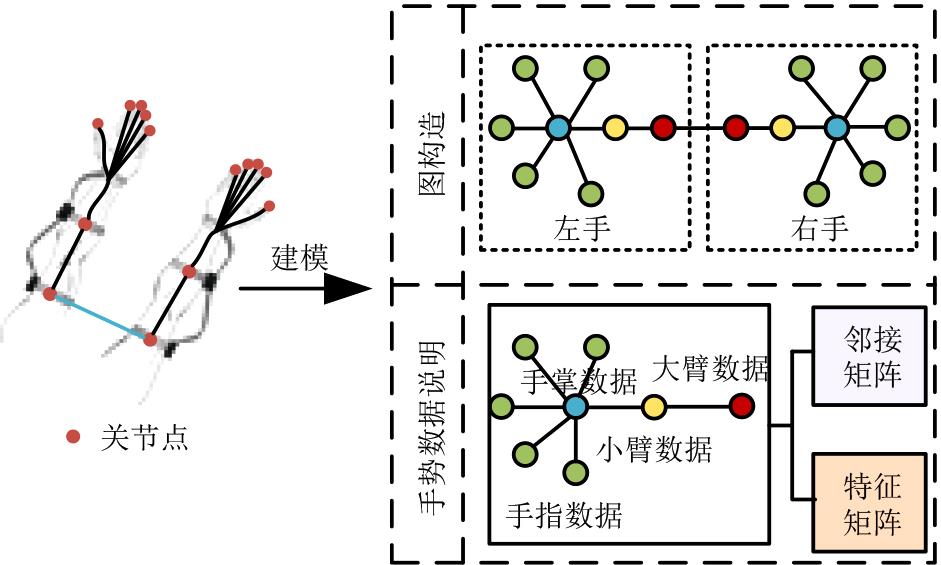

图1 手势建模

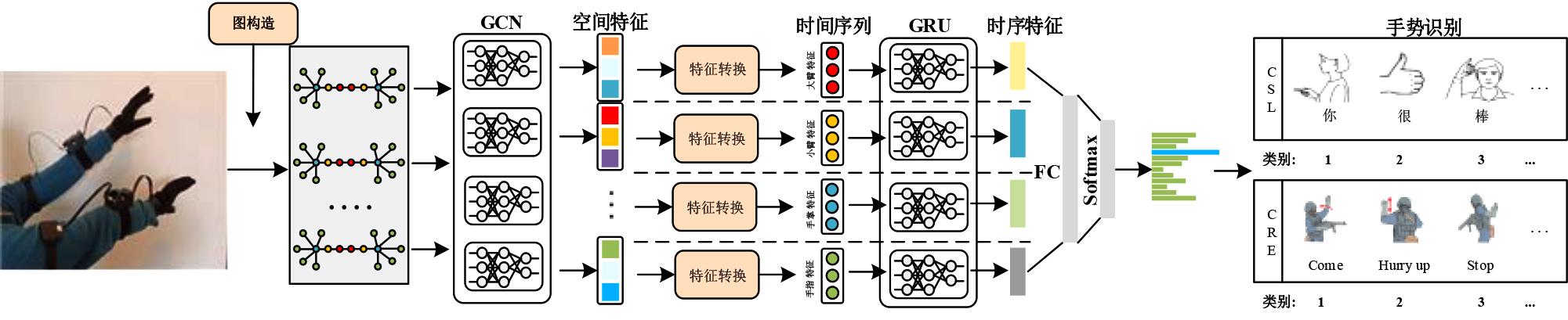

图2 STGNN-HGR框架

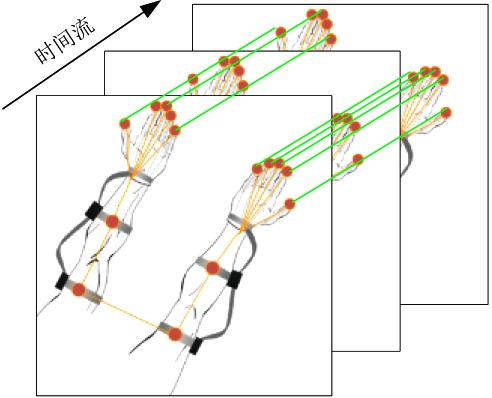

图3 手势时序特征

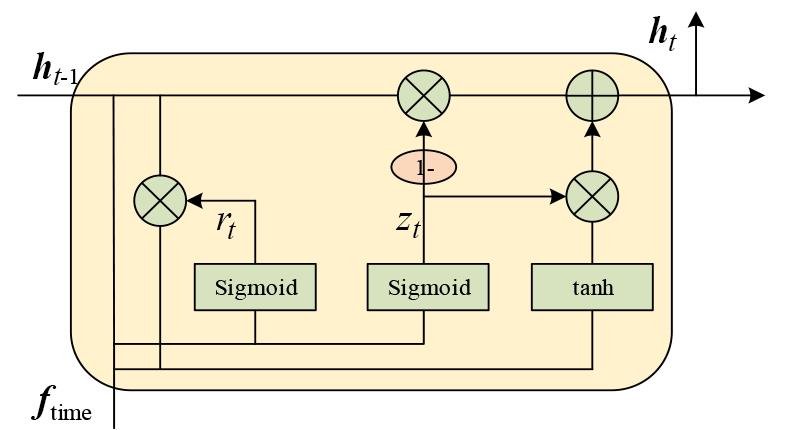

图4 GRU结构图

图5 CRE传感器数据图

表1 实验数据集

数据集	样本总数	手势种类	采集设备	说明
CRE	22 595	6	数据手套	单词级手势
CSL	95 040	72	数据手套	单词级手势

表2 对比算法

算法名称	特点	说明
K最近邻(KNN)	利用周围有限的邻近样本对类域进行判定	验证深度特征表示能力强于手动提取特征
支持向量机(SVM)	利用内积核函数解决非线性分类问题	验证深度特征表示能力强于手动提取特征
卷积神经网络 (CNN)	能够提取手势数据具有高语义的深度特征	验证时序性对手势识别效果的影响
门控循环单元 (GRU)	能够解决动态手势的时序性和长距离依赖问题	验证手势数据空间特征能够更好地表征手势数据
CNN-LSTM	CNN提取手势数据的深度特征,结合LSTM解决时序性和长距离依赖问题	验证STGNN能够更好地表征手势数据,提高手势识别准确率,增强手势识别性能
STGNN-HGR	使用GCN提取数据的空间特征,并结合GRU解决时序性和长距离依赖问题.	STGNN能够提取数据空间特征,解决动态手势数据的时序性及长距离依赖问题

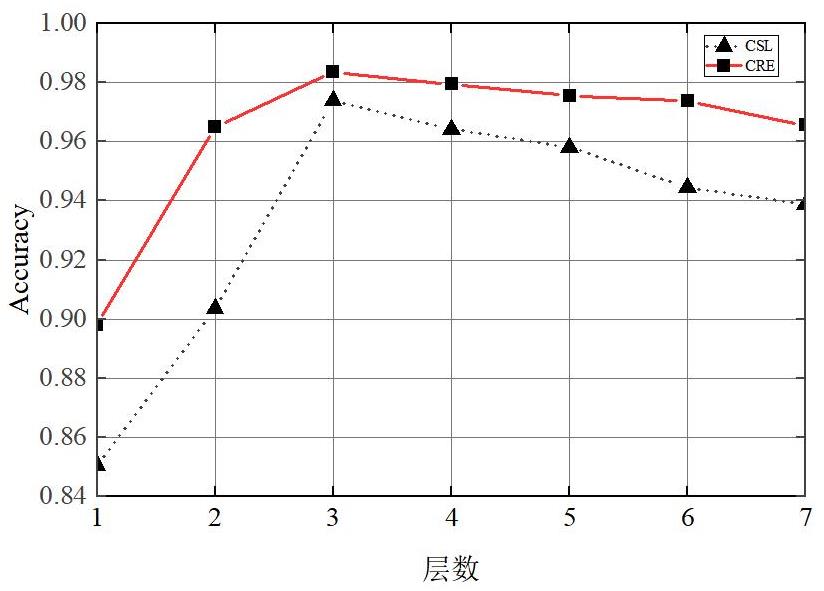

图6 图卷积层数分析

表3 常用统计特征

统计特征	描述	计算公式
均值特征	窗口中信号的平均值	$m e a n = 1 n ∑ i = 1 n a i$
最值特征	窗口中信号的最大值和最小值	$m a x = m a x (a i), i = 1,2, ⋯, n$ $m i n = m i n (a i), i = 1,2, ⋯, n$
范围特征	窗口中信号最大值与最小值之差	$r a n g e = \| m a x - m i n \|$
方差特征	窗口中一组数据的分散程度度量	$s 2 = 1 n - 1 ∑ i = 1 n (x i - m e a n) 2$

表3 常用统计特征

统计特征	描述	计算公式
均值特征	窗口中信号的平均值	$m e a n = 1 n ∑ i = 1 n a i$
最值特征	窗口中信号的最大值和最小值	$m a x = m a x (a i), i = 1,2, ⋯, n$ $m i n = m i n (a i), i = 1,2, ⋯, n$
范围特征	窗口中信号最大值与最小值之差	$r a n g e = \| m a x - m i n \|$
方差特征	窗口中一组数据的分散程度度量	$s 2 = 1 n - 1 ∑ i = 1 n (x i - m e a n) 2$

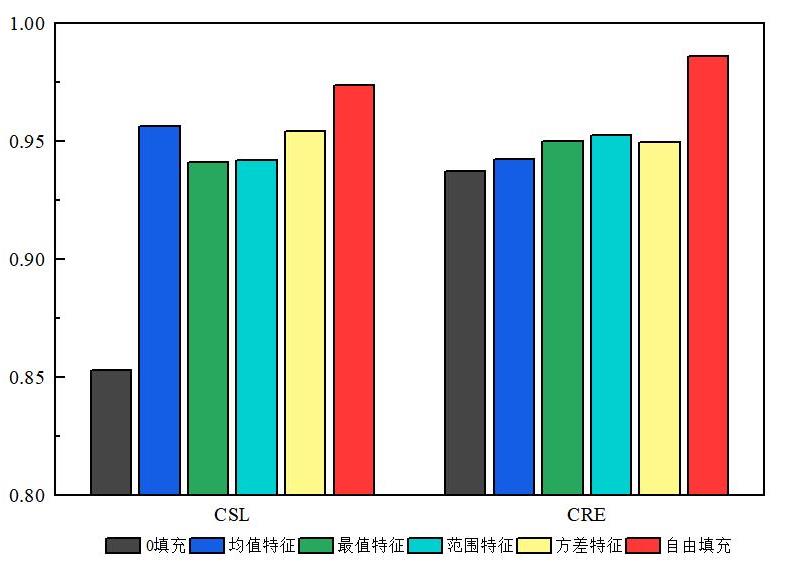

图7 维度填充方式分析

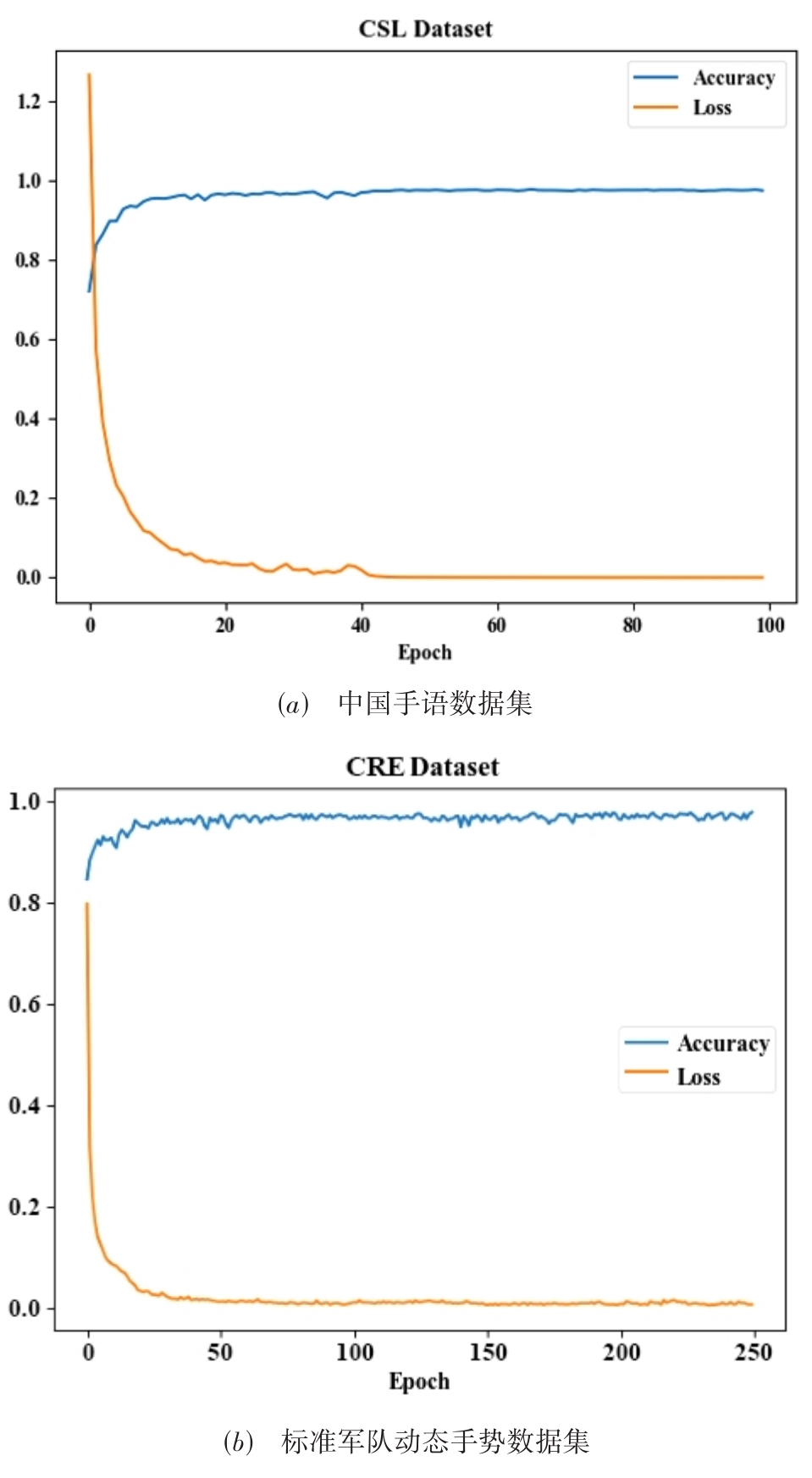

图8 参数选择

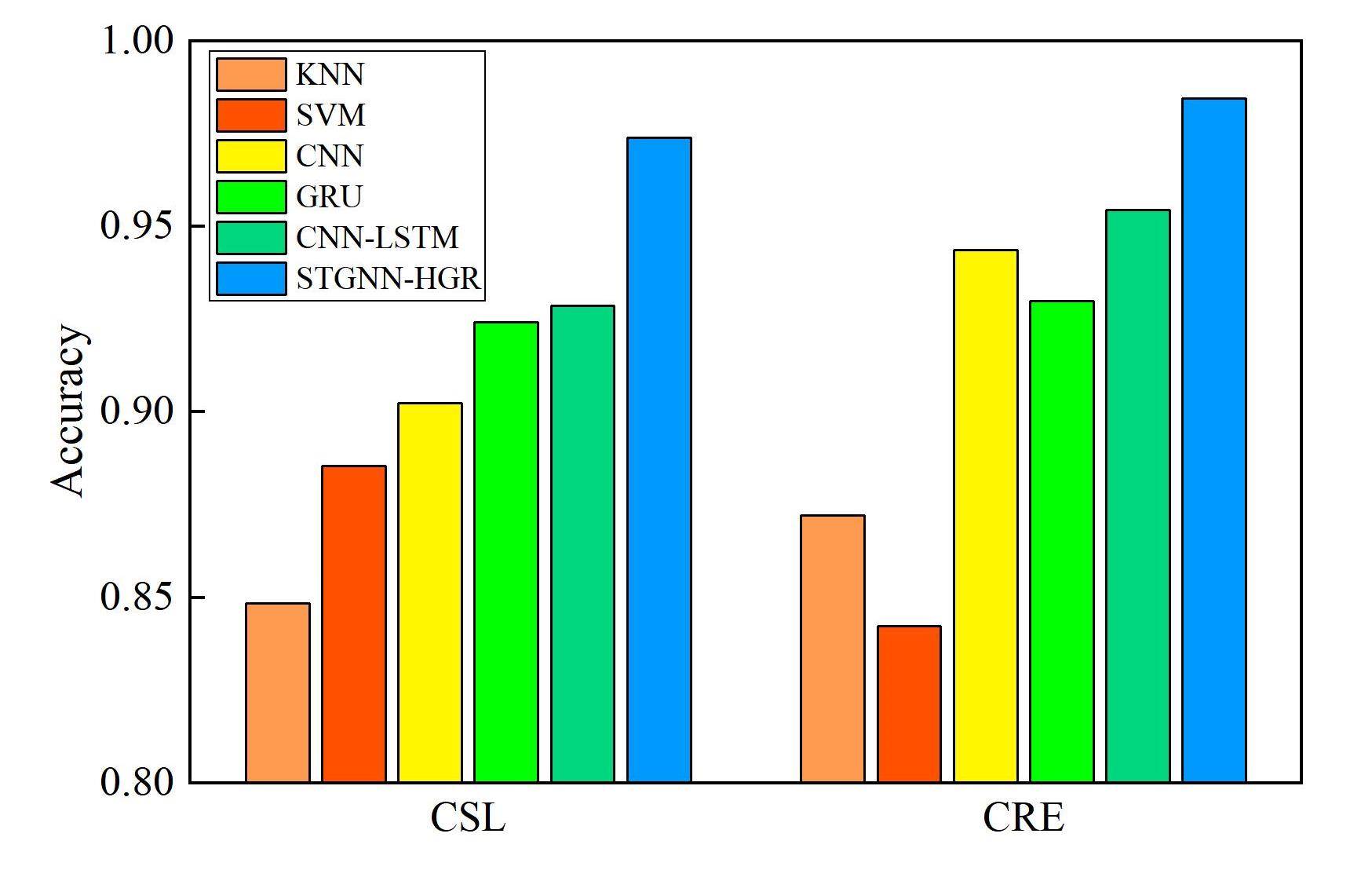

图9 对比算法准确率分析

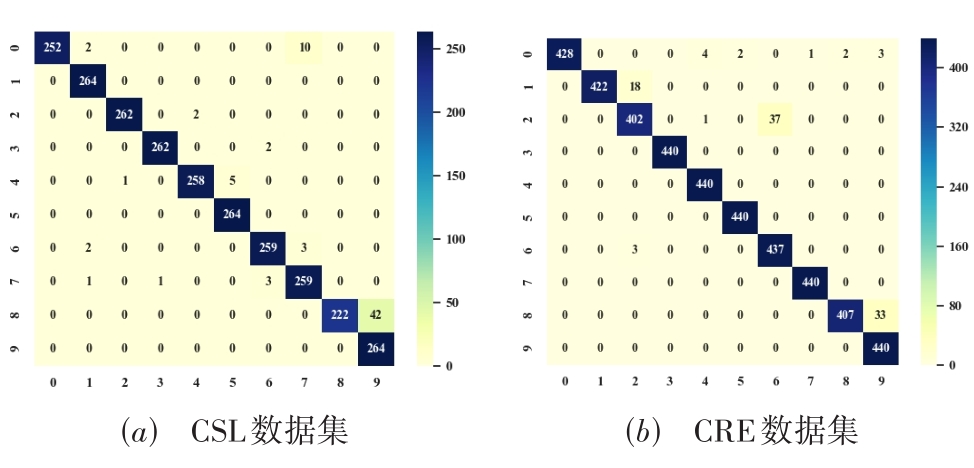

图10 混淆矩阵

表4 标签信息

标签	CSL	Acc(%)	CRE	Acc(%)
0	你好	99.45	Come	97.27
1	再见	100.00	Hurry up	95.92
2	擦	99.24	Rally point	93.64
3	吃	99.24	Vehicle	100.00
4	打	97.73	I don't understand	100.00
5	翻	100.00	Door	100.00
6	喝	98.10	Go here	99.32
7	很好	98.10	Ammunition	100.00
8	惊讶	84.09	Go Prone	97.04
9	谁	100.00	Point of Entry	100.00

图11 CSL数据集手势欧拉角

图12 CRE数据集

表5 消融实验结果

算法名称	CRE数据集	CSL数据集
STGNN-HGR-w/o GCN	93.79	94.18
STGNN-HGR-LSTM	96.18	96.13
STGNN-HGR	96.82	97.27

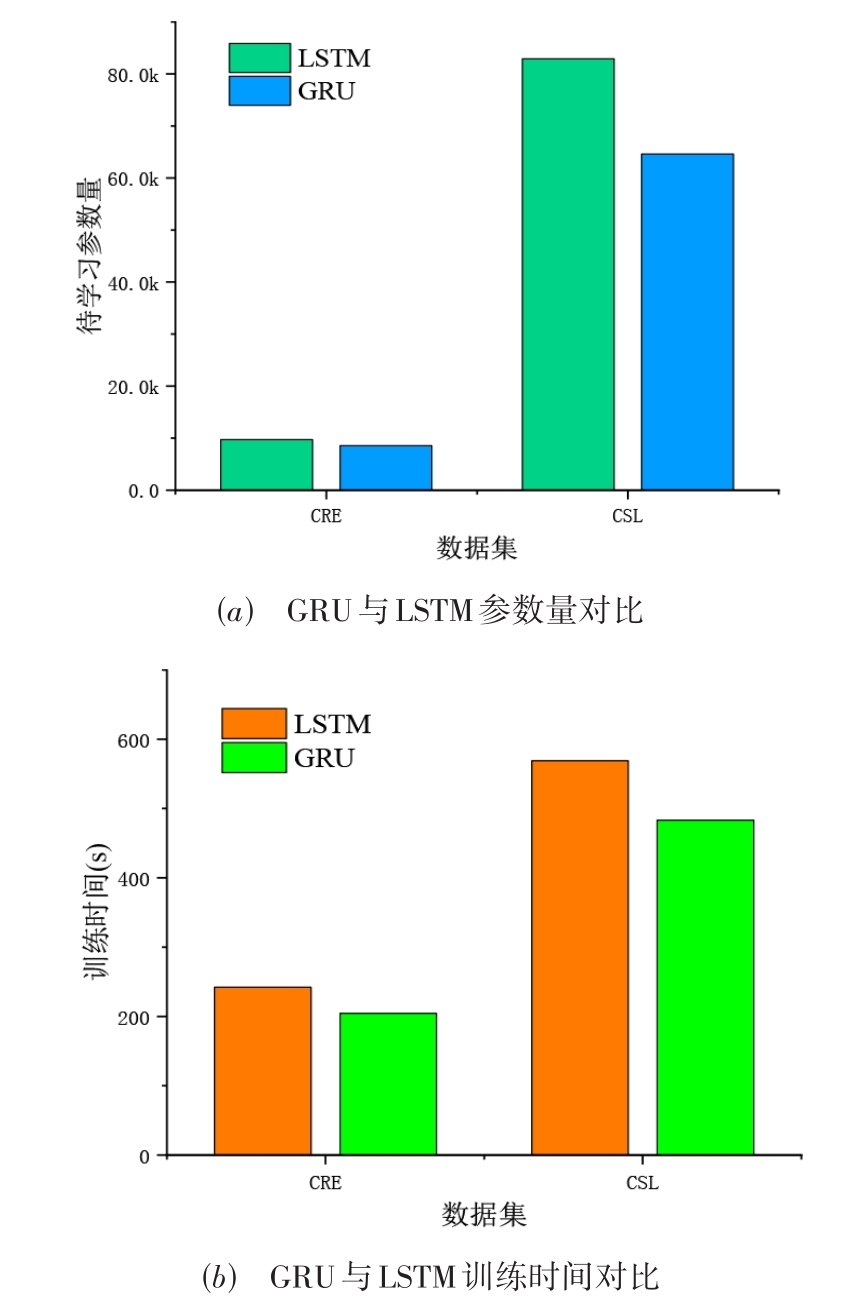

图13 GRU与LSTM性能对比
