基于剪边策略的图残差卷积深层网络模型

doi:10.12263/DZXB.20210152

摘要/Abstract

摘要：

图神经网络自2005年以来已经逐步成为图学习中的一个重要的研究分支，其中最为活跃的是图卷积神经网络.由于图数据在现实世界中广泛存在，因此有效地完成图结构数据的学习具有很大的应用前景.目前出现的大多数图卷积神经网络模型基本都是浅层结构，过平滑问题成为制约该领域发展的瓶颈问题.本文提出了一种称为dri-GCN（Graph Convolutional Network via dropedge， residual and identity mapping）的图残差卷积深层网络模型，该模型集成了图剪边、初始残差和恒等映射技术.主要思想包括：利用图剪边技术增加学习数据的多样性，以防止学习过程中的过拟合现象；构建恒等映射下的初始残差网络，来扩展残差单元的学习路径，以削弱学习过程中的过平滑问题.实验结果表明，本文提出的dri-GCN模型可以帮助构建深层图卷积神经网络，通过网络层次的加深可以获得优于浅层网络的学习准确率.

关键词: 图神经网络, 图卷积神经网络, 剪边, 残差

Abstract:

Graph neural network (GNN) has become an important research field since 2005, and the most active branch is the graph convolutional network(GCN). In the real world, many applications are directly related to graphic data, so learning from graphic structure data is becoming more and more important, and can has a huge application prospect. However, most of the existing graph convolution neural network models can only support very few convoluted layers. This is mainly because of the over smoothing problem in GCNs, which has become one of the main bottlenecks in GCNs. In this paper, a novel GCN network: dri-GCN is proposed, which integrates the technologies of the Initial Residual, Identity Mapping and DropEdge into the traditional GCN. The main contributions include: using DropEdge to increase data diversity and prevent over-fitting; constructing the residual convolutional network under the constant mapping to extend the learning paths, which can effectively weaken the over smooth problem in GCNs. Experimental results show that dri-GCN model can help building the deeper graph convolution neural networks. There is no doubt that deeper GCNs can achieve better learning accuracy than shallower networks.

Key words: graph neural network, graph convolutional neural networks, DropEdge, residual network

中图分类号:

TP391

毛国君, 王者浩, 黄山, 等. 基于剪边策略的图残差卷积深层网络模型[J]. 电子学报, 2022, 50(9): 2205-2214.

Guo-jun MAO, Zhe-hao WANG, Shan HUANG, et al. A Deep Residual Graph Convolution Network Based on Dropedge Method[J]. Acta Electronica Sinica, 2022, 50(9): 2205-2214.

图/表 15

图1 CNN和GNN在图像处理上的输入数据

图2 一个残差块的连接结构示意

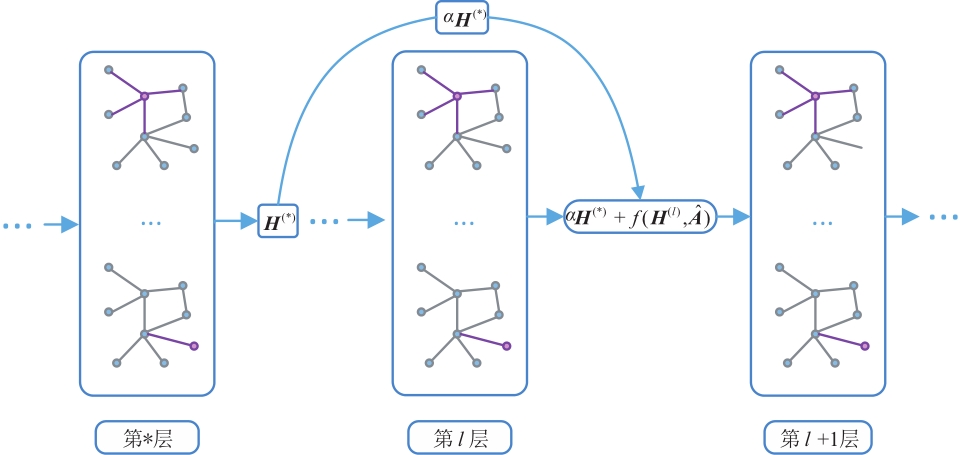

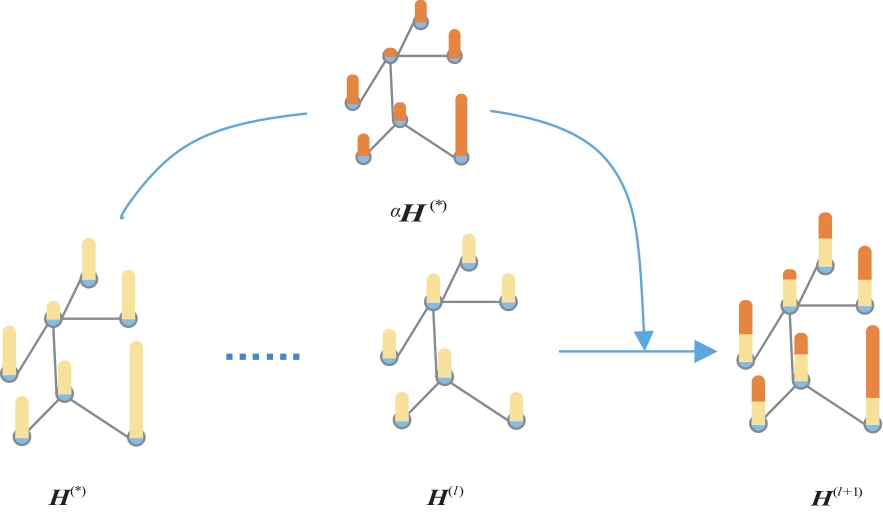

图3 残差和恒等映射在GCN中工作原理示意

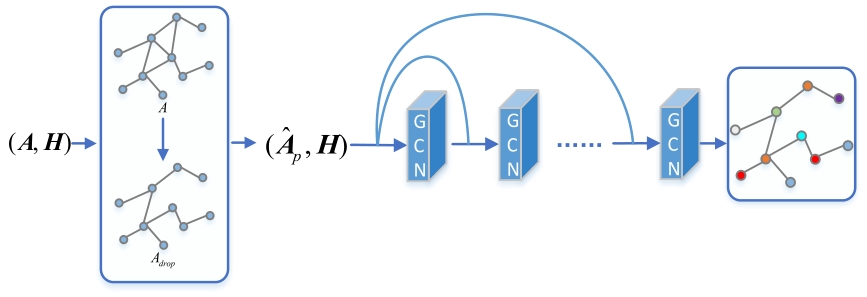

图4 dri_GCN运行框架

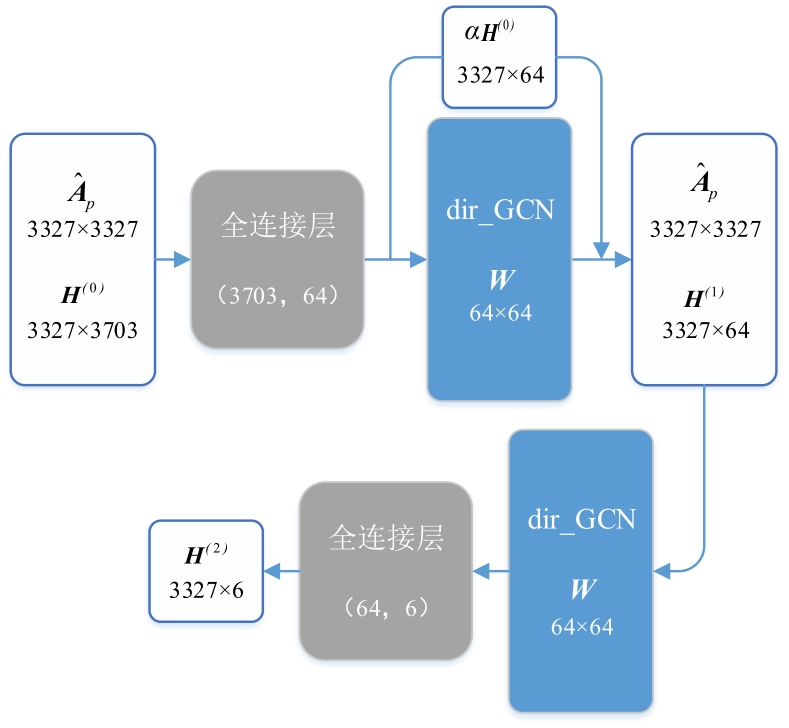

图5 dri_GCN网络的学习过程示意

表1 三个数据集的基本信息

数据集	节点数	边数	类别数	特征数
Cora	2708	5429	7	1433
Citeseer	3327	4732	6	3703
Pubmed	19717	44338	3	500

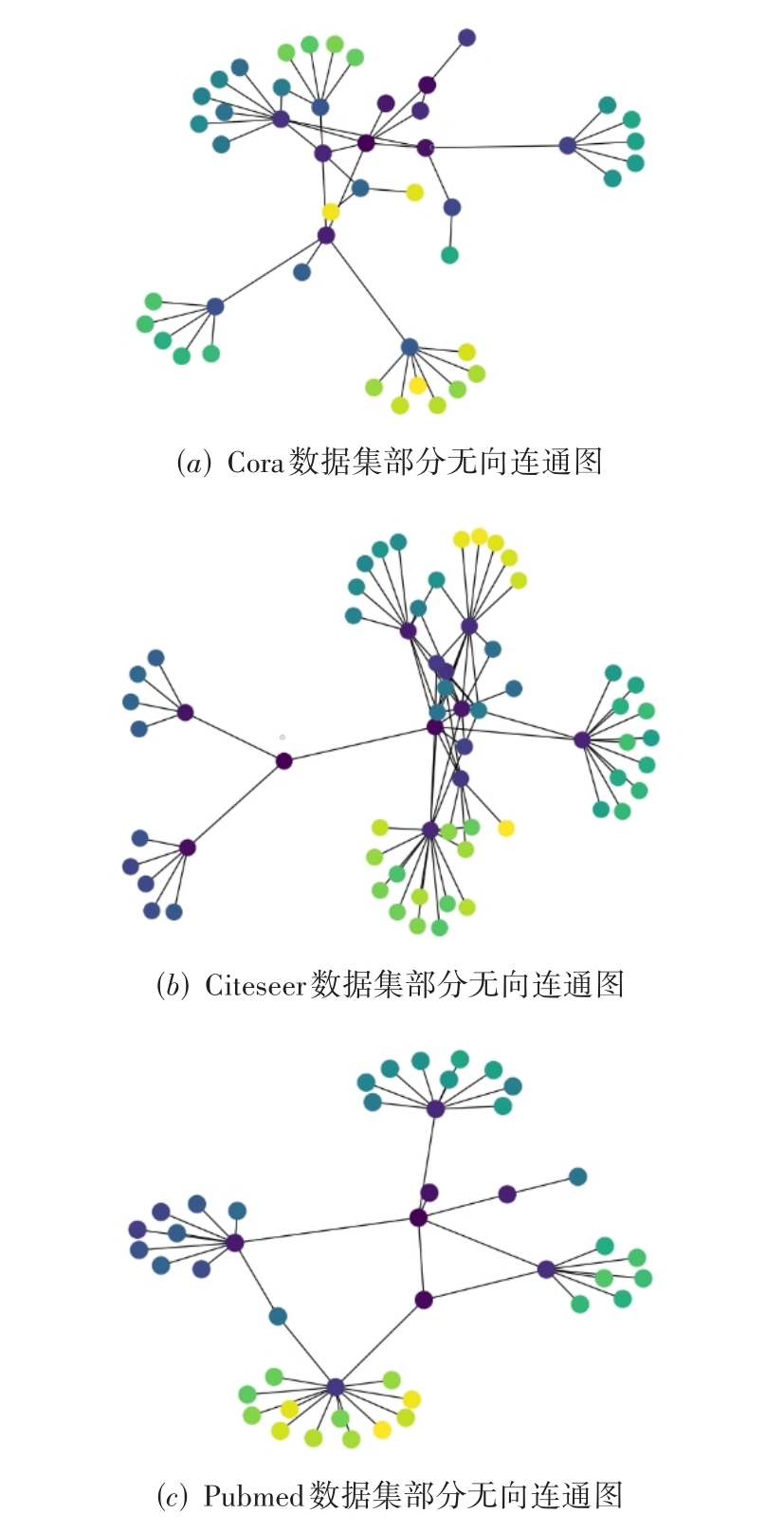

图6 数据集对应的部分无向连通图

表2 实验模型所用的参数

数据集	学习率lr	剪输出系数dropout	剪边系数p	残差系数α	权重控制系数 $λ$
Cora	0.01	0.6	0.9	0.1	0.5
Citeseer	0.01	0.6	0.9	0.1	0.5
Pubmed	0.01	0.6	0.98	0.1	0.5

表2 实验模型所用的参数

数据集	学习率lr	剪输出系数dropout	剪边系数p	残差系数α	权重控制系数 $λ$
Cora	0.01	0.6	0.9	0.1	0.5
Citeseer	0.01	0.6	0.9	0.1	0.5
Pubmed	0.01	0.6	0.98	0.1	0.5

表3 不同方法在Cora数据集上的分类准确率(%)

层数	模型
层数	GCN (G)	d_GCN (d+G)	GCNII (r+G)	dri_GCN (d+r+G)
2	81.1	82.8	80.4	80.6
4	80.3	82.0	81.3	81.4
8	69.5	75.8	82.6	82.8
16	64.9	75.7	84.0	84.2
32	60.3	62.5	84.5	84.5
64	28.7	49.5	84.5	84.5
128	—	—	84.3	84.6

表4 不同方法在Citeseer数据集上的分类准确率(%)

层数	模型
层数	GCN (G)	d_GCN (d+G)	GCNII (r+G)	dri_GCN (d+r+G)
2	70.8	72.3	65.9	66.2
4	67.6	70.6	66.1	66.5
8	30.2	61.4	69.3	70.0
16	18.3	57.2	71.7	72.0
32	25.0	41.6	72.2	72.5
64	20.0	34.4	72.1	72.2
128	—	—	72.0	72.3

表5 不同方法在Pubmed数据集上的分类准确率(%)

层数	模型
层数	GCN (G)	d_GCN (d+G)	GCNII (r+G)	dri_GCN (d+r+G)
2	79.0	79.6	78.1	77.8
4	76.5	79.4	78.3	78.4
8	61.2	78.1	79.1	79.1
16	40.9	78.5	79.2	79.3
32	22.4	77.0	79.3	79.7
64	35.3	61.5	79.2	79.3
128	—	—	79.1	79.3

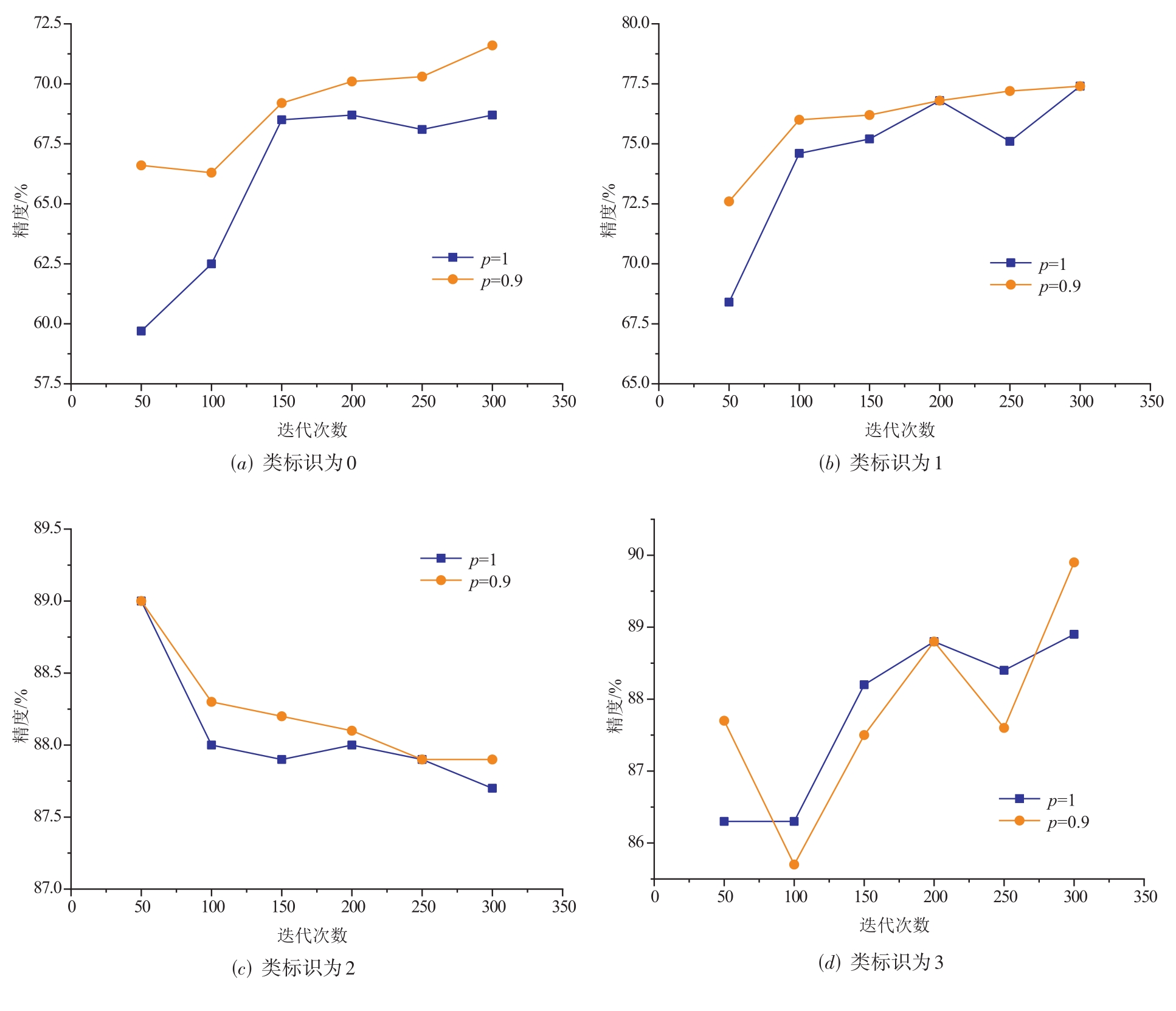

图7 dri_GCN 在Cora数据集的精度对比

表6 Cora数据集p参数实验(%)

p值	层数
p值	2	4	8	16	32	64	128
p=0.9	80.7	81.4	83.0	84.4	84.9	84.5	84.4
p=0.8	81.0	81.1	82.6	84.2	84.2	84.0	83.5
p=0.7	80.4	81.6	82.2	83.7	83.9	83.1	83.1
p=0.6	81.5	79.5	80.9	82.2	82.7	81.9	82.4
p=0.5	81.3	79.4	80.8	81.9	82.1	81.9	82.1
p=0.4	80.7	76.5	79.7	81.5	81.4	81.9	81.7
p=0.3	80.1	75.4	79.3	79.9	80.9	81.3	80.9
p=0.2	80.0	72.4	79.1	79.9	80.0	80.6	80.1

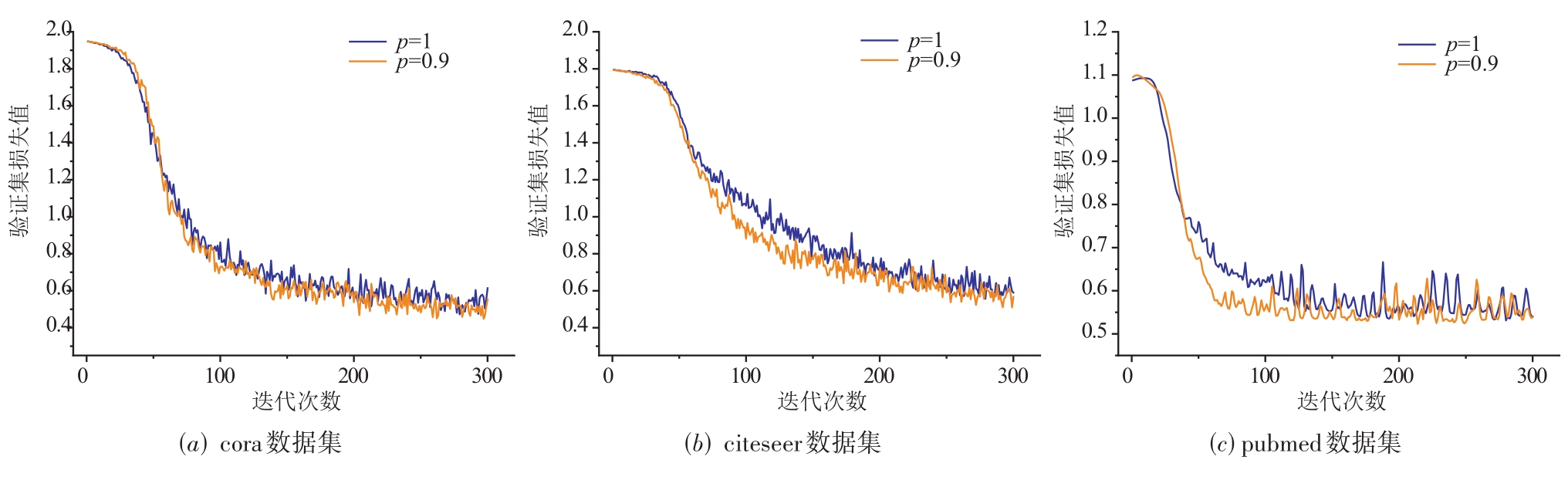

图8 dri_GCN 损失函数对比

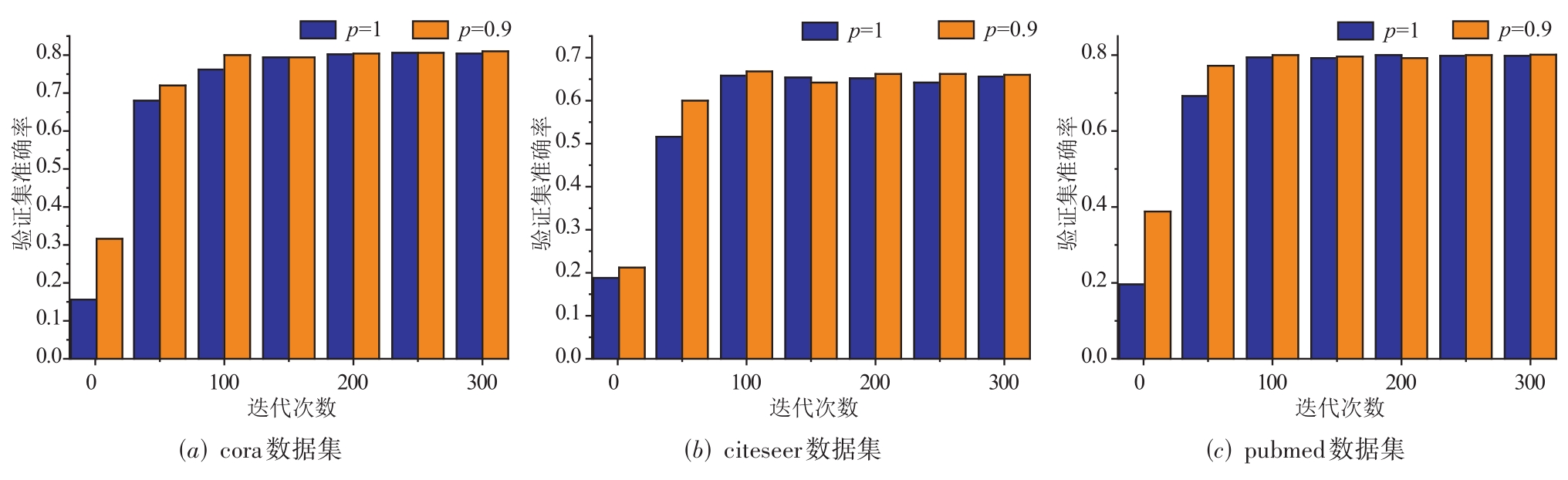

图9 dri_GCN 验证集准确率对比
