电子学报 ›› 2021, Vol. 49 ›› Issue (10): 2069-2080.DOI: 10.12263/DZXB.20200471
张文茹1, 汪莞乔2,3, 官科3, 艾渤3, 曾毅1,4, 赖峥嵘1
收稿日期:
2020-05-18
修回日期:
2021-03-19
出版日期:
2021-11-29
作者简介:
基金资助:
ZHANG Wen-ru1, WANG Wan-qiao2,3, GUAN Ke3, AI Bo3, ZENG Yi1,4, LAI Zheng-rong1
Received:
2020-05-18
Revised:
2021-03-19
Online:
2021-11-29
Published:
2021-10-25
Supported by:
摘要:

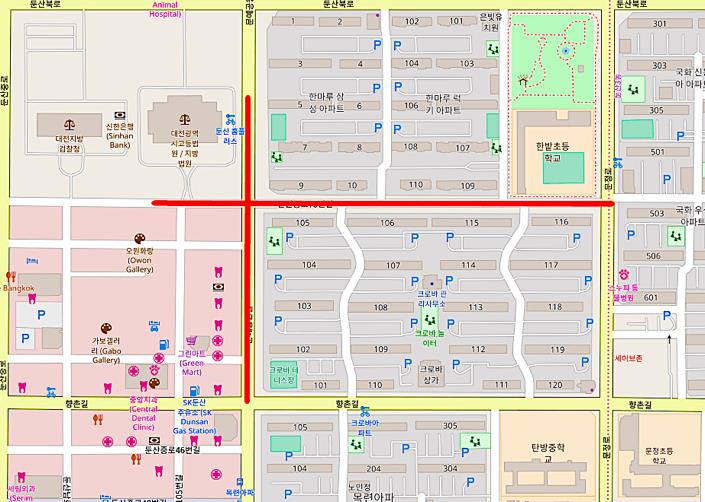

随着车载网络的发展,新的无线电技术已经成为人们关注的焦点.车辆间通信既要求超可靠低时延,同时又对通信数据速率有较高的要求.本文针对韩国大田的城市环境进行仿真,并表征23GHz车载移动通信信道的特性.利用射线跟踪仿真萃取路径损耗、莱斯K因子、均方根时延扩展和角度扩展等典型信道参数,定量地分析并总结其对车辆通信的影响,为毫米波车载移动通信系统的部署提供参考和指导性建议.
中图分类号:
张文茹, 汪莞乔, 官科, 等. 城市交通环境下23GHz信道仿真建模[J]. 电子学报, 2021, 49(10): 2069-2080.
Wen-ru ZHANG, Wan-qiao WANG, Ke GUAN, et al. Channel Simulation Modeling at 23GHz in Urban Scenarios[J]. Acta Electronica Sinica, 2021, 49(10): 2069-2080.

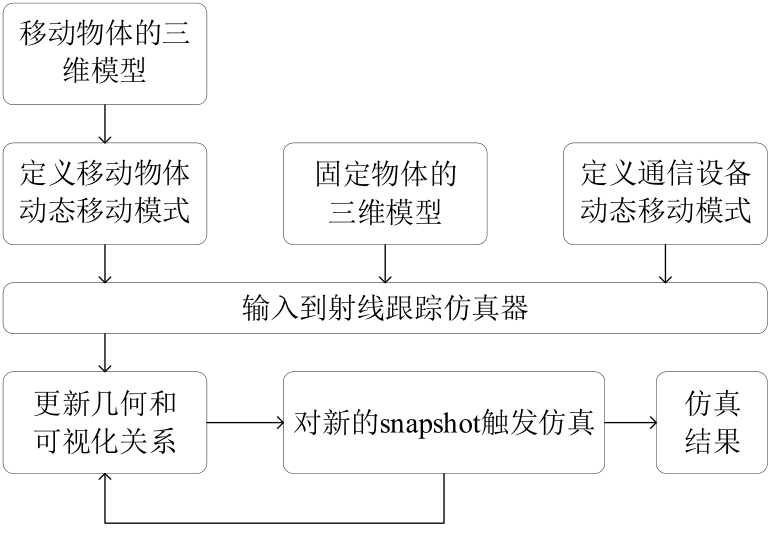

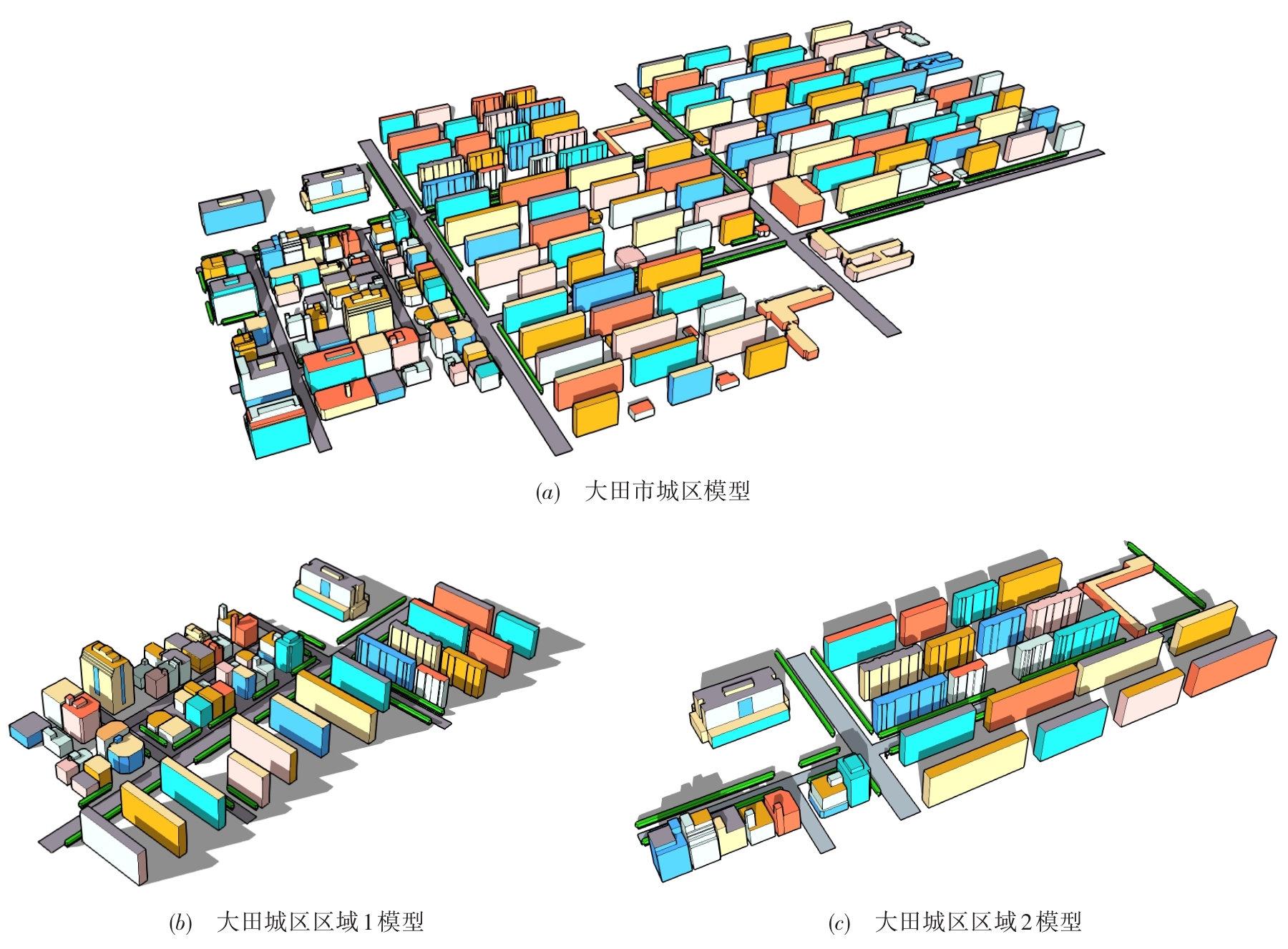

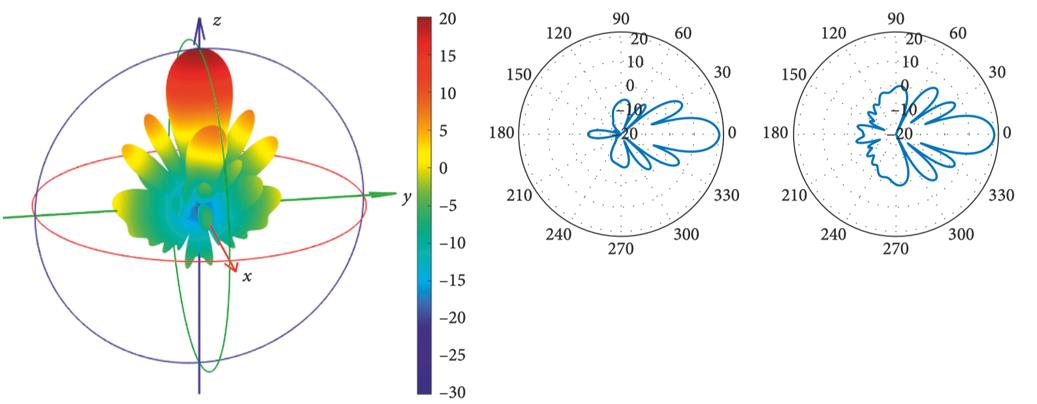

频率 | 22.1~23.1GHz | |
---|---|---|
天线 | 定向天线 | |
Tx | 功率 | 0dBm |

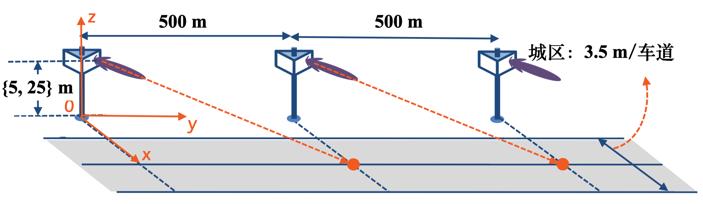

高度 | 5m, 25m | |
Rx | 高度 | 3.2m |
车辆行驶距离 | 500m | |

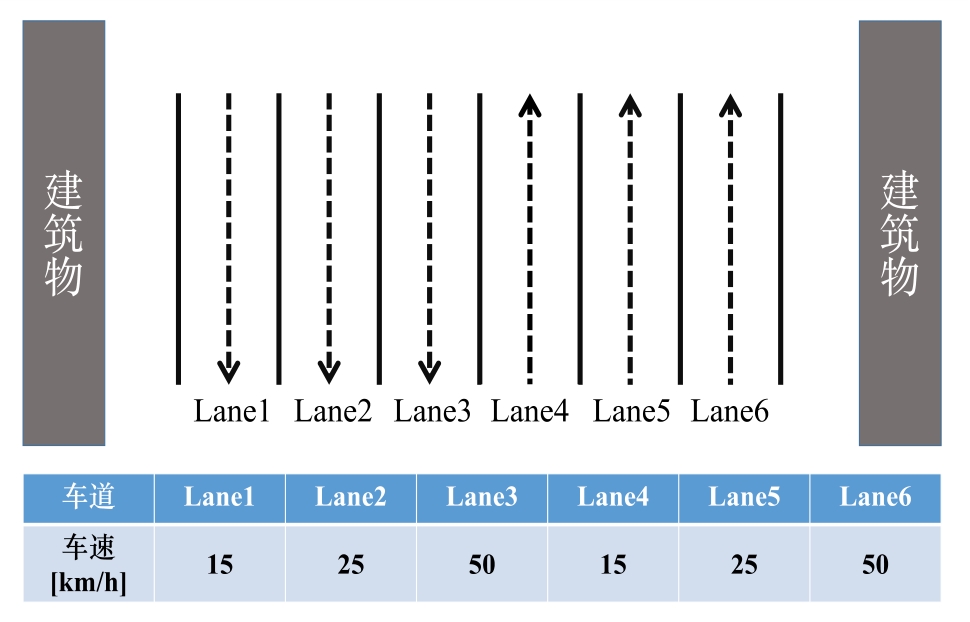

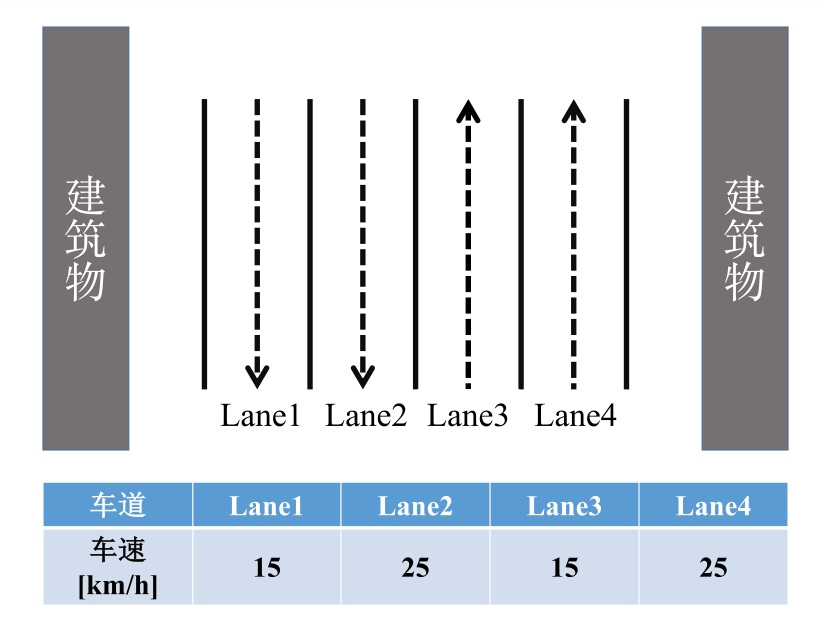

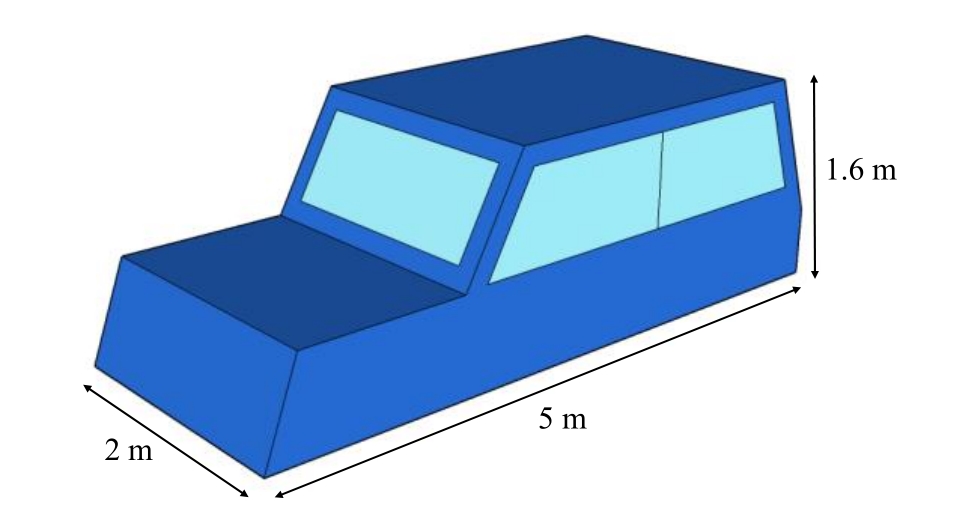

车辆行驶道路设置 | D1:Rx位于Lane 2(4车道, | |
D2:Rx位于Lane 3(6车道, | ||
车辆类型 | 乘用车 | 占道路总车辆的 |

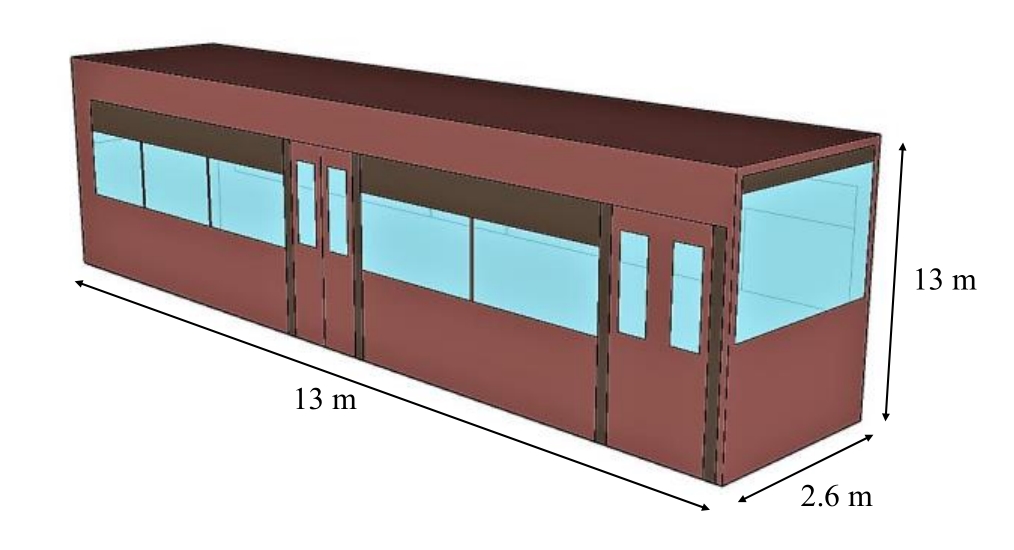

公交车 | 占道路总车辆的 | |

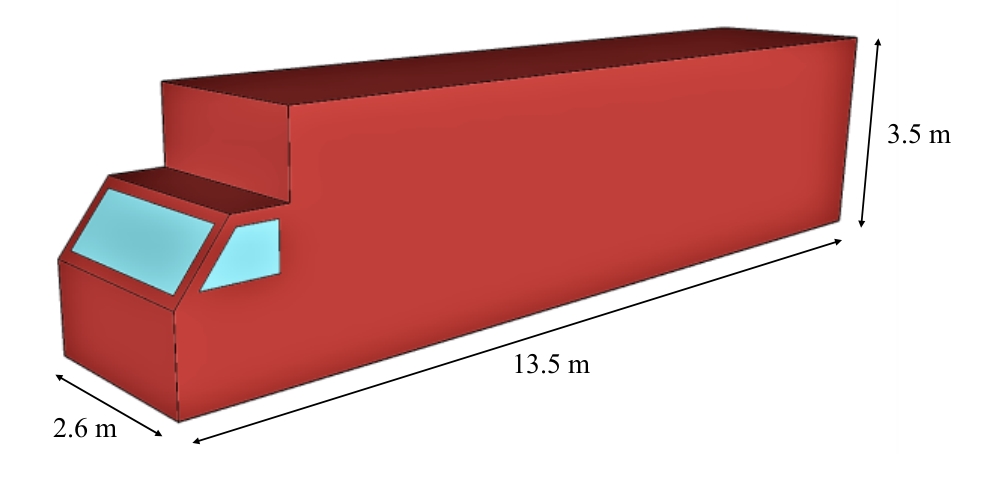

厢式货车 | 占道路总车辆的 | |
传播机制 | 直射、透射 | 开启 |
反射 | 最高为二阶反射 | |
绕射 | 一致性绕射理论 | |
散射 | 方向性散射模型 | |
材料 | 建筑物 | 砖、大理石、玻璃 |
小型散射体、车辆 | 金属 | |
树木 | 木头 | |
地面 | 混凝土 |
表1 城区场景仿真设置
频率 | 22.1~23.1GHz | |
---|---|---|
天线 | 定向天线 | |
Tx | 功率 | 0dBm |
高度 | 5m, 25m | |
Rx | 高度 | 3.2m |
车辆行驶距离 | 500m | |
车辆行驶道路设置 | D1:Rx位于Lane 2(4车道, | |
D2:Rx位于Lane 3(6车道, | ||
车辆类型 | 乘用车 | 占道路总车辆的 |
公交车 | 占道路总车辆的 | |
厢式货车 | 占道路总车辆的 | |
传播机制 | 直射、透射 | 开启 |
反射 | 最高为二阶反射 | |
绕射 | 一致性绕射理论 | |
散射 | 方向性散射模型 | |
材料 | 建筑物 | 砖、大理石、玻璃 |
小型散射体、车辆 | 金属 | |
树木 | 木头 | |
地面 | 混凝土 |
材料 | ||||
---|---|---|---|---|
砖 | 1.9155 | 0.0568 | 0.0019 | 49.5724 |
大理石 | 3.0045 | 0.2828 | 0.0022 | 15.3747 |
玻璃 | 1.0538 | 23.9211 | 0.0025 | 5.5106 |
金属 | 1 | 0.0026 | 17.7691 | |
混凝土 | 5.4745 | 0.0021 | 0.0011 | 109 |
木头 | 6.6 | 0.9394 | 0.0086 | 13.1404 |
表2 不同材料的电磁参数

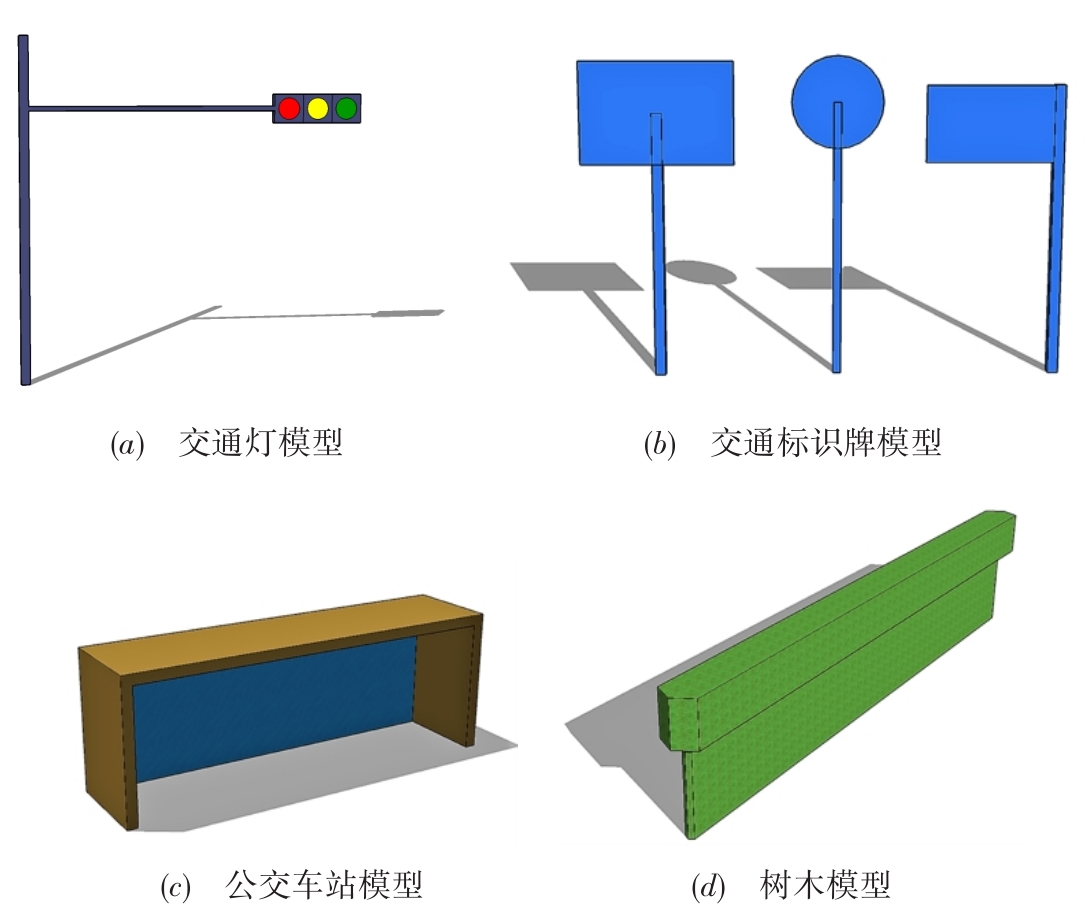

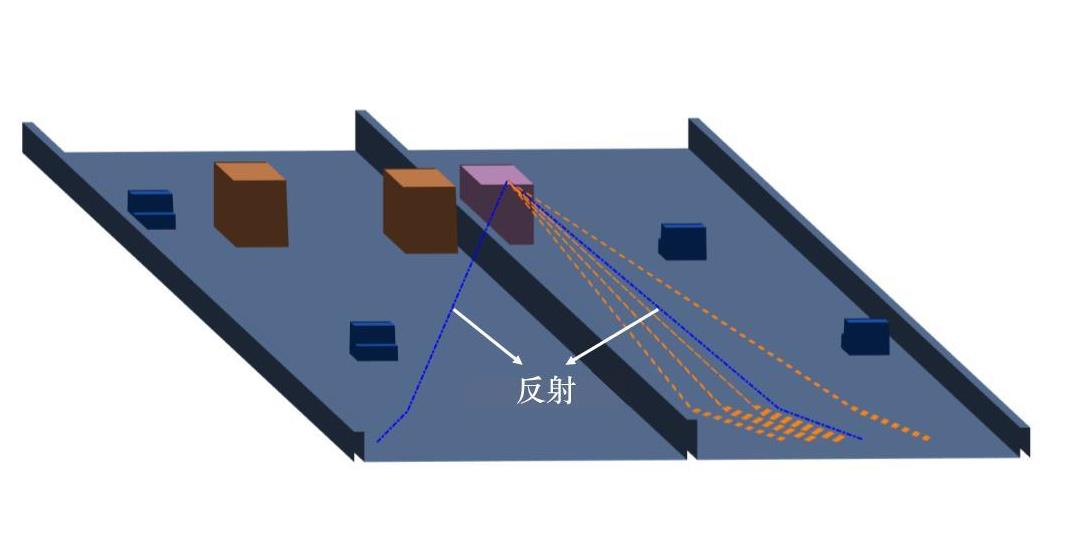

材料 | ||||
---|---|---|---|---|
砖 | 1.9155 | 0.0568 | 0.0019 | 49.5724 |
大理石 | 3.0045 | 0.2828 | 0.0022 | 15.3747 |
玻璃 | 1.0538 | 23.9211 | 0.0025 | 5.5106 |
金属 | 1 | 0.0026 | 17.7691 | |
混凝土 | 5.4745 | 0.0021 | 0.0011 | 109 |
木头 | 6.6 | 0.9394 | 0.0086 | 13.1404 |
物体 | LOS | 反射(最高二阶) | 散射 | 透射 | 绕射 |
---|---|---|---|---|---|
树木 | √ | × | √ | √ | × |
建筑物 | √ | √ | × | × | √ |
交通标识牌 | √ | √ | × | × | √ |
交通灯 | √ | √ | × | × | √ |
公交车站 | √ | √ | × | × | √ |
地面 | √ | √ | √ | × | × |
车辆 | √ | √ | √ | × | √ |
表3 仿真中的传播机制
物体 | LOS | 反射(最高二阶) | 散射 | 透射 | 绕射 |
---|---|---|---|---|---|
树木 | √ | × | √ | √ | × |
建筑物 | √ | √ | × | × | √ |
交通标识牌 | √ | √ | × | × | √ |
交通灯 | √ | √ | × | × | √ |
公交车站 | √ | √ | × | × | √ |
地面 | √ | √ | √ | × | × |
车辆 | √ | √ | √ | × | √ |

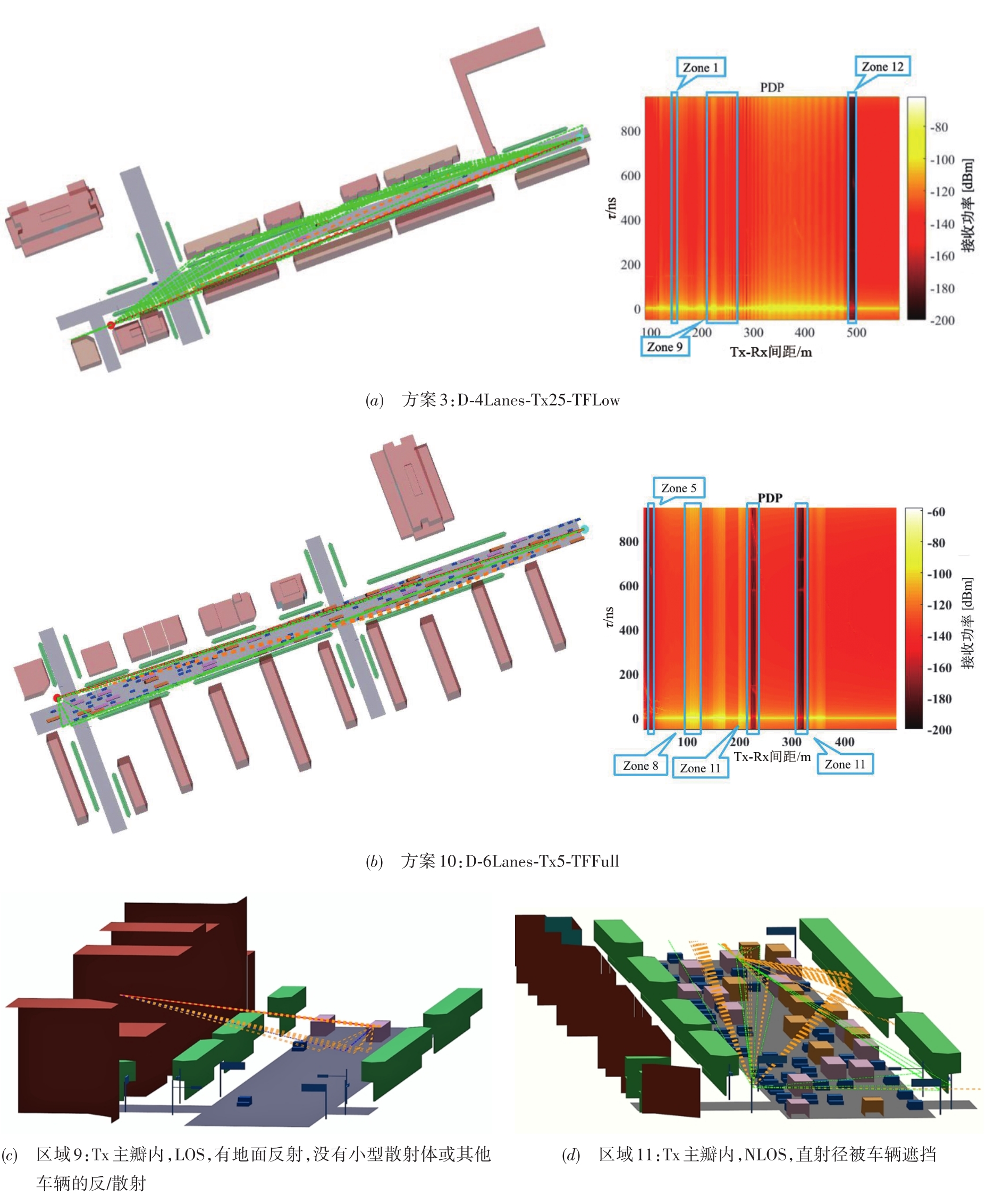

索引 | 场景 | 车道数 | Tx高度 | 交通流量 | 术语 |
---|---|---|---|---|---|
1 | 大田 | 4-lane | 25 m | Full | D-4Lanes-Tx25-TFFull |
2 | 大田 | 4-lane | 25 m | Half | D-4Lanes-Tx25-TFHalf |
3 | 大田 | 4-lane | 25 m | Low | D-4Lanes-Tx25-TFLow |
4 | 大田 | 4-lane | 5 m | Full | D-4Lanes-Tx5-TFFull |
5 | 大田 | 4-lane | 5 m | Half | D-4Lanes-Tx5-TFHalf |
6 | 大田 | 4-lane | 5 m | Low | D-4Lanes-Tx5-TFLow |
7 | 大田 | 6-lane | 25 m | Full | D-6Lanes-Tx25-TFFull |
8 | 大田 | 6-lane | 25 m | Half | D-6Lanes-Tx25-TFHalf |
9 | 大田 | 6-lane | 25 m | Low | D-6Lanes-Tx25-TFLow |
10 | 大田 | 6-lane | 5 m | Full | D-6Lanes-Tx5-TFFull |
11 | 大田 | 6-lane | 5 m | Half | D-6Lanes-Tx5-TFHalf |
12 | 大田 | 6-lane | 5 m | Low | D-6Lanes-Tx5-TFLow |
表4 仿真方案
索引 | 场景 | 车道数 | Tx高度 | 交通流量 | 术语 |
---|---|---|---|---|---|
1 | 大田 | 4-lane | 25 m | Full | D-4Lanes-Tx25-TFFull |
2 | 大田 | 4-lane | 25 m | Half | D-4Lanes-Tx25-TFHalf |
3 | 大田 | 4-lane | 25 m | Low | D-4Lanes-Tx25-TFLow |
4 | 大田 | 4-lane | 5 m | Full | D-4Lanes-Tx5-TFFull |
5 | 大田 | 4-lane | 5 m | Half | D-4Lanes-Tx5-TFHalf |
6 | 大田 | 4-lane | 5 m | Low | D-4Lanes-Tx5-TFLow |
7 | 大田 | 6-lane | 25 m | Full | D-6Lanes-Tx25-TFFull |
8 | 大田 | 6-lane | 25 m | Half | D-6Lanes-Tx25-TFHalf |
9 | 大田 | 6-lane | 25 m | Low | D-6Lanes-Tx25-TFLow |
10 | 大田 | 6-lane | 5 m | Full | D-6Lanes-Tx5-TFFull |
11 | 大田 | 6-lane | 5 m | Half | D-6Lanes-Tx5-TFHalf |
12 | 大田 | 6-lane | 5 m | Low | D-6Lanes-Tx5-TFLow |

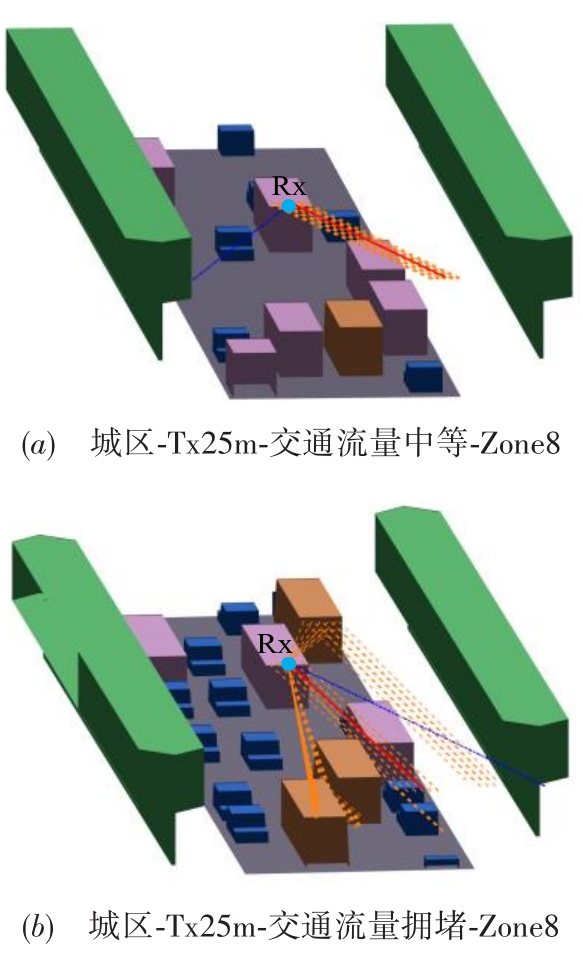

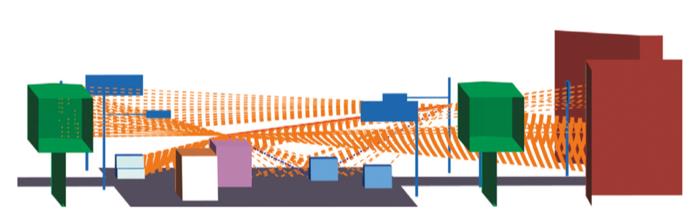

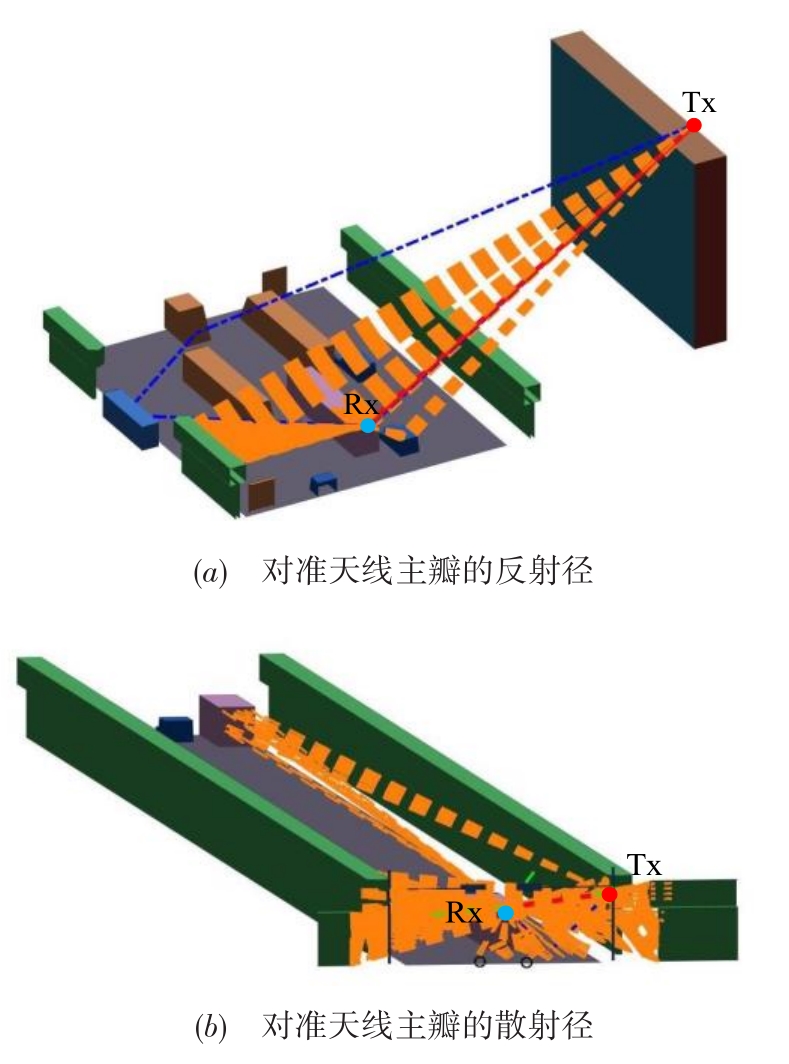

分区 (Zone) | 天线 主瓣 | LOS | NLOS 被车辆 遮挡 | NLOS 被小型散 射体遮挡 | 地面 反射 | 小型散射体 和其他车辆 的反/散射 |
---|---|---|---|---|---|---|
1 | × | √ | × | × | × | × |
2 | × | √ | × | × | × | √ |
3 | × | √ | × | × | √ | × |
4 | × | √ | × | × | √ | √ |
5 | × | × | √ | × | — | — |
6 | × | × | × | √ | — | — |
7 | √ | √ | × | × | × | × |
8 | √ | √ | × | × | × | √ |
9 | √ | √ | × | × | √ | × |
10 | √ | √ | × | × | √ | √ |
11 | √ | × | √ | × | — | — |
12 | √ | × | × | √ | — | — |
表5 传播区域划分

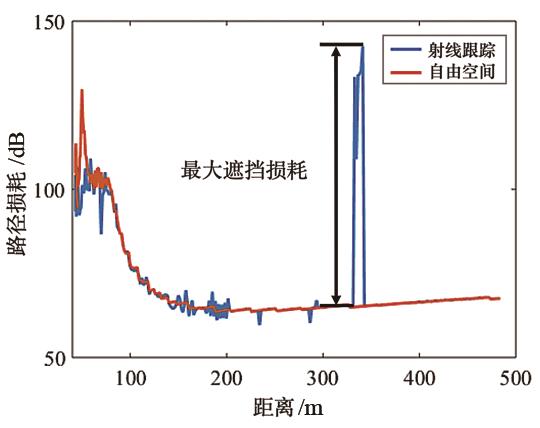

分区 (Zone) | 天线 主瓣 | LOS | NLOS 被车辆 遮挡 | NLOS 被小型散 射体遮挡 | 地面 反射 | 小型散射体 和其他车辆 的反/散射 |
---|---|---|---|---|---|---|
1 | × | √ | × | × | × | × |
2 | × | √ | × | × | × | √ |
3 | × | √ | × | × | √ | × |
4 | × | √ | × | × | √ | √ |
5 | × | × | √ | × | — | — |
6 | × | × | × | √ | — | — |
7 | √ | √ | × | × | × | × |
8 | √ | √ | × | × | × | √ |
9 | √ | √ | × | × | √ | × |
10 | √ | √ | × | × | √ | √ |
11 | √ | × | √ | × | — | — |
12 | √ | × | × | √ | — | — |
场景 | 分区 | PL / dB | ||
---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | -70.26 | 204.75 | 4.16 |
8 | -3.62 | 79.74 | 2.71 | |
D-4Lanes-Tx25-TFHalf | 8 | 16.95 | 24.76 | 2.50 |
10 | 10.13 | 43.02 | 3.58 | |
D-4Lanes-Tx25-TFLow | 2 | -68.95 | 202.26 | 3.96 |
10 | 6.60 | 51.12 | 3.90 | |
D-4Lanes-Tx5-TFFull | 8 | 20.53 | 15.17 | 2.43 |
D-4Lanes-Tx5-TFHalf | 2 | -76.02 | 170.44 | 4.97 |
8 | 19.85 | 16.57 | 0.14 | |
D-4Lanes-Tx5-TFLow | 4 | -42.18 | 124.74 | 2.49 |
9 | 10.00 | 40.23 | 5.71 | |
D-6Lanes-Tx25-TFFull | 2 | -10.55 | 110.09 | 3.19 |
8 | 16.55 | 25.49 | 0.06 | |
D-6Lanes-Tx25-TFHalf | 8 | 15.73 | 27.51 | 0.05 |
10 | 10.49 | 41.08 | 4.40 | |
D-6Lanes-Tx25-TFLow | 4 | -21.13 | 125.78 | 2.12 |
9 | 12.59 | 35.17 | 3.27 | |
D-6Lanes-Tx5-TFFull | 5 | -24.10 | 134.65 | 16.12 |
8 | -16.42 | 93.07 | 5.76 | |
11 | 163.87 | -272.66 | 0.88 | |
D-6Lanes-Tx5-TFHalf | 4 | -26.86 | 114.01 | 2.29 |
8 | 18.66 | 19.67 | 0.06 | |
12 | 99.19 | -86.21 | 5.82 | |
D-6Lanes-Tx5-TFLow | 1 | 277.23 | -253.11 | 5.98 |
9 | 22.40 | 10.88 | 5.77 | |
10 | -51.38 | 155.12 | 5.40 | |
12 | -16.34 | 175.27 | 2.69 |
表6 萃取的PL参数
场景 | 分区 | PL / dB | ||
---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | -70.26 | 204.75 | 4.16 |
8 | -3.62 | 79.74 | 2.71 | |
D-4Lanes-Tx25-TFHalf | 8 | 16.95 | 24.76 | 2.50 |
10 | 10.13 | 43.02 | 3.58 | |
D-4Lanes-Tx25-TFLow | 2 | -68.95 | 202.26 | 3.96 |
10 | 6.60 | 51.12 | 3.90 | |
D-4Lanes-Tx5-TFFull | 8 | 20.53 | 15.17 | 2.43 |
D-4Lanes-Tx5-TFHalf | 2 | -76.02 | 170.44 | 4.97 |
8 | 19.85 | 16.57 | 0.14 | |
D-4Lanes-Tx5-TFLow | 4 | -42.18 | 124.74 | 2.49 |
9 | 10.00 | 40.23 | 5.71 | |
D-6Lanes-Tx25-TFFull | 2 | -10.55 | 110.09 | 3.19 |
8 | 16.55 | 25.49 | 0.06 | |
D-6Lanes-Tx25-TFHalf | 8 | 15.73 | 27.51 | 0.05 |
10 | 10.49 | 41.08 | 4.40 | |
D-6Lanes-Tx25-TFLow | 4 | -21.13 | 125.78 | 2.12 |
9 | 12.59 | 35.17 | 3.27 | |
D-6Lanes-Tx5-TFFull | 5 | -24.10 | 134.65 | 16.12 |
8 | -16.42 | 93.07 | 5.76 | |
11 | 163.87 | -272.66 | 0.88 | |
D-6Lanes-Tx5-TFHalf | 4 | -26.86 | 114.01 | 2.29 |
8 | 18.66 | 19.67 | 0.06 | |
12 | 99.19 | -86.21 | 5.82 | |
D-6Lanes-Tx5-TFLow | 1 | 277.23 | -253.11 | 5.98 |
9 | 22.40 | 10.88 | 5.77 | |
10 | -51.38 | 155.12 | 5.40 | |
12 | -16.34 | 175.27 | 2.69 |
场景 | 分区 | DS/ns | KF/dB | ||
---|---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | 9.53 | 6.77 | 14.41 | 6.39 |
8 | 9.15 | 2.63 | 13.75 | 14.46 | |
D-4Lanes-Tx25-TFHalf | 8 | 4.96 | 2.11 | 19.15 | 18.27 |
10 | 3.48 | 1.08 | 9.41 | 11.48 | |
D-4Lanes-Tx25-TFLow | 2 | 9.01 | 7.13 | 14.61 | 7.14 |
10 | 3.80 | 1.26 | 23.53 | 23.40 | |
D-4Lanes-Tx5-TFFull | 8 | 2.97 | 1.83 | 51.88 | 18.84 |
D-4Lanes-Tx5-TFHalf | 2 | 23.71 | 25.18 | 13.83 | 13.06 |
8 | 1.76 | 0.57 | 65.19 | 7.78 | |
D-4Lanes-Tx5-TFLow | 4 | 4.81 | 2.77 | 22.31 | 2.73 |
9 | 5.56 | 1.26 | 1.66 | 6.28 | |
D-6Lanes-Tx25-TFFull | 2 | 9.70 | 5.34 | 15.09 | 5.09 |
8 | 1.76 | 0.54 | 55.49 | 3.40 | |
D-6Lanes-Tx25-TFHalf | 8 | 1.27 | 0.01 | 45.69 | 17.05 |
10 | 4.26 | 0.50 | 52.77 | 3.82 | |
D-6Lanes-Tx25-TFLow | 4 | 9.40 | 4.46 | 14.61 | 7.46 |
9 | 2.46 | 0.95 | 6.93 | 1.92 | |
D-6Lanes-Tx5-TFFull | 5 | 18.12 | 11.11 | -2.23 | 18.52 |
8 | 7.15 | 1.36 | 3.80 | 1.01 | |
11 | 178.41 | 46.24 | 13.57 | 4.43 | |
D-6Lanes-Tx5-TFHalf | 4 | 3.30 | 1.15 | 19.36 | 5.89 |
8 | 2.11 | 0.73 | 59.79 | 10.55 | |
12 | 57.93 | 45.11 | -4.72 | 4.38 | |
D-6Lanes-Tx5-TFLow | 1 | 36.76 | 5.94 | 0.61 | 3.91 |
9 | 5.49 | 1.02 | 13.69 | 23.61 | |
10 | 4.29 | 1.55 | 7.39 | 6.90 | |
12 | 6.91 | 0.90 | -2.58 | 6.54 |
表7 萃取的DS与KF参数

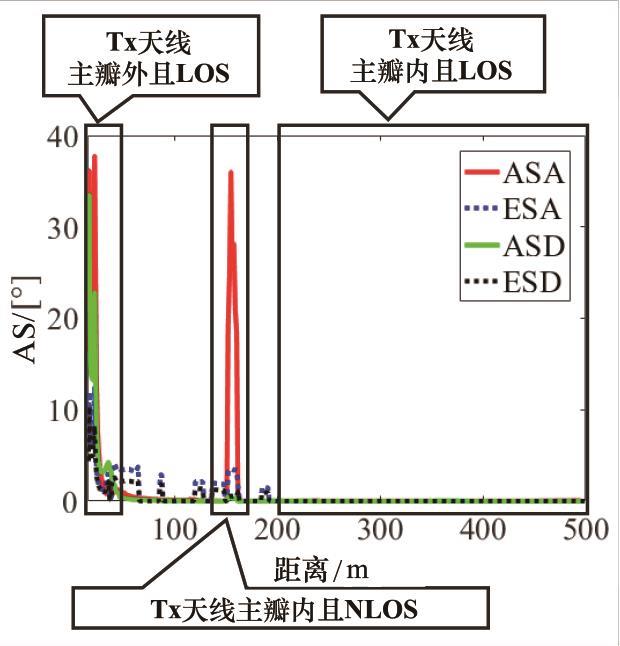

场景 | 分区 | DS/ns | KF/dB | ||
---|---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | 9.53 | 6.77 | 14.41 | 6.39 |
8 | 9.15 | 2.63 | 13.75 | 14.46 | |
D-4Lanes-Tx25-TFHalf | 8 | 4.96 | 2.11 | 19.15 | 18.27 |
10 | 3.48 | 1.08 | 9.41 | 11.48 | |
D-4Lanes-Tx25-TFLow | 2 | 9.01 | 7.13 | 14.61 | 7.14 |
10 | 3.80 | 1.26 | 23.53 | 23.40 | |
D-4Lanes-Tx5-TFFull | 8 | 2.97 | 1.83 | 51.88 | 18.84 |
D-4Lanes-Tx5-TFHalf | 2 | 23.71 | 25.18 | 13.83 | 13.06 |
8 | 1.76 | 0.57 | 65.19 | 7.78 | |
D-4Lanes-Tx5-TFLow | 4 | 4.81 | 2.77 | 22.31 | 2.73 |
9 | 5.56 | 1.26 | 1.66 | 6.28 | |
D-6Lanes-Tx25-TFFull | 2 | 9.70 | 5.34 | 15.09 | 5.09 |
8 | 1.76 | 0.54 | 55.49 | 3.40 | |
D-6Lanes-Tx25-TFHalf | 8 | 1.27 | 0.01 | 45.69 | 17.05 |
10 | 4.26 | 0.50 | 52.77 | 3.82 | |
D-6Lanes-Tx25-TFLow | 4 | 9.40 | 4.46 | 14.61 | 7.46 |
9 | 2.46 | 0.95 | 6.93 | 1.92 | |
D-6Lanes-Tx5-TFFull | 5 | 18.12 | 11.11 | -2.23 | 18.52 |
8 | 7.15 | 1.36 | 3.80 | 1.01 | |
11 | 178.41 | 46.24 | 13.57 | 4.43 | |
D-6Lanes-Tx5-TFHalf | 4 | 3.30 | 1.15 | 19.36 | 5.89 |
8 | 2.11 | 0.73 | 59.79 | 10.55 | |
12 | 57.93 | 45.11 | -4.72 | 4.38 | |
D-6Lanes-Tx5-TFLow | 1 | 36.76 | 5.94 | 0.61 | 3.91 |
9 | 5.49 | 1.02 | 13.69 | 23.61 | |
10 | 4.29 | 1.55 | 7.39 | 6.90 | |
12 | 6.91 | 0.90 | -2.58 | 6.54 |
场景 | 分区 | ASA/( | ESA/( | ASD/( | ESD/( | ||||
---|---|---|---|---|---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | 29.29 | 30.79 | 9.75 | 10.49 | 13.19 | 12.22 | 1.32 | 1.23 |
8 | 2.63 | 0.85 | 0.01 | 0.00 | 2.72 | 0.90 | 0.01 | 0.00 | |
D-4Lanes-Tx25-TFHalf | 8 | 36.11 | 48.07 | 0.02 | 0.01 | 1.64 | 1.02 | 0.02 | 0.01 |
10 | 1.55 | 0.53 | 2.68 | 1.71 | 9.54 | 2.71 | 0.35 | 0.20 | |
D-4Lanes-Tx25-TFLow | 2 | 27.93 | 30.88 | 9.41 | 10.46 | 12.98 | 12.14 | 1.23 | 1.18 |
10 | 4.79 | 20.68 | 3.08 | 1.36 | 0.04 | 0.17 | 0.39 | 0.17 | |
D-4Lanes-Tx5-TFFull | 8 | 21.30 | 54.92 | 0.07 | 0.14 | 0.11 | 0.28 | 0.01 | 0.05 |
D-4Lanes-Tx5-TFHalf | 2 | 27.78 | 33.58 | 8.13 | 7.07 | 18.92 | 20.02 | 5.14 | 4.89 |
8 | 0.03 | 0.02 | 0.00 | 0.04 | 0.00 | 0.00 | 0.00 | 0.02 | |
D-4Lanes-Tx5-TFLow | 4 | 6.36 | 4.34 | 1.48 | 0.33 | 2.69 | 1.92 | 0.93 | 0.24 |
9 | 0.01 | 0.01 | 1.02 | 0.14 | 0.00 | 0.00 | 0.66 | 0.09 | |
D-6Lanes-Tx25-TFFull | 2 | 20.04 | 7.42 | 21.09 | 8.71 | 0.72 | 0.49 | 1.83 | 0.74 |
8 | 0.05 | 0.01 | 0.00 | 0.00 | 0.07 | 0.01 | 0.05 | 0.01 | |
D-6Lanes-Tx25-TFHalf | 8 | 0.05 | 0.05 | 0.01 | 0.00 | 0.03 | 0.03 | 0.02 | 0.02 |
10 | 0.03 | 0.02 | 3.27 | 0.14 | 0.02 | 0.02 | 0.42 | 0.02 | |
D-6Lanes-Tx25-TFLow | 4 | 18.52 | 6.82 | 23.38 | 9.98 | 0.57 | 0.45 | 1.85 | 0.79 |
9 | 0.02 | 0.03 | 4.71 | 0.35 | 0.01 | 0.01 | 0.60 | 0.04 | |
D-6Lanes-Tx5-TFFull | 5 | 52.72 | 35.28 | 5.75 | 3.73 | 14.08 | 8.38 | 2.44 | 1.52 |
8 | 40.88 | 8.95 | 0.01 | 0.00 | 1.09 | 0.08 | 0.00 | 0.00 | |
11 | 17.84 | 0.65 | 0.43 | 0.06 | 4.07 | 0.13 | 0.14 | 0.02 | |
D-6Lanes-Tx5-TFHalf | 4 | 2.09 | 1.93 | 2.14 | 1.26 | 3.16 | 1.04 | 1.52 | 0.76 |
8 | 0.02 | 0.01 | 0.00 | 0.00 | 0.01 | 0.01 | 0.00 | 0.00 | |
12 | 24.69 | 6.11 | 3.41 | 0.09 | 0.36 | 0.11 | 0.50 | 0.05 | |
D-6Lanes-Tx5-TFLow | 1 | 61.38 | 6.31 | 9.68 | 0.56 | 30.04 | 4.66 | 7.69 | 0.93 |
9 | 0.01 | 0.00 | 1.21 | 0.17 | 0.01 | 0.00 | 0.78 | 0.11 | |
10 | 72.23 | 44.20 | 2.69 | 0.28 | 0.99 | 0.56 | 1.72 | 0.18 | |
12 | 0.08 | 0.01 | 0.09 | 0.01 | 0.15 | 0.02 | 0.06 | 0.01 |
表8 萃取的AS参数
场景 | 分区 | ASA/( | ESA/( | ASD/( | ESD/( | ||||
---|---|---|---|---|---|---|---|---|---|
D-4Lanes-Tx25-TFFull | 2 | 29.29 | 30.79 | 9.75 | 10.49 | 13.19 | 12.22 | 1.32 | 1.23 |
8 | 2.63 | 0.85 | 0.01 | 0.00 | 2.72 | 0.90 | 0.01 | 0.00 | |
D-4Lanes-Tx25-TFHalf | 8 | 36.11 | 48.07 | 0.02 | 0.01 | 1.64 | 1.02 | 0.02 | 0.01 |
10 | 1.55 | 0.53 | 2.68 | 1.71 | 9.54 | 2.71 | 0.35 | 0.20 | |
D-4Lanes-Tx25-TFLow | 2 | 27.93 | 30.88 | 9.41 | 10.46 | 12.98 | 12.14 | 1.23 | 1.18 |
10 | 4.79 | 20.68 | 3.08 | 1.36 | 0.04 | 0.17 | 0.39 | 0.17 | |
D-4Lanes-Tx5-TFFull | 8 | 21.30 | 54.92 | 0.07 | 0.14 | 0.11 | 0.28 | 0.01 | 0.05 |
D-4Lanes-Tx5-TFHalf | 2 | 27.78 | 33.58 | 8.13 | 7.07 | 18.92 | 20.02 | 5.14 | 4.89 |
8 | 0.03 | 0.02 | 0.00 | 0.04 | 0.00 | 0.00 | 0.00 | 0.02 | |
D-4Lanes-Tx5-TFLow | 4 | 6.36 | 4.34 | 1.48 | 0.33 | 2.69 | 1.92 | 0.93 | 0.24 |
9 | 0.01 | 0.01 | 1.02 | 0.14 | 0.00 | 0.00 | 0.66 | 0.09 | |
D-6Lanes-Tx25-TFFull | 2 | 20.04 | 7.42 | 21.09 | 8.71 | 0.72 | 0.49 | 1.83 | 0.74 |
8 | 0.05 | 0.01 | 0.00 | 0.00 | 0.07 | 0.01 | 0.05 | 0.01 | |
D-6Lanes-Tx25-TFHalf | 8 | 0.05 | 0.05 | 0.01 | 0.00 | 0.03 | 0.03 | 0.02 | 0.02 |
10 | 0.03 | 0.02 | 3.27 | 0.14 | 0.02 | 0.02 | 0.42 | 0.02 | |
D-6Lanes-Tx25-TFLow | 4 | 18.52 | 6.82 | 23.38 | 9.98 | 0.57 | 0.45 | 1.85 | 0.79 |
9 | 0.02 | 0.03 | 4.71 | 0.35 | 0.01 | 0.01 | 0.60 | 0.04 | |
D-6Lanes-Tx5-TFFull | 5 | 52.72 | 35.28 | 5.75 | 3.73 | 14.08 | 8.38 | 2.44 | 1.52 |
8 | 40.88 | 8.95 | 0.01 | 0.00 | 1.09 | 0.08 | 0.00 | 0.00 | |
11 | 17.84 | 0.65 | 0.43 | 0.06 | 4.07 | 0.13 | 0.14 | 0.02 | |
D-6Lanes-Tx5-TFHalf | 4 | 2.09 | 1.93 | 2.14 | 1.26 | 3.16 | 1.04 | 1.52 | 0.76 |
8 | 0.02 | 0.01 | 0.00 | 0.00 | 0.01 | 0.01 | 0.00 | 0.00 | |
12 | 24.69 | 6.11 | 3.41 | 0.09 | 0.36 | 0.11 | 0.50 | 0.05 | |
D-6Lanes-Tx5-TFLow | 1 | 61.38 | 6.31 | 9.68 | 0.56 | 30.04 | 4.66 | 7.69 | 0.93 |
9 | 0.01 | 0.00 | 1.21 | 0.17 | 0.01 | 0.00 | 0.78 | 0.11 | |
10 | 72.23 | 44.20 | 2.69 | 0.28 | 0.99 | 0.56 | 1.72 | 0.18 | |
12 | 0.08 | 0.01 | 0.09 | 0.01 | 0.15 | 0.02 | 0.06 | 0.01 |
参数 | 24GHz街道峡谷 | 23GHz城区车载移动通信 |
---|---|---|
PL / dB | A: 21 B: 32.4 | A: 6.60-22.40 B: 10.88-79.74 |
DS / ns | 33.88 | 1.76~7.15 |
KF / dB | 9 | 3.8~51.88 |
ASD /( | 13.80 | 0.00~9.54 |
ASA /( | 41.69 | 0.01~73.23 |
ESA /( | 3.89 | 3.80~51.88 |
表10 23GHz仿真信道与24GHz标准信道模型参数对比
参数 | 24GHz街道峡谷 | 23GHz城区车载移动通信 |
---|---|---|
PL / dB | A: 21 B: 32.4 | A: 6.60-22.40 B: 10.88-79.74 |
DS / ns | 33.88 | 1.76~7.15 |
KF / dB | 9 | 3.8~51.88 |
ASD /( | 13.80 | 0.00~9.54 |
ASA /( | 41.69 | 0.01~73.23 |
ESA /( | 3.89 | 3.80~51.88 |
1 | 张德干, 崔玉亚, 陈晨, 等. 一种面向高速路车联网场景的自适应路由方法[J]. 电子学报, 2020, 48(1): 172-179. |
ZhangD G, CuiY Y, ChenC, et al. An adaptive routing method for high-speed-road scenario of the Internet of vehicle[J]. Acta Electronica Sinica, 2020, 48(1): 172-179. (in Chinese) | |
2 | WangC X, BianJ, SunJ, et al. A survey of 5G channel measurements and models[J]. IEEE Communications Surveys & Tutorials, 2018, 20(4): 3142-3168. |
3 | HanC, JornetJ M, AkyildizI. Ultra-massive MIMO channel modeling for graphene-enabled terahertz-band communications[A]. 2018 IEEE 87th Vehicular Technology Conference (VTC Spring)[C]. Porto, Portugal: IEEE, 2018. 1-5. |
4 | 谭晓衡, 谢朝臣, 郭坦. 基于区域感知贝叶斯决策的5G超密集异构网络联合垂直切换技术研究[J]. 电子学报, 2018, 46(3): 582-588. |
TanX H, XieC C, GuoT. Research of joint vertical handoff technology based on area sensing Bayesian decision in ultra-dense het net for 5G[J]. Acta Electronica Sinica, 2018, 46(3): 582-588. (in Chinese) | |
5 | ITU-RM.2083-0. IMT Vision-Framework and overall objectives of the future development of IMT for 2020 and beyond[EB/OL]. !!PDF-E.pdf, 2015/2020. |
6 | SalousS, Degli EspostiV, FuschiniF, et al. Millimeter-Wave Propagation: Characterization and modeling toward fifth-generation systems. [Wireless Corner][J]. IEEE Antennas and Propagation Magazine, 2016, 58(6): 115-127. |
7 | 胡林林, 曾造金, 陈洪斌, 等. 毫米波/太赫兹扩展互作用速调管放大器的应用及研究进展[J]. 电子学报, 2019, 47(1): 211-219. |
HuL L, ZengZ J, ChenH B, et al. Application and development of extended interaction klystrons in millimeter-wave and terahertz band[J]. Acta Electronica Sinica, 2019, 47(1): 211-219. (in Chinese) | |
8 | AntonescuB, MoayyedM T, BasagniS. mmWave channel propagation modeling for V2X communication systems[A]. 2017 IEEE 28th Annual International Symposium on Personal, Indoor, and Mobile Radio Communications (PIMRC)[C]. Montreal, QC, Canada: IEEE, 2017. 1-6. |
9 | KimJ, ChungH, NohG, et al. Overview of moving network system for 5G vehicular communications[A]. Proceedings of 2019 13th European Conference on Antenna and Propagation (EuCAP)[C]. Krakow, Poland: EurAAP, 2019. 1-5. |
10 | 陈兵兵, 曹欣远, 陈明生, 等. 基于欠定方程的频谱峰值搜索算法及其在连续毫米波雷达系统中的应用[J]. 电子学报, 2020, 48(2): 369-374. |
ChenB B, CaoX Y, ChenM S, et al. A spectral peak search algorithm based on underdetermined equation and its application in continuous millimeter wave radar system[J]. Acta Electronica Sinica, 2020, 48(2): 369-374. (in Chinese) | |
11 | HeD P, AiB, GuanK, et al. The design and applications of high-performance ray-tracing simulation platform for 5G and beyond wireless communications: A tutorial[J]. IEEE Communications Surveys & Tutorials, 2019, 21(1): 10-27. |
12 | GuanK, AiB, PengB L, et al. Towards realistic high-speed train channels at 5G millimeter-wave band—part I: Paradigm, significance analysis, and scenario reconstruction[J]. IEEE Transactions on Vehicular Technology, 2018, 67(10): 9112-9128. |
13 | HeD P, AiB, GuanK, et al. Channel measurement, simulation, and analysis for high-speed railway communications in 5G millimeter-wave band[J]. IEEE Transactions on Intelligent Transportation Systems, 2018, 19(10): 3144-3158. |
14 | HeD P, AiB, GuanK, et al. The design and applications of high-performance ray-tracing simulation platform for 5G and beyond wireless communications: A tutorial[J]. IEEE Communications Surveys & Tutorials, 2019, 21(1): 10-27. |
15 | AiB, GuanK, HeR S, et al. On indoor millimeter wave massive MIMO channels: Measurement and simulation[J]. IEEE Journal on Selected Areas in Communications, 2017, 35(7): 1678-1690. |
16 | YangJ Y, AiB, GuanK, et al. A geometry-based stochastic channel model for the millimeter-wave band in a 3GPP high-speed train scenario[J]. IEEE Transactions on Vehicular Technology, 2018, 67(5): 3853-3865. |
17 | ITU-RP.1238-7. Propagation data and prediction methods for the planning of indoor radiocommunication systems and radio local area networks in the frequency range |
900 | MHz to 100 GHz[EB/OL]. !!PDF-E.pdf, |
2012/2020. | |
18 | ITU-RP.2040. Effects of building materials and structures on radiowave propagation above about 100 MHz[EB / OL]. !!PDF-E.pdf, 2013/2020. |
19 | KoJ, NohY S, KimY C, et al. 28 GHz millimeter-wave measurements and models for signal attenuation in vegetated areas[A]. 2017 11th European Conference on Antennas and Propagation (EUCAP)[C]. Paris, France: IEEE, 2017. 1808-1812. |
20 | RahimH M, LeowC Y, RahmanT A. Millimeter wave propagation through foliage: Comparison of models[A]. 2015 IEEE 12th Malaysia International Conference on Communications (MICC)[C]. Kuching, Malaysia: IEEE, 2015. 236-240. |
21 | GuanK, AiB, PengB L, et al. Towards realistic high-speed train channels at 5G millimeter-wave band—part I: Paradigm, significance analysis, and scenario reconstruction[J]. IEEE Transactions on Vehicular Technology, 2018, 67(10): 9112-9128. |
22 | PathakP, BurnsideW, MarhefkaR. A uniform GTD analysis of the diffraction of electromagnetic waves by a smooth convex surface[J]. IEEE Transactions on Antennas and Propagation, 1980, 28(5): 631-642. |
23 | ZhouT, TaoC, SalousS, et al. Channel characterization in high-speed railway station environments at 1.89GHz[J]. Radio Science, 2015, 50(11): 1176-1186. |
24 | RappaportT S. Wireless communications: Principles and practice[EB/OL]. ,1996/2020. |
[1] | 霍羽, 徐钊, 刘逢雪. 融合波模和射线理论的矿井电波传播模型[J]. 电子学报, 2013, 41(1): 110-116. |
[2] | 李晓光, 杜正伟, 冯正和. 室内环境中UWB MIMO传输下的电磁仿真[J]. 电子学报, 2007, 35(6A): 146-151. |
[3] | 周 力;毛钧杰;柴舜连. 基于三维射线跟踪的城市微小区电波传播预测算法[J]. 电子学报, 2002, 30(3): 434-436. |
[4] | 周 力;柴舜连;毛钧杰. 基于三维的射线跟踪八叉树算法的城市微区电波传播预测算法模型[J]. 电子学报, 2002, 30(12): 1776-1778. |
[5] | 孙继先;魏庆新;龚 克. 微小区环境下角度扩散特性的仿真结果[J]. 电子学报, 2001, 29(9): 1269-1271. |
[6] | 张 强;杜耀惟;曹 伟;靖季洛. 机载雷达罩电讯设计中的AI-SI仿真技术[J]. 电子学报, 2001, 29(7): 1006-1008. |
阅读次数 | ||||||
全文 |
|
|||||
摘要 |
|
|||||
