改善MIMO-STAP检测性能的收发空时资源配置方法

doi:10.12263/DZXB.20210927

摘要/Abstract

摘要：

针对机载多输入多输出(Multiple-In Multiple-Out，MIMO)雷达资源受限，从而导致目标检测性能下降的问题，提出一种改善基于MIMO雷达的空时自适应处理(Space Time Adaptive Processing，STAP)检测性能的收发空时资源配置(Transceiver Space-Time Resource Allocation，TST-RA)方法. 所提方法利用所构建包含待配置收发空时资源的MIMO-STAP模型，基于最大化输出信杂噪比(Signal-Clutter-Noise Ratio，SCNR)准则，构造收发阵元、发射脉冲、基带波形以及接收权值联合设计问题. 为求解所得复杂非线性联合优化问题，基于交替迭代策略将其分解为相互独立的子问题，而后利用如下方法高效求解各子问题：基于逐次凸逼近(Sequential Convex Approximations，SCA)方法选择最优天线脉冲子集，基于半正定规划(SemiDefinite Program，SDP)及随机化方法优化发射波形，基于最小方差无畸变响应(Minimum Variance Distortionless Response，MVDR)准则设计接收权，从而获得联合优化问题的有效求解. 仿真结果验证了所提算法的有效性.

关键词: 多输入多输出雷达, 空时自适应处理, 空时资源配置, 阵元脉冲选择, 逐次凸逼近, 半正定规划

Abstract:

Focusing on the issue that the resource of airborne multiple input multiple output(MIMO) radar is constrained such that the target detection performance is degraded, a transceiver space-time resource allocation(TST-RA) approach is developed in this paper to improve the detection performance of MIMO radar based space time adaptive processing(STAP). By exploiting the constructed MIMO-STAP model containing the transceiver space-time resources to be allocated, with the criterion of maximizing the output signal-clutter-noise ratio(SCNR), a joint design model of transceiver array element, transmitting pulse, baseband waveform and receiving weight is formulated via the developed. In order to solve the resultant complex nonlinear joint optimization issue, it is decomposed into independent sub-problems on the basis of the alternating iteration strategy, and then the following method can be used to efficiently solve each sub-problem: the optimal antenna pulse subset is selected via employing the successive convex approximation(SCA) method, the transmitting waveform can be optimized by exploiting the semi-positive definite programming(SDP) and randomization approach, and the receiving weight is designed on the basis of the criterion of minimum variance distortionless response(MVDR), thus the effective solution of the joint optimization problem can be acquired. Simulation results show the effectiveness of the proposed algorithm.

Key words: multiple-input multiple-out(MIMO) radar, space time adaptive processing(STAP), space-time resource allocation, element and pulse selection, successive convex approximation(SCA), semidefinite program(SDP)

中图分类号:

TN957

王洪雁, 周贺. 改善MIMO-STAP检测性能的收发空时资源配置方法[J]. 电子学报, 2022, 50(11): 2619-2628.

Hong-yan WANG, He ZHOU . Transceiver Space-Time Resource Allocation Method to Improve the Detection Performance of MIMO-STAP[J]. Acta Electronica Sinica, 2022, 50(11): 2619-2628.

图/表 7

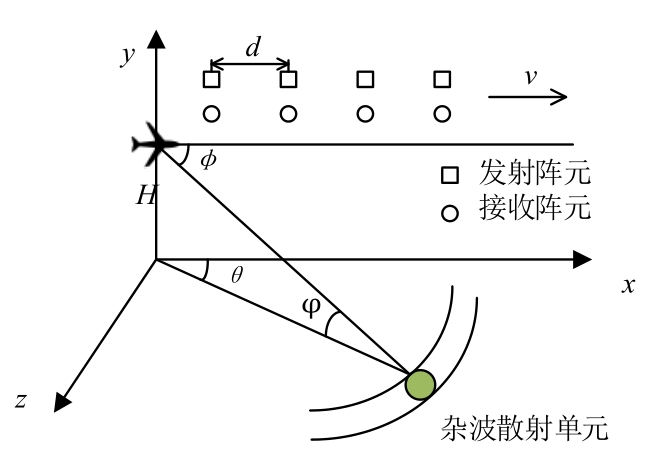

图1 机载MIMO雷达模型

图2 所得波形实、虚部分布及波束方向图(a)所得波形实、虚部分布 (b)所得波束方向图

图3 收发空时资源对输出SCNR的影响

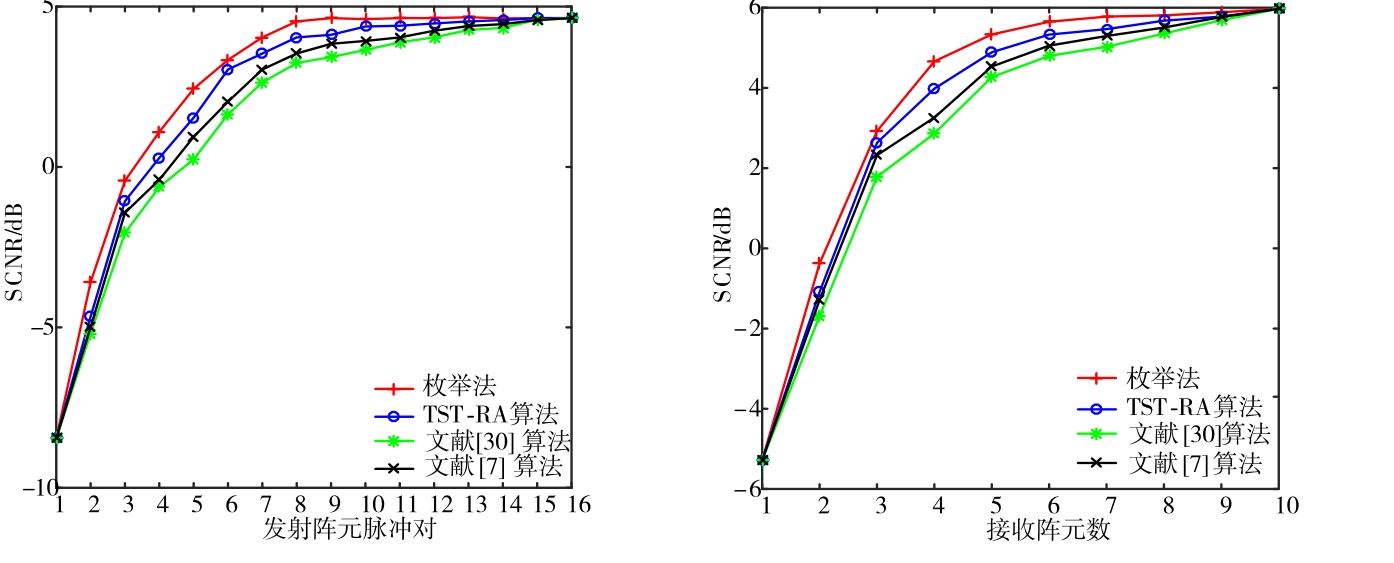

图4 收发阵元及脉冲对输出SCNR影响(a)发射阵元及脉冲数对输出SCNR影响　(b)接收阵元数对输出SCNR影响

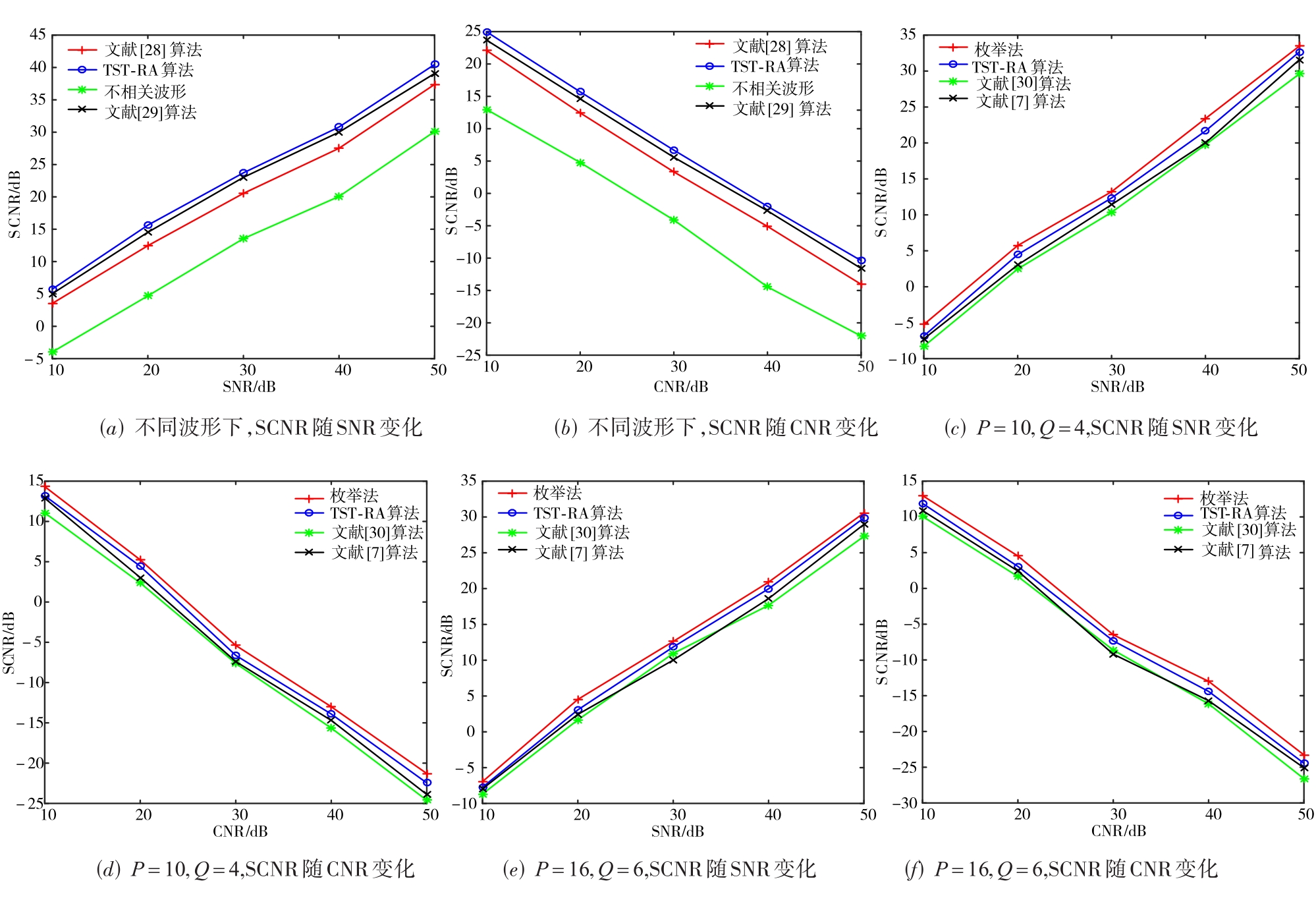

图5 TST-RA对输出SCNR及改善因子的影响(a)SCNR随SNR变化曲线 (b)SCNR随CNR变化曲线 (c)各算法改善因子比较

图6 最优收发阵元脉冲位置分布

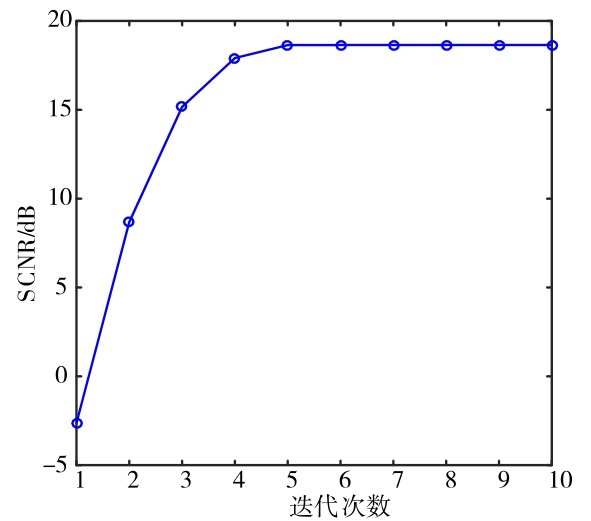

图7 输出SCNR随迭代次数变化曲线
