微波光子四倍频复合雷达信号生成及目标多维度探测

doi:10.12263/DZXB.20211091

电子学报 ›› 2022, Vol. 50 ›› Issue (4): 796-803.DOI: 10.12263/DZXB.20211091

所属专题：微波光子与相关元件技术；微波光子技术

微波光子四倍频复合雷达信号生成及目标多维度探测

梁丁丁, 陈阳

华东师范大学通信与电子工程学院上海市多维度信息处理重点实验室，上海 200241

收稿日期:2021-08-14 修回日期:2021-10-18 出版日期:2022-04-25
- 作者简介:
- 梁丁丁男,1996年5月出生,河南周口人.现为华东师范大学通信与电子工程学院博士研究生.主要从事微波光子雷达方面的研究工作. E-mail: 51191214019@stu.ecnu.edu.cn
  陈阳（通讯作者）男，1986年7月出生，安徽凤阳人.2009年和2015年分别在西安电子科技大学获得工学学士和博士学位.现为华东师范大学通信与电子工程学院研究员，博士生导师.主要从事微波光子学、光载无线系统等方面的研究工作.E-mail: ychen@ce.ecnu.edu.cn
- 基金资助:
- 上海自然科学基金 (20ZR1416100); 国家自然科学基金 (61971193); 区域光纤通信网与新型光通信系统国家重点实验室 (北京大学）开放基金 (2020GZKF005)

Frequency-Quadrupled Radar Composite Signal Generation and Multi-Dimensional Target Detection Enabled by Microwave Photonics

LIANG Ding-ding, CHEN Yang

Shanghai Key Laboratory of Multidimensional Information Processing, School of Communication and Electronic Engineering, East China Normal University, Shanghai 200241, China

Received:2021-08-14 Revised:2021-10-18 Online:2022-04-25 Published:2022-04-25
- Supported by:
- Natural Science Foundation of Shanghai Municipality, China (20ZR1416100); National Natural Science Foundation of China (61971193); Open Fund of State Key Laboratory of Advanced Optical Communication System and Networks (Peking University) (2020GZKF005)

摘要/Abstract

摘要：

在雷达系统中，为了实现对目标的高精度、多维度测量，产生雷达信号是一个基本而又重要的环节. 本文提出了一种微波光子四倍频复合雷达信号产生方法，该复合雷达信号包括单啁啾线性调频信号和单音微波信号. 利用单音微波信号和单啁啾线性调频信号实现目标径向速度的测量，使用单啁啾线性调频信号实现目标距离测量和高分辨率微波成像. 在发射端，使用微波光子四倍频技术生成了瞬时带宽为2 GHz的正啁啾线性调频信号和频率为13.2 GHz的单音微波信号. 在接收端，目标回波信号经去斜后用来实现距离和径向速度测量以及高分辨率逆合成孔径成像. 实验结果表明，测量得到的目标的距离和径向速度绝对误差分别不超过4.2 cm和1.7 cm/s，多个探测目标成像结果清晰可辨.

关键词: 微波光子学, 雷达, 四倍频信号, 距离和速度测量, 逆合成孔径成像

Abstract:

In radar systems, to achieve high-precision multi-dimensional measurement of targets, radar signal generation is a basic and important function. A microwave photonic frequency-quadrupled composite radar signal generation approach is proposed. The composite radar signal includes a single-chirped linearly frequency-modulated (LFM) signal and a single-tone microwave signal. The single-tone microwave signal and the single-chirped LFM signal are jointly used to measure the radial velocity of a target, while the single-chirped LFM signal is used to measure the distance of the target and implement the high-resolution microwave imaging. In the transmitter, an up-chirped LFM signal with an instantaneous bandwidth of 2 GHz and a 13.2 GHz single-tone microwave signal are generated using a photonic frequency quadrupler. In the receiver, target echo signals are de-chirped and then used to achieve the measurement of distance and radial velocity and the high-resolution ISAR imaging. Experimental results show that the absolute measurement errors of distance and radial velocity are no more than 4.2 cm and 1.7 cm/s, respectively, and the imaging results of multiple targets are clear and identifiable.

Key words: microwave photonics, radar, frequency-quadrupled signal, distance and velocity measurement, ISAR imaging

中图分类号:

TN95

梁丁丁, 陈阳. 微波光子四倍频复合雷达信号生成及目标多维度探测[J]. 电子学报, 2022, 50(4): 796-803.

Ding-ding LIANG, Yang CHEN . Frequency-Quadrupled Radar Composite Signal Generation and Multi-Dimensional Target Detection Enabled by Microwave Photonics[J]. Acta Electronica Sinica, 2022, 50(4): 796-803.

图/表 9

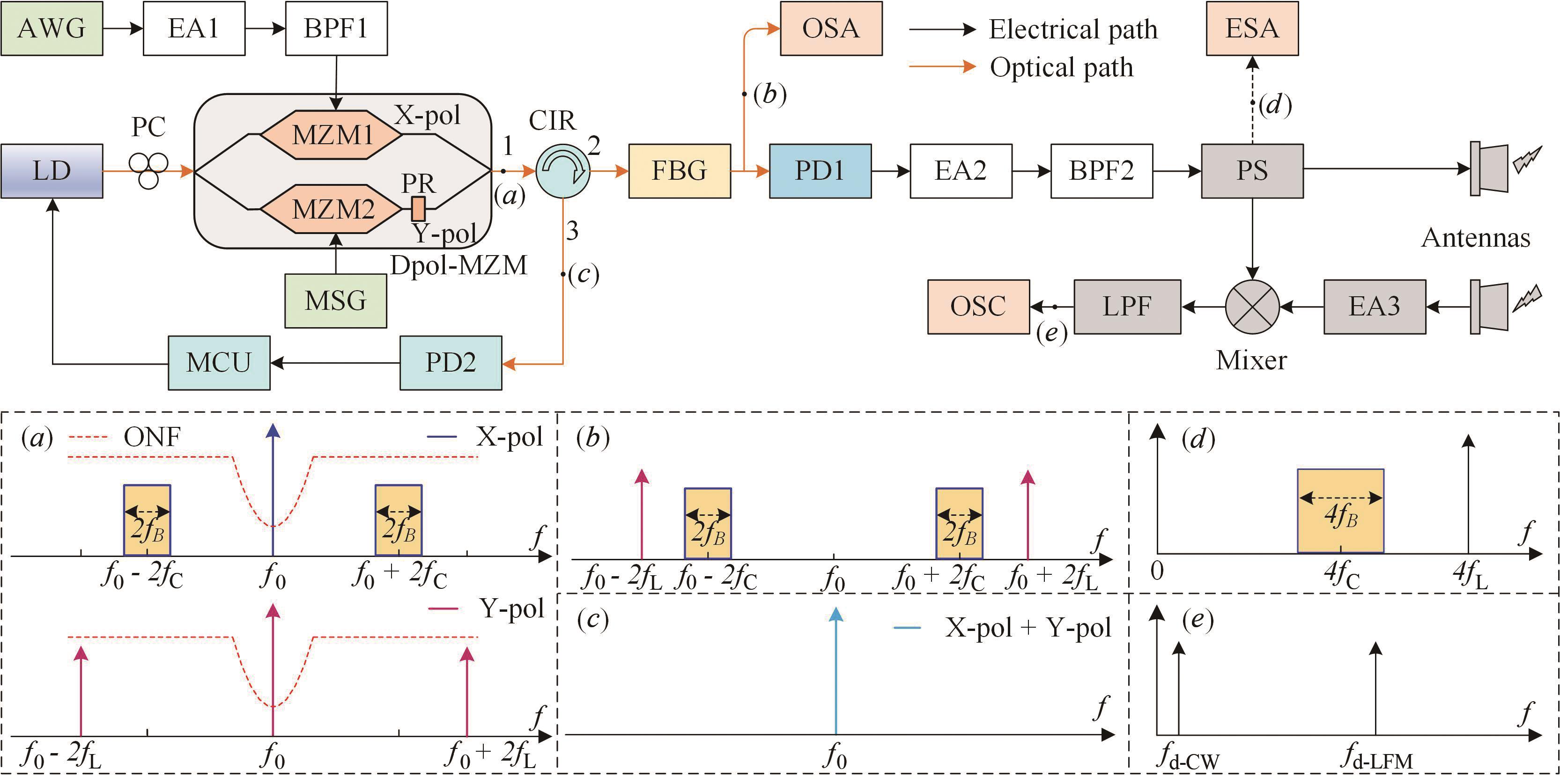

图1 复合雷达信号生成及目标多维度探测系统原理图

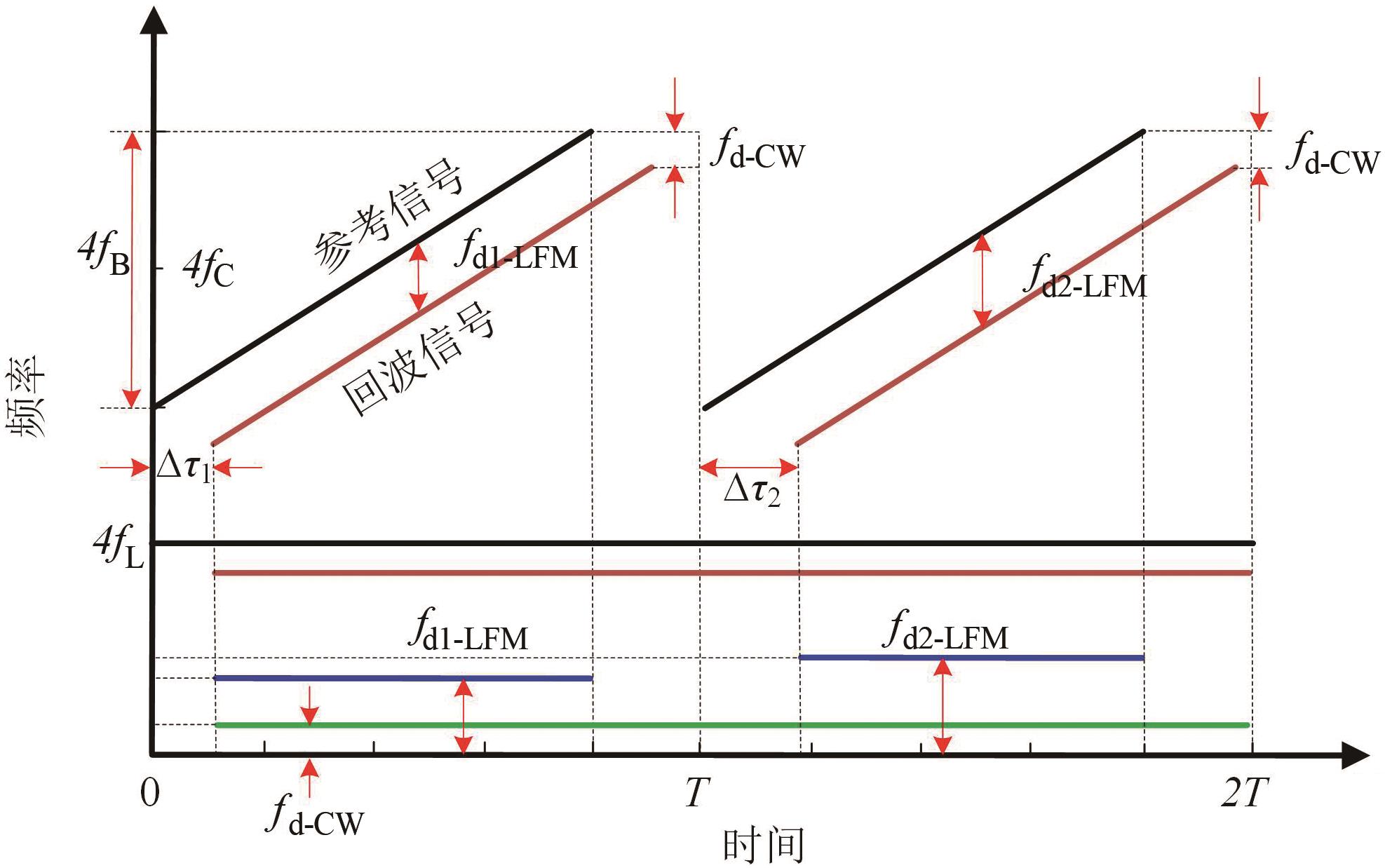

图2 雷达信号去斜处理的基本原理

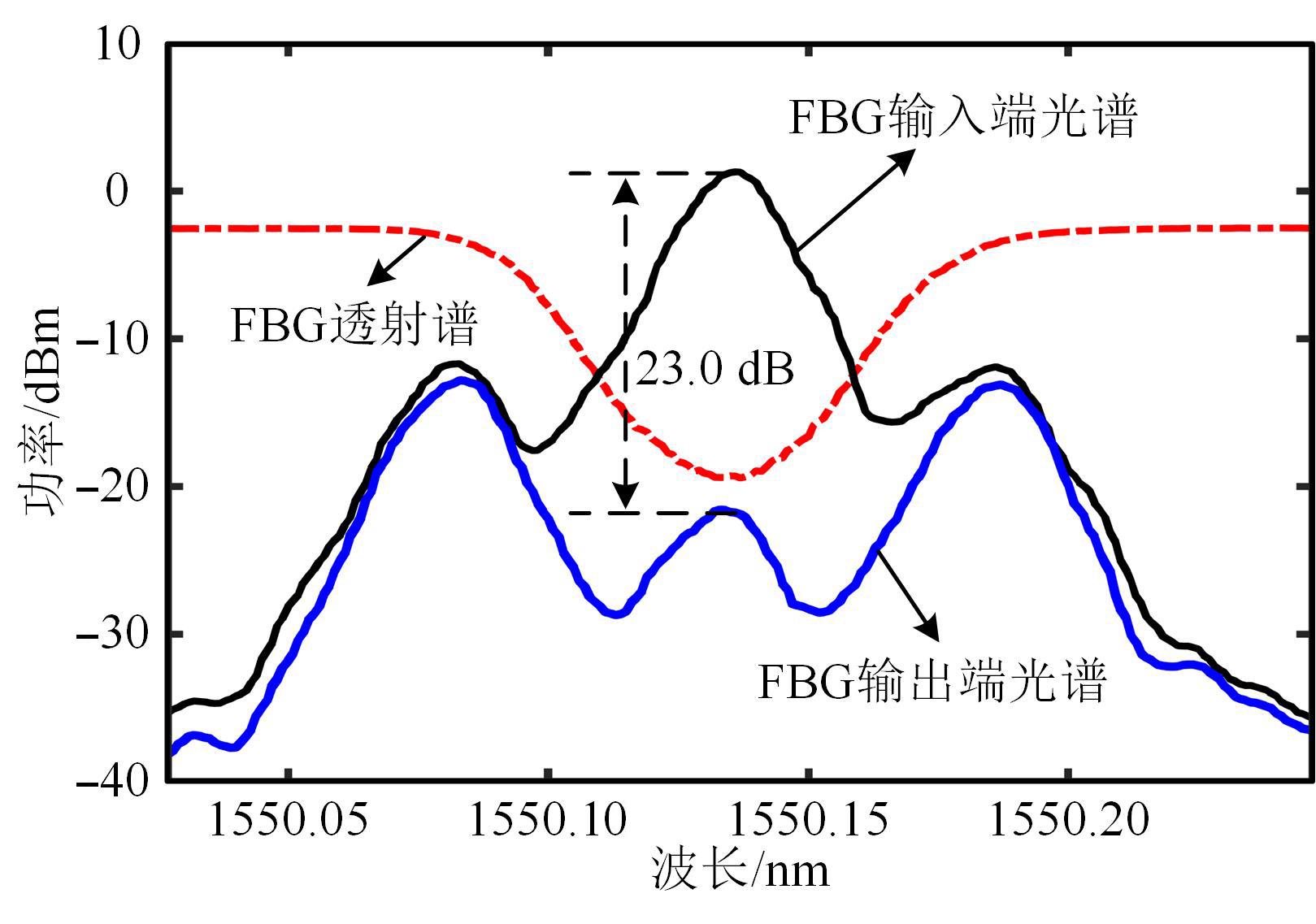

图3 FBG输入端和输出端的光谱及FBG透射谱传输曲线

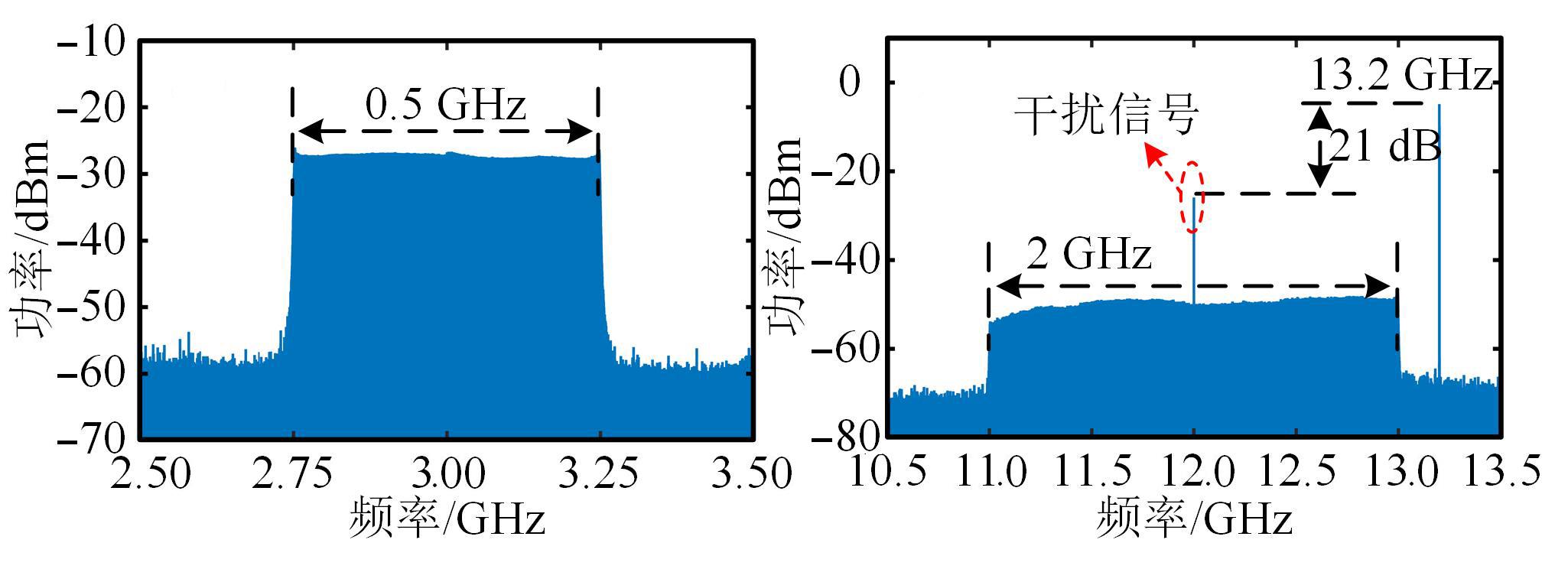

图4 AWG输出的中频LFM信号和产生的复合雷达信号的频谱(a) AWG输出的中频LFM信号的频谱 (b) 雷达发射信号的频谱

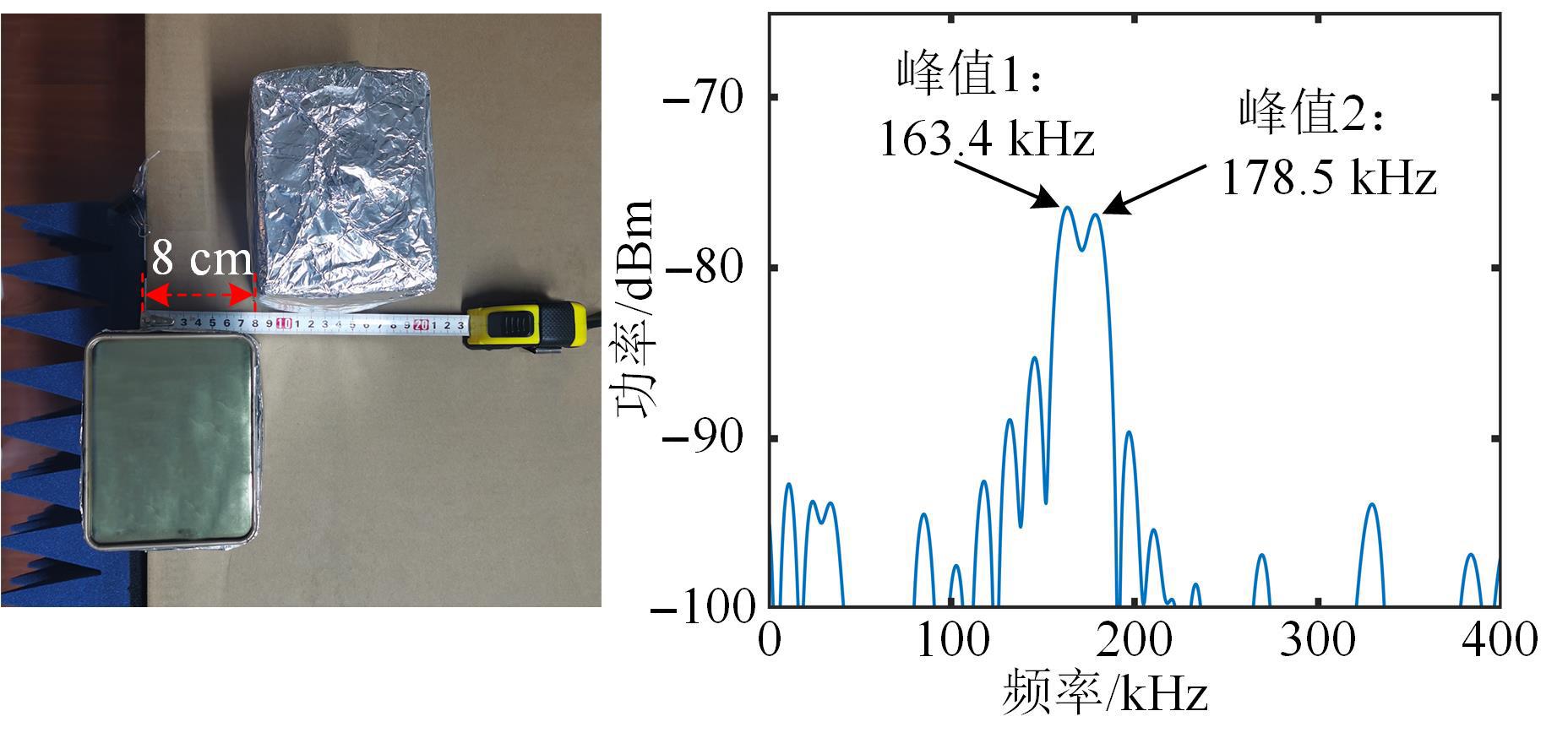

图5 实验情况(a) 被测物体的实物图 (b) 去斜信号的频谱

图6 实验结果

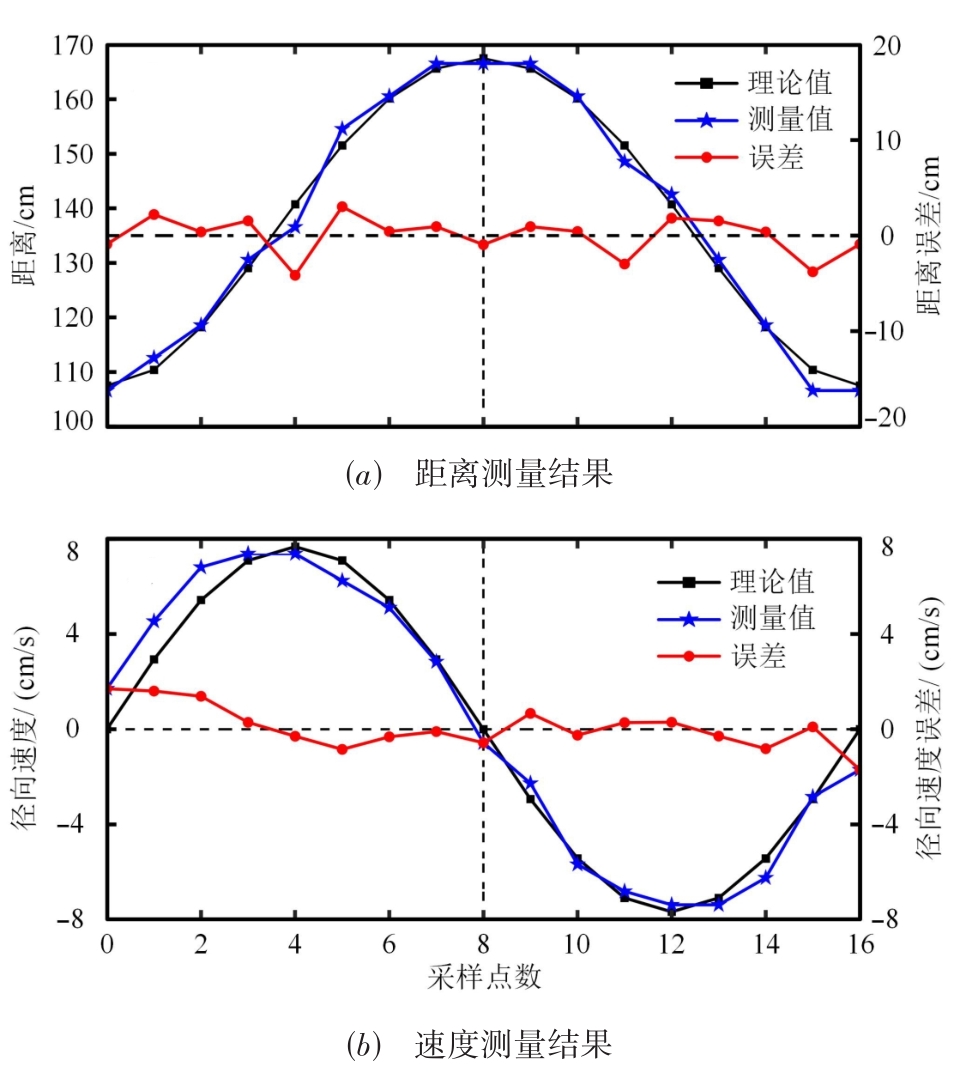

图7 测量结果

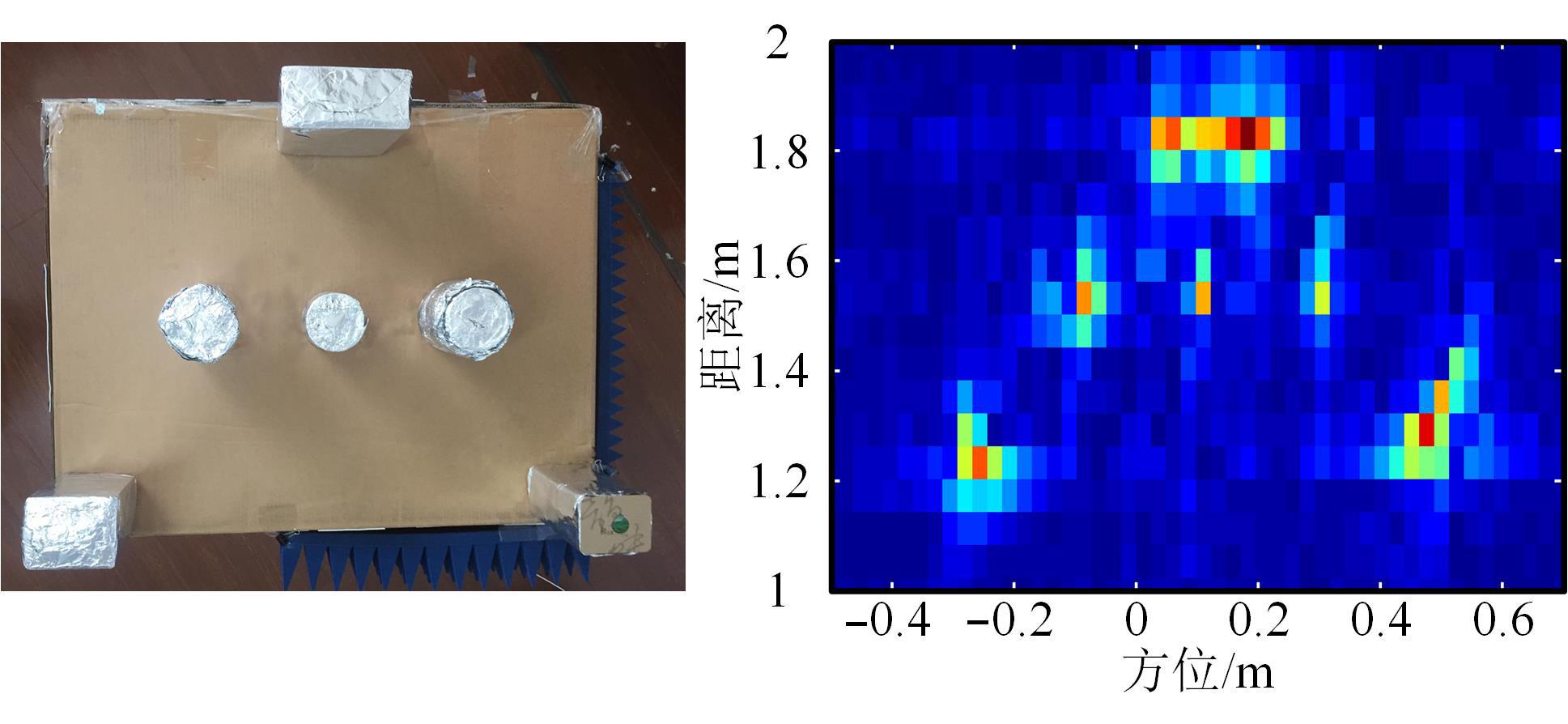

图8 ISAR成像(a) 6个探测目标实物图 (b) ISAR成像结果

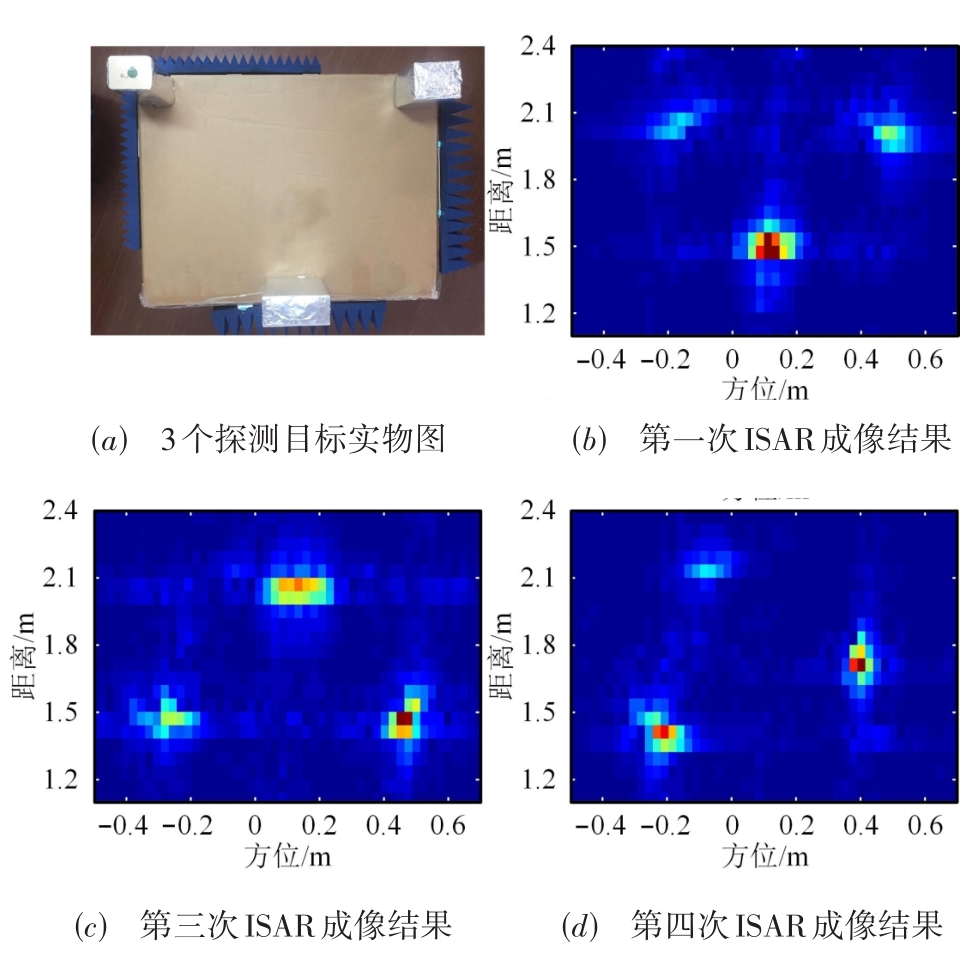

图9 多目标连续多帧ISAR成像

参考文献 21

1	GINIF, DE MAIOA, PATTONL. Waveform Design and Diversity for Advanced Radar Systems[M]. London: The Institution of Engineering and Technology, 2012.
2	BLUNTS D, MOKOLEE L. Overview of radar waveform diversity[J]. IEEE Aerospace and Electronic Systems Magazine, 2016, 31(11): 2-42.
3	ZHANGH, LIL, WUK. Software-defined six-port radar technique for precision range measurements[J]. IEEE Sensors Journal, 2008, 8(10): 1745-1751.
4	ROEHRS, GULDENP, VOSSIEKM. Precise distance and velocity measurement for real time locating in multipath environments using a frequency-modulated continuous-wave secondary radar approach[J]. IEEE Transactions on Microwave Theory and Techniques, 2008, 56(10): 2329-2339.
5	CHENV C, MARTORELLAM. Inverse Synthetic Aperture Radar Imaging: Principles, Algorithms and Applications[M]. Herts: Institution of Engineering and Technology, 2014.
6	陈宝欣, 关键, 董云龙, 等. 多频连续波雷达与角度-距离联合估计方法[J]. 电子学报, 2020, 48(2): 375-383.
	CHENB X, GUANJ, DONGY L, et al. Multiple-frequency CW radar and joint angle-range estimation method[J]. Acta Electronica Sinica, 2020, 48(2): 375-383. (in Chinese)
7	TONGY T. Advanced photonics-based radar signal generation technology for practical radar application[J]. Journal of Lightwave Technology, 2021, 39(11): 3371-3382.
8	GHELFIP, LAGHEZZAF, SCOTTIF, et al. Photonics in radar systems: RF integration for state-of-the-art functionality[J]. IEEE Microwave Magazine, 2015, 16(8): 74-83.
9	SERAFINOG, SCOTTIF, LEMBOL, et al. Toward a new generation of radar systems based on microwave photonic technologies[J]. Journal of Lightwave Technology, 2019, 37(2): 643-650.
10	PANS L, ZHANGY M. Microwave photonic radars[J]. Journal of Lightwave Technology, 2020, 38(19): 5450-5484.
11	PANS L, YEX W, ZHANGY M, et al. Microwave photonic array radars[J]. IEEE Journal of Microwaves, 2021, 1(1): 176-190.
12	CHENY, PANS L. Photonic generation of tunable frequency-multiplied phase-coded microwave waveforms[J]. IEEE Photonics Technology Letters, 2018, 30(13): 1230-1233.
13	CHENY, YAOJ P. Simultaneous multi-frequency phase-coded microwave signal generation at six different frequencies using a DP-BPSK modulator[J]. Journal of Lightwave Technology, 2019, 37(10): 2293-2299.
14	ZHANGK, ZHAOS H, WENA J, et al. Photonics-based multi-band linearly frequency modulated signal generation and anti-chromatic dispersion transmission[J]. Optics Express, 2020, 28(6): 8350-8362.
15	ZHANGY M, YEX W, GUOQ S, et al. Photonic generation of linear-frequency-modulated waveforms with improved time-bandwidth product based on polarization modulation[J]. Journal of Lightwave Technology, 2017, 35(10): 1821-1829.
16	ZHANGF Z, GUOQ S, WANGZ Q, et al. Photonics-based broadband radar for high-resolution and real-time inverse synthetic aperture imaging[J]. Optics Express, 2017, 25(14): 16274-16281.
17	WANGA L, WOJ H, LUOX, et al. Ka-band microwave photonic ultra-wideband imaging radar for capturing quantitative target information[J]. Optics Express, 2018, 26(16): 20708-20717.
18	CHENGH X, ZOUX H, LUB, et al. High-resolution range and velocity measurement based on photonic LFM microwave signal generation and detection[J]. IEEE Photonics Journal, 2019, 11(1): 1-8.
19	ZHANGJ X, JIANGW J, YUY, et al. Photonics-based simultaneous measurement of distance and velocity using multi-band LFM microwave signals with opposite chirps[J]. Optics Express, 2019, 27(20): 27580-27591.
20	PENGS W, LIS Y, XUEX X, et al. Photonics-based simultaneous distance and velocity measurement of multiple targets utilizing dual-band symmetrical triangular linear frequency-modulated waveforms[J]. Optics Express, 2020, 28(11): 16270-16279.
21	LIANGD D, JIANGL Z, CHENY. Multi-functional microwave photonic radar system for simultaneous distance and velocity measurement and high-resolution microwave imaging[J]. Journal of Lightwave Technology, 2021, 39(20): 6470-6478.
