小型化双层基片集成波导盒型耦合拓扑滤波器设计

doi:10.12263/DZXB.20211136

摘要/Abstract

摘要：

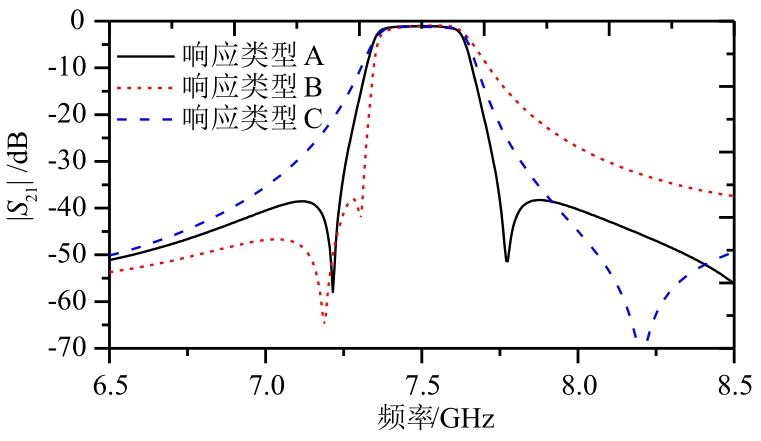

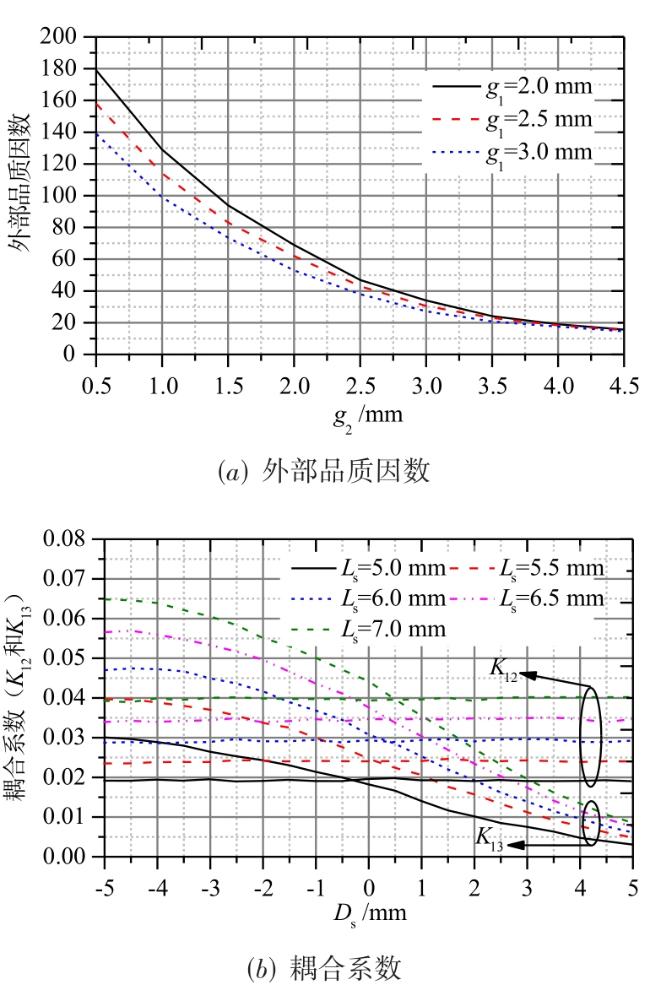

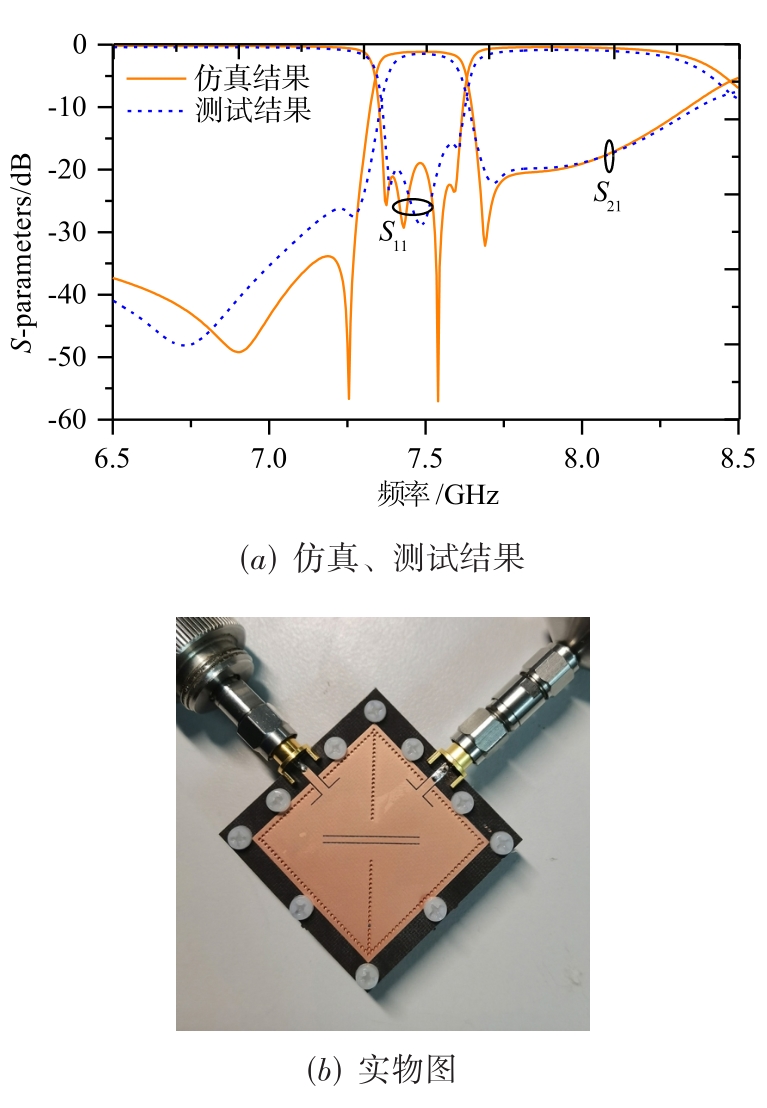

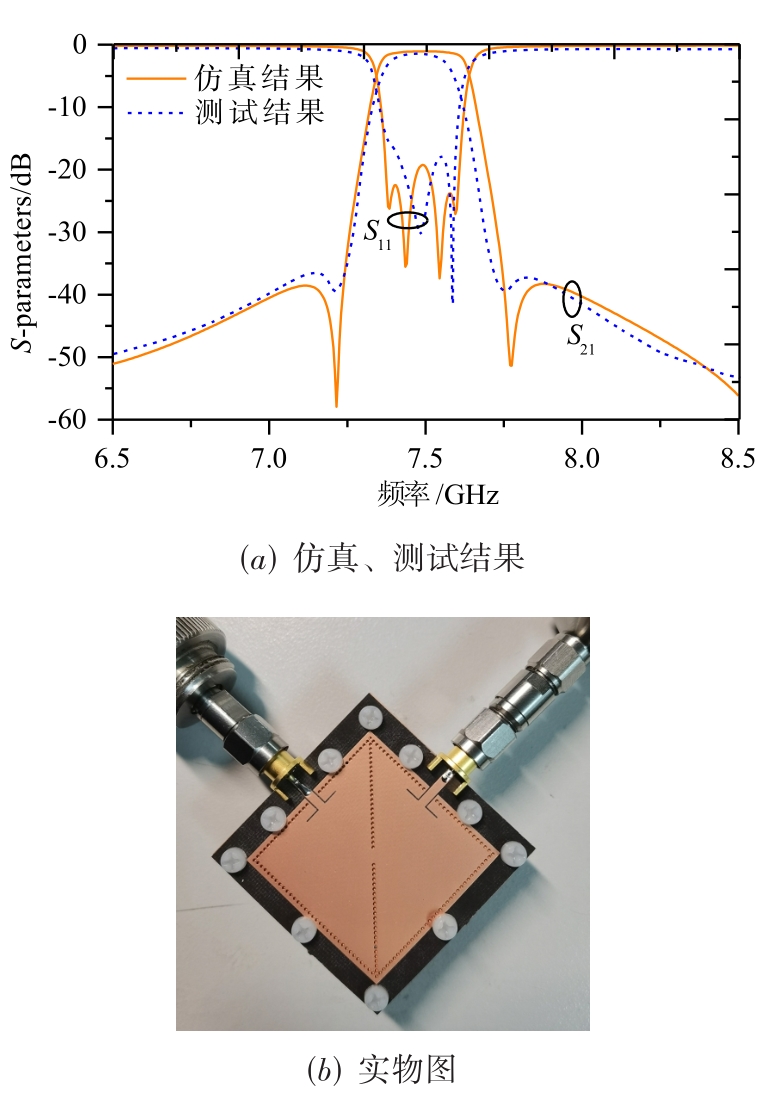

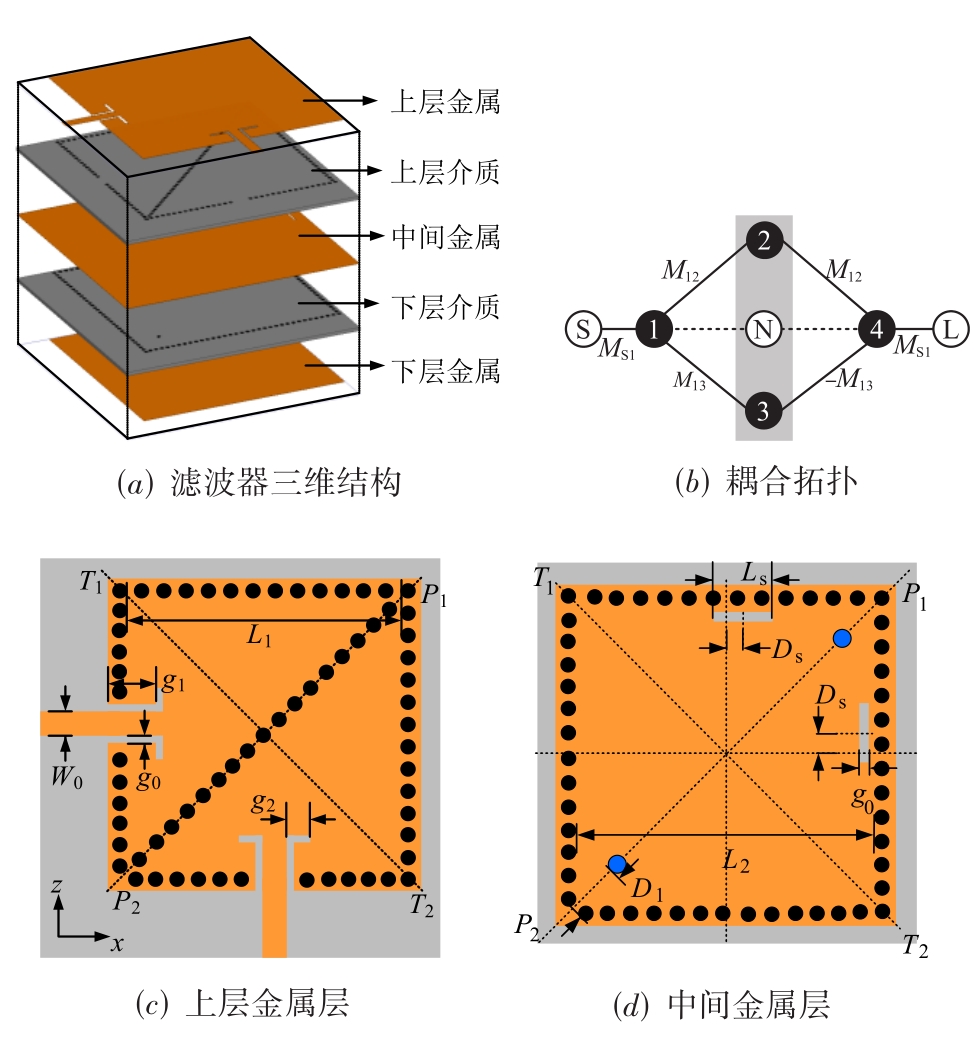

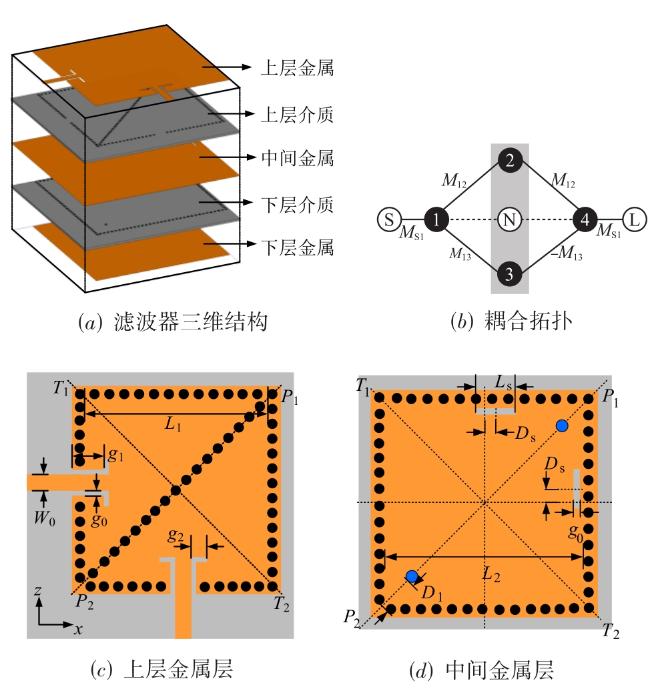

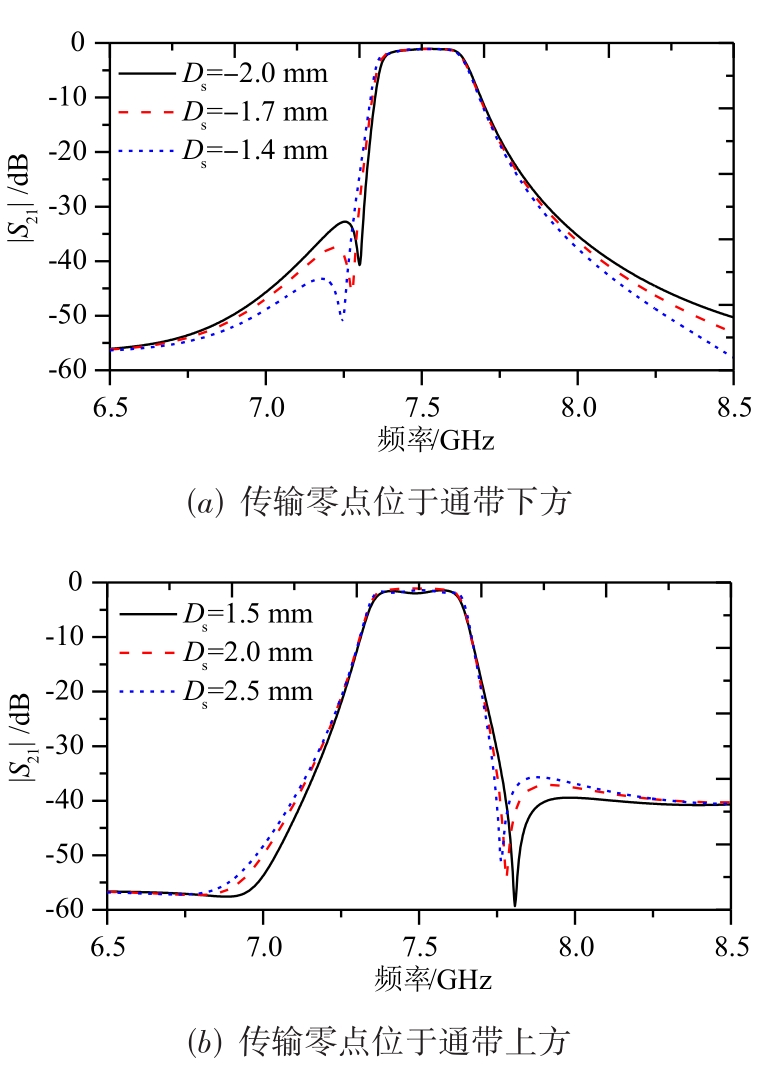

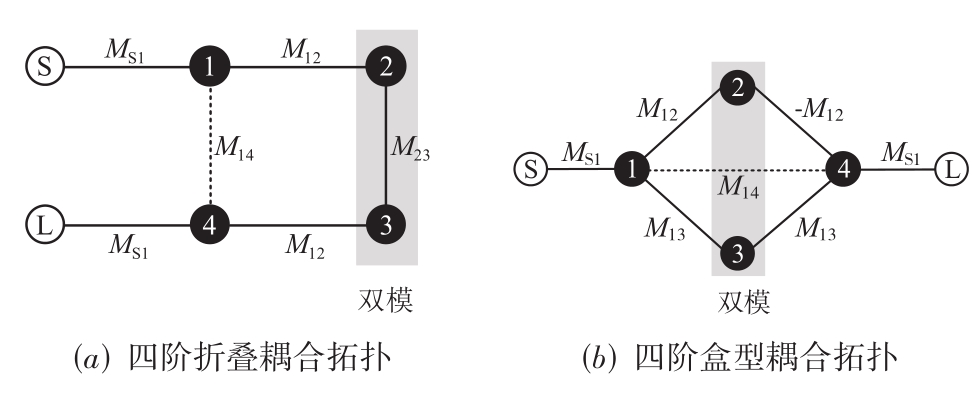

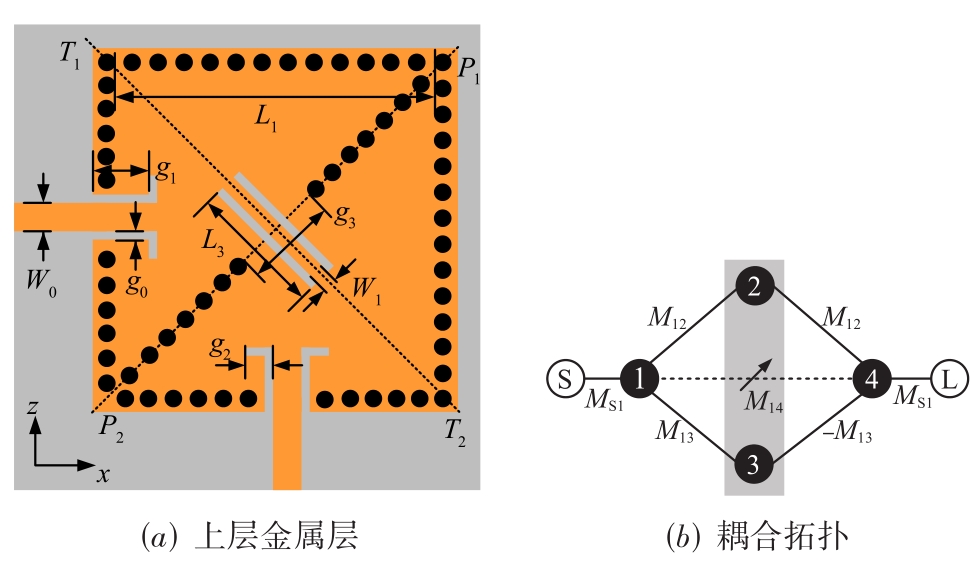

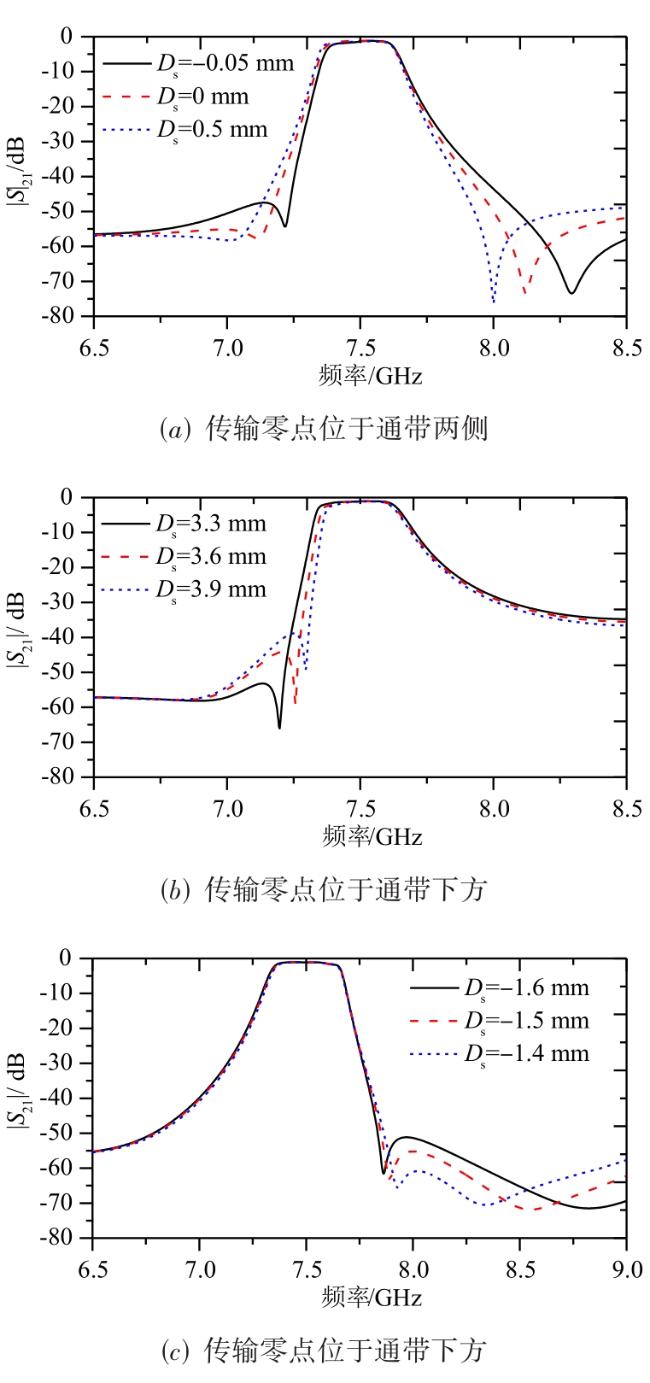

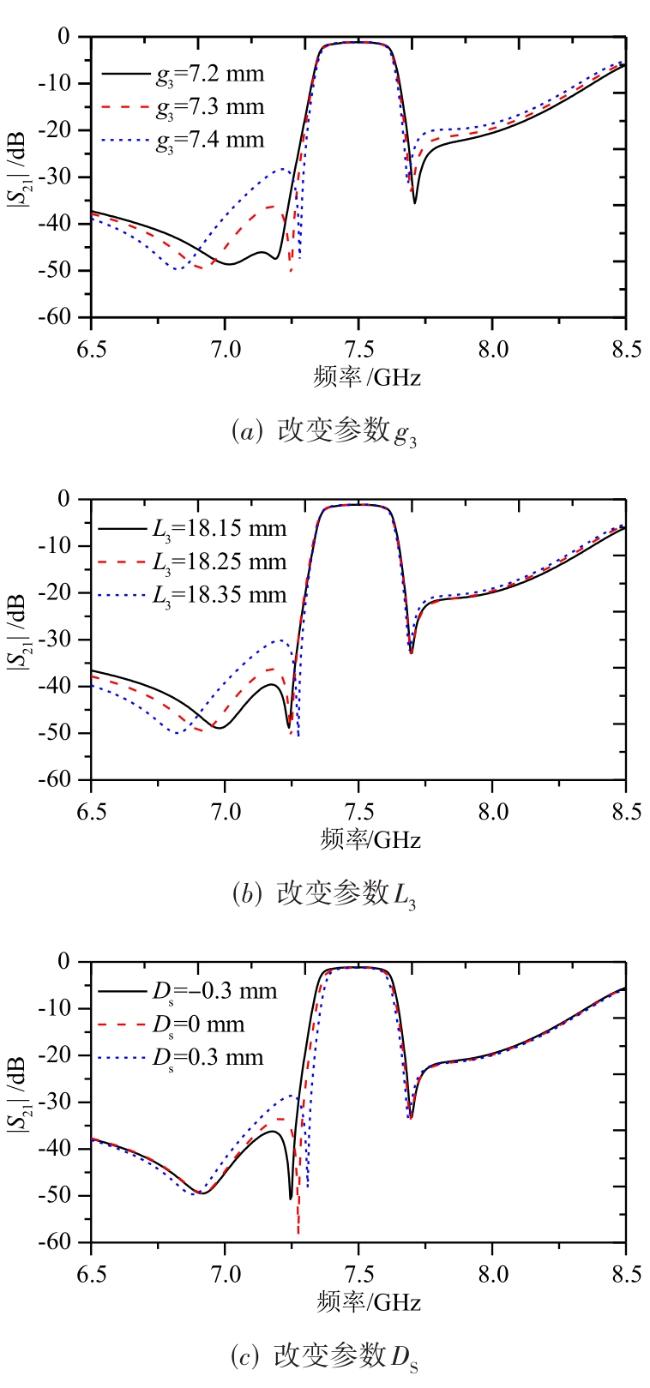

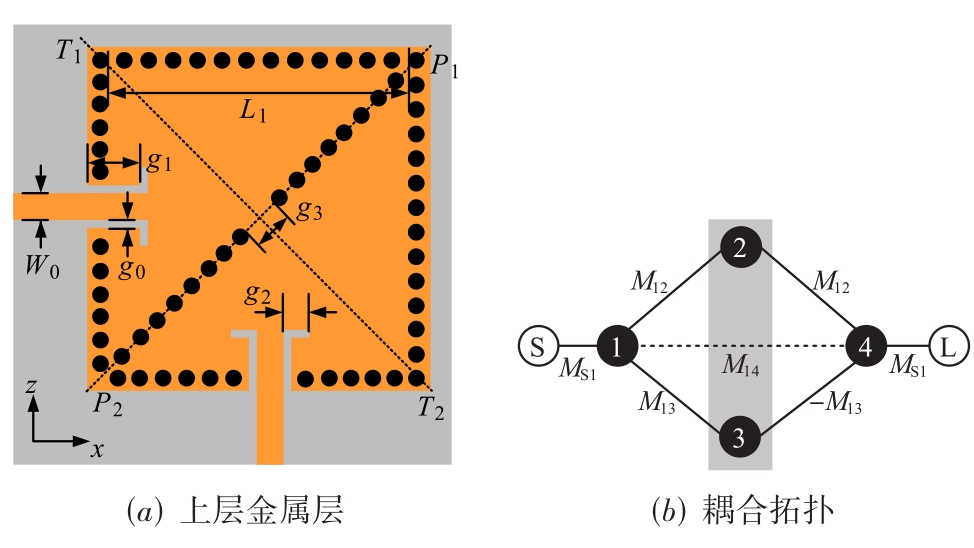

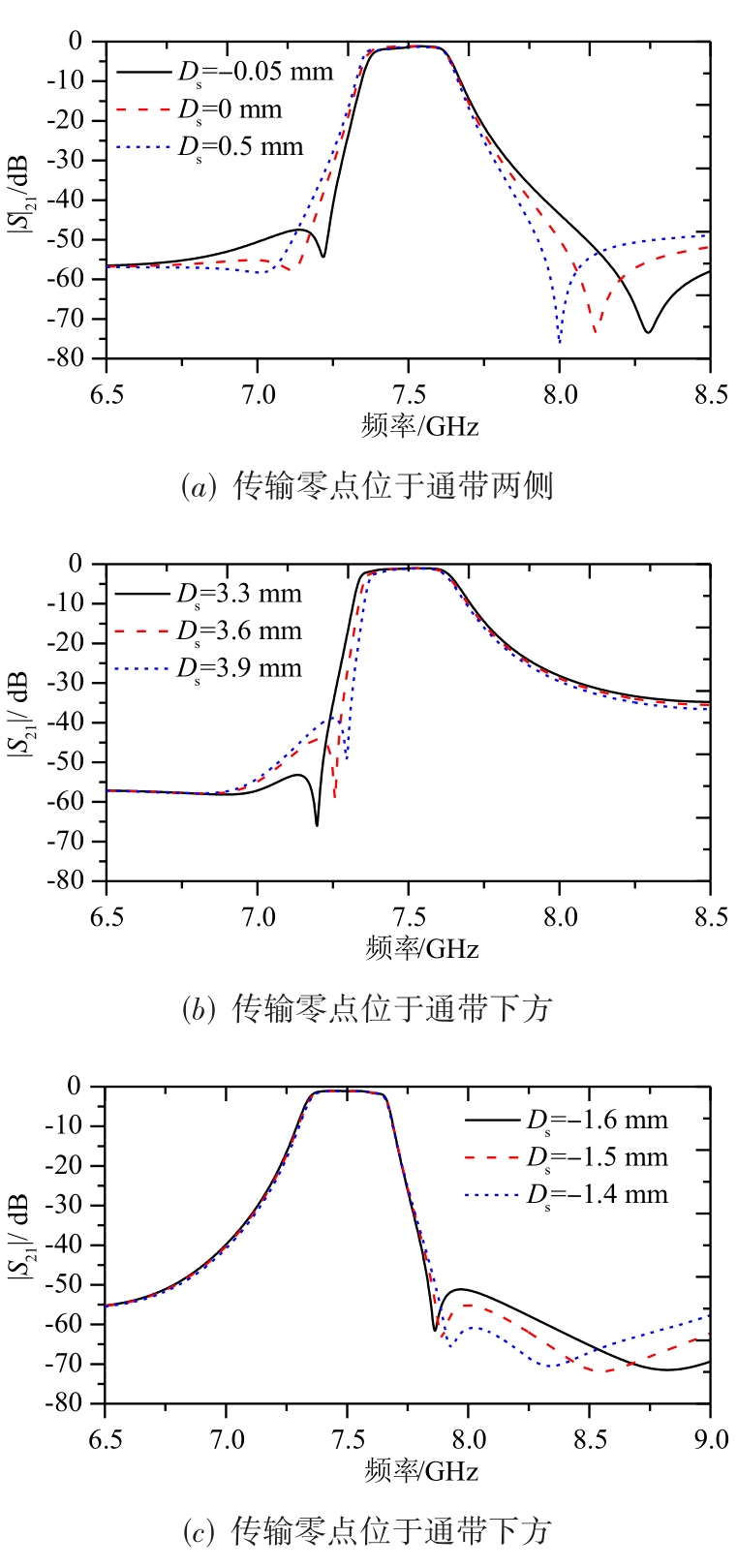

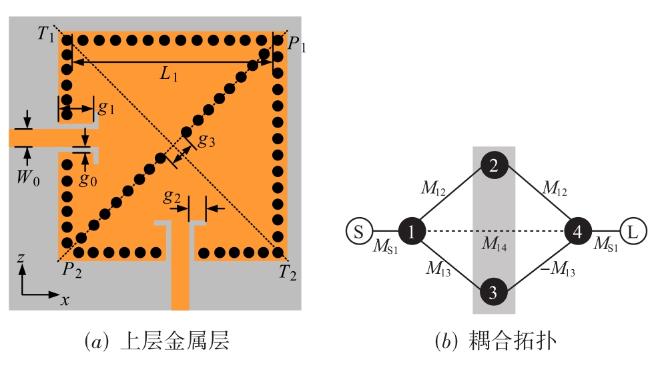

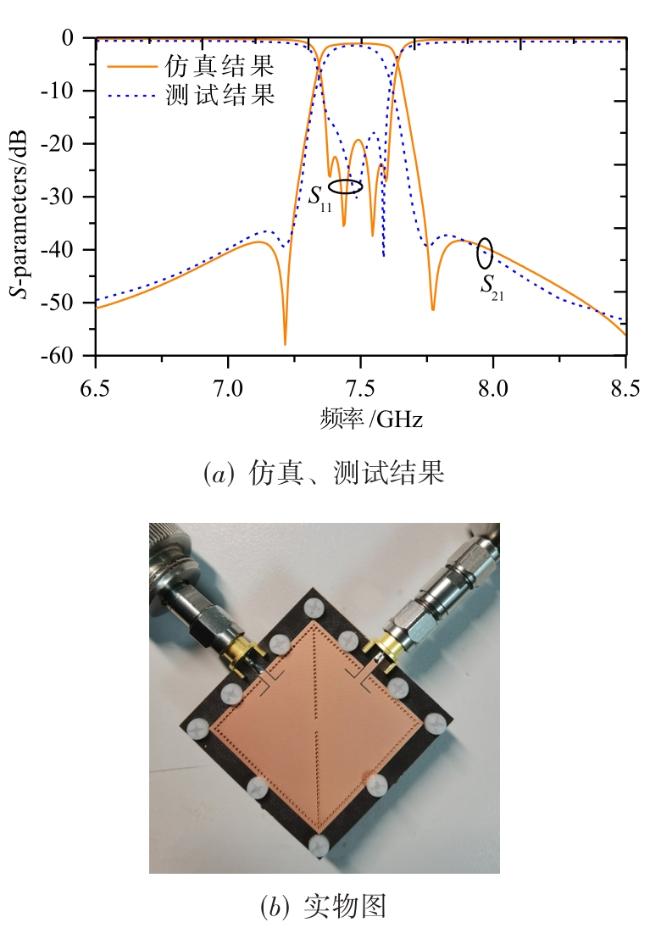

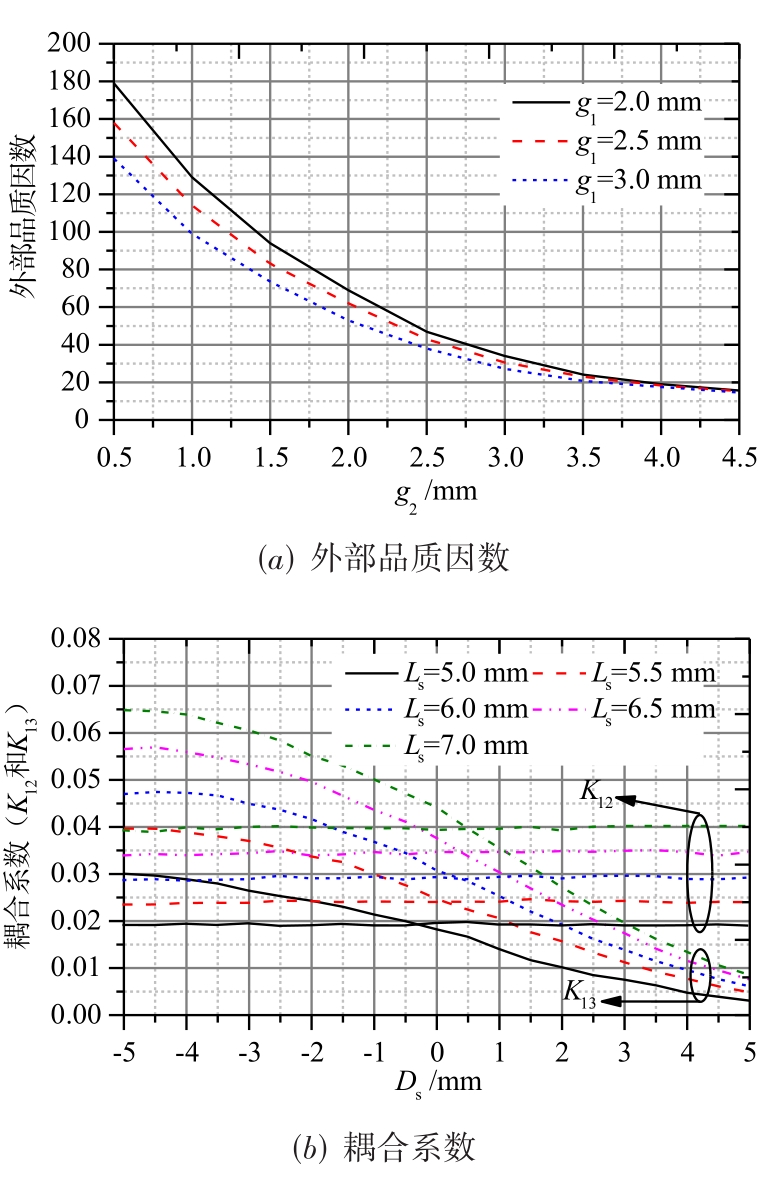

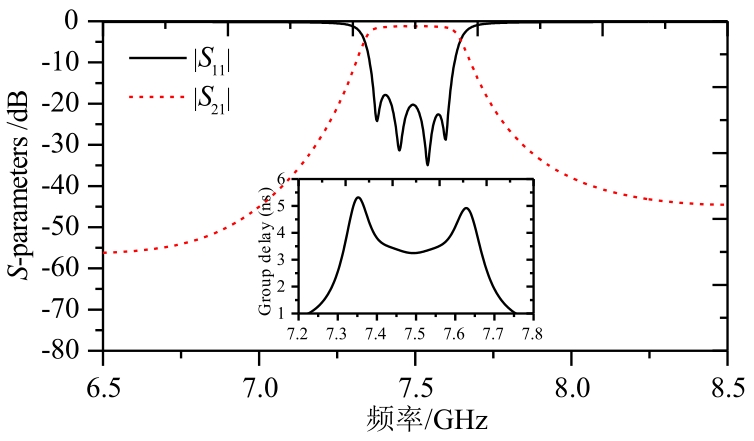

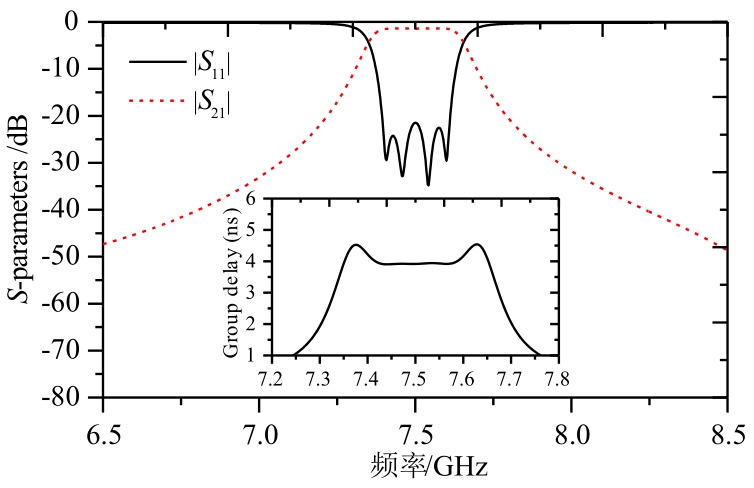

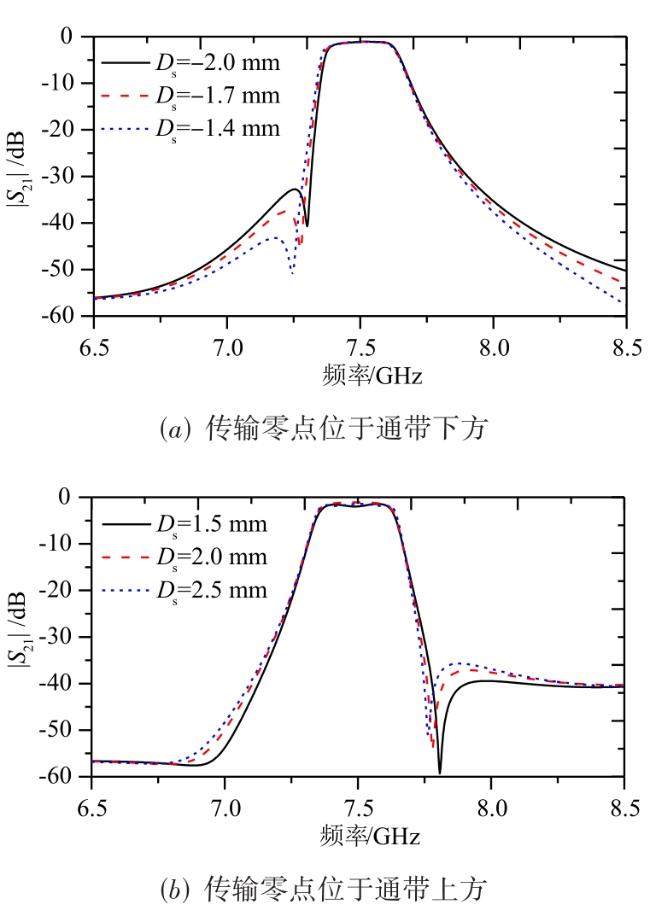

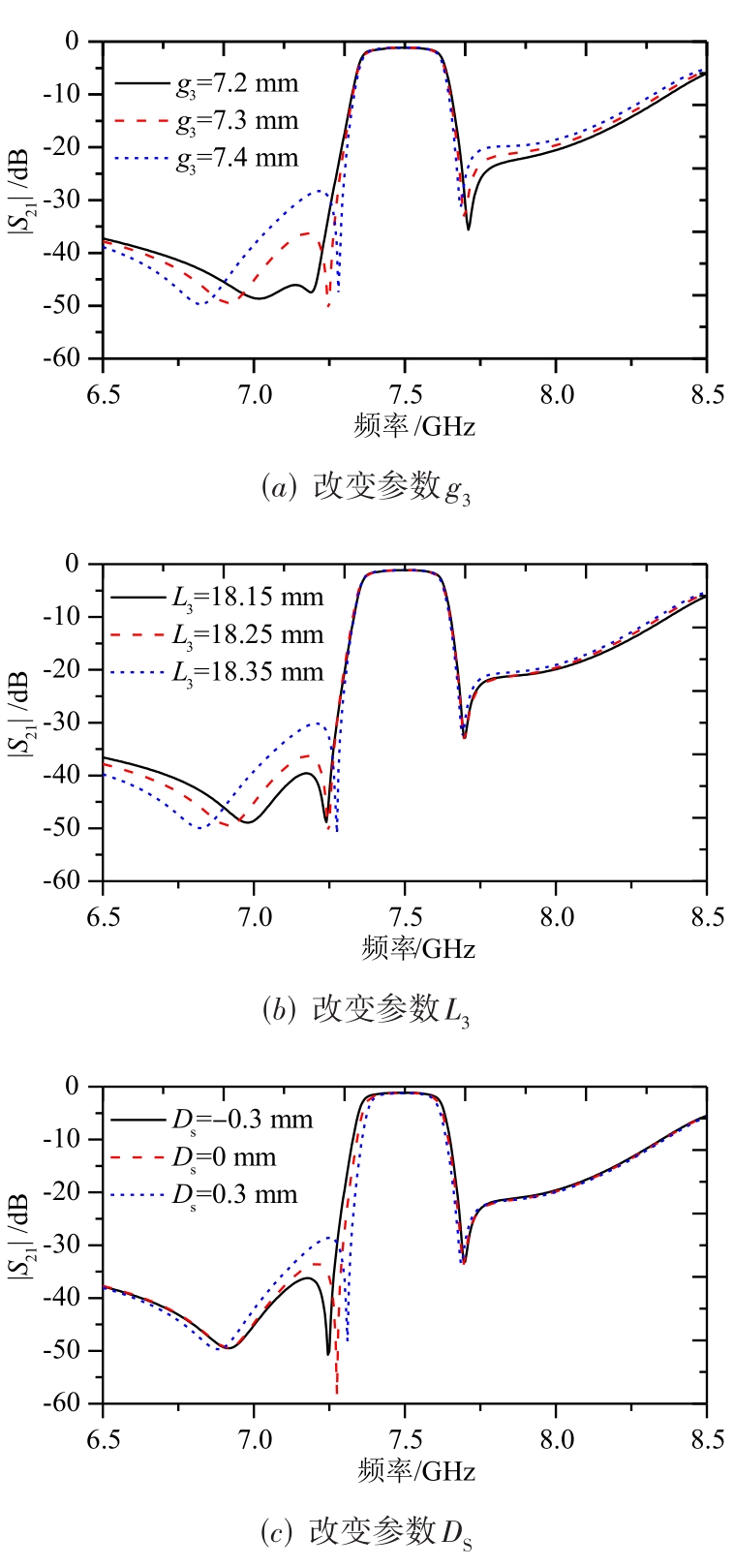

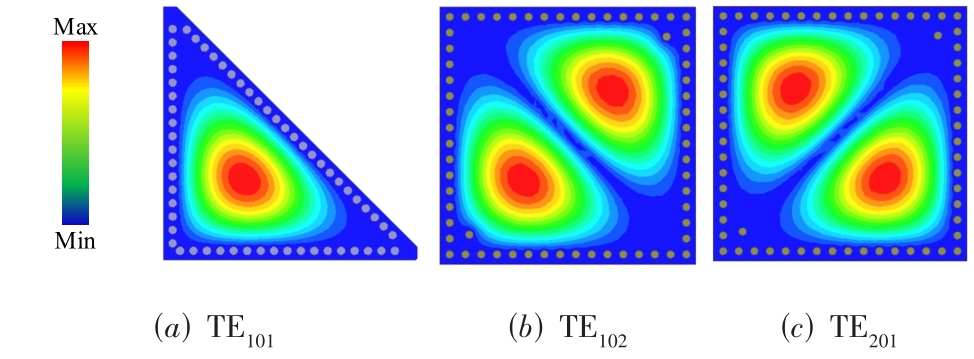

针对微波滤波器小型化、高性能的应用需求，首先分析了单腔双模和双腔单模谐振器组合型滤波器等效耦合拓扑的特性，然后提出了三种双层单腔双模和双腔单模基片集成波导谐振器组合的带通滤波器结构，它们等效为盒型耦合拓扑，但具有不同的对角交叉耦合路径.两个单模谐振器位于上层介质板，并分别与输入输出馈线相连；双模谐振器位于下层介质板，并通过中间金属层上的槽线与单模谐振器耦合.详细分析了旁路耦合、磁耦合和频变耦合提供对角耦合路径时，滤波器特性及传输零点位置的可控性.最后设计了两个中心频率为7.5GHz、带宽为240MHz的带通滤波器，并进行加工和测试.测试和仿真结果一致性较好，验证了双层单腔双模和双腔单模基片集成波导滤波器结构的可行性.

关键词: 带通滤波器, 盒型耦合拓扑, 基片集成波导, 双层结构, 双模谐振器, 频变耦合

Abstract:

Coupling scheme' characteristics of a bandpass filter(BPF) based on one dual-mode and two single-mode cavities are analyzed, and three dual-layer substrate integrated waveguide(SIW) BPFs with one dual-mode cavity and two single-mode cavities are proposed according to the requirements of miniaturization and high performances. The three proposed BPFs can be equivalent to box-section coupling schemes with different diagonal cross-coupling paths. Two single-mode SIW cavities are located on the upper substrate, and the two cavities are connected to input and output feeding lines, respectively. One dual-mode SIW cavity is located on the lower substrate, and the dual modes are coupling to the single-mode cavity using the slot lines on the middle-layer metal. Characteristic of the proposed filters and controllability of transmission zeros' locations are analyzed in detail, when the bypass coupling, magnetic coupling and frequency-dependent coupling provide the diagonal coupling path, respectively. Finally, two BPFs with the center frequency of 7.5GHz and bandwidth of 240MHz are designed, fabricated and measured. Simulated and measured results are in good agreement, which demonstrates the feasibility of the proposed dual-layer SIW filters based on one dual-mode and two single-mode cavities.

Key words: bandpass filter, box-like coupling scheme, substrate integrated waveguide, dual-layer structure, dual-mode cavity, frequency-dependent coupling

中图分类号:

TN715

刘庆, 刘宝亮, 张德伟, 等. 小型化双层基片集成波导盒型耦合拓扑滤波器设计[J]. 电子学报, 2022, 50(11): 2668-2677.

Qing LIU, Bao-liang LIU, De-wei ZHANG, et al. Design of Miniaturized Dual-Layer Substrate Integrated Waveguide Bandpass Filters in Box-Like Coupling Scheme[J]. Acta Electronica Sinica, 2022, 50(11): 2668-2677.

图/表 15

参考文献 30

1	葛俊祥,李浩,杨现志,等. Ka波段基片集成波导窄带带通滤波器设计[J]. 电子与信息学报, 2017, 39(5): 1245-1249.
	GE J X, LI H, YANG X Z, et al. Design of a Ka-band filter with narrow pass band based on substrate integrated waveguide [J]. Journal of Electronics & Information Technology, 2017, 39(5): 1245-1249. (in Chinese)
2	杨君豪,孙曼,张金玲. 基于SIW技术的毫米波滤波器研究与设计[J]. 电波科学学报, 2019, 34(4): 518-523.
	YANG J H, SUN M, ZHANG J L. Research and design of millimeter-wave filter based on SIW technology[J]. Chinese Journal of Radio Science, 2019,34(4):518-523. (in Chinese)
3	刘庆,周东方,张德伟,等. 双/三模基片集成波导和共面波导混合结构滤波器设计[J]. 电子学报, 2018, 46(4): 952-960.
	LIU Q, ZHOU D F, ZHANG D W, et al. Design of filters using the hybrid structure of dual/triple-mode substrate integrated waveguide and ground coplanar waveguides[J]. Acta Electronica Sinica, 2018, 46(4): 952-960. (in Chinese)
4	MOSCATO S, TOMASSONI C, BOZZI M, PERREGRINI L. Quarter-mode cavity filters in substrate integrated waveguide technology[J]. IEEE Transactions on Microwave Theory & Techniques, 2016, 64(8): 1-10.
5	JONES T R, DANESHMAND M. Miniaturized folded ridged half-mode and quarter-mode substrate integrated waveguides for filter design[J]. IEEE Transactions on Microwave Theory & Techniques, 2019, 67(8): 3414-3426.
6	LIU Q, ZHANG D, TANG M, DENG H, ZHOU D. A class of box-like bandpass filters with wide stopband based on new dual-mode rectangular SIW cavities[J]. IEEE Transactions on Microwave Theory & Techniques, 2021, 69(1): 101-110.
7	LI P, CHU H, CHEN R. Design of compact bandpass filters using quartermode and eighth-mode SIW cavities[J]. IEEE Transactions on Components, Packaging, and Manufacturing Technology, 2017, 7(6): 956-963.
8	YOU C J, CHEN Z N, ZHU X W, GONG K. Single-layered SIW post-loaded electric coupling-enhanced structure and its filter applications[J]. IEEE Transactions on Microwave Theory & Techniques, 2013, 61(1): 125-130.
9	CHEN X P, WU K. Substrate integrated waveguide cross-coupled filter with negative coupling structure[J]. IEEE Transactions on Microwave Theory & Techniques, 2008, 56(1): 142-149.
10	ZHU F, HONG W, CHEN J X, WU K. Cross-coupled substrate integrated waveguide filters with improved stopband performance[J]. IEEE Microwave & Wireless Components Letters, 2012, 22(12): 633-635.
11	GONG K, HONG W, et al. Substrate integrated waveguide quasi-elliptic filters with controllable electric and magnetic mixed coupling[J]. IEEE Transactions on Microwave Theory & Techniques, 2012, 60(10): 3071-3078.
12	ZYDLOWSKI S, LESZCZYNSKA L, MROZOWSKI M AND. A linear phase filter in quadruplet topology with frequency-dependent couplings[J]. IEEE Microwave and Wireless Components Letters, 2014, 24(1): 32-34.
13	CHU P, HONG W, et al. In-line ports dual-mode substrate integrated waveguide filter with flexible responses[J]. IEEE Microwave and Wireless Components Letters, 2018, 28(10): 882-884
14	LIU Q, ZHOU D, WANG S, ZHANG Y. Highly-selective pseudoelliptic filters based on dual-mode substrate integrated waveguide resonators[J]. Electronics Letters, 2016, 52(14): 1233-1235.
15	CHU P, HONG W; TUO MG, ZHENG KL, YANG WW, XU F, WU K. Dual-mode substrate integrated waveguide filter with flexible response[J]. IEEE Transactions on Microwave Theory & Techniques, 2017, 63(3): 1-7.
16	LIU Q, ZHOU D, LV D, ZHANG D, ZHANG J, et al. Multi-layered dual-mode substrate integrated waveguide bandpass filter with input and output ports located on the same substrate layer[J]. IET Microwaves Antennas & Propagation, 2019, 13(8): 1-8.
17	LEE T, LIN W, WU K. Multilayer SIW dual-mode bandpass filter with higher-order mode attenuation[C]//International Wireless Symposium(IWS). Chengdu: IEEE, 2018.
18	LIU X X, YU X, CHENG F, et al. Double-layer dual-mode SIW filter using via perturbation[C]//International Workshop on Electromagnetics: Applications and Student Innovation Competition, Chengdu: IEEE, 2012: 1-4.
19	刘庆,周东方,吕大龙,等. 基于非谐振节点的盒型拓扑结构基片集成波导滤波器设计[J]. 电子学报, 2019, 47(5): 1136-1145.
	LIU Q, ZHOU D F, LÜ D L, et al. Design of substrate integrated waveguide filters in box-like topology with nonresonating node[J]. Acta Electronica Sinica, 2019, 47(5): 1136-1145. (in Chinese)
20	LI M, JI Q, CHEN C, et al. A triple-mode bandpass filter with controllable bandwidth using QMSIW cavity[J]. IEEE Microwave and Wireless Components Letters, 2018, 28(8): 654-656.
21	JIN C, SHEN Z. Compact triple-mode filter based on quarter-mode substrate integrated waveguide [J]. IEEE Transactions on Microwave Theory and Techniques, 2014, 62(1): 37-45.
22	LIU Q, ZHOU D, SHI J, HU T. High-selective triple-mode SIW bandpass filter using higher-order resonant modes[J]. Electronics Letters, 2020, 56(1): 37-39.
23	XIE H, ZHOU K, ZHOU C, WU W. Substrate-integrated waveguide triple-band bandpass filters using triple-mode cavities[J]. IEEE Transactions on Microwave Theory and Techniques, 2018, 66(6): 2967-2977.
24	XIE H, ZHOU K, ZHOU C, WU W. Stopband-improved SIW triplexer and triple-band filters using alternately cascaded triple- and single-mode cavities[J]. IEEE Access, 2019, 7: 56745-56752.
25	LIU Z, XIAO G, ZHU L. Triple-mode bandpass filters on CSRR-loaded substrate integrated waveguide cavities[J]. IEEE Transactions on Components Packaging & Manufacturing Technology, 2016, 6(7): 1-7.
26	SHEN W. Extended-doublet half-mode substrate integrated waveguide bandpass filter with wide stopband[J]. IEEE Microwave and Wireless Components Letters, 2018, 28(4): 305-307.
27	CAMERON R J, KUDSIA C M, MANSOUR R R. Microwave Filters for Communication Systems: Fundamentals, Design, and Applications[M]. New York, USA: Wiley, 2007.
28	CHANG K. Microstrip Filters for RF/Microwave Applications[M]. New York, USA: John Wiley & Sons, Inc, 2001.
29	POZAR D M. Microwave Engineering[M]. 3rd Ed. New York, USA: Wiley, 2015.
30	CAMERON R J, HARISH A R, RADCLIFFE C J. Synthesis of advanced microwave filters without diagonal cross-couplings[J]. IEEE Transactions on Microwave Theory & Techniques, 2003, 50(12): 2862-2872.

滤波器	中心频率 (GHz)	阶数	相对带宽 (%)	位置可控的 FTZs数量	是否可控频率响应	归一化尺寸 λ_g×λ_g	介质板层数	结构实现形式
文献[6]	10	5	3.94	2	是	1.52×1.61	1	单层单双模组合
文献[8]	5.8	4	12.1	0	否	1.29×1.29	1	单层单模
文献[9]	20.5	4	3.9	0	否	1.47× 1.91	1	单层单模
文献[14]	5.22	4	/	1	否	1.46×0.66	1	单层双模
文献[15]	15	4	4.3	2	是	1.73×0.95	1	单层双模
文献[16]	10	4	3.28	2	是	0.86×0.86	2	双层双模
文献[18]	5.5	4	3.6	0	否	0.88×0.88	2	双层双模
文献[19]	10	4	3.31	2	是	1.31×1.31	1	单层单双模组合
文献[22]	13.53	3	3.91	2	否	0.84×0.84	2	单层三模
滤波器I	7.47	4	2.57	2	是	0.85×0.85	2	双模单双模组合
滤波器II	7.49	4	2.52	3	是	0.85×0.85	2	双模单双模组合

滤波器	中心频率 (GHz)	阶数	相对带宽 (%)	位置可控的 FTZs数量	是否可控频率响应	归一化尺寸 λ_g×λ_g	介质板层数	结构实现形式
文献[6]	10	5	3.94	2	是	1.52×1.61	1	单层单双模组合
文献[8]	5.8	4	12.1	0	否	1.29×1.29	1	单层单模
文献[9]	20.5	4	3.9	0	否	1.47× 1.91	1	单层单模
文献[14]	5.22	4	/	1	否	1.46×0.66	1	单层双模
文献[15]	15	4	4.3	2	是	1.73×0.95	1	单层双模
文献[16]	10	4	3.28	2	是	0.86×0.86	2	双层双模
文献[18]	5.5	4	3.6	0	否	0.88×0.88	2	双层双模
文献[19]	10	4	3.31	2	是	1.31×1.31	1	单层单双模组合
文献[22]	13.53	3	3.91	2	否	0.84×0.84	2	单层三模
滤波器I	7.47	4	2.57	2	是	0.85×0.85	2	双模单双模组合
滤波器II	7.49	4	2.52	3	是	0.85×0.85	2	双模单双模组合
