智能环境下基于边缘设备规则推理的数据预部署研究

doi:10.12263/DZXB.20200891

摘要/Abstract

摘要：

在现有的规则推理机制下，大量的传感器数据导致的过大规则匹配期间的实时特征计算量降低了推理实时性，同时边缘设备受限的内存资源难以应对如此庞大的数据量.为此，本文设计了数据预部署方案（Data Pre-Deployment Scheme，DPDS）.利用规则解析与预处理模块解析规则集得到的规则网络和轻量级特征表（Light-weight Characteristic Table，LCT），该方案无需进行实时特征计算，使推理效率和实时性得到显著提高，并大大降低了规则匹配期间的内存占用量.实验表明，即使在规则、数据规模很大的情况下，DPDS仍然具有较高的时间效率和空间效率.

关键词: 智能环境, 边缘设备, 规则推理, 规则匹配, 无线传感器网络

Abstract:

Under the existing rule inference mechanism, the amount of real-time feature calculation during rule matching caused by a large amount of sensor data reduces the inference real-time performance. At the same time, the limited memory resources of edge devices cannot cope with such a huge amount of data. For this reason, this thesis designs the Data Pre-Deployment Scheme(DPDS). By utilizing the rule network and Light-weight Characteristic Table(LCT) obtained by the rule analysis and preprocessing module, this scheme enables the rule network to directly reference the characteristic values in the LCT during inference without real-time feature calculations, which significantly improves efficiency and real-time and greatly reduces the memory usage of the inference process. The experimental results show that even in the case of a large amount of data and rules, DPDS still has high time efficiency and space efficiency.

Key words: smart environment, edge device, rule inference, rule matching, wireless sensor network

中图分类号:

TP181

汪成亮, 赵凯, 刘嘉敏. 智能环境下基于边缘设备规则推理的数据预部署研究[J]. 电子学报, 2022, 50(10): 2347-2360.

Cheng-liang WANG, Kai ZHAO, Jia-min LIU . Study on Data Pre-Deployment Based on Inference and Computing of Edge Devices in Smart Environment[J]. Acta Electronica Sinica, 2022, 50(10): 2347-2360.

图/表 13

图1 智能环境系统与边缘设备

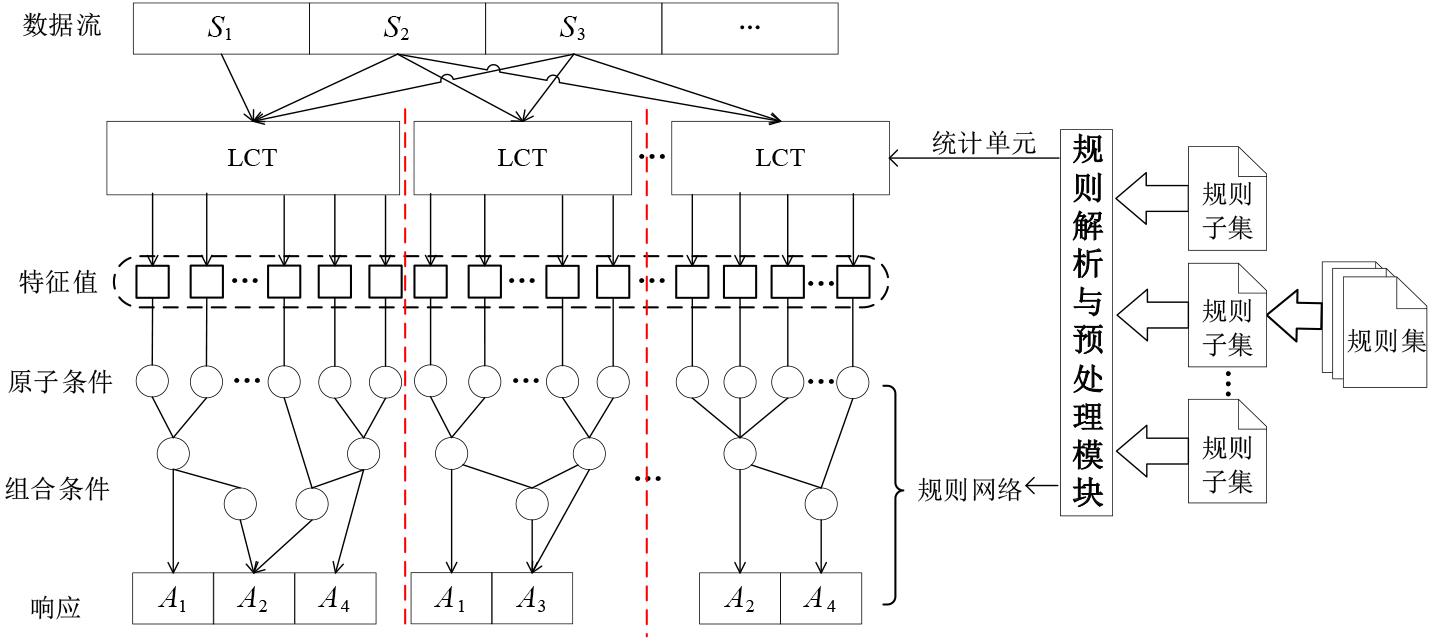

图2 数据预部署策略架构图

图3 将规则转化为规则网络

表1 典型统计特征

统计运算符	编号	可增量式计算	可引用特征
MAX	0	1	null
MIN	1	1	null
RANGE	2	0	MAX, MIN
AVG	3	1	null
VAR	4	1	AVG
STD	5	1	VAR
SKEWNESS	6	0	STD
KURTOSIS	7	0	VAR

图4 滑动窗口与基本窗口

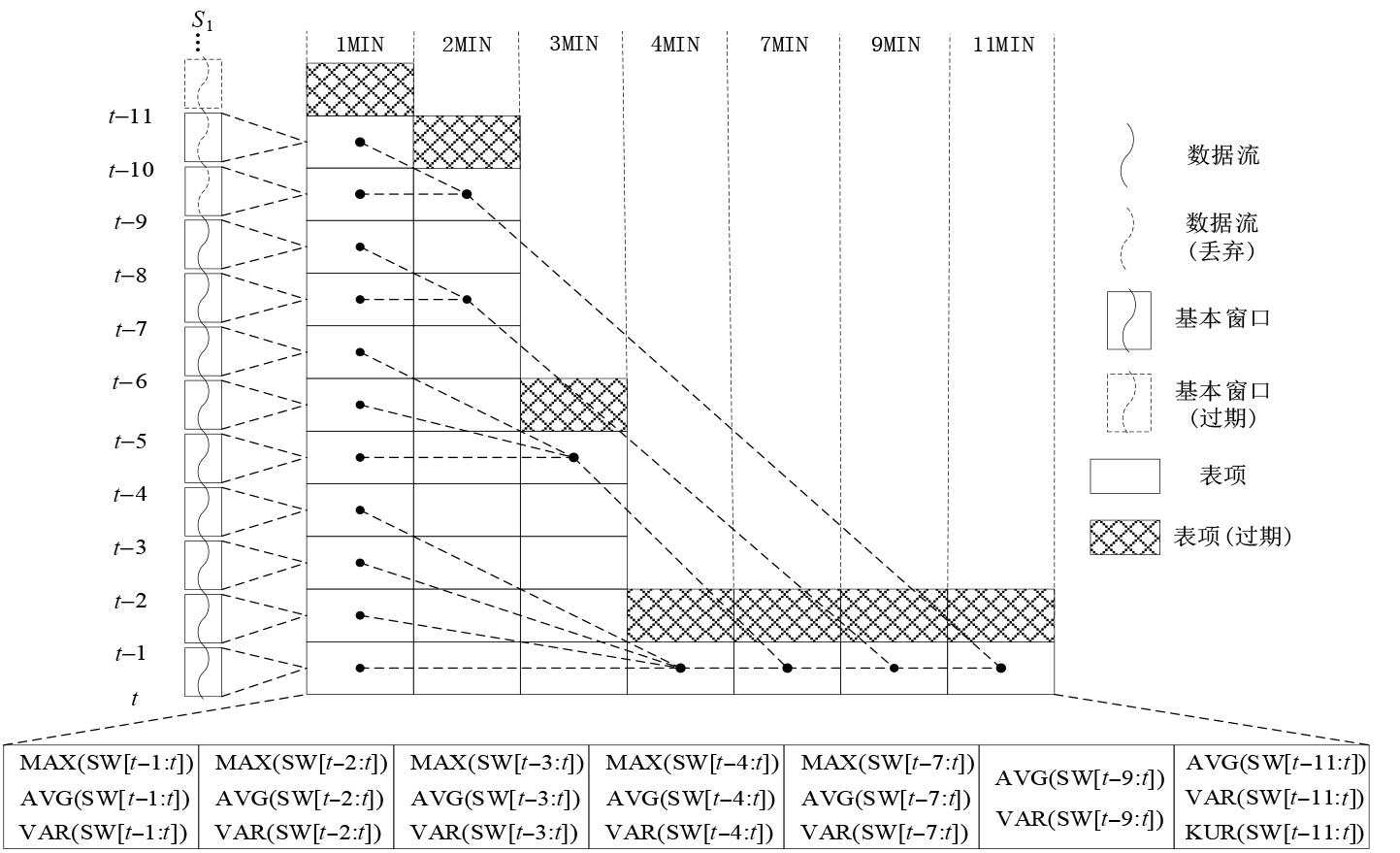

图5 轻量级特征表

图6 轻量级特征表预部署方案

图7 不同数据流流速下数据预部署策略的性能

表2 不同最大窗口长度下的实验参数

实验编号	1	2	3	4	5	6
最大窗口长度	8	16	32	64	128	256

图8 不同窗口长度下数据预部署策略的性能

表3 不同规则数目下的代价分析

n(million)	0.01	0.1	1	2	4	8	16
T_LCT/s	0.074	0.72	7.48	16.4	39.6	100.1	246.3
T_NET/s	0.006	0.637	0.762	1.42	12.8	37.6	63.7

图9 不同规则数目下数据预部署策略的性能(规则重复率为75%)

图10 不同规则数目下数据预部署策略的性能(规则重复率为25%)
